Description

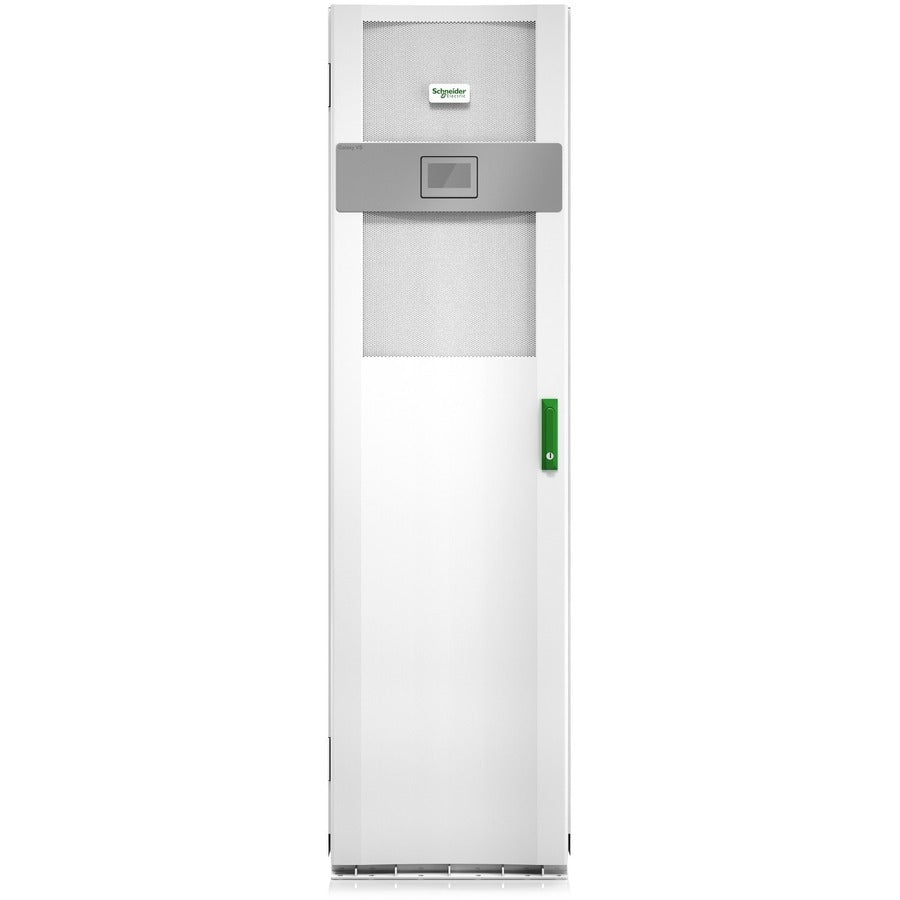

Power your critical infrastructure with confidence using the Schneider Electric Galaxy VS GVSUPS80KB5HS, a high-efficiency, easy-to-deploy 80kW, 400V three-phase UPS. Ideal for edge computing, small to medium data centers, and industrial facilities, this UPS features 3 internal smart modular 9Ah battery strings—expandable to 5—for customizable runtime. Integrated network management, built-in static bypass, and EcoStruxure Ready capability ensure uptime, efficiency, and remote monitoring. Includes 5x8 start-up service for optimal performance from day one.
| Specification | Details |
|---|---|
| Model Number | GVSUPS80KB5HS |
| Rated Power | 80 kW / 80 kVA |
| Input Voltage | 400V 3-phase (also supports 380V, 415V) |
| Input Frequency | 40–70 Hz |
| Efficiency | Up to 97% (normal), 99% (ECOnversion mode) |
| Battery Type | VRLA, Smart Modular (Internal) |
| Included Battery Strings | 3 x 9Ah (Expandable to 5) |
| Output Voltage | 400V 3-phase (also supports 380V, 415V) |
| Output Frequency | 50/60 Hz (sync to mains) |
| Load Power Factor | 0.7 leading to 0.7 lagging without derating |
| Output Voltage Tolerance | ±5% after 2ms, ±1% after 50ms |
| Harmonic Distortion (Output) | <1% linear load, <3% non-linear load |
| Bypass Type | Built-in Static Bypass |
| Interface | Touch Screen LCD |
| EcoStruxure™ Ready | Yes |
| Dimensions (H x W x D) | 1970 x 550 x 847 mm (77.56 x 21.65 x 33.35 in) |
| Weight | 680 kg (1499.1 lbs) |
| Protection Rating | IP20 |
| Acoustic Noise Level | 65 dBA |
| Ambient Operating Temp | 0–40°C (32–104°F) |
| Warranty | 1-Year On-Site Repair or Replace w/ Factory Start-Up |
