Description

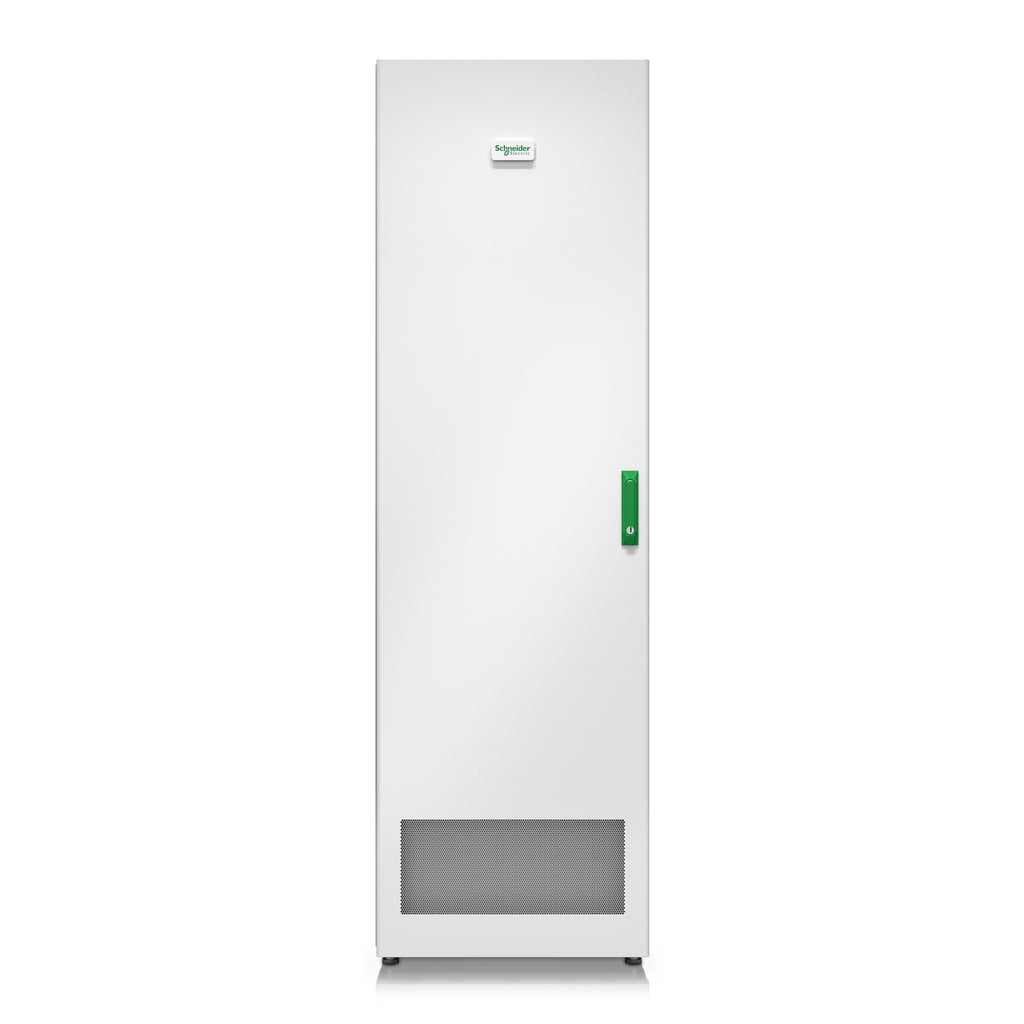

The Schneider Electric GVSBP100T is a maintenance bypass cabinet designed to isolate the UPS completely during service operations. It features high-quality Schneider Electric breakers and ensures safe power continuity. This single-unit solution supports Galaxy VS systems from 10kW to 100kW and operates at 480V. Ideal for critical applications requiring reliable maintenance access.
| Category | Details |
|---|---|
| Product Type | Maintenance Bypass Cabinet |
| Model Number | GVSBP100T |
| Range | Galaxy VS |
| Compatibility | Galaxy VS UPS, 10–100kW |
| Main Input Voltage | 480V, 3-phase |
| Main Output Voltage | 480V, 3-phase |
| Network Frequency | 60 Hz |
| Breakers | Schneider Electric breakers |
| Isolation | Full UPS isolation during service |
| Included Equipment | Installation guide |
| Color | White |
| Height | 77.56 in (197 cm) |
| Width | 23.62 in (60 cm) |
| Depth | 33.35 in (84.7 cm) |
| Weight | 429.9 lb (195 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Storage Temperature | -13 to 131 °F (-25 to 55 °C) |
| Humidity (Operating) | 0–95% non-condensing |
| Altitude (Operating) | 0–3333 ft |
| Package Type | PCE |
| Package Dimensions (HxWxL) | 82.52 x 39.69 x 32.22 in |
| Shipping Weight | 463.0 lb (210 kg) |
| Lead Time | Usually ships within 2 weeks |
| Warranty | 1 year |
