Description

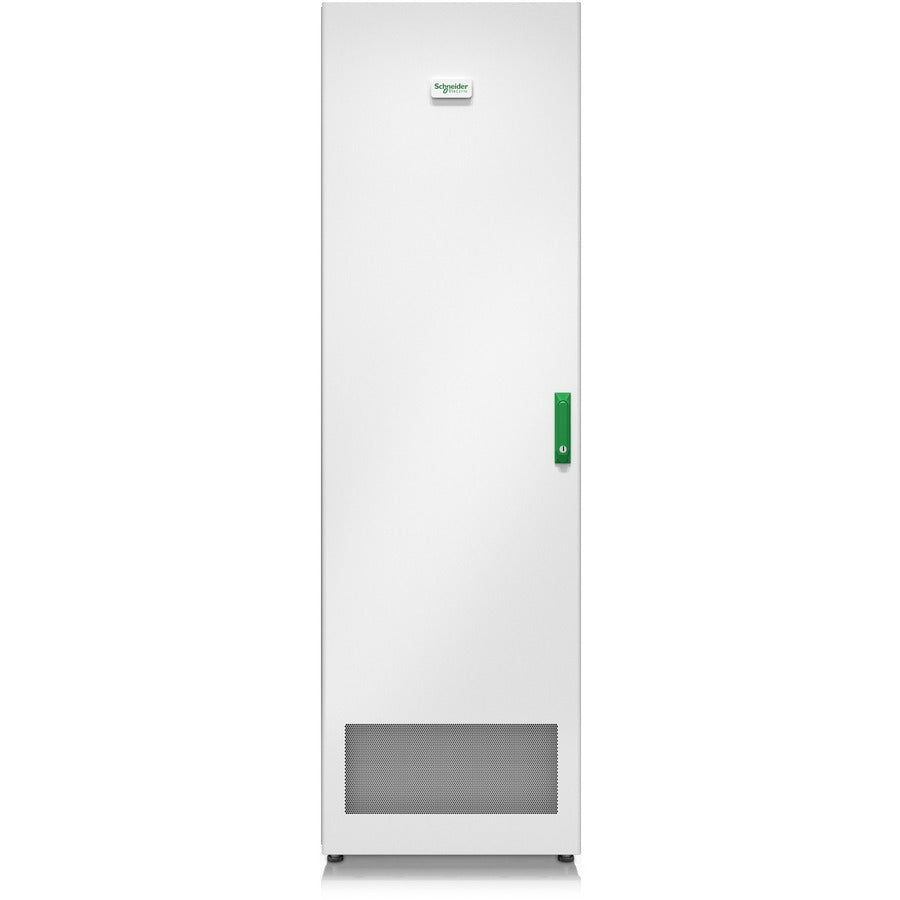

The Schneider Electric GVSBPOT100T is a maintenance bypass cabinet with an integrated output transformer, designed to fully isolate the UPS during service while converting 480V output to 208V. Ideal for high-demand critical applications, it ensures seamless maintenance without power disruption. Compatible with Galaxy VS 480V UPS systems.
| Specification | Details |
|---|---|
| Product Type | Maintenance Bypass Cabinet with Transformer |
| Input Voltage | 480 V, 3-phase |
| Output Voltage | 208 V, 3-phase |
| Range Compatibility | Galaxy VS |
| Features | Includes Schneider Electric breakers, isolates UPS during service, output transformer included |
| Color | White |
| Height | 77.56 in (197 cm) |
| Width | 23.62 in (60 cm) |
| Depth | 33.35 in (84.7 cm) |
| Weight | 1565.3 lb (710 kg) |
| Operating Temp. | 32–104 °F (0–40 °C) |
| Storage Temp. | -13–131 °F (-25–55 °C) |
| Relative Humidity (Operating/Storage) | 0–95% non-condensing |
| Altitude (Operating) | 0–3333 ft |
| Lead Time | Usually ships within 2 weeks |
| Warranty | 1 Year |
| Included | Installation Guide |
