Description

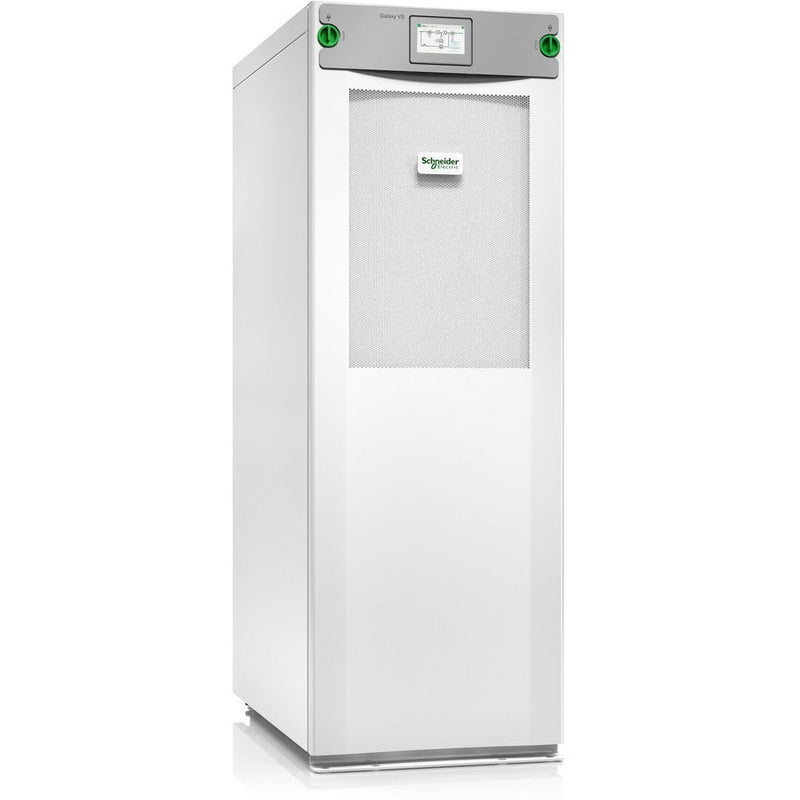

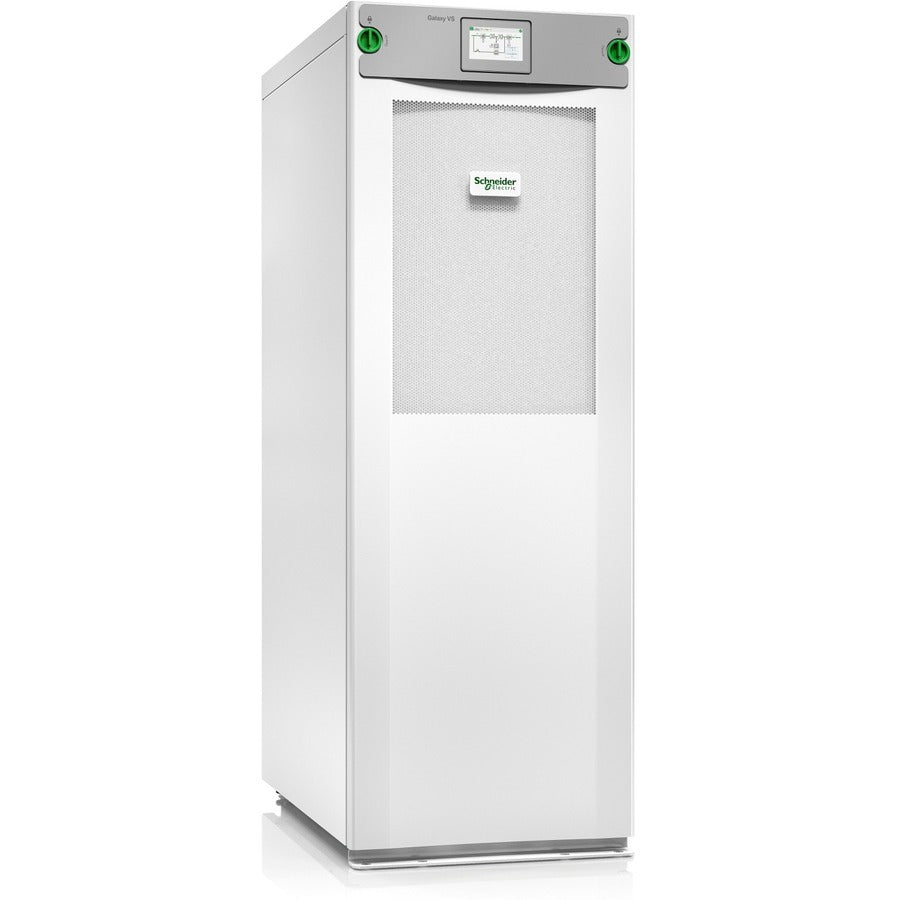

The Schneider Electric Galaxy VS 40kW UPS (GVSUPS40KGS) is a highly efficient, compact 3-phase uninterruptible power supply designed for critical power protection in edge, small, and medium data centers, as well as industrial applications. Operating at 480V and supporting external battery systems, it delivers up to 99% efficiency in ECOnversion mode, significantly reducing energy losses and total cost of ownership.
With integrated network management, modular power architecture, and EcoStruxure-ready connectivity, this UPS ensures peak performance, reliability, and remote monitoring capabilities. Includes 5x8 Start-Up Service for streamlined deployment.
| Attribute | Details |
|---|---|
| Model | GVSUPS40KGS |
| Power Rating | 40 kW / 40 kVA |
| Input Voltage | 480V 3-phase |
| Output Voltage | 480V 3-phase |
| Battery Type | External (VRLA, Li-Ion) |
| Battery Voltage Range | 384–576 VDC |
| Input Frequency | 40–70 Hz |
| Efficiency | Up to 99% (ECOnversion mode) |
| Input Power Factor | 0.99 |
| Output Harmonic Distortion | <1% linear load, <3% non-linear |
| Overload Capacity | 10 min @ 125%, 60 sec @ 150% |
| Form Factor | Tower |
| Bypass Type | Built-in Static Bypass |
| Interface | Touch Screen LCD |
| Certifications | ENERGY STAR® V2.0, UL 1778, IEC 62040-3 |
| Dimensions (HxWxD) | 1485 x 521 x 847 mm (58.46 x 20.51 x 33.35 in) |
| Weight | 206 kg (454.2 lbs) |
| Warranty |
