Description

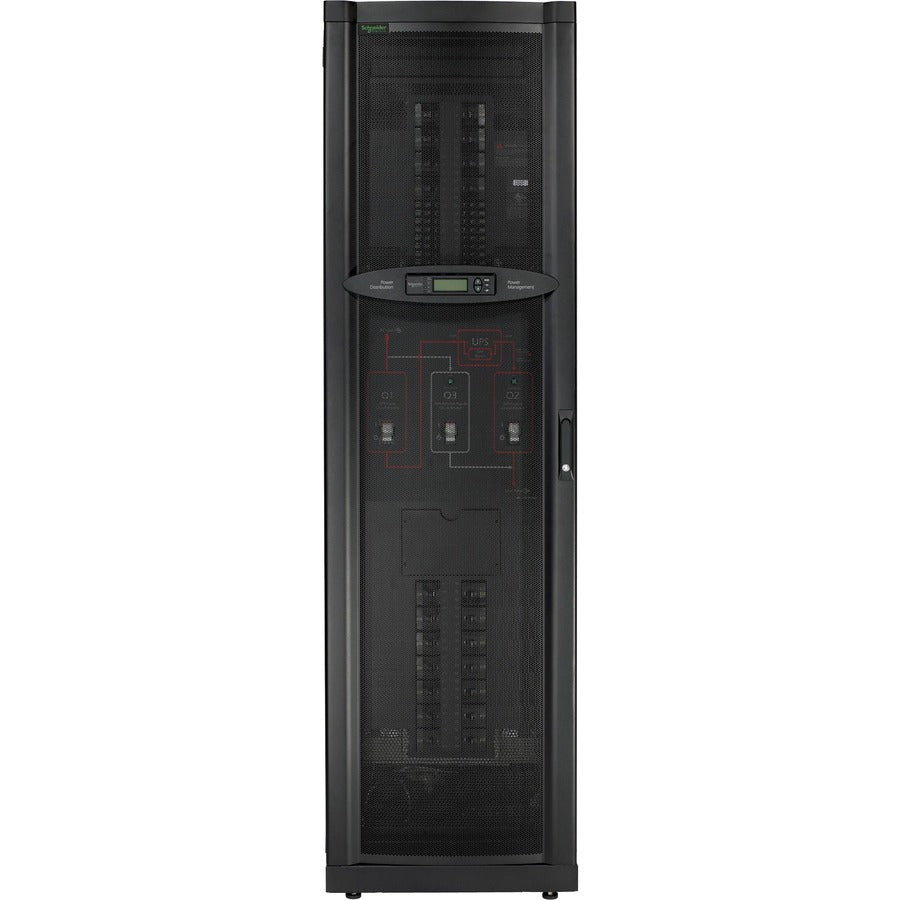

Power your data center efficiently and reliably with the APC InfraStruxure PD40G6FK1-M—a high-performance 40kW power distribution unit with integrated Maintenance Bypass Panel (MBP). Designed for flexibility and speed of deployment, this factory-assembled unit supports both overhead and underfloor power routing and includes a PowerView display for local and remote monitoring. Built to exact specifications with NEMA TP1-rated transformers for maximum efficiency.
| Specification | Details |
|---|---|
| Model Number | PD40G6FK1-M |
| Power Capacity | 40kW |
| Input Voltage | 480V 3-Phase |
| Output Voltage | 208V / 120V |
| Input Frequency | 60 Hz ± 3 Hz |
| Input Current Limit | 67 A |
| Max Total Current per Phase | 139 A |
| Efficiency | 98% |
| Form Factor | 0U (Floor Standing) |
| Mounting | Front (Not Rack-Mountable) |
| Dimensions (H x W x D) | 80.98 x 24.02 x 35.98 in (205.7 x 61 x 91.4 cm) |
| Weight | 1278.7 lbs (580 kg) |
| Color | Black |
| Certifications | UL 60950, cUL Listed |
| Included Accessories | Installation Guide, User Manual |
| Operating Temp / Humidity | 32–104°F (0–40°C) / 0–95% RH |
| Storage Temp / Humidity | 32–113°F (0–45°C) / 0–95% RH |
| Warranty | 1-Year Repair or Replace |
