Description

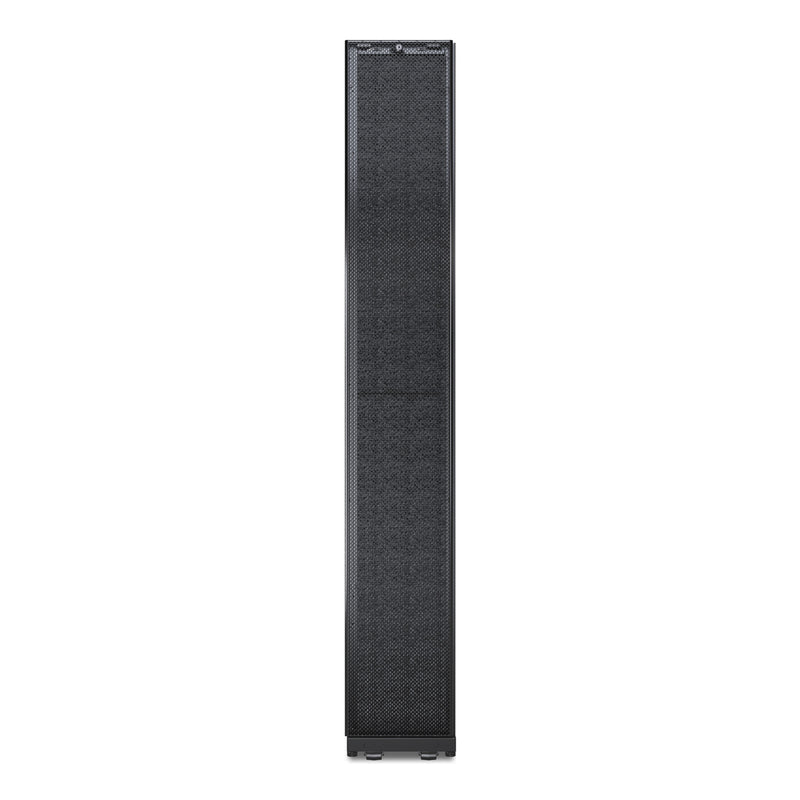

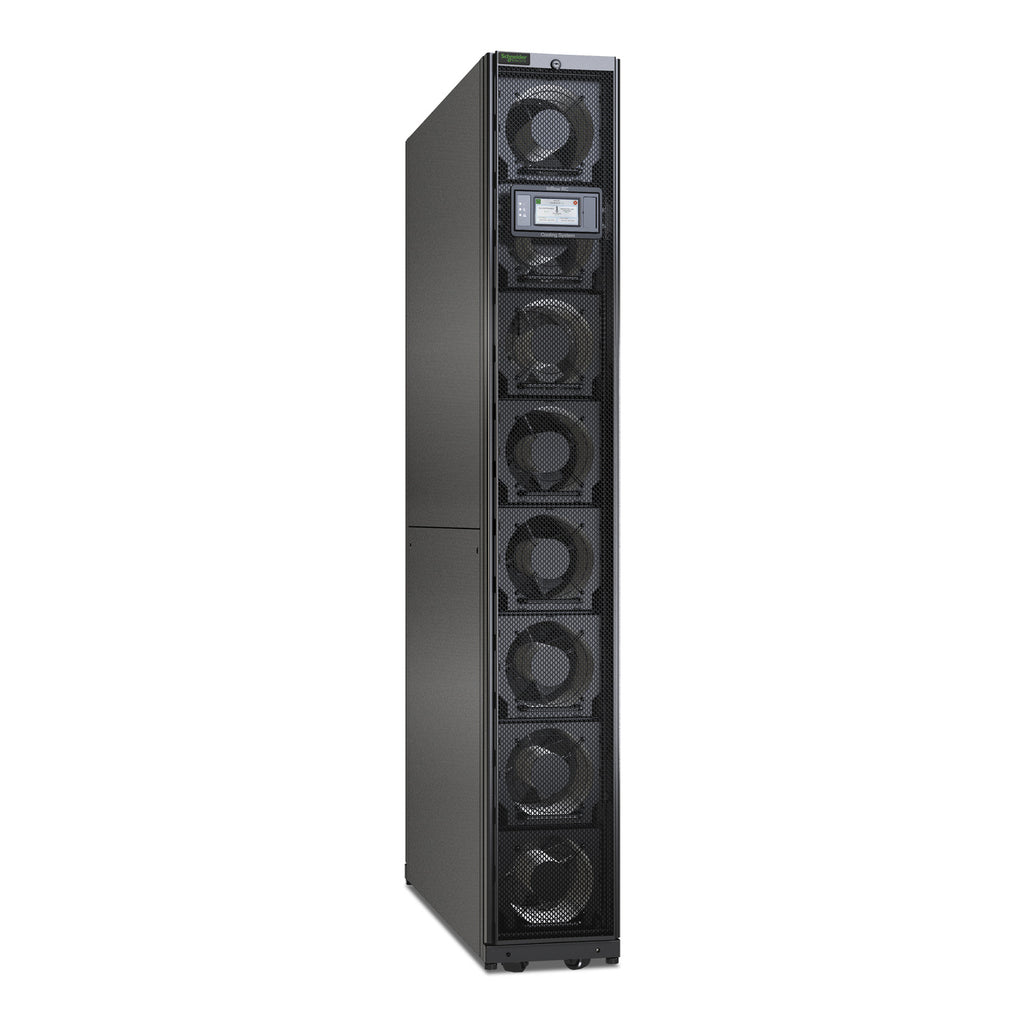

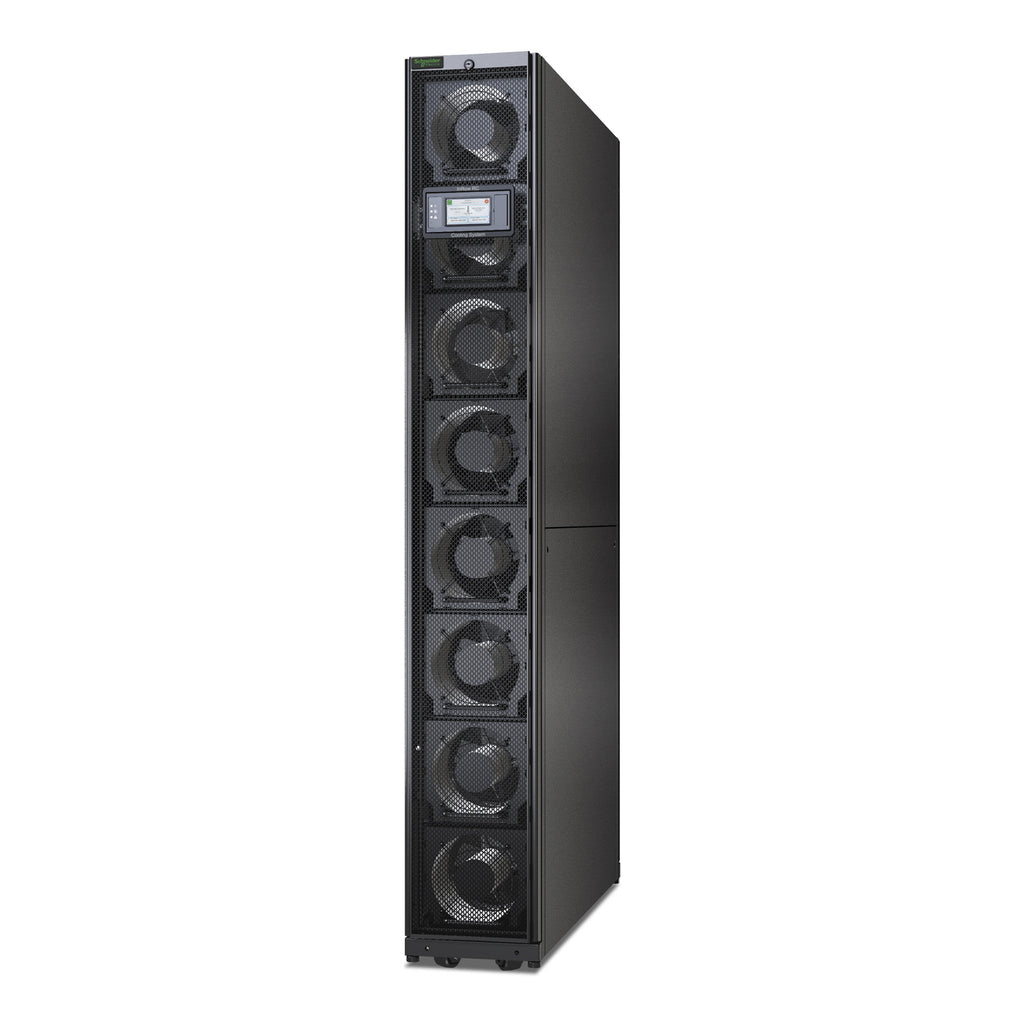

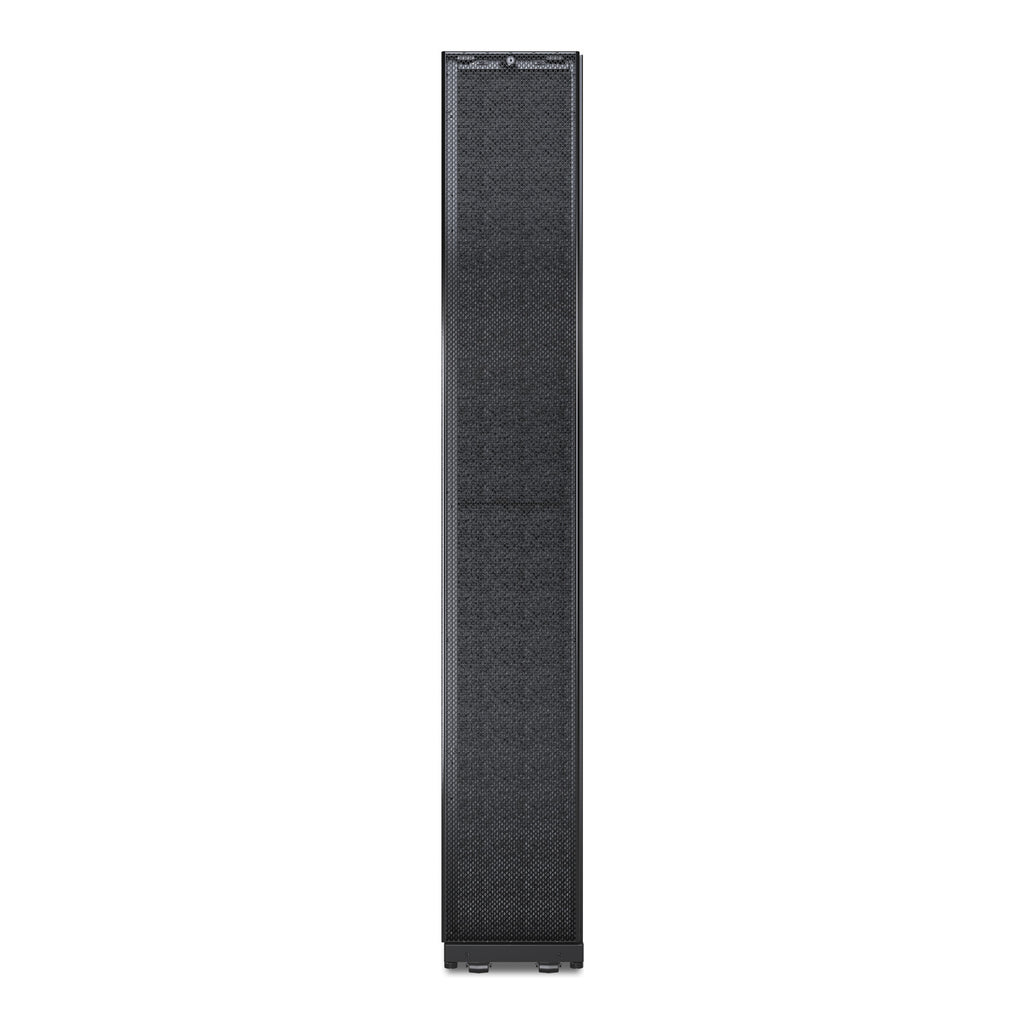

The APC ACRC301H InRow RC cooling unit delivers high-efficiency chilled water cooling directly at the rack level. Designed for data centers with high-density loads, this 300mm unit optimizes airflow with rear air intake and horizontal discharge to reduce hot spots and increase predictability. With an intelligent LCD interface and support for dual power feeds, it's ideal for mission-critical environments demanding performance and reliability in a compact footprint.
| Attribute | Details |
|---|---|
| Model | ACRC301H |
| Cooling Type | Chilled Water InRow |
| Voltage Range | 208V / 220V / 230V |
| Frequency | 50/60 Hz |
| Cooling Capacity | 4200 CFM (1982.2 L/s) airflow |
| Air Intake | Rear Return |
| Air Discharge | Horizontal |
| Minimum Water Inlet Temp | 7°C (45°F) |
| Power Input | 1900W |
| Input Connectors | 1 Hard Wire 3-wire |
| Power Feeds | 2 |
| Circuit Ampacity | 15 A |
| Overcurrent Protection | 15 A Max |
| Rack Units | 42U |
| Control Interface | Multi-function LCD console |
| Certifications | CE, VDE, GOST, MEA, C-tick |
| Standards Compliance | EN 55022, EN 55024, IEC 60950, etc. |
| Color | Black |
| Dimensions (HxWxD) | 78.39 x 11.81 x 43.11 in (199.1 x 30 x 109.5 cm) |
| Weight (Net / Packaged) | 210 kg / 220 kg |
| Mounting | Floor-standing (Not rack-mountable) |
| Warranty | 1 year (parts only) |
