Description

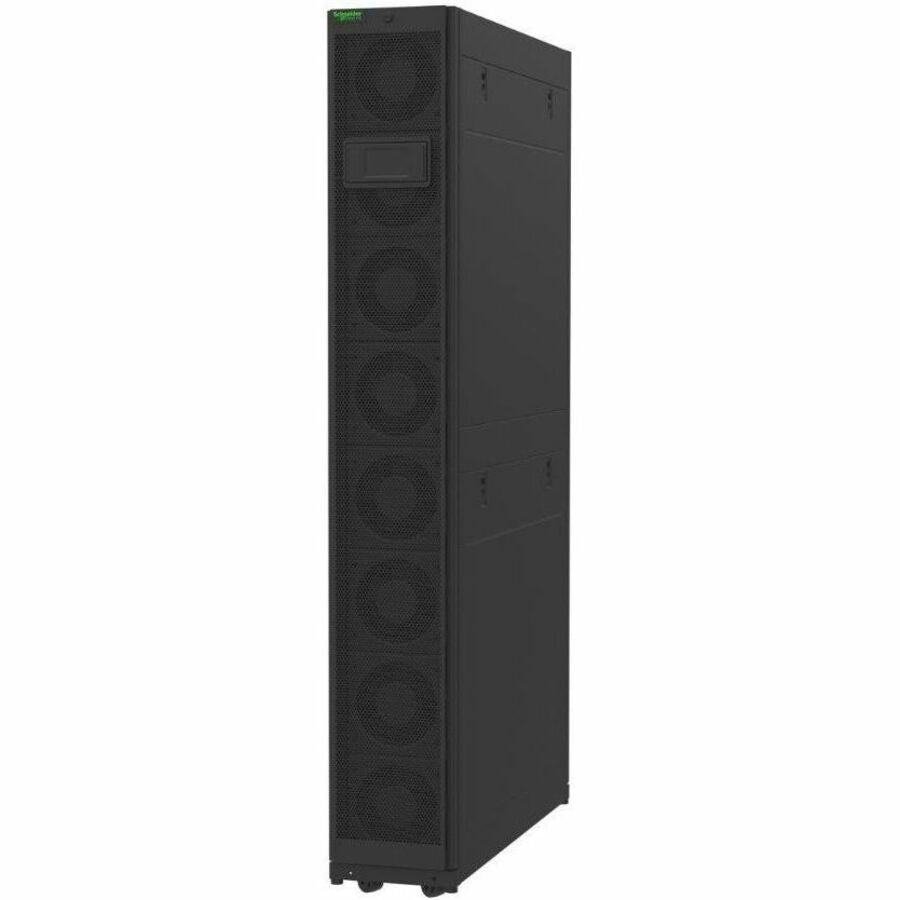

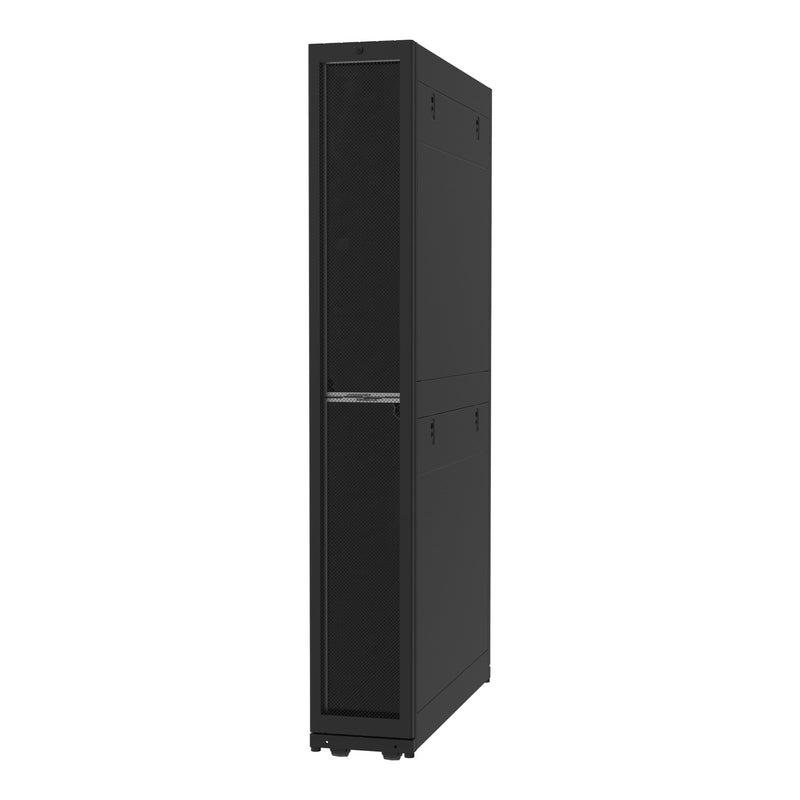

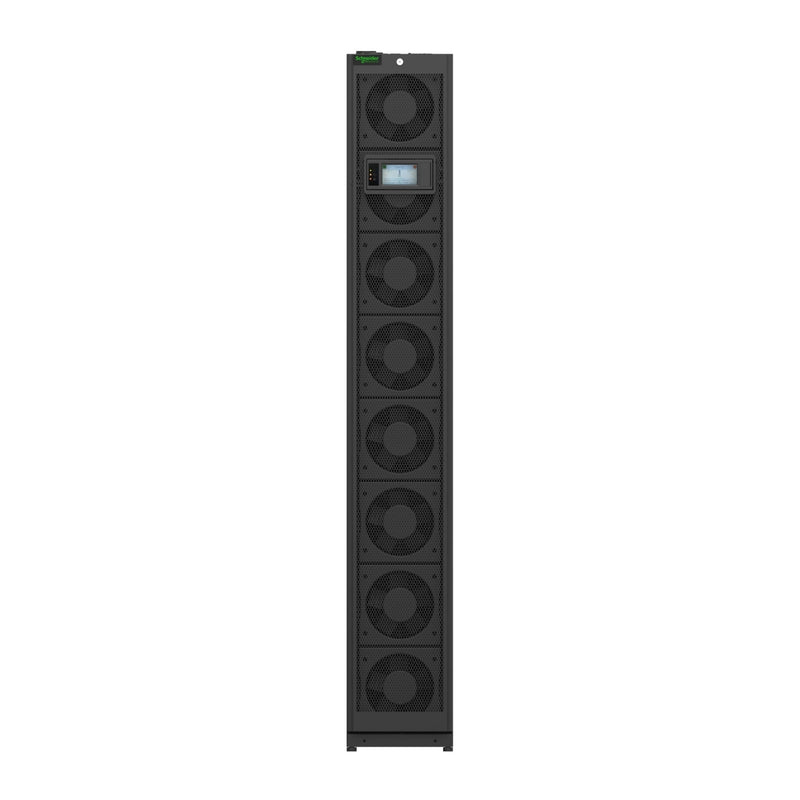

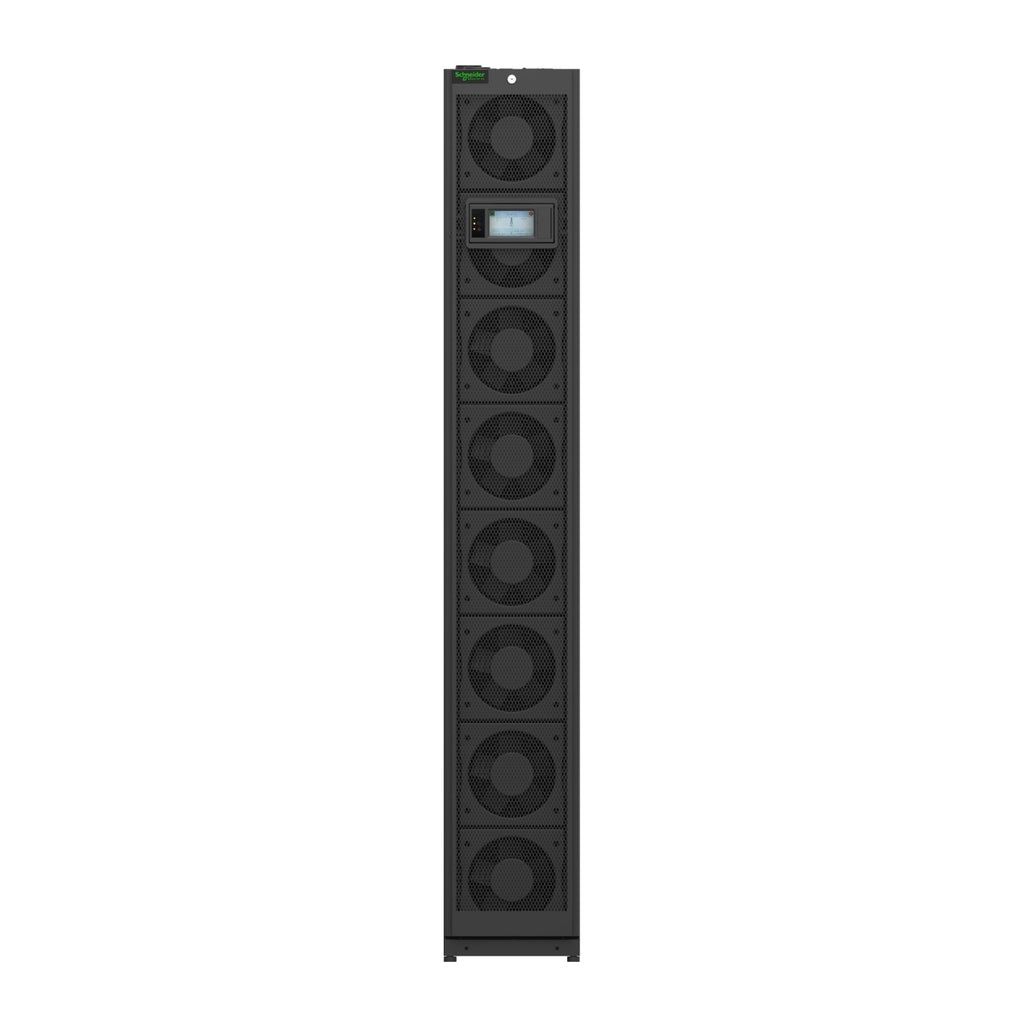

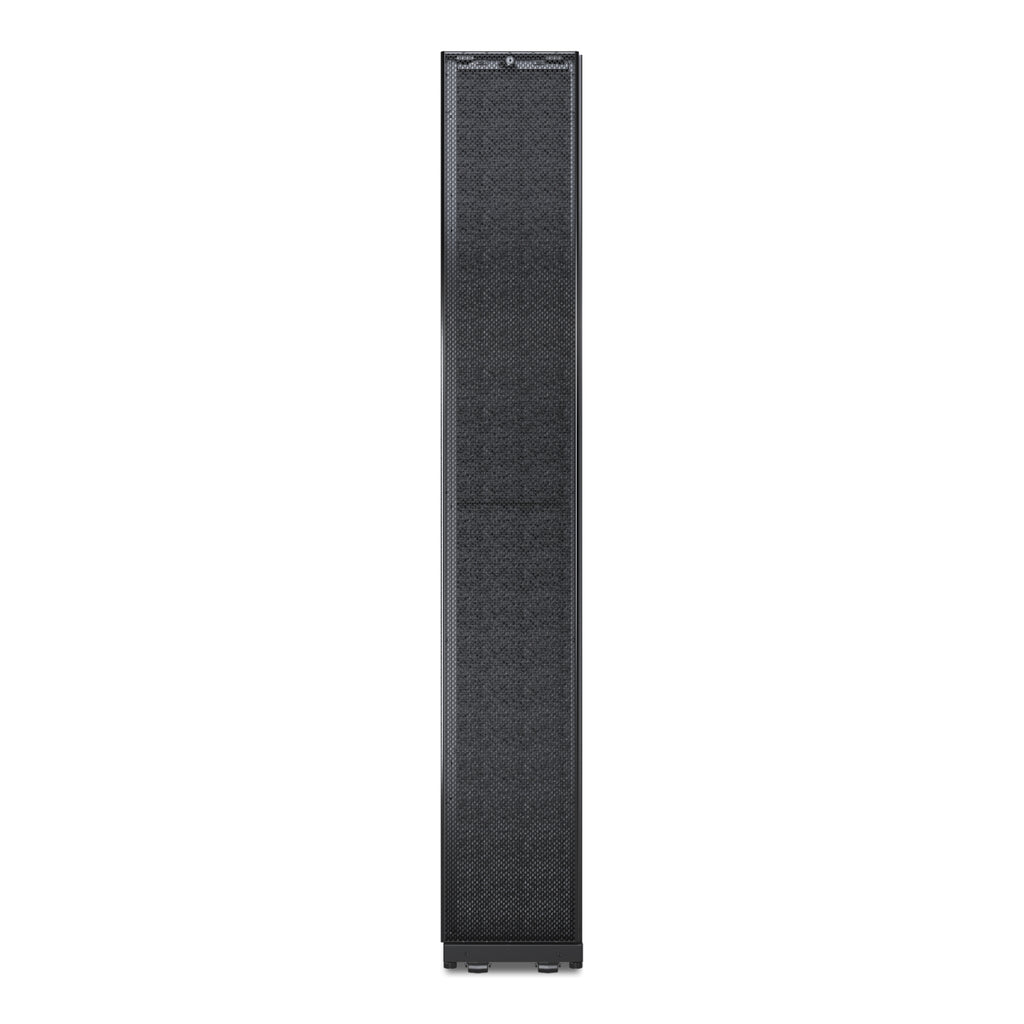

Optimize thermal management in your data center with the Schneider Electric ACRH301S InRow Cooling Unit. This CE/UL-certified 300mm-wide unit features a dual coil design, delivering 27kW of efficient cooling at 200-240V input. Ideal for high-density environments, it draws air from the rear and discharges it horizontally, enabling precision airflow and minimizing energy waste. With a compact 42U rack height, advanced LCD touchscreen control, and included installation and O&M manuals, it's engineered for operational efficiency and serviceability.
| Feature | Specification |
|---|---|
| Model | ACRH301S |
| Cooling Capacity | 27kW |
| Airflow | 2912 CFM (1374.3 L/s) |
| Form Factor | 42U Rack-Mounted |
| Air Intake / Discharge | Rear Return / Horizontal Discharge |
| Voltage Input | 200–240V AC, Single Phase |
| Power Consumption | 930 W |
| Input Frequency | 50–60 Hz |
| Dimensions (HxWxD) | 78.4 x 11.8 x 43.1 in (1991 x 300 x 1095 mm) |
| Weight (Net / Packed) | 411.2 lb / 499.3 lb (186.5 kg / 226.5 kg) |
| Control Interface | Touchscreen LCD |
| Certifications | CE, UL, RCM |
| Included Documentation | Installation Guide, Operations & Maintenance Manual |
| Warranty | 1-Year Parts, 1-Year On-Site with Factory Start-Up |
