Description

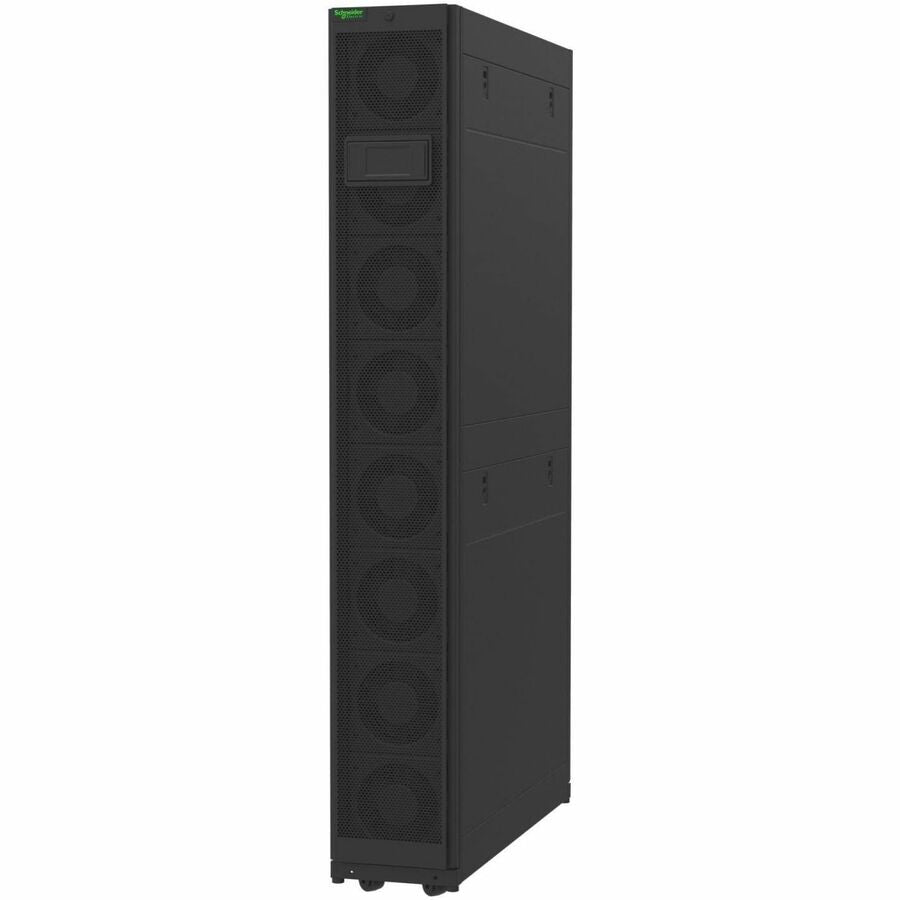

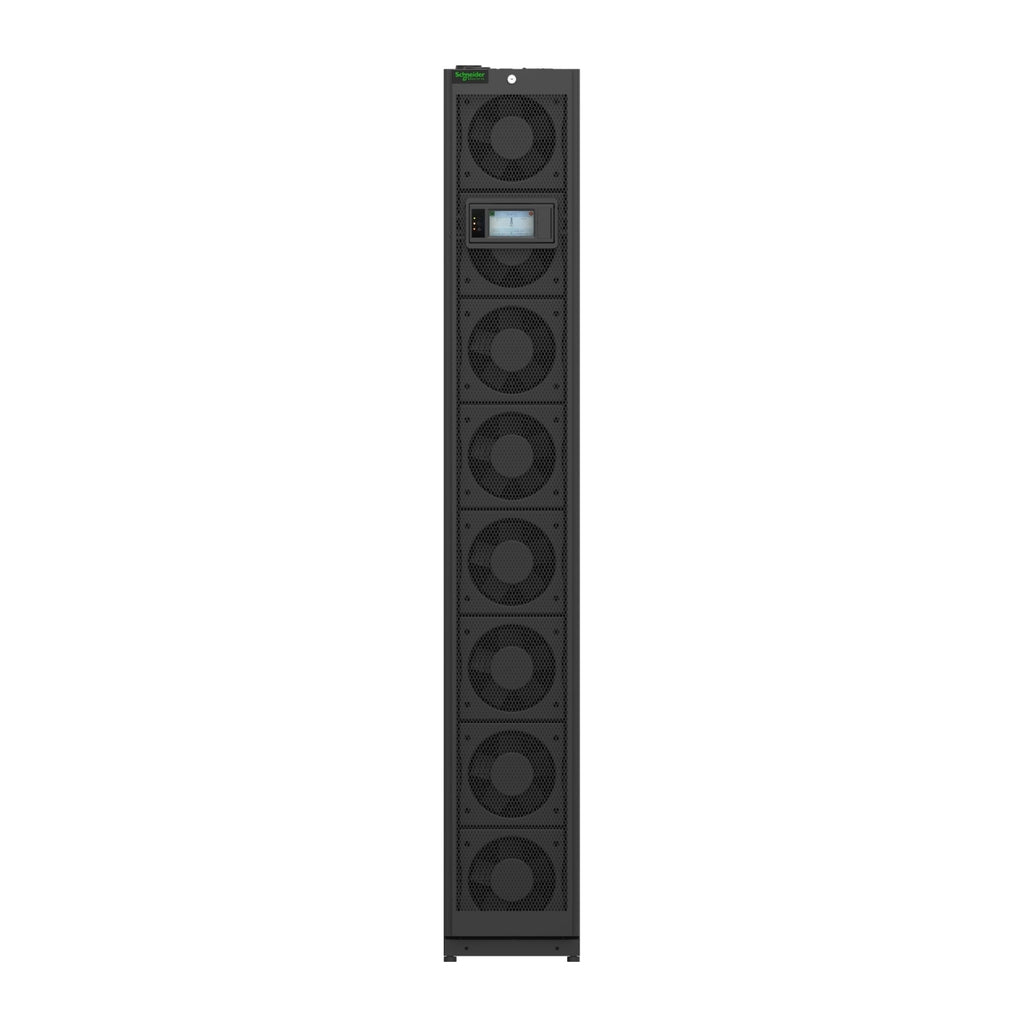

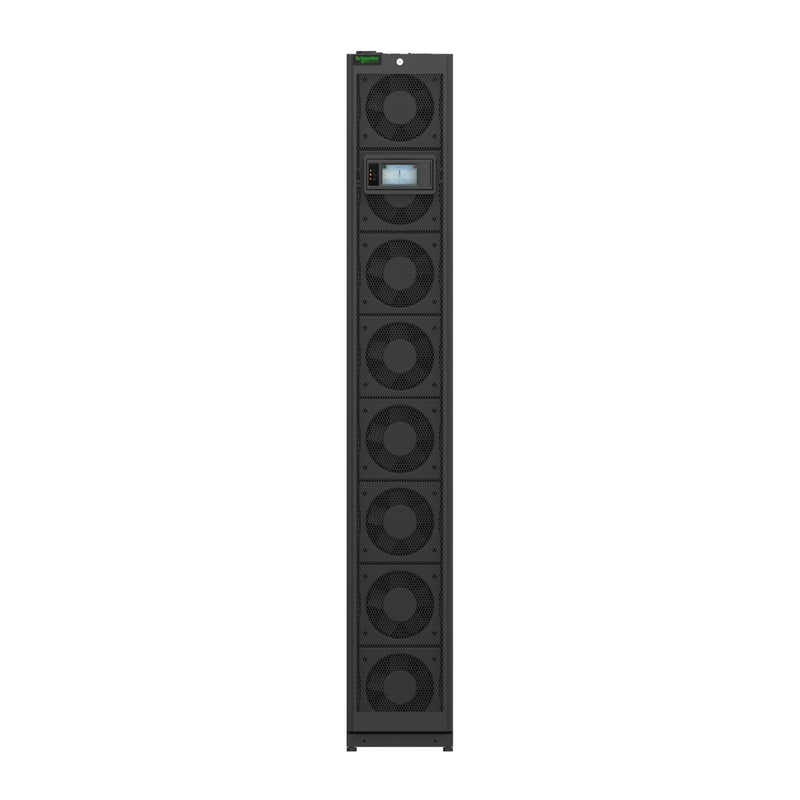

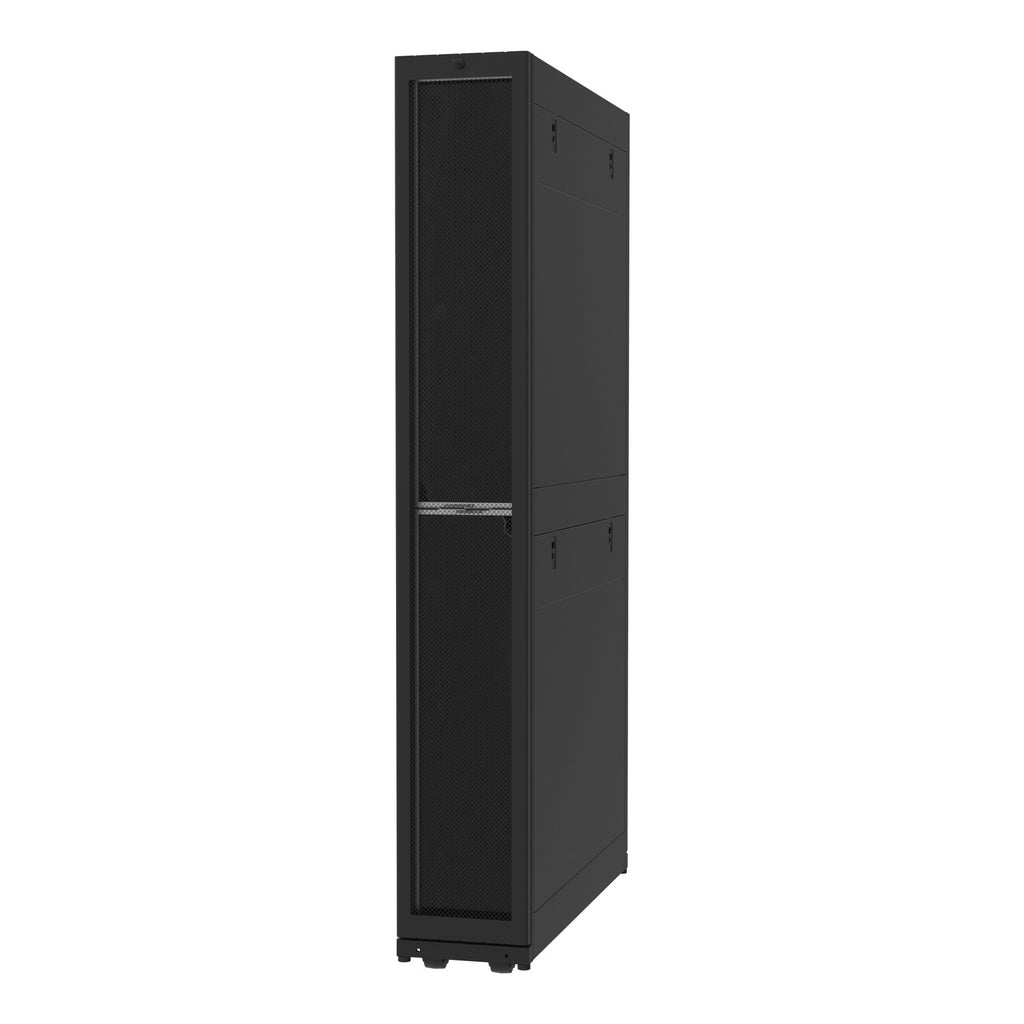

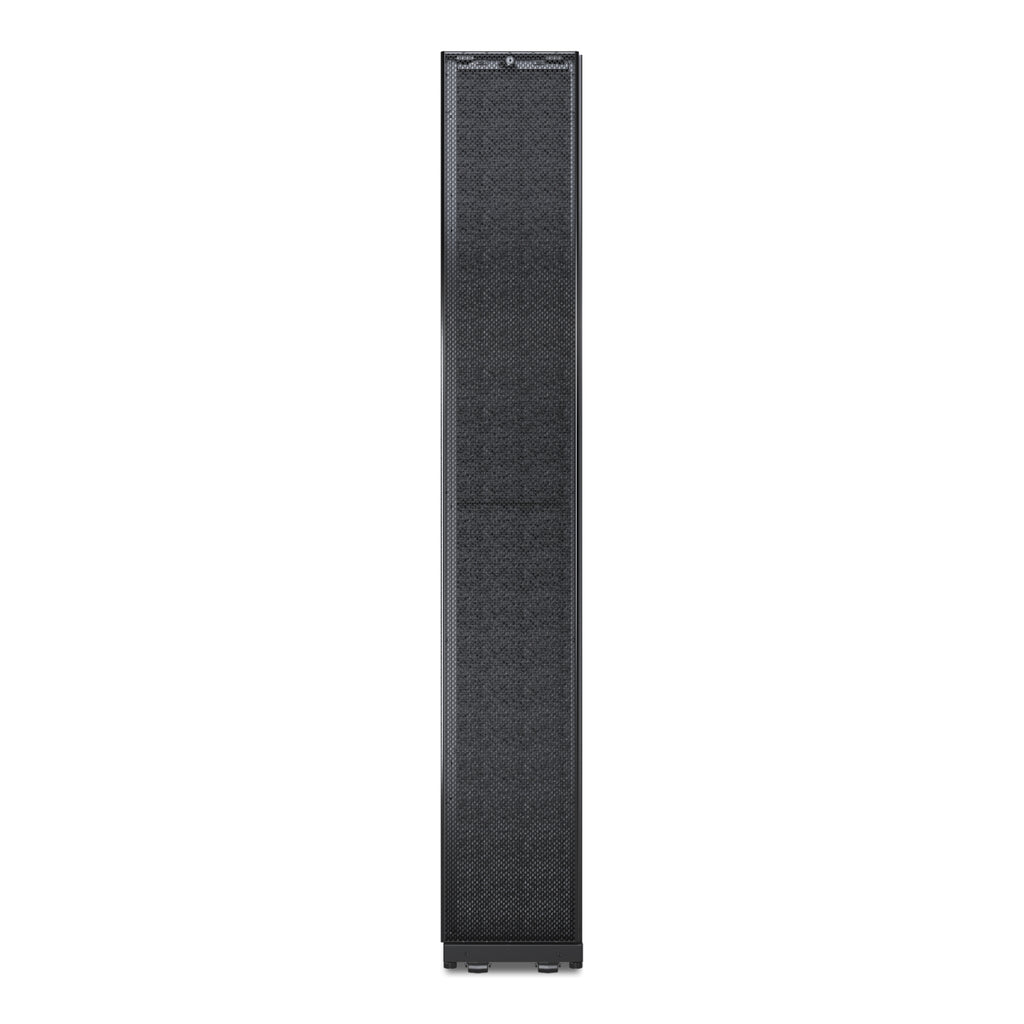

The Schneider Electric ACRH301P is a high-performance 300mm InRow dual coil indoor cooling unit engineered for precision air management in data centers and IT environments. With a cooling capacity of 27kW, integrated humidifier (3.0 kg/hr), and reheat capabilities, this unit delivers highly efficient and reliable climate control. Operating on 200–240V single-phase power, it features rear air return and horizontal discharge, ideal for maintaining consistent airflow in dense rack setups. Certified with CE and UL, the ACRH301P offers robust environmental control, simplified maintenance, and space-saving installation in 42U rack height.
| Specification | Details |
|---|---|
| Model | ACRH301P |
| Cooling Capacity | 27 kW |
| Voltage | 200–240V AC, Single-phase |
| Frequency | 50/60 Hz |
| Air Flow | 2912 CFM (1374.3 L/s) |
| Humidification Capacity | 6.6 lb/hr (3.0 kg/hr) |
| Reheat Function | Yes |
| Air Intake | Rear Return |
| Air Discharge | Horizontal |
| Control Interface | Touchscreen LCD |
| Rack Height | 42U |
| Dimensions (HxWxD) | 78.4 x 11.8 x 43.1 in (1991 x 300 x 1095 mm) |
| Product Weight | 440.9 lb (200 kg) |
| Certifications | CE, UL, RCM |
| Included Accessories | Installation Guide, O&M Manual |
| Warranty | 1 Year (Parts), 1 Year On-site w/ Start-Up |
