Description

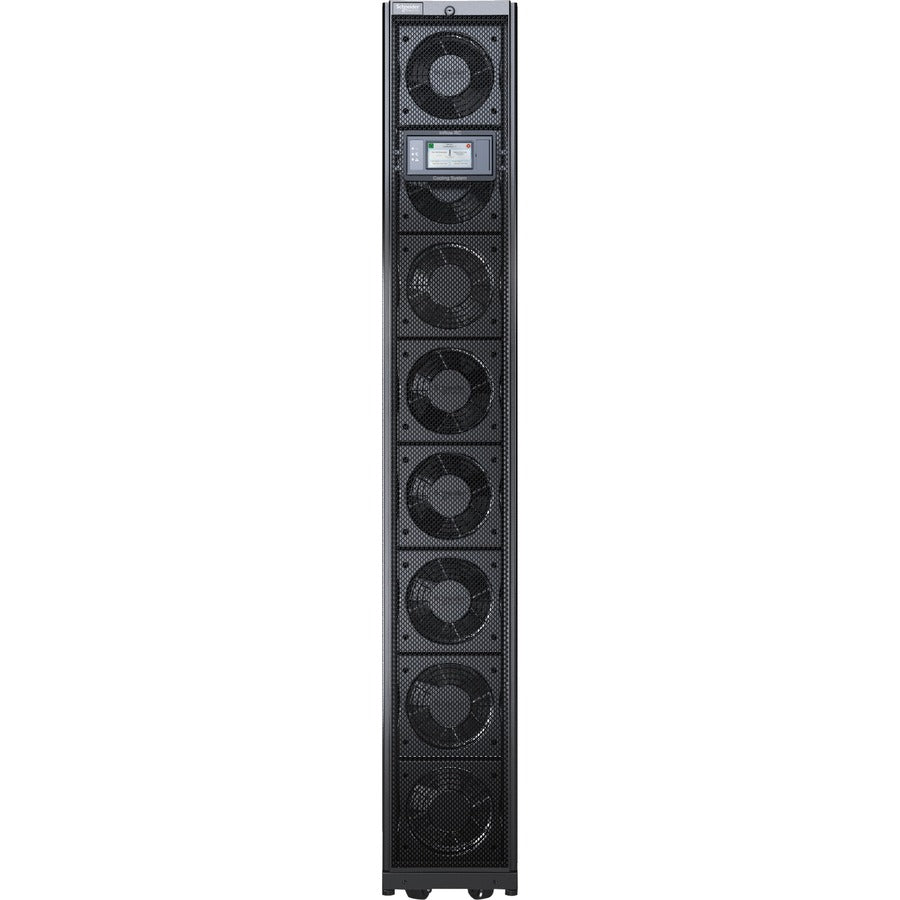

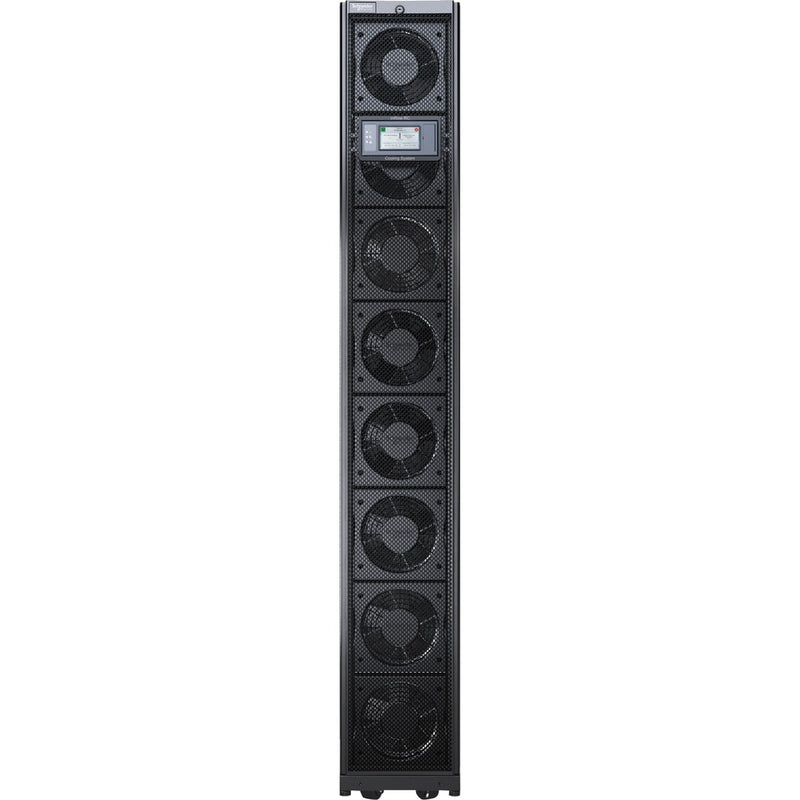

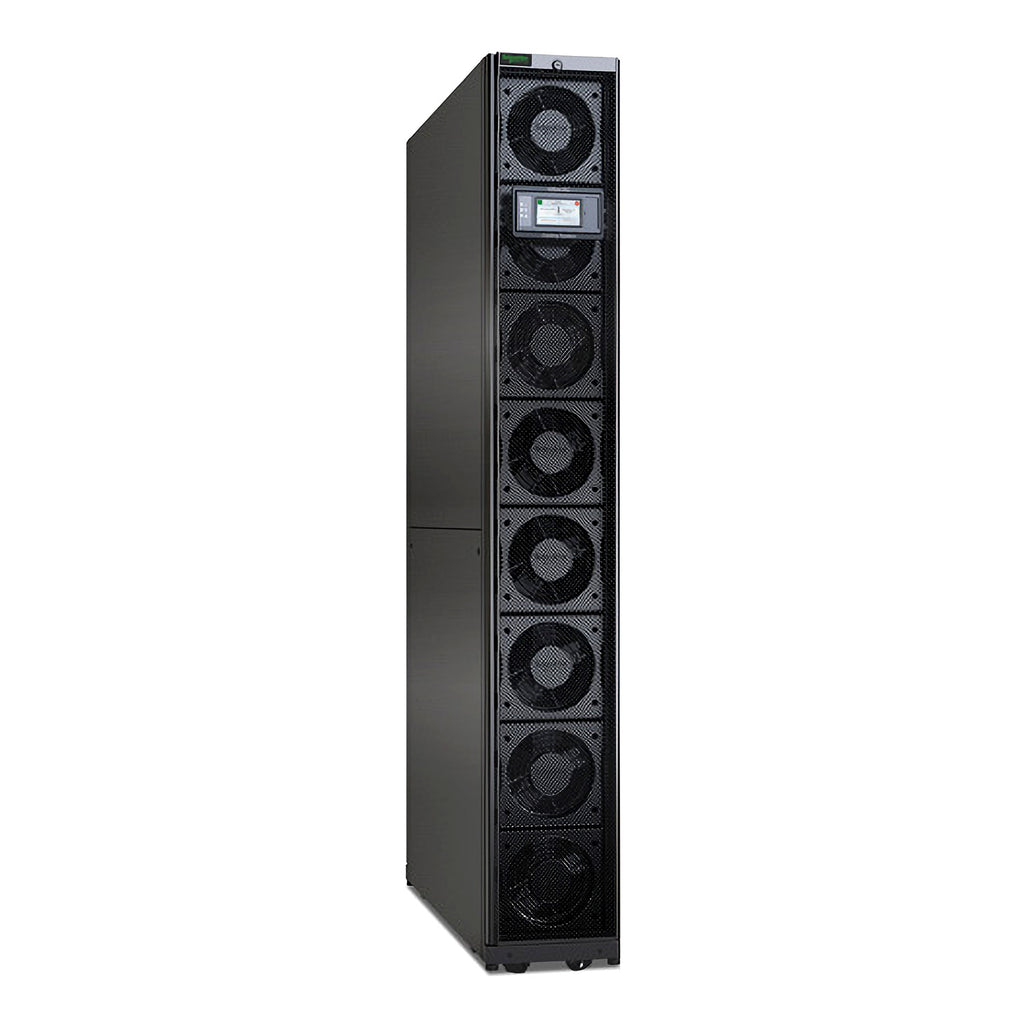

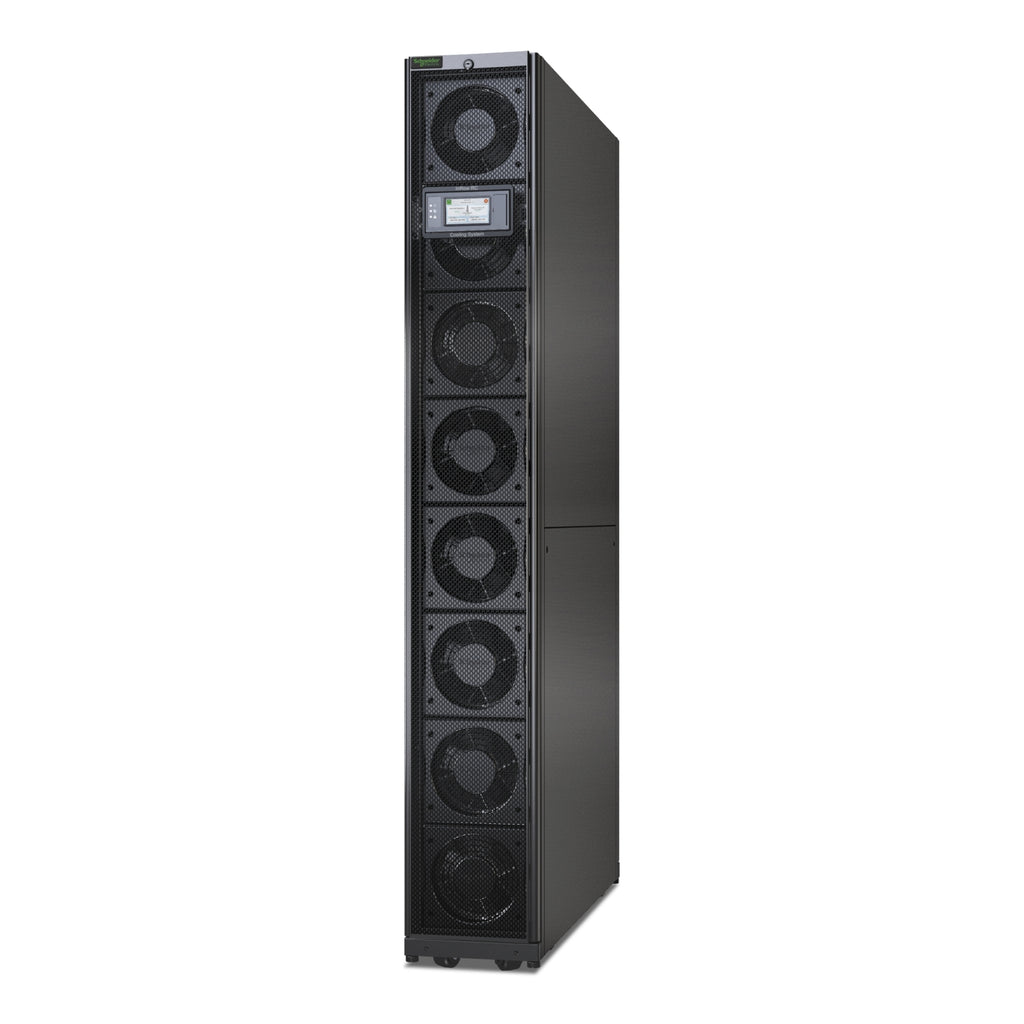

Ensure precision cooling and energy efficiency in high-density server environments with the APC Uniflair ACRC301S. This 300mm InRow cooling unit utilizes chilled water to provide horizontal airflow for optimal heat removal directly at the source. With intelligent monitoring, dual power feeds, and a rear air intake design, it delivers scalable cooling for mission-critical IT infrastructure. Designed for rack-adjacent placement, the ACRC301S ensures high performance with minimal footprint.
| Category | Details |
|---|---|
| Model | ACRC301S |
| Cooling Type | Chilled Water, InRow |
| Voltage Input | 100–120V / 200–240V, 50/60Hz |
| Input Connection Types | IEC 60309 16A 2P+E, NEMA L5-20P |
| Power Feeds | 2 |
| Input Power | 800 W |
| Airflow Capacity | 3200 CFM (1510.2 L/s) |
| Air Discharge | Horizontal |
| Air Intake | Rear Return |
| Condensate Pump Capacity | 1.3 Gal/hr (0.005 m³/hr) |
| Rack Units | 42U |
| Color | Black |
| Control Interface | Multi-function LCD status and control console |
| Mounting | Floor-standing (not rack-mountable) |
| Dimensions (HxWxD) | 78.39 x 11.81 x 43.11 in (199.1 x 30 x 109.5 cm) |
| Weight | 405.7 lbs (184 kg) |
| Certifications | CE, GOST, MEA, VDE, C-tick |
| Standards Compliance | EN 55022/55024, IEC 60950, IEC 61000 series |
| Warranty | 1 Year (Parts Only) |
| Package Dimensions (LWH) | 29.37 x 44.76 x 83.39 in (74.6 x 113.7 x 211.8 cm) |
| Package Weight | 423.3 lbs (192 kg) |
