Description

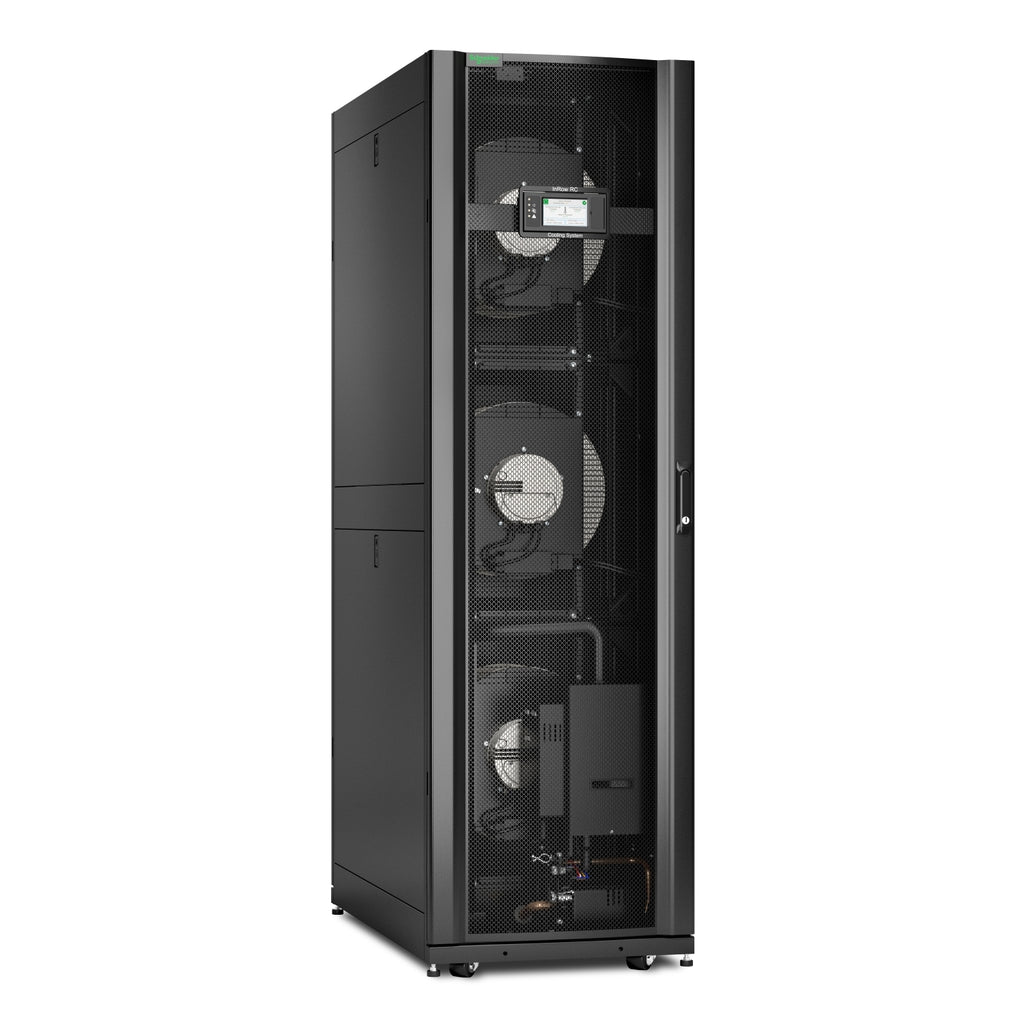

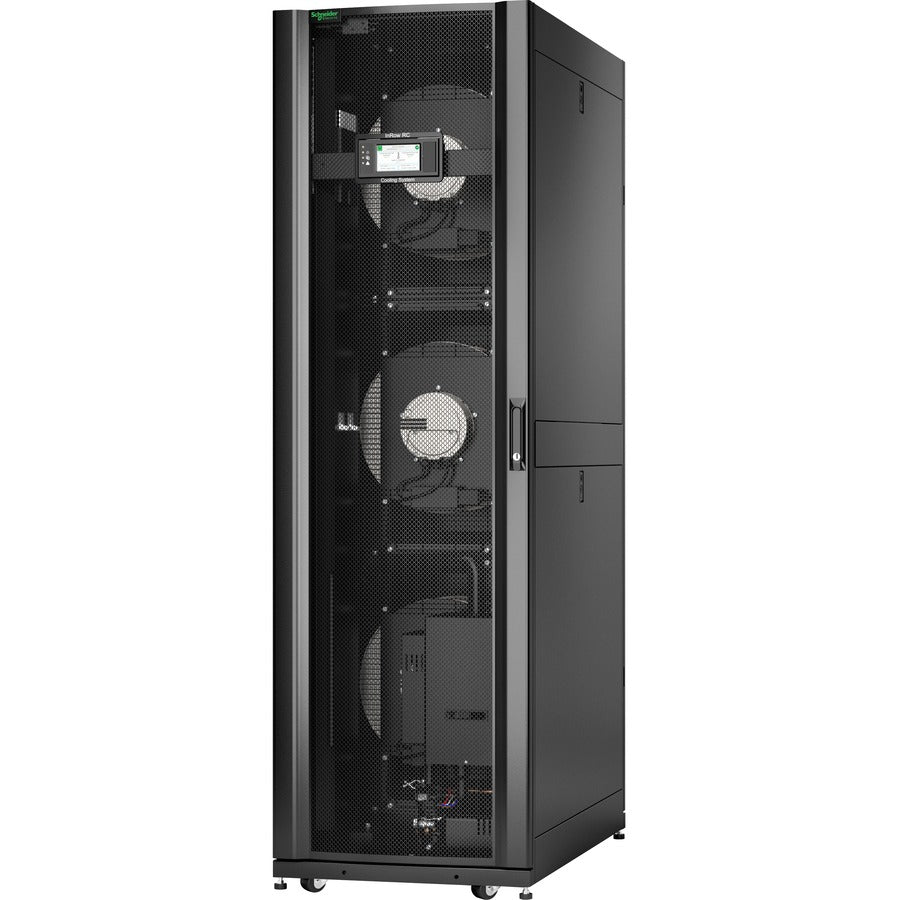

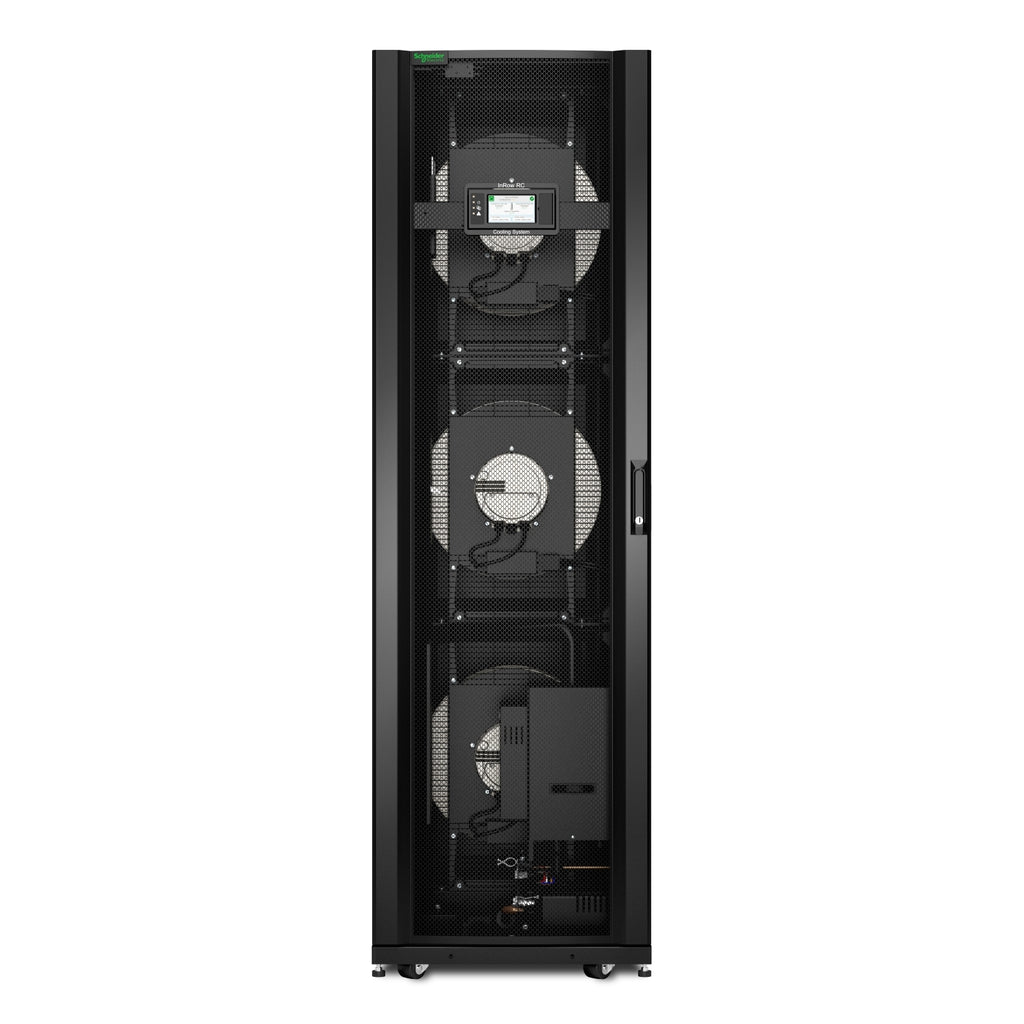

The Schneider Electric ACRC601P is a 600mm InRow RC chilled water cooling unit designed for high-density data center environments. Operating at 460–480V, 60Hz, it features precision cooling with integrated humidification, delivering 6.6 lb/hr of humidification to maintain optimal environmental conditions. This unit supports rear air intake and horizontal discharge, pushing up to 6000 CFM of airflow. With UL and cUL certifications, the ACRC601P is a trusted solution for rack-based cooling with minimal footprint and maximum efficiency.
| Specification | Details |
|---|---|
| Brand | Schneider Electric |
| Model | ACRC601P |
| Type | InRow RC Chilled Water Cooling Unit |
| Voltage | 460–480V, 3 Phase |
| Frequency | 60 Hz |
| Airflow | 6000 CFM (2831.7 L/s) |
| Humidification Capacity | 6.6 lb/hr (3.0 kg/hr) |
| Condensate Pump Capacity | 8.45 Gal/hr (0.03 m³/h) |
| Air Discharge | Horizontal |
| Air Intake | Rear Return |
| Unit Dimensions (H x W x D) | 78.39 x 23.62 x 42.13 in (199.1 x 60 x 107 cm) |
| Unit Weight | 777.64 lb (352.73 kg) |
| Input Power | 14,000 W |
| Input Connector | 1 Hard Wire (4-wire: 3PH + G) |
| Rack Height | 42U |
| Mounting Mode | Floor-standing (not rack-mountable) |
| Control Panel | LCD Status and Control Console |
| Certifications | UL Listed, cUL Listed, FCC Part 15 Class A |
| Warranty | 1 Year Parts, 1 Year On-Site Repair with Start-Up |
| GTIN | 731304330394 |
