Description

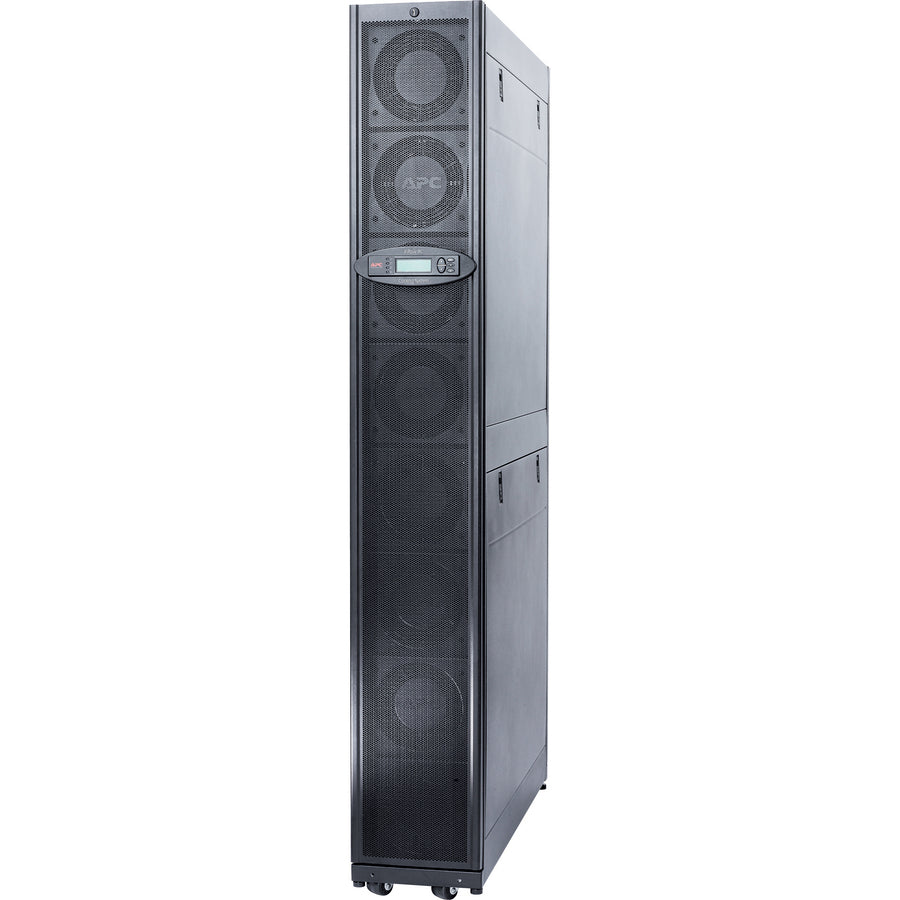

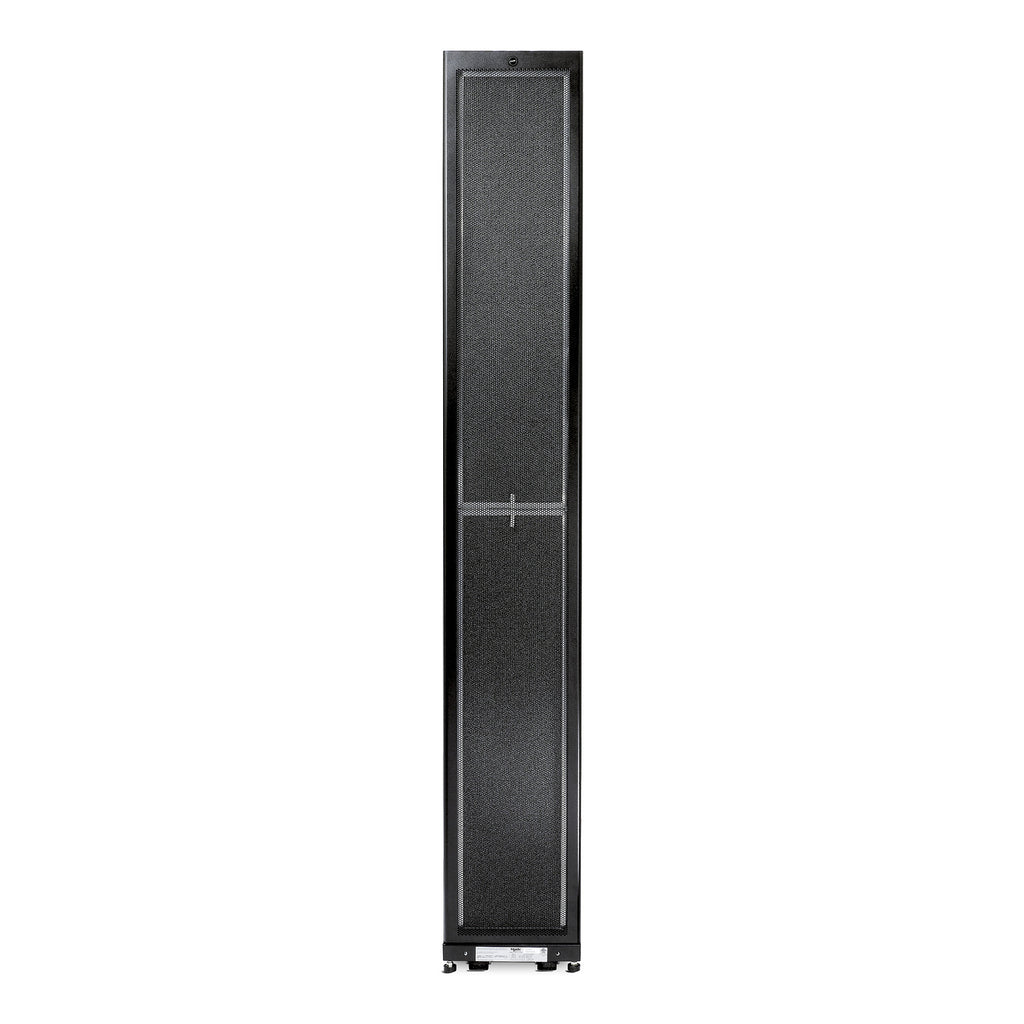

Improve thermal efficiency and reclaim valuable white-space with the APC InRow RC ACRC100 chilled-water cooling unit. Designed to sit in-line with your rack row, it draws hot air directly from the rear of the enclosure, cools it with high-capacity chilled water coils, and discharges it horizontally across the aisle—eliminating hot spots before they form. An intuitive LCD console simplifies setup and monitoring, while field-replaceable components and front-service access keep maintenance quick and cost-effective.
Key Features
-
High airflow: 2 900 CFM (1 368 L/s) for dense server loads
-
Precise capacity: 1 100 W input power; 65 520 kJ sensible heat removal
-
Compact footprint: 300 mm (11.81 in) width fits seamlessly between racks
-
Flexible power: 100–120 V, 50/60 Hz with NEMA L5-20P input
-
Smart control: Multi-function LCD status & control console
-
Reliable condensate management: 1.3 gal/hr pump
-
Standards compliant: UL, cUL, FCC Class A, VCCI, ICES-003
-
Warranty: 1-year parts plus on-site repair (with factory-authorized start-up)
| Category | Detail |
|---|---|
| Part Number | ACRC100 |
| Cooling Method | Chilled water, in-row air conditioning |
| Airflow / Heat Removal | 2 900 CFM • 65 520 kJ sensible capacity |
| Input Power | 1 100 W • 100–120 V ±10 %, 50/60 Hz |
| Input Connection | NEMA L5-20P, 2 cables |
| Rack Units Supported | 42 U |
| Air Intake / Discharge | Rear return • Horizontal discharge |
| Min. Water Inlet Temp. | 7 °C (45 °F) |
| Condensate Pump | 1.3 gal/hr |
| Dimensions (H × W × D) | 78.39 × 11.81 × 42.13 in (1 991 × 300 × 1 070 mm) |
| Weight (Net / Ship) | 358.8 lb / 426.4 lb (162.7 kg / 193.4 kg) |
| Control Interface | LCD status & control console |
| Certifications | UL, cUL, MEA, FCC Part 15 A, VCCI, ICES-003 |
| Warranty | 1-year parts; 1-year on-site repair with start-up |
