Description

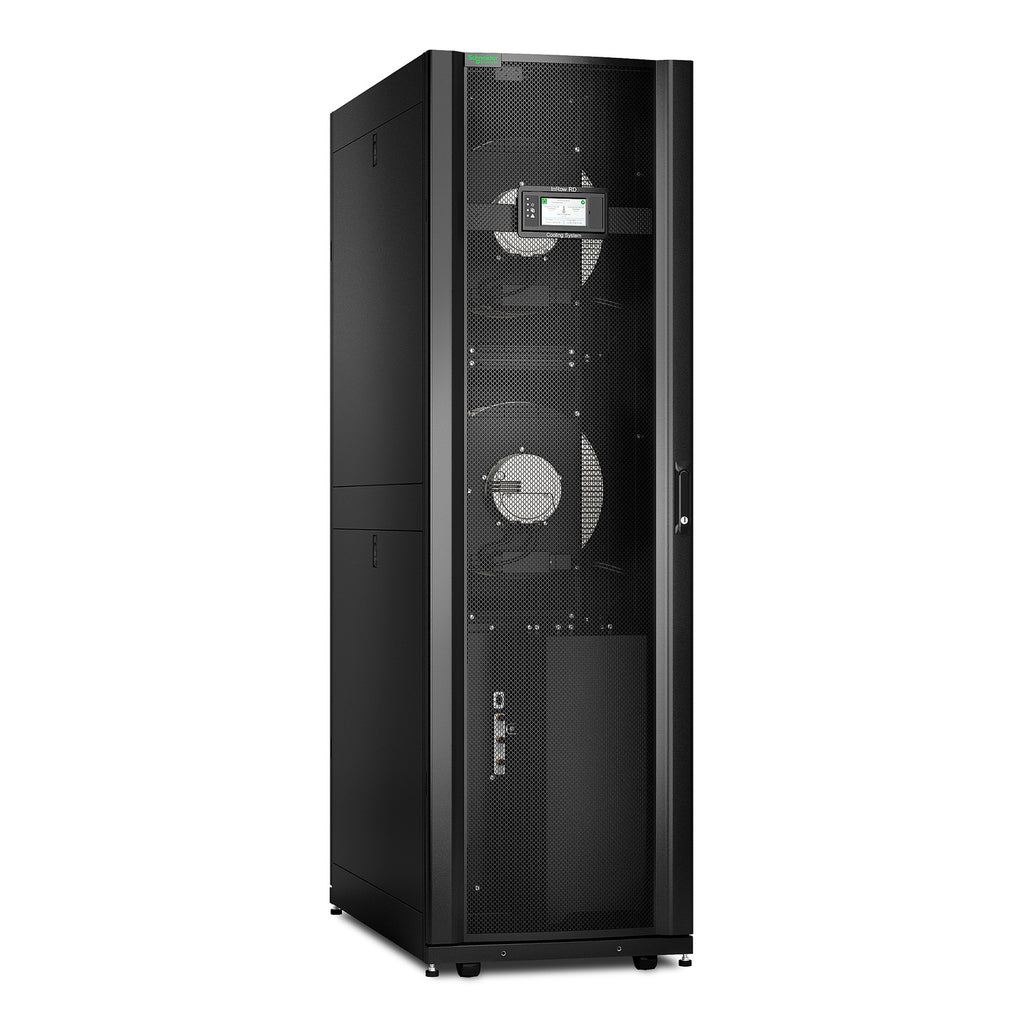

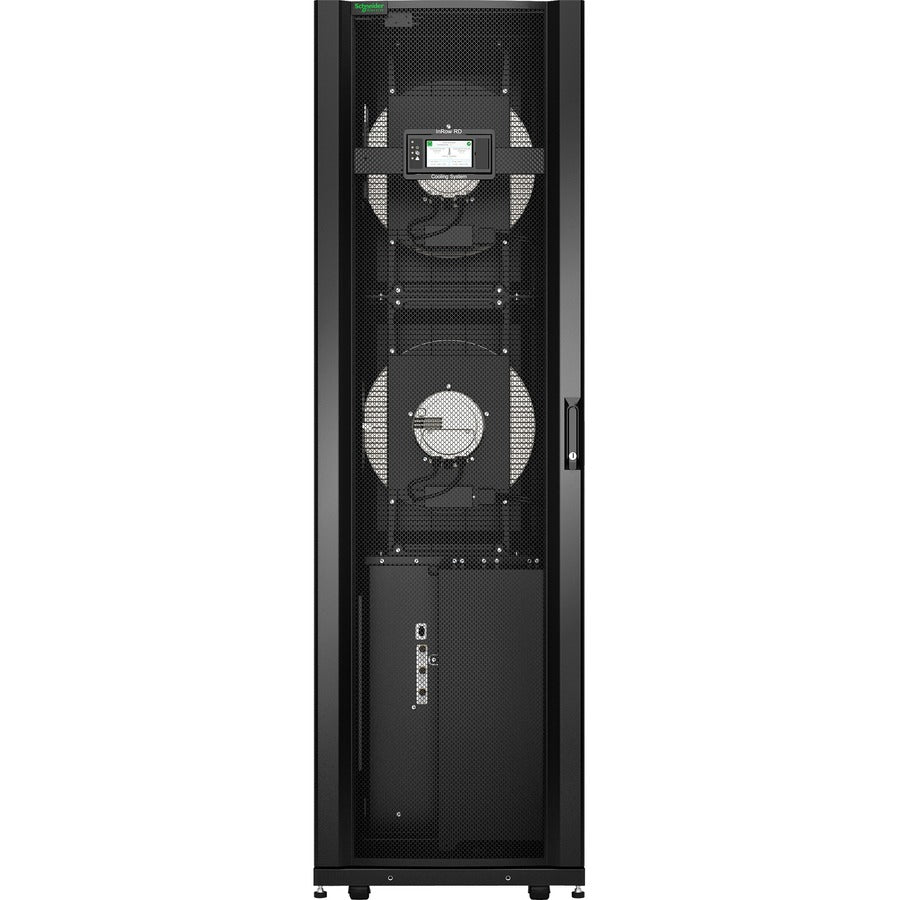

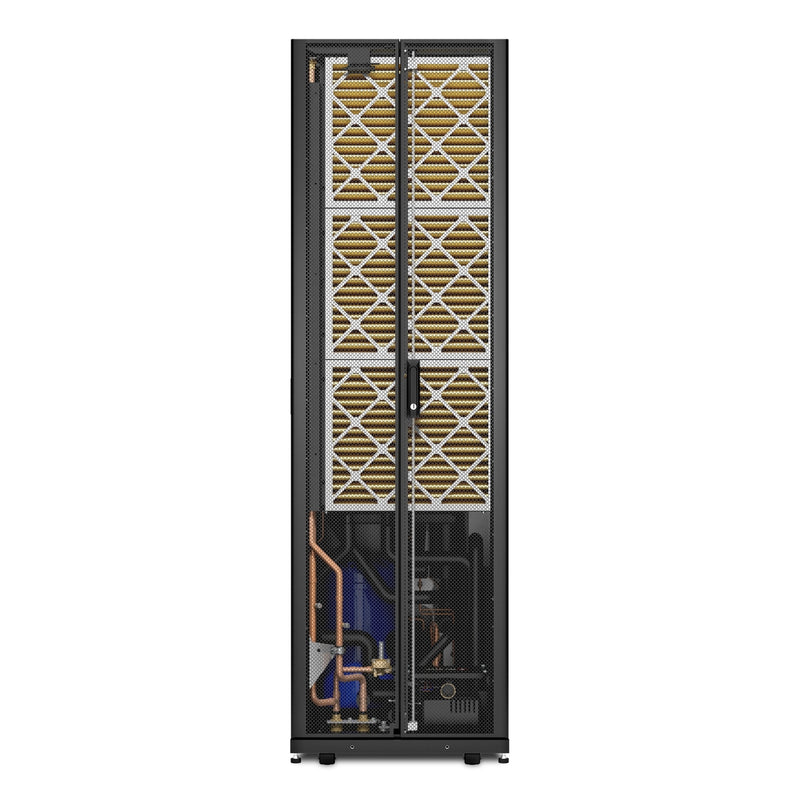

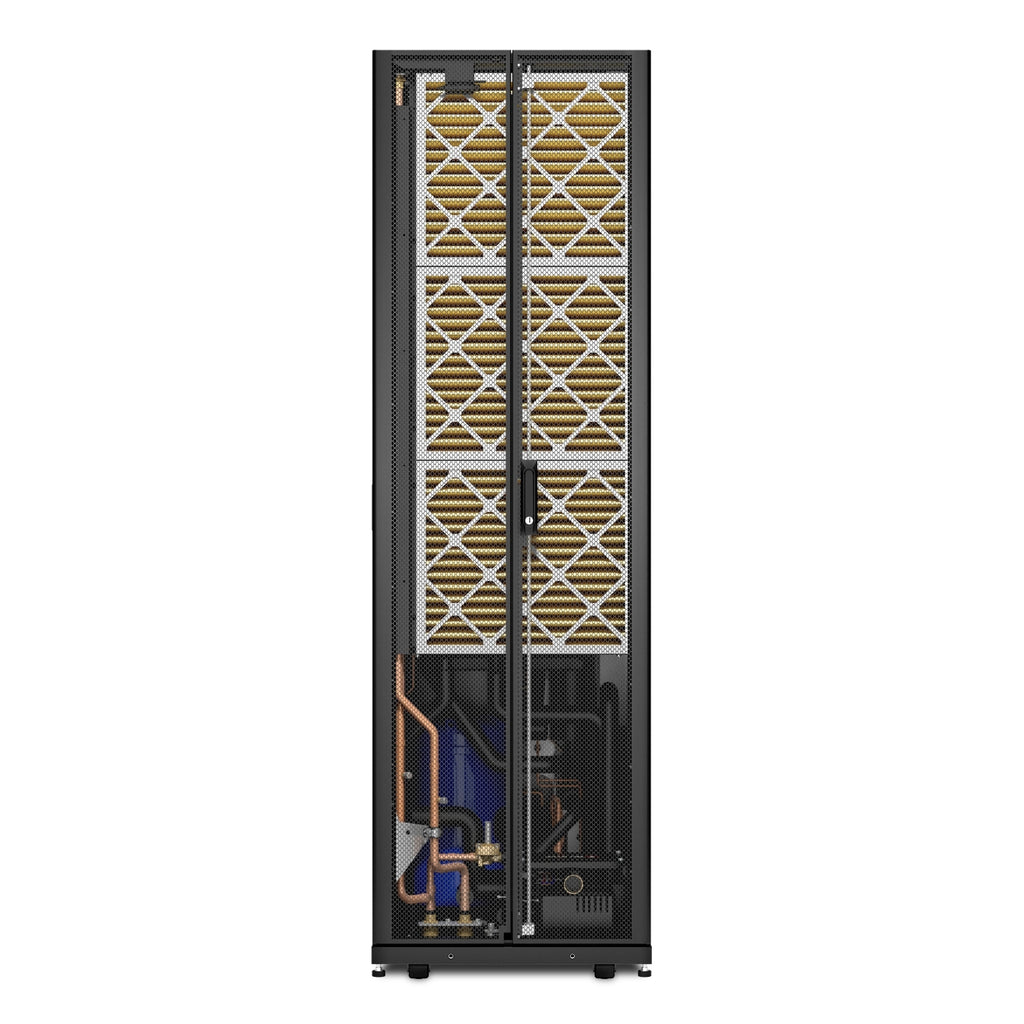

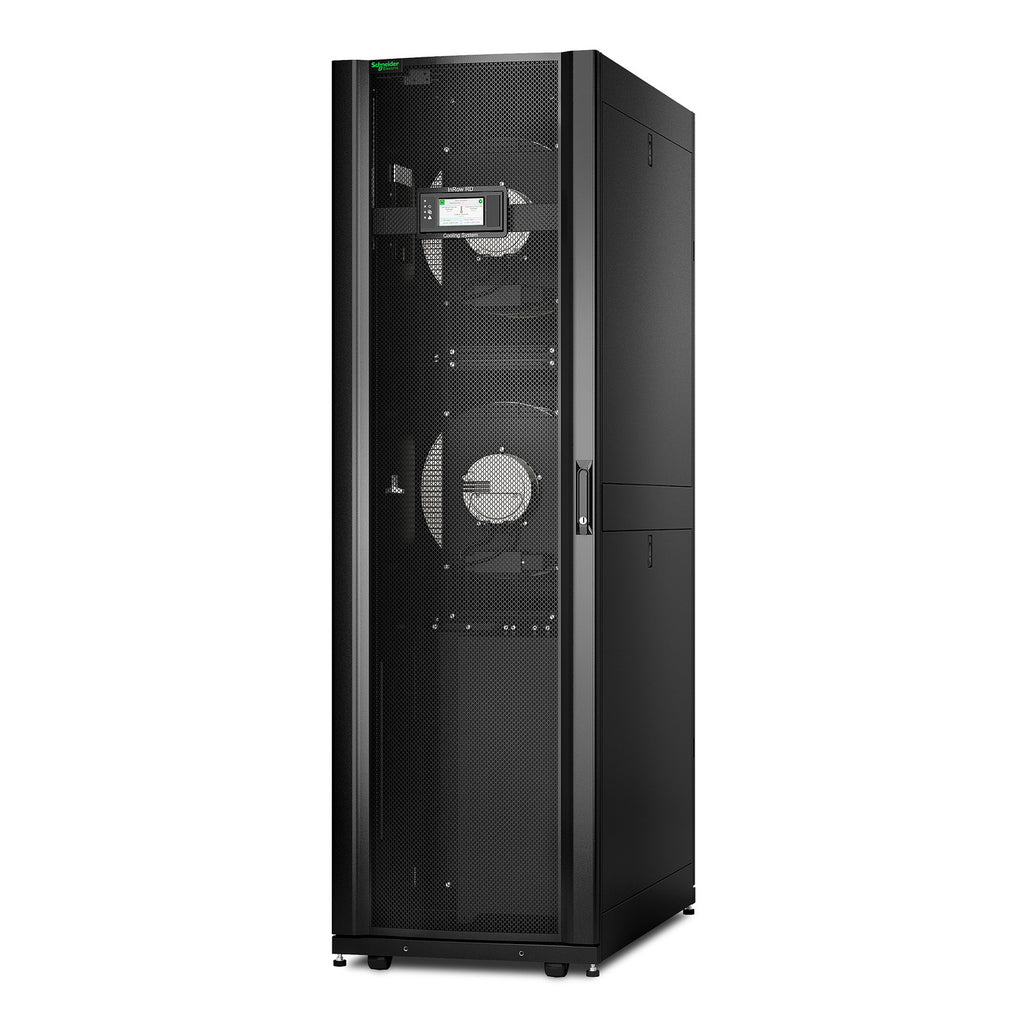

The Schneider Electric ACRD602 is a 600mm InRow RD air-cooled precision cooling unit designed for high-density data center environments. With horizontal air discharge and rear air intake, this solution integrates seamlessly with IT racks to efficiently manage heat at the source. It supports voltages from 380V to 415V (3-phase) and includes integrated network management and a multifunction LCD console for intelligent control. Built for performance, flexibility, and space efficiency, it is ideal for scalable, energy-efficient cooling infrastructure.
| Category | Details |
|---|---|
| Model | ACRD602 |
| Product Type | InRow RD, Air-Cooled Cooling Unit |
| Cooling Method | Air Cooled, Rear Air Return, Horizontal Air Discharge |
| Compressor Type | Scroll |
| Air Flow | 1887.8 L/s |
| Input Voltage | 380/400/415V 3-phase |
| Frequency | 50/60 Hz |
| Input Power | 14.6 kW |
| Inrush Current | 28 A |
| Input Connector | 1 Hardwire, 4-wire (3P + E) |
| Condensate Pump Flow | 0.1 m³/h |
| Rack Height Compatibility | 42U |
| Integrated Equipment | Network Management Card, LCD Console, Manuals, Door Key |
| Mounting Mode | Floor-standing (not rack-mountable) |
| Color | Black |
| Physical Dimensions (HxWxD) | 199.1 cm x 60 cm x 107 cm |
| Weight | 391 kg (Unit) / 436 kg (Packaged) |
| Operating Temp. Range | -20°C to 50°C |
| Humidity Range | 5% to 95% RH |
| Altitude Limit | Up to 10,000 ft |
| Acoustic Level | 84 dBA |
| Certifications | CE, C-Tick, EAC |
| Warranty | 1 Year Parts + On-Site Repair with Start-Up |
