Description

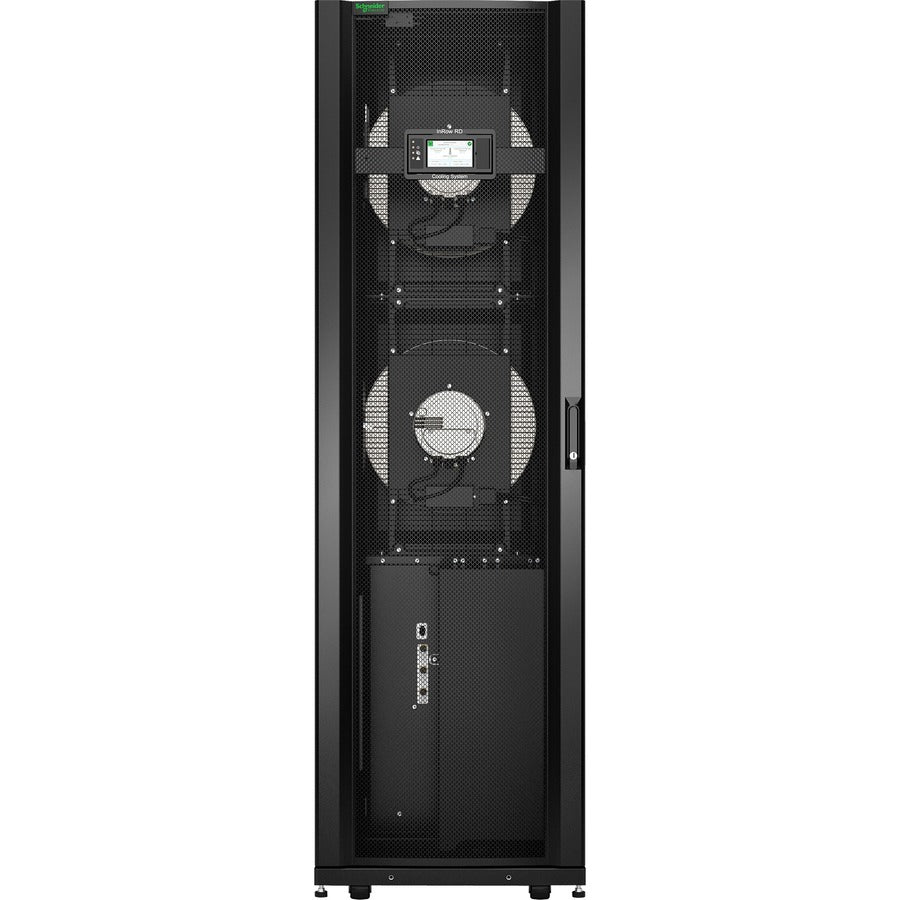

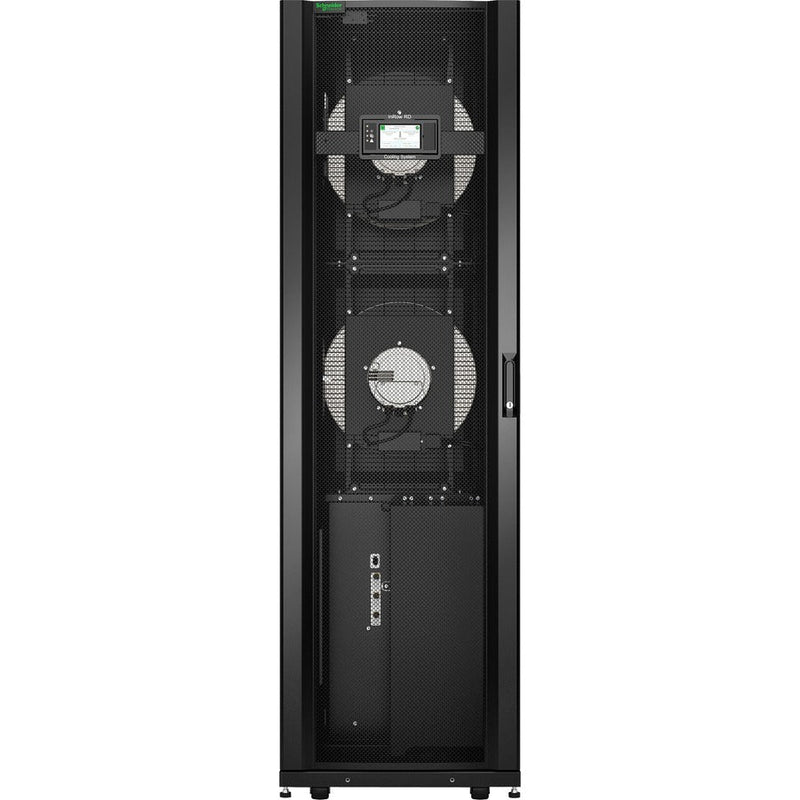

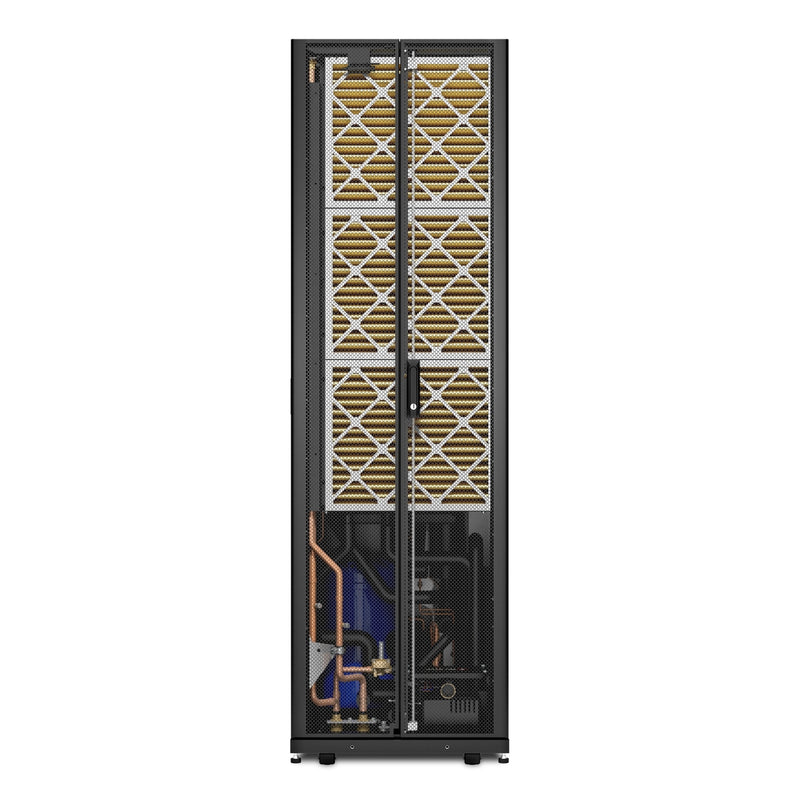

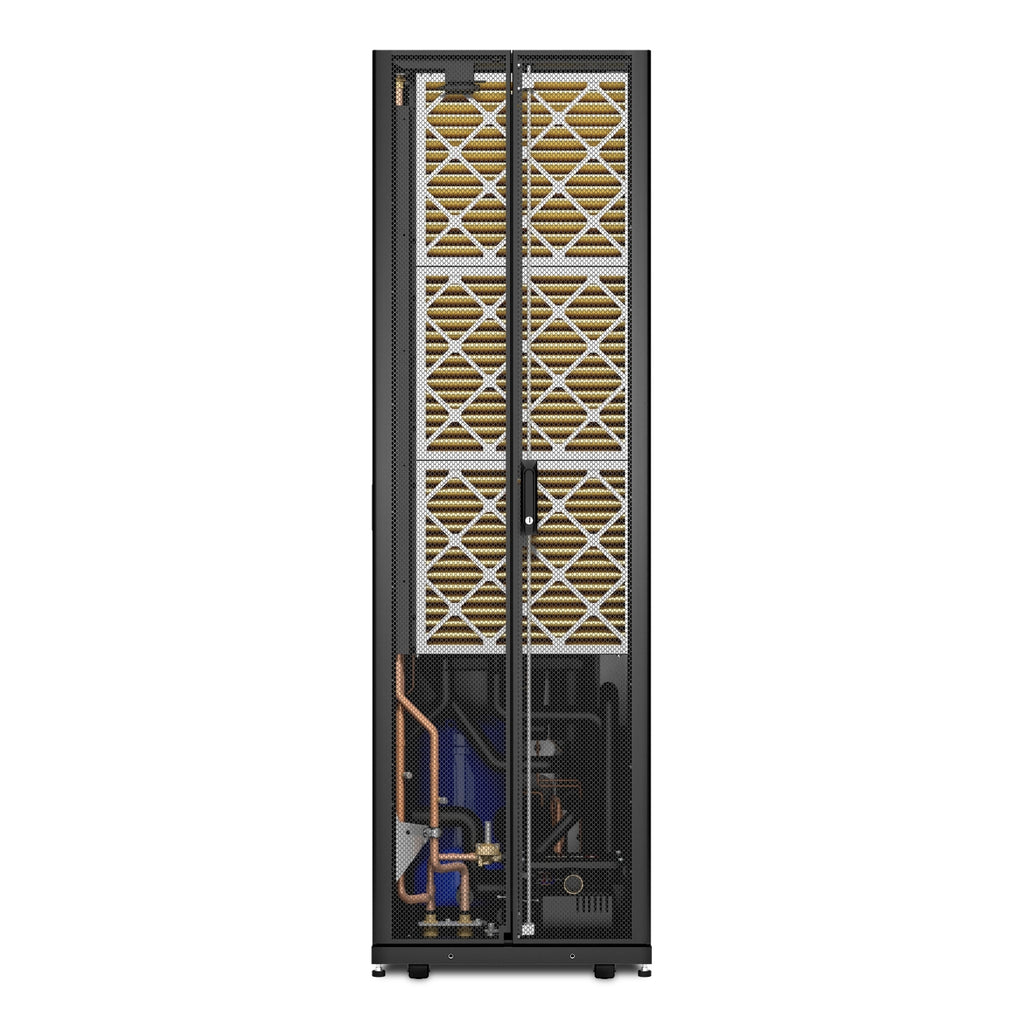

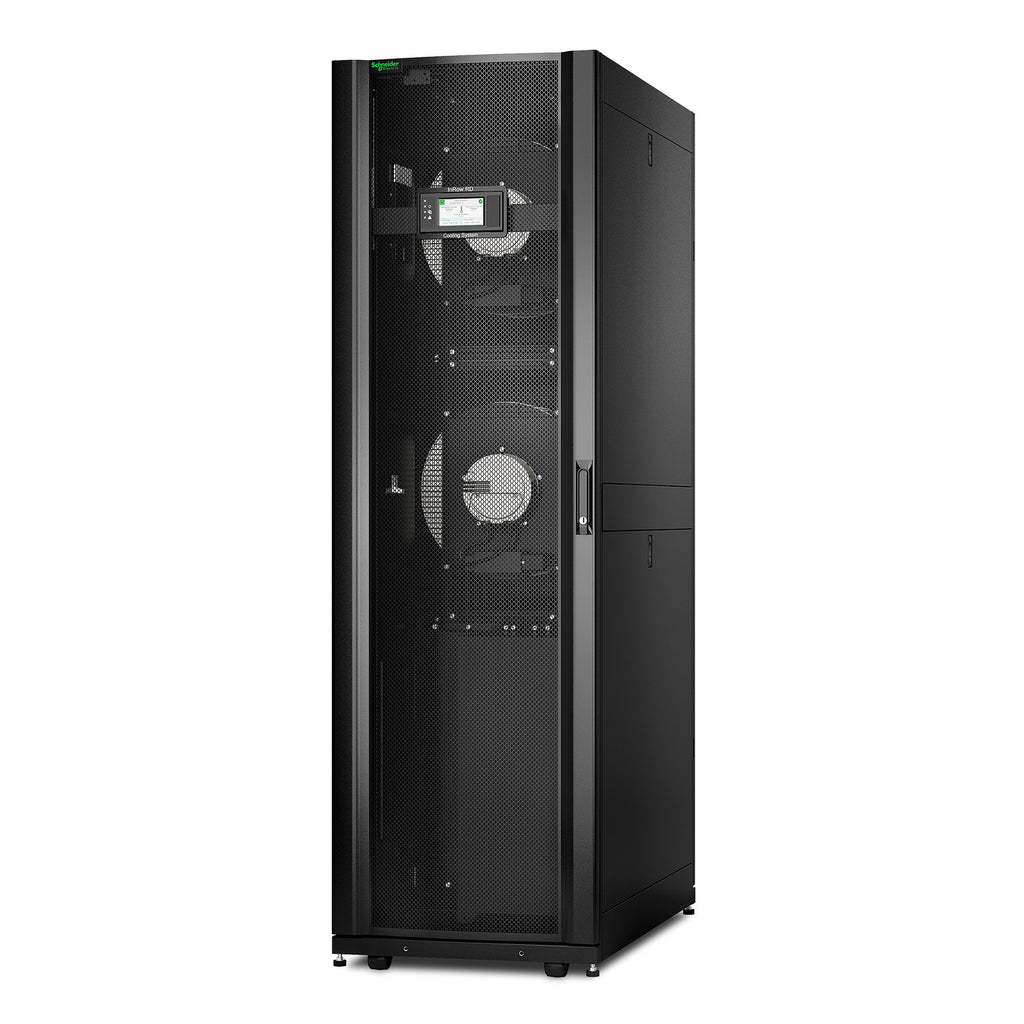

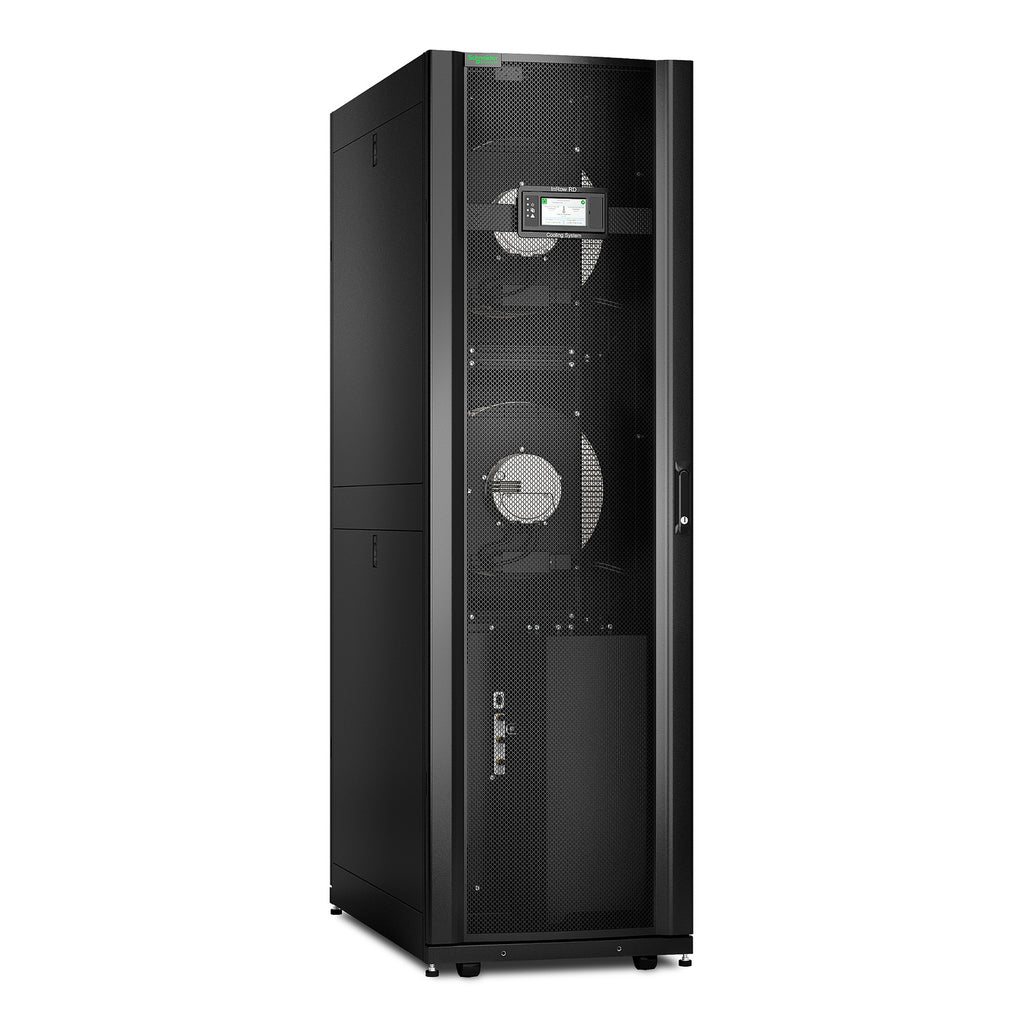

The Schneider Electric ACRD602P InRow RD unit delivers precision cooling for high-density IT environments. Designed with a compact 600mm frame and horizontal airflow configuration, this air-cooled unit integrates seamlessly into standard IT racks. Featuring a built-in humidifier, multifunction LCD control panel, and integrated network management, the ACRD602P ensures efficient temperature and humidity regulation in mission-critical facilities. With a 42U form factor, scroll compressor, and rear air intake, it provides 4000 CFM airflow and superior environmental control. Ideal for optimizing data center uptime and efficiency.
| Category | Details |
|---|---|
| Brand | Schneider Electric |
| Model | ACRD602P |
| Product Type | InRow RD Air-Cooled Cooling Unit |
| Cooling Method | Air-Cooled with Humidifier |
| Voltage Input | 380–415V, 3-phase |
| Frequency | 50/60 Hz |
| Rack Units | 42U |
| Airflow | 4000 CFM (1887.8 l/s) |
| Compressor Type | Scroll |
| Air Intake/Discharge | Rear intake / Horizontal discharge |
| Humidification Rate | 6.6 lb/hr (3.0 kg/hr) |
| Condensate Pump Flow | 32 Gal/hr (0.1 m³/h) |
| Inrush Current | 28 A |
| Input Power | 20,200 W |
| Input Connector | 1 hard wire 4-wire (3P + E) |
| Color | Black |
| Dimensions (H x W x D) | 78.39 x 23.62 x 42.13 in (199.1 x 60 x 107 cm) |
| Weight | 886.3 lb (402 kg) |
| Control Panel | Multifunction LCD Console |
| Certifications | CE, C-Tick, EAC |
| Operating Temp | -4 to 122°F (-20 to 50°C) |
| Humidity Range | 5% to 95% RH |
| Max Altitude | 10,000 ft |
| Acoustic Level | 84 dBA |
| Included Items | Door key, user manuals, network card |
| Mounting | Floor standing (not rack-mountable) |
| Warranty | 1 year parts, 1 year on-site with factory-authorized start-up |
