Description

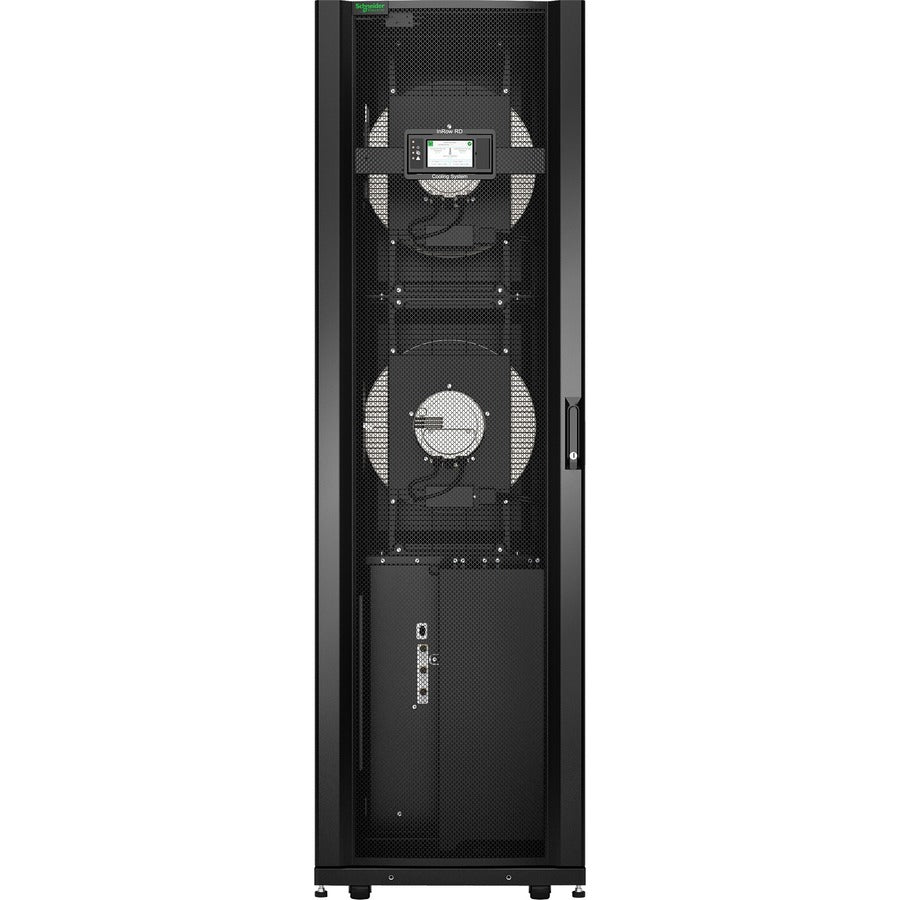

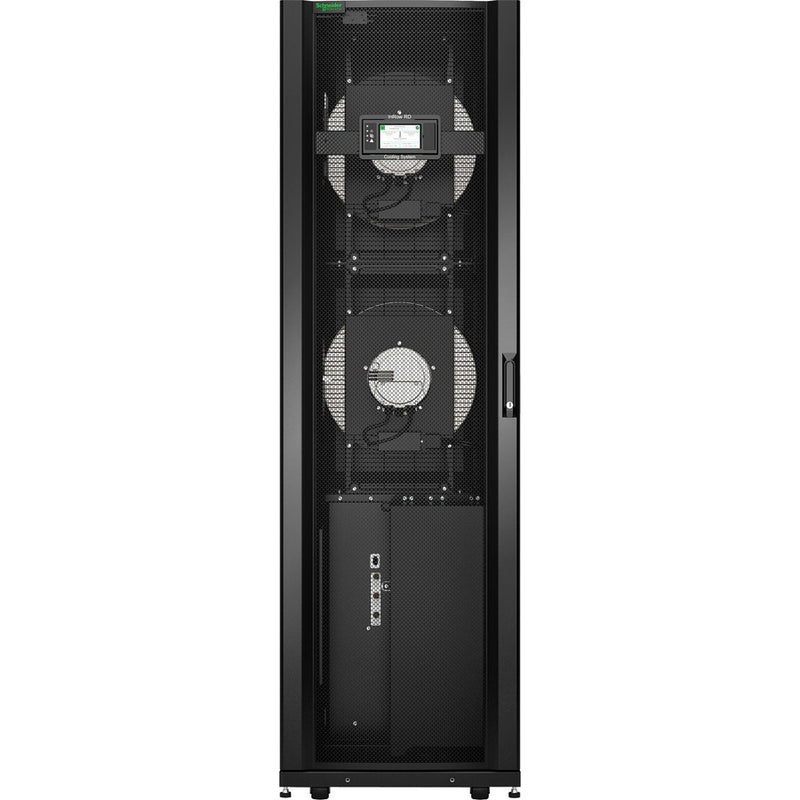

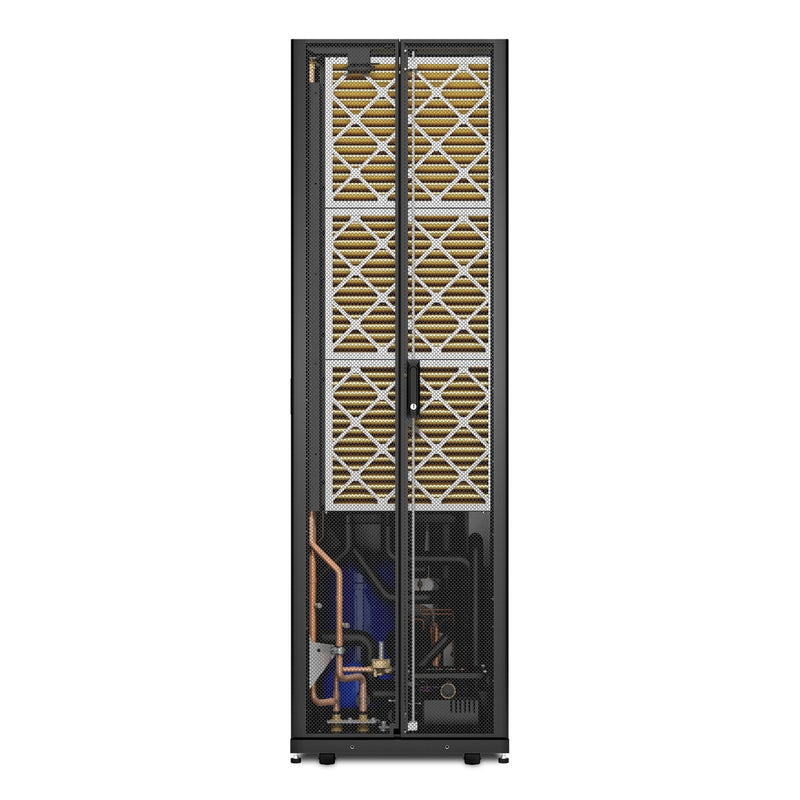

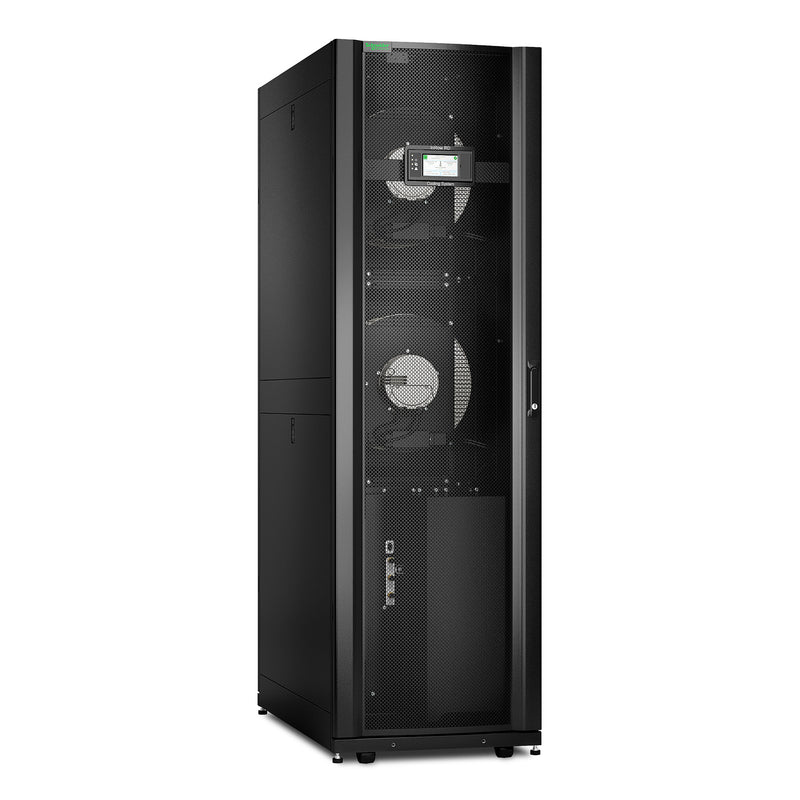

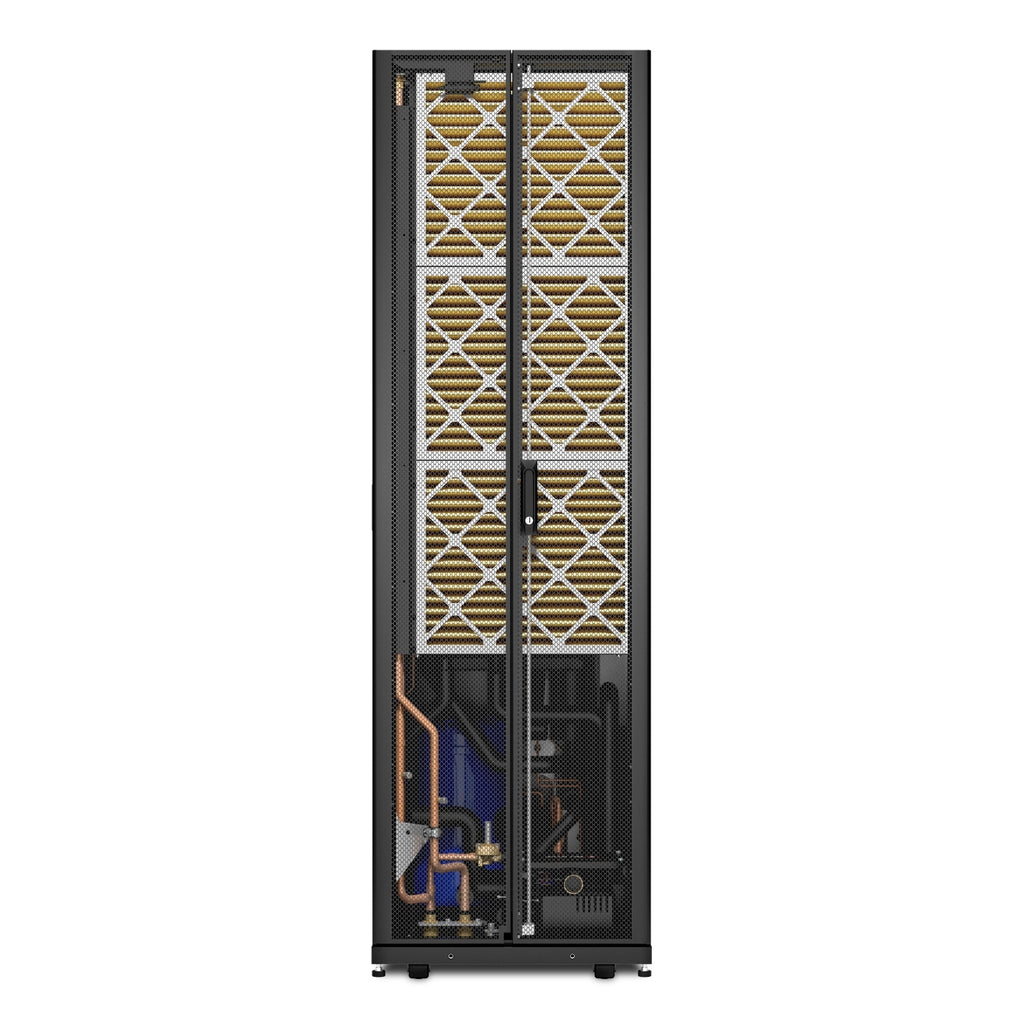

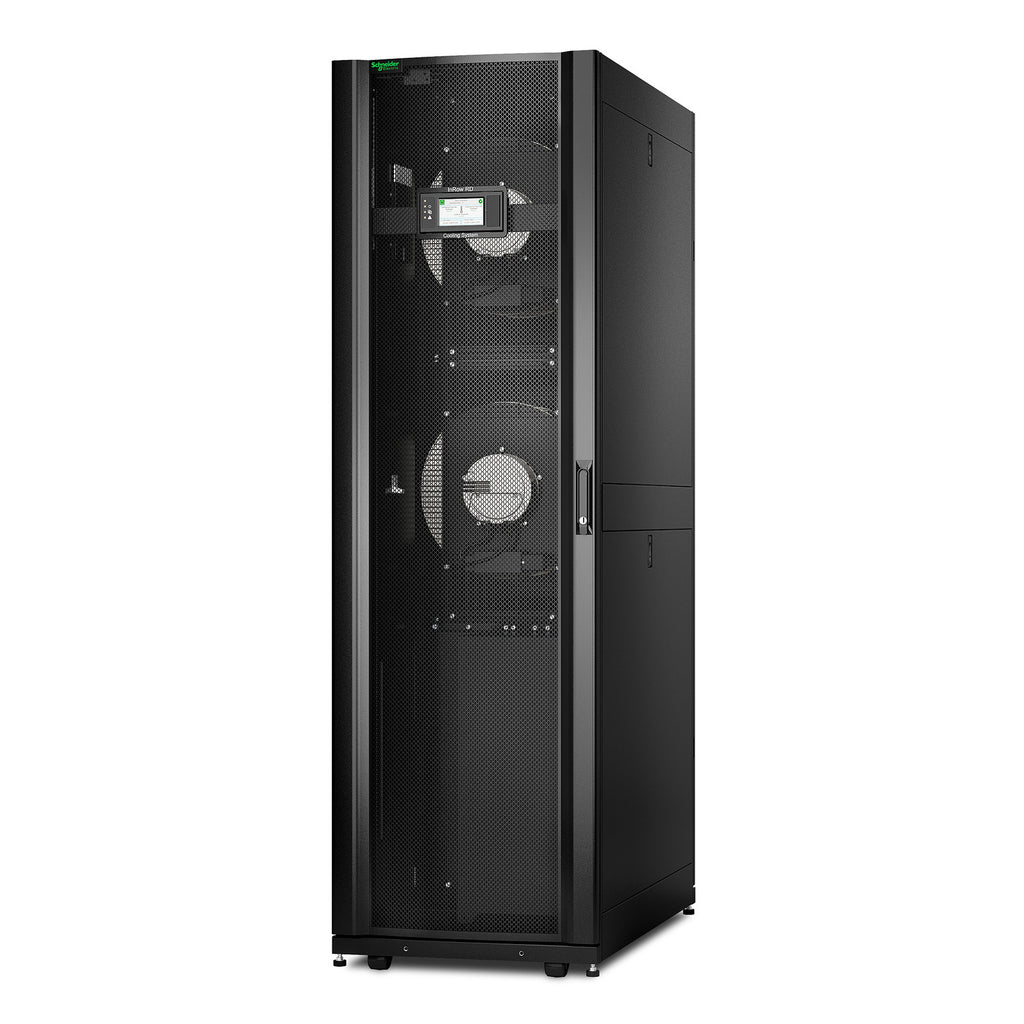

The APC InRow RD ACRD601 is a high-performance air-cooled cooling unit designed for precision temperature control in IT environments. With a 42U height and 600mm width, this black unit delivers 4000 CFM airflow using a horizontal discharge and rear air return configuration. Featuring a scroll compressor, copper tubing, integrated network management, and robust environmental operating ranges, it’s ideal for medium to large data centers requiring scalable, efficient cooling. Includes installation guide, door key, and network management card for ease of setup and monitoring.
| Category | Details |
|---|---|
| Model | ACRD601 |
| Brand | APC by Schneider Electric |
| Type | InRow RD Air Cooled |
| Input Voltage | 460V / 480V, 3-phase |
| Frequency | 60 Hz |
| Input Power | 14,600 W |
| Minimum Circuit Ampacity | 24 A |
| Max Overcurrent Protection | 40 A |
| Inrush Current | 28 A |
| Airflow | 4000 CFM (1887.8 L/s) |
| Compressor Type | Scroll |
| Air Discharge | Horizontal |
| Intake Air | Rear Return |
| Condensate Pump Flow | 32 Gal/hr (0.1 m³/h) |
| Tube Material | Copper |
| Rack Units | 42U |
| Mounting | Floor-standing (not rack-mountable) |
| Color | Black |
| Control Panel | Multifunction LCD |
| Network Management | Integrated + Card included |
| Height | 78.39 in (199.1 cm) |
| Width | 23.62 in (60 cm) |
| Depth | 42.13 in (107 cm) |
| Weight (Net) | 862 lbs (391 kg) |
| Shipping Weight | 961.2 lbs (436 kg) |
| Operating Temp Range | -4 to 122°F (-20 to 50°C) |
| Humidity Range | 5% to 95% RH |
| Altitude | 0 to 10,000 ft |
| Noise Level | 84 dBA |
| Certifications | UL listed, cUL listed |
| Warranty |
1-year parts, 1-year on-site with factory authorized start-up |
