Description

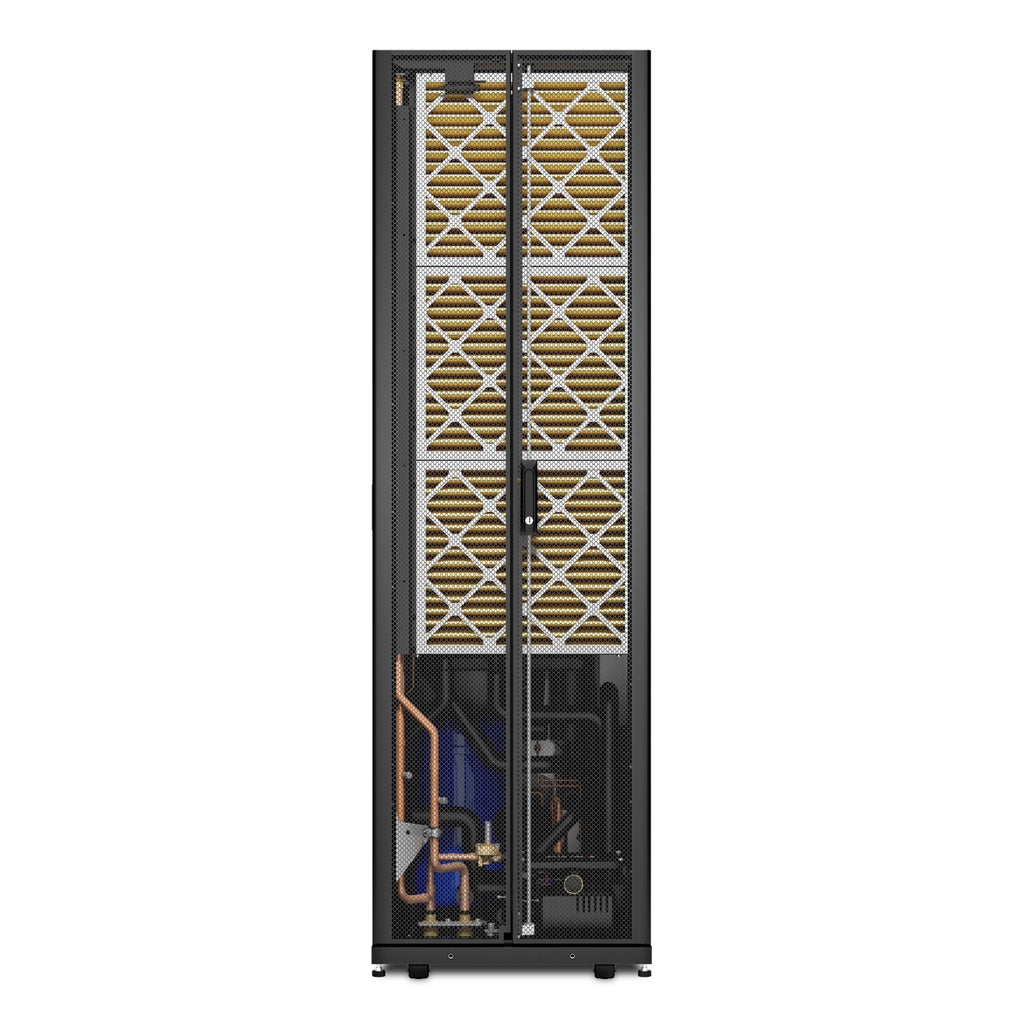

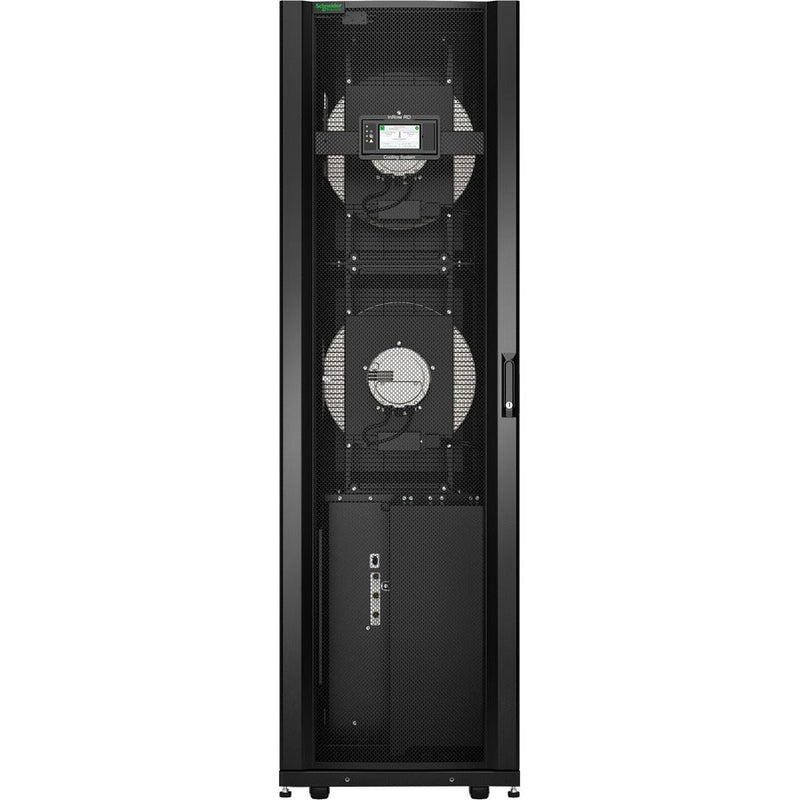

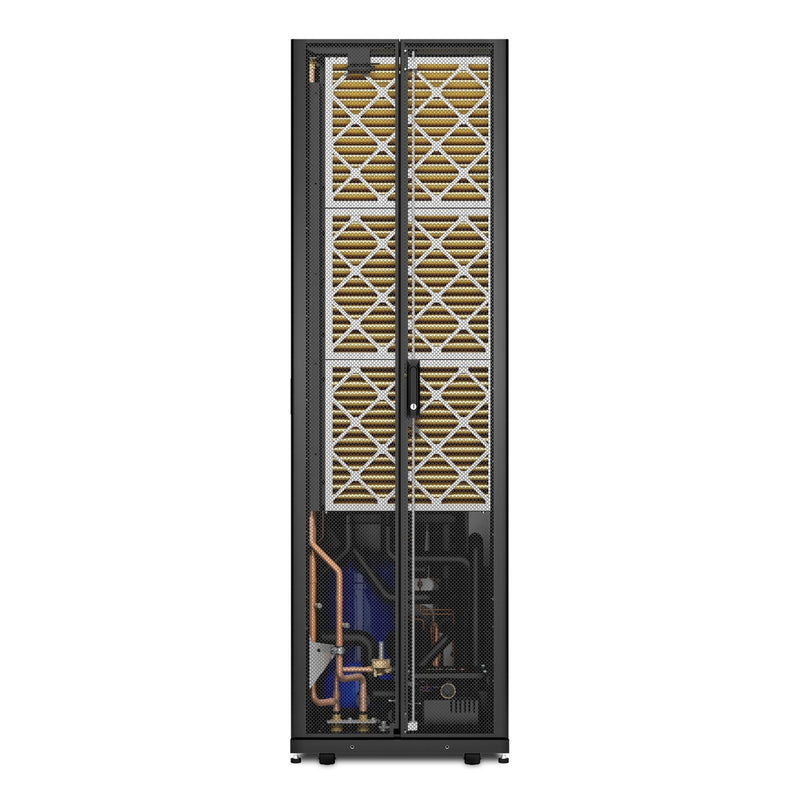

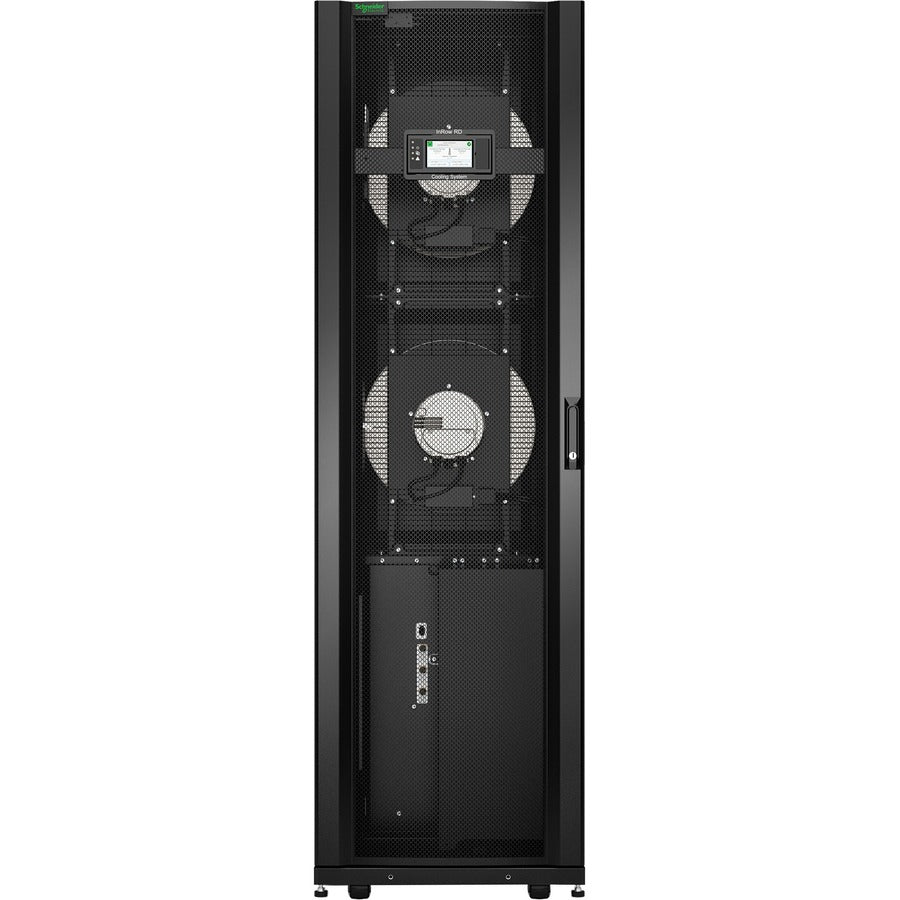

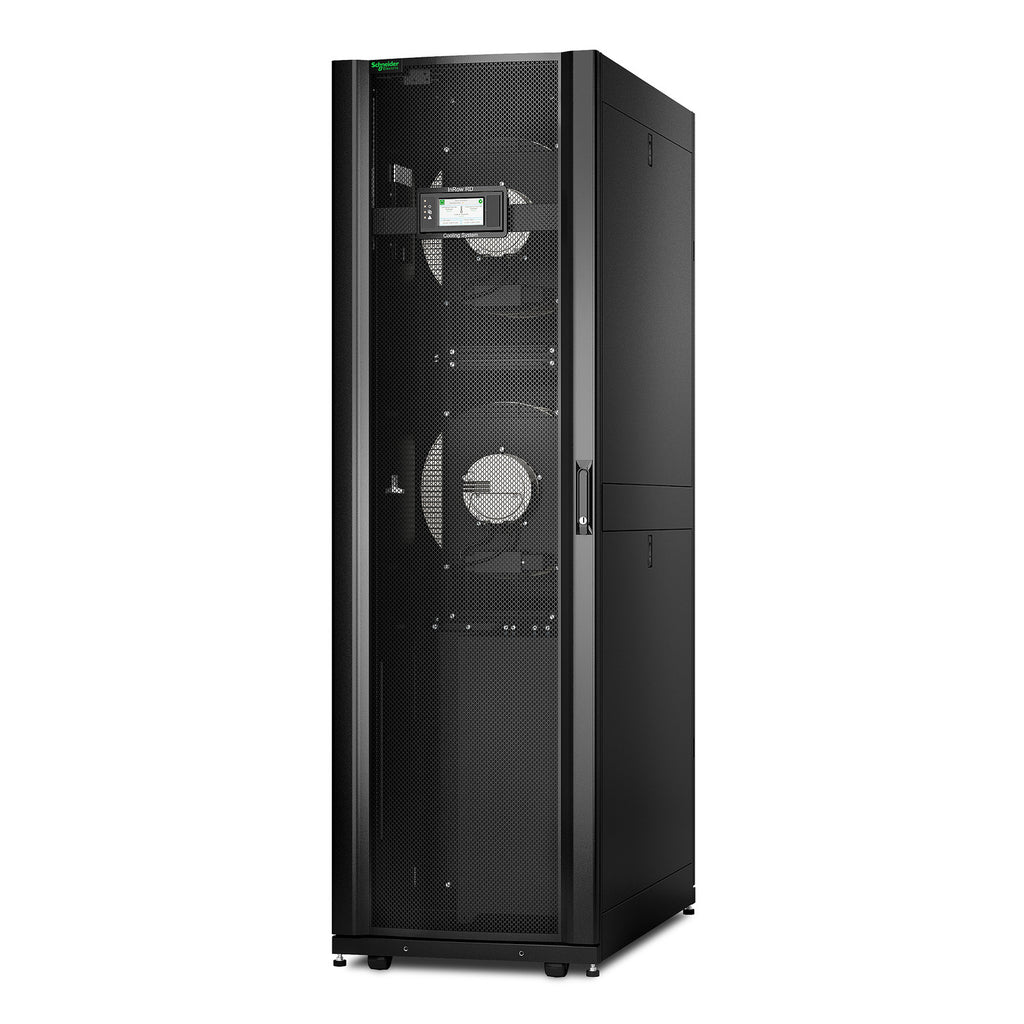

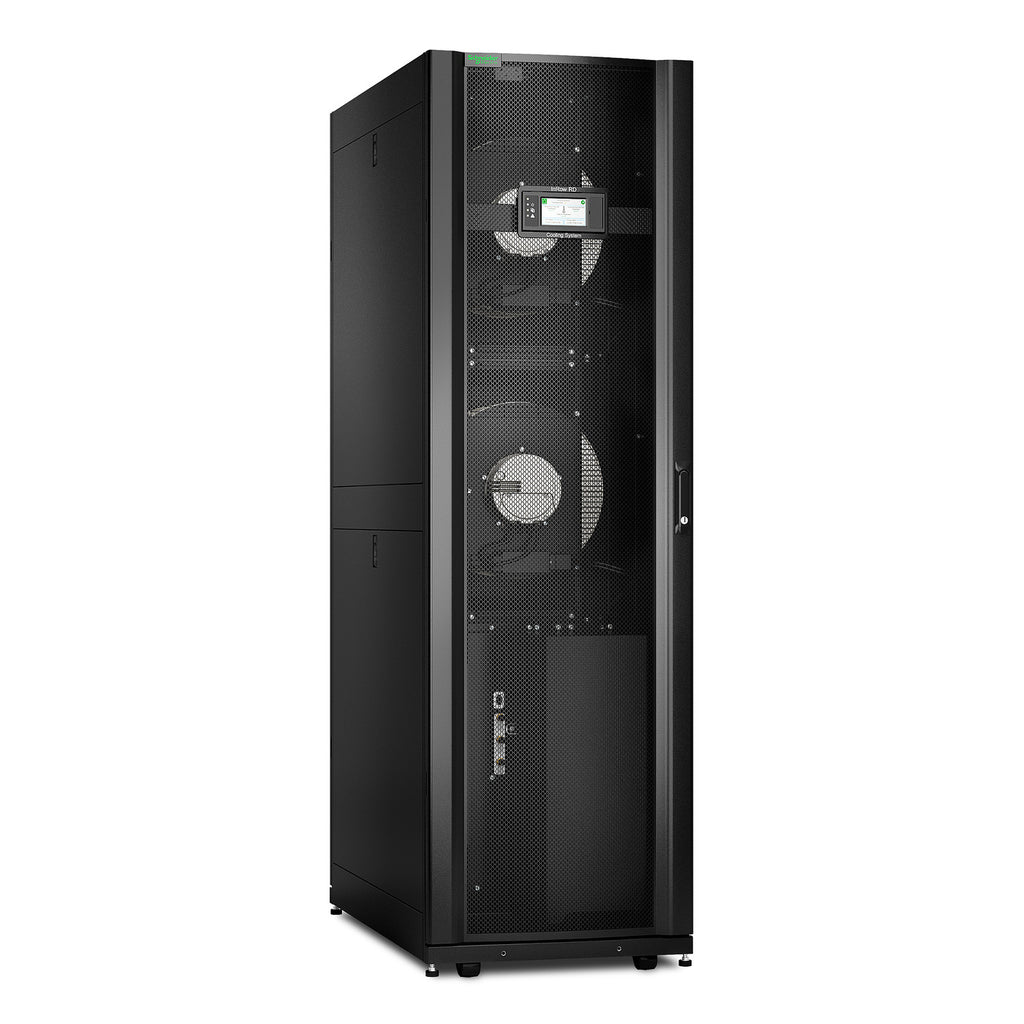

The Schneider Electric ACRD601P is a high-efficiency InRow RD air-cooled precision cooling unit designed for 42U IT enclosures. Operating at 460-480V, 60Hz, this 600mm-wide system delivers optimal airflow and humidity control directly to heat sources, significantly improving cooling predictability and efficiency. It features a scroll compressor, horizontal air discharge, rear return intake, and an integrated humidifier (6.6 lb/hr), ideal for high-density server environments. The unit comes with onboard network management, a user-friendly LCD panel, and robust copper piping construction.
| Category | Details |
|---|---|
| Model | ACRD601P |
| Cooling Method | Air-Cooled |
| Voltage | 460-480V, 3-Phase |
| Frequency | 60 Hz |
| Rack Capacity | 42U |
| Airflow | 4000 CFM (1887.8 L/s) |
| Humidifier Output | 6.6 lb/hr (3.0 kg/hr) |
| Compressor Type | Scroll |
| Air Discharge | Horizontal |
| Air Intake | Rear Return |
| Inrush Current | 28 A |
| Minimum Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 50 A |
| Power Consumption | 20,200 W |
| Condensate Pump Capacity | 32 Gal/hr (0.1 m³/h) |
| Input Connector | 1 Hard Wire (4-wire: 3PH + G) |
| Control Interface | Multi-function LCD |
| Network Features | Integrated Network Management Card |
| Dimensions (HxWxD) | 78.39 x 23.62 x 42.13 in (199.1 x 60 x 107 cm) |
| Weight | 886.3 lb (402 kg) |
| Noise Level | 84 dBA |
| Operating Temperature | -4 to 122 °F (-20 to 50 °C) |
| Humidity Range | 5% to 95% RH |
| Altitude | Up to 10,000 ft |
| Certifications | UL Listed, cUL Listed |
| Warranty | 1-Year Parts & On-Site with Startup |
