Description

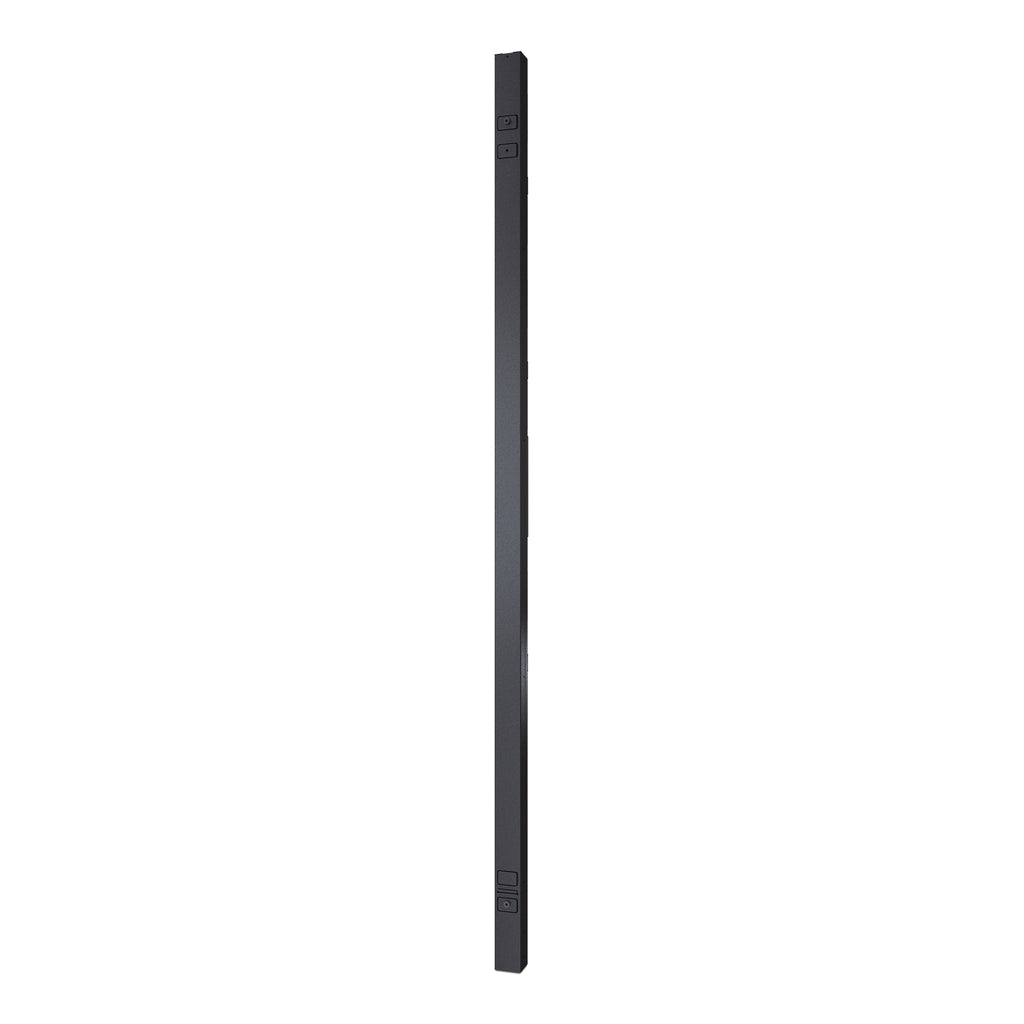

The APC AP8481 Metered-by-Outlet Rack PDU delivers advanced power distribution and precise outlet-level metering for high-density IT environments. Designed for colocation, enterprise data centers, and distributed IT sites, it features a ZeroU vertical mounting, maximizing rack space. With real-time remote monitoring, +/-3% metering accuracy, and integration with EcoStruxure IT, this PDU helps balance loads, define alarm thresholds, and optimize energy usage.
Additional features include locking IEC receptacles, ultra-low-profile circuit breakers, and a robust design that ensures uptime and reliability. Access via secure Web, SNMP, or Telnet interfaces is supported, complemented by integration with APC's Centralized Management platforms.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8481 |
| PDU Type | Metered-by-Outlet |
| Form Factor | ZeroU Vertical |
| Power Capacity | 11.0kW / 11000 VA |
| Input Voltage | 400V 3 Phase |
| Output Voltage | 230V |
| Input Plug Type | IEC 60309 16A or 20A 3P+N+PE |
| Outlet Types | (21) IEC C13, (3) IEC C19 |
| Mounting | Rack-mounted (Side, Vertical) |
| Cord Length | 6 ft (1.8 m) |
| Line Rated Current | 16A |
| Input Frequency | 50/60 Hz |
| Metering Accuracy | ±3% (Amps, Volts, kW, kWh) |
| Monitoring Interface | Web, SNMP, Telnet |
| Management Platform | Compatible with EcoStruxure IT |
| Certifications | UL, cUL, VDE, FCC Part 15 Class A |
| Operating Temp Range | -5 to 60 °C (23 to 140 °F) |
| Humidity (Operating/Storage) | 5–95% RH |
| Height x Width x Depth | 72.01 x 2.20 x 2.01 in |
| Weight | 18.10 lb (8.21 kg) |
| Warranty | 2-Year Repair or Replace |
| Country of Origin | India |
| GTIN | 731304317609 |
