Description

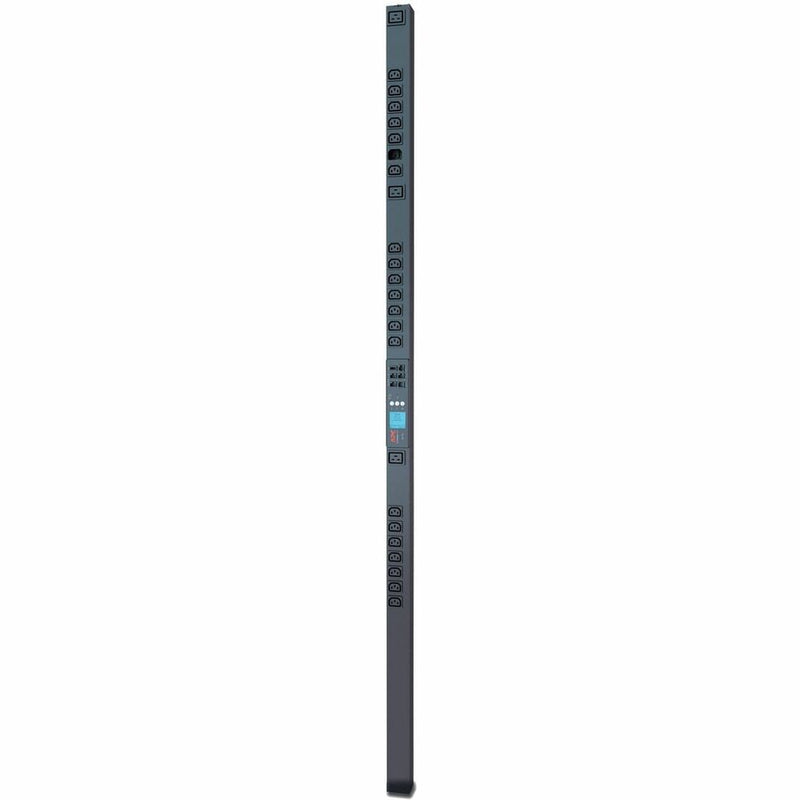

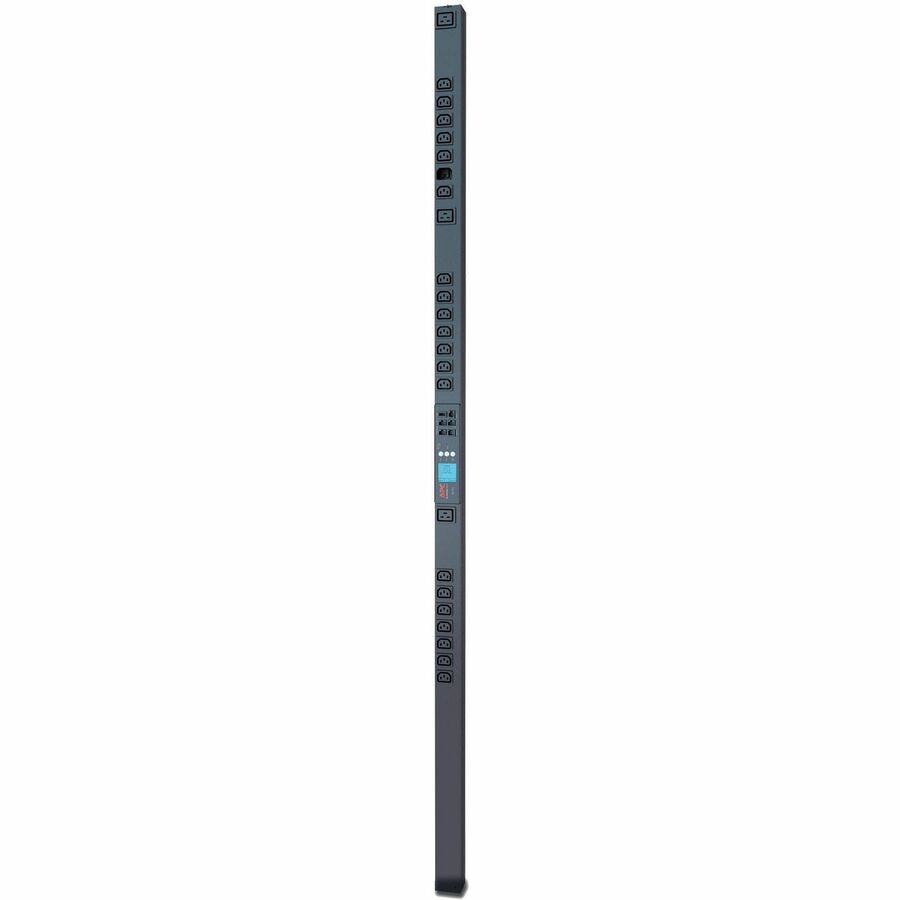

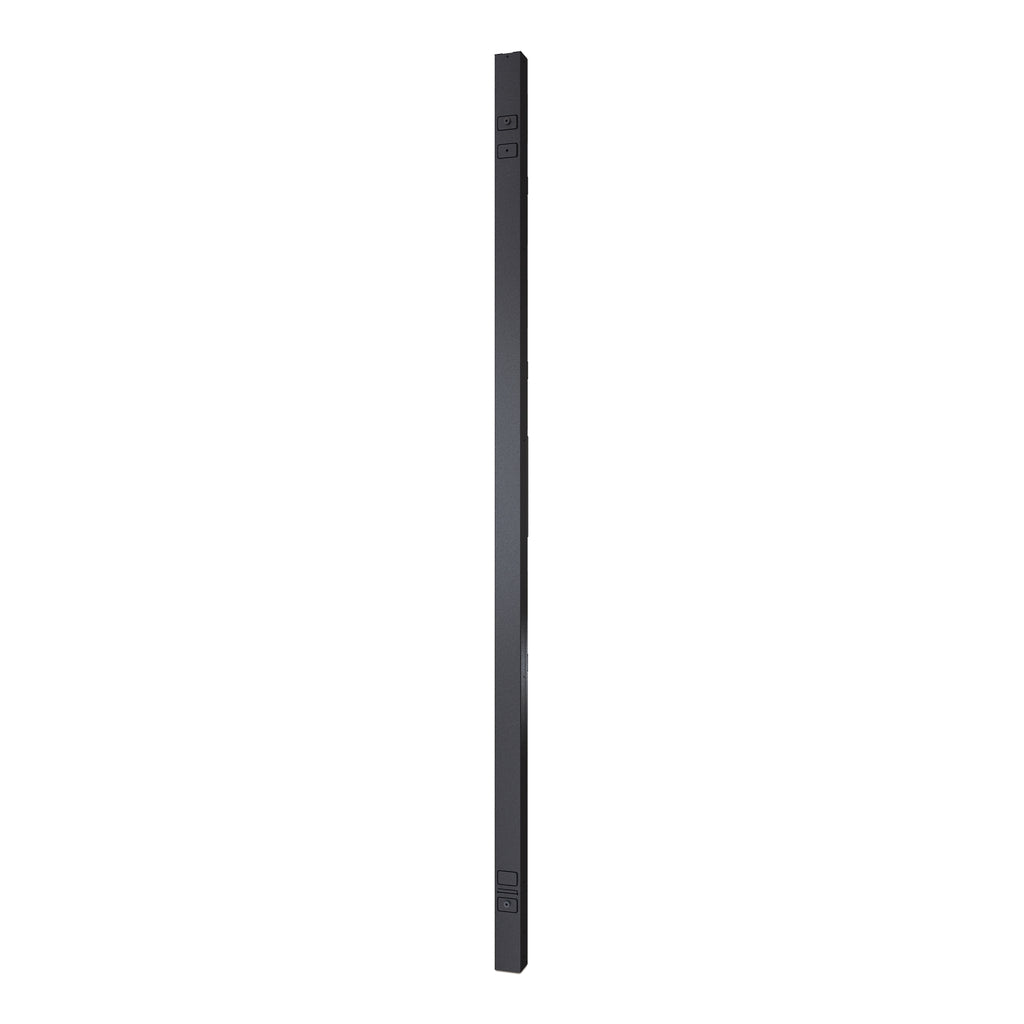

The APC AP8461 Metered-by-Outlet Rack PDU 2G provides advanced outlet-level metering, real-time monitoring, and reliable power distribution for high-density IT environments. Designed in a space-saving ZeroU vertical form factor, it features (21) IEC C13 and (3) IEC C19 outlets, a NEMA L21-20P plug, and supports up to 5.7kW at 208V. With secure remote management via Web, SNMP, or Telnet, locking IEC receptacles, and ultra-low-profile circuit breakers, it ensures operational efficiency and power optimization. Ideal for data centers focused on energy management and uptime.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | AP8461 |
| Product Type | Rack PDU (Metered-by-Outlet) |
| Rack Form Factor | Vertical (Zero U) |
| Input Voltage | 208V 3-Phase |
| Output Voltage | 208V |
| Load Capacity | 5700 VA (5.7 kW) |
| Input Plug Type | NEMA L21-20P |
| Input Frequency | 50/60 Hz |
| Line Rated Current | 16A |
| Max Line Current | 20A |
| Outlet Quantity & Type | 21 × IEC C13, 3 × IEC C19 |
| Cord Length | 6 ft (1.8 m) |
| Mounting Mode | Rack-mounted (Vertical) |
| Mounting Location | Side |
| Mounting Preference | No preference |
| Height | 70.00 in (177.8 cm) |
| Width | 2.20 in (5.6 cm) |
| Depth | 2.01 in (5.1 cm) |
| Weight | 18.10 lb (8.21 kg) |
| Operating Temperature | -5°C to 60°C (23°F to 140°F) |
| Storage Temperature | -25°C to 65°C (-13°F to 149°F) |
| Humidity (Operating/Storage) | 5–95% RH |
| Altitude (Operating/Storage) | 0–10,000 ft / 0–50,000 ft |
| Certifications | UL Listed, cUL Listed, VCCI Class A |
| Standards | FCC Part 15 Class A, ICES-003 |
| Included Accessories | Rack brackets, safety guide, serial config cable, CAN port terminator |
| Country of Origin | India |
| GTIN | 731304317593 |
| Warranty | 2-Year Repair or Replace |
