Description

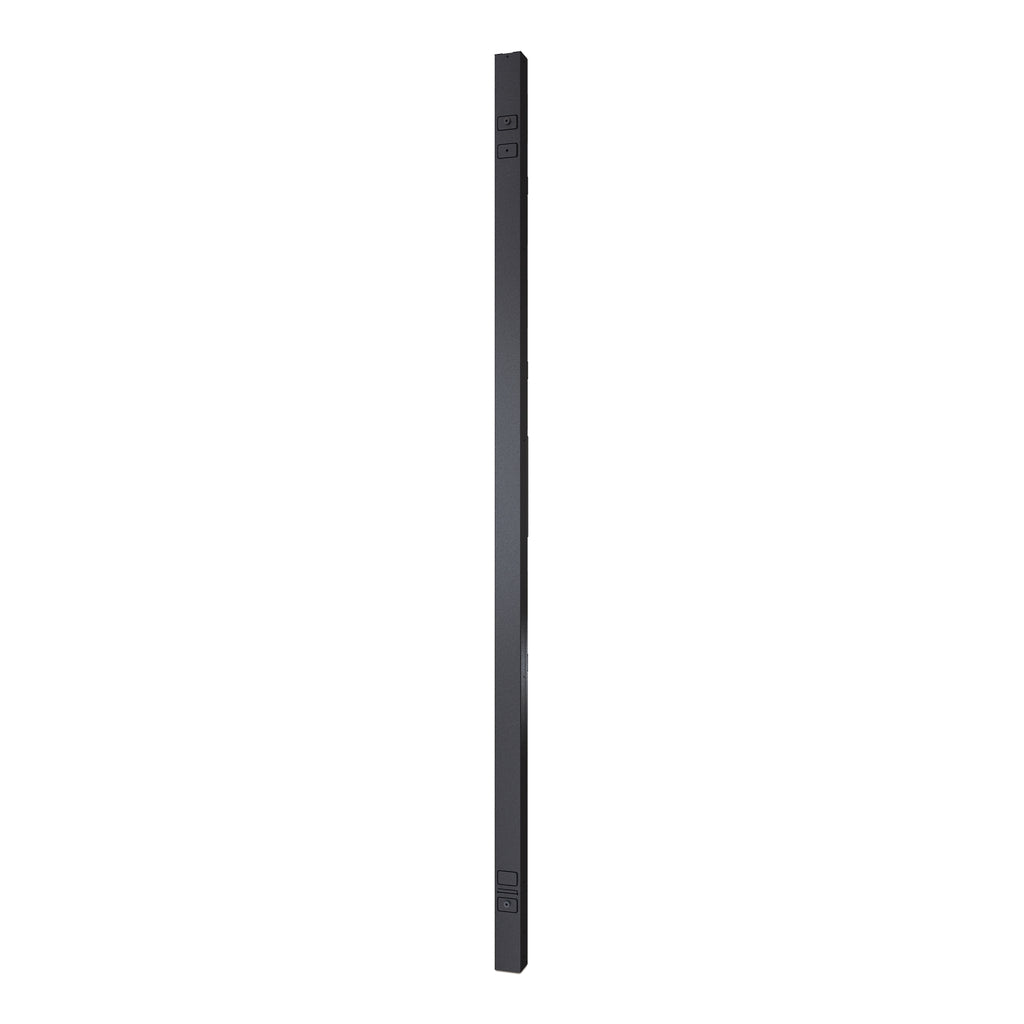

The APC AP8459NA3 Metered-by-Outlet Rack PDU offers advanced monitoring for IT environments requiring optimized energy management. Designed for ZeroU mounting, this vertical 0U PDU features real-time outlet-level metering with ±3% accuracy (amps, volts, kW, kWh) for precise load planning and balancing. Integrated with EcoStruxure IT and other platforms, it supports remote monitoring, alarm threshold management, and environmental sensors. Its locking IEC outlets and ultra-low profile breakers make it ideal for high-density server rooms, closets, or distributed IT sites.
| Feature | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | AP8459NA3 |
| PDU Type | Metered-by-Outlet |
| Mounting | Vertical, ZeroU |
| Mounting Location | Rack side |
| Input Plug Type | NEMA L6-20P |
| Input Voltage | 200V / 208V / 230V |
| Input Frequency | 50/60 Hz |
| Max Input Current | 20A |
| Line Rated Current | 16A |
| Load Capacity | 3300 VA |
| Output Voltage | 208V |
| Outlet Quantity & Type | (21) IEC C13, (3) IEC C19 |
| Cord Length | 9.84 ft (3.0 m) |
| Color | Black |
| Height | 72.01 in (182.9 cm) |
| Width | 2.20 in (5.6 cm) |
| Depth | 2.01 in (5.1 cm) |
| Weight | 14.9 lb (6.76 kg) |
| Certifications | UL Listed, VDE, VCCI Class A |
| Standards | EN 55022/24, EN 61000-3-2/3, FCC Part 15 A, ICES-003 |
| Operating Temp | -5 to 60 °C (23 to 140 °F) |
| Storage Temp | -25 to 65 °C (-13 to 149 °F) |
| Operating Humidity | 5 to 95% RH |
| Altitude (Operating) | 0–10,000 ft |
| Environmental Integration | Supports EcoStruxure IT |
| Warranty | 2-Year Repair or Replace |
