Description

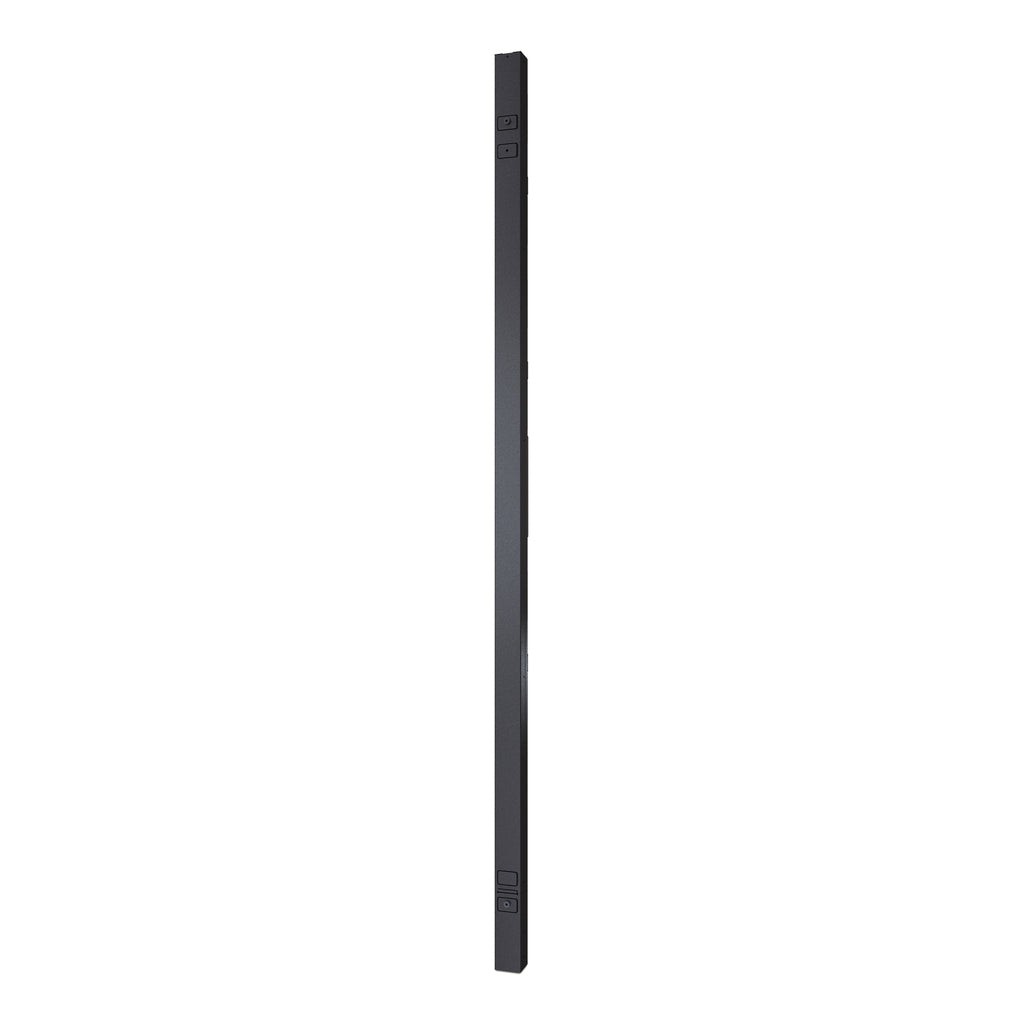

The APC AP8441 is a 2nd Generation ZeroU Rack PDU offering metered-by-outlet monitoring to optimize power distribution in high-density server and networking environments. Designed for remote visibility and control via EcoStruxure IT, it supports real-time load tracking, threshold alarms to prevent circuit overloads, and zero-U tool-less installation. Equipped with 21 C13 and 3 C19 outlets, locking IEC connectors, and ultra-low-profile breakers, it ensures space-saving and secure power delivery. Integrated environmental sensors and support for SNMP/Web/Telnet management provide full operational insight.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8441 |
| Product Type | Rack Power Distribution Unit (PDU) - Metered-by-Outlet |
| Form Factor | Vertical ZeroU (0U) Rack-Mountable |
| Input Plug Type | NEMA L6-30P |
| Input Voltage | 200 V / 208 V / 230 V |
| Output Voltage | 200 V / 208 V |
| Max Input Current | 30A |
| Rated Line Current | 24A |
| Load Capacity | 4992 VA |
| Frequency | 50/60 Hz |
| Cord Length | 10 ft (3.05 m) |
| Outlet Configuration | 21 × IEC 60320 C13, 3 × IEC 60320 C19 |
| Real-Time Monitoring | Yes (Per Outlet) |
| Alarm Thresholds | Configurable for Overload Prevention |
| EcoStruxure Compatible | Yes |
| Installation | Toolless ZeroU Rack Installation |
| Mounting Preference | No Preference, Side Mounted |
| Dimensions (H × W × D) | 72.01" × 2.20" × 2.01" (182.9 × 5.6 × 5.1 cm) |
| Product Weight | 18.1 lbs (8.21 kg) |
| Certifications | UL Listed, cUL, VCCI Class A, PSE |
| Operating Temp | -5 to 60 °C (23 to 140 °F) |
