Description

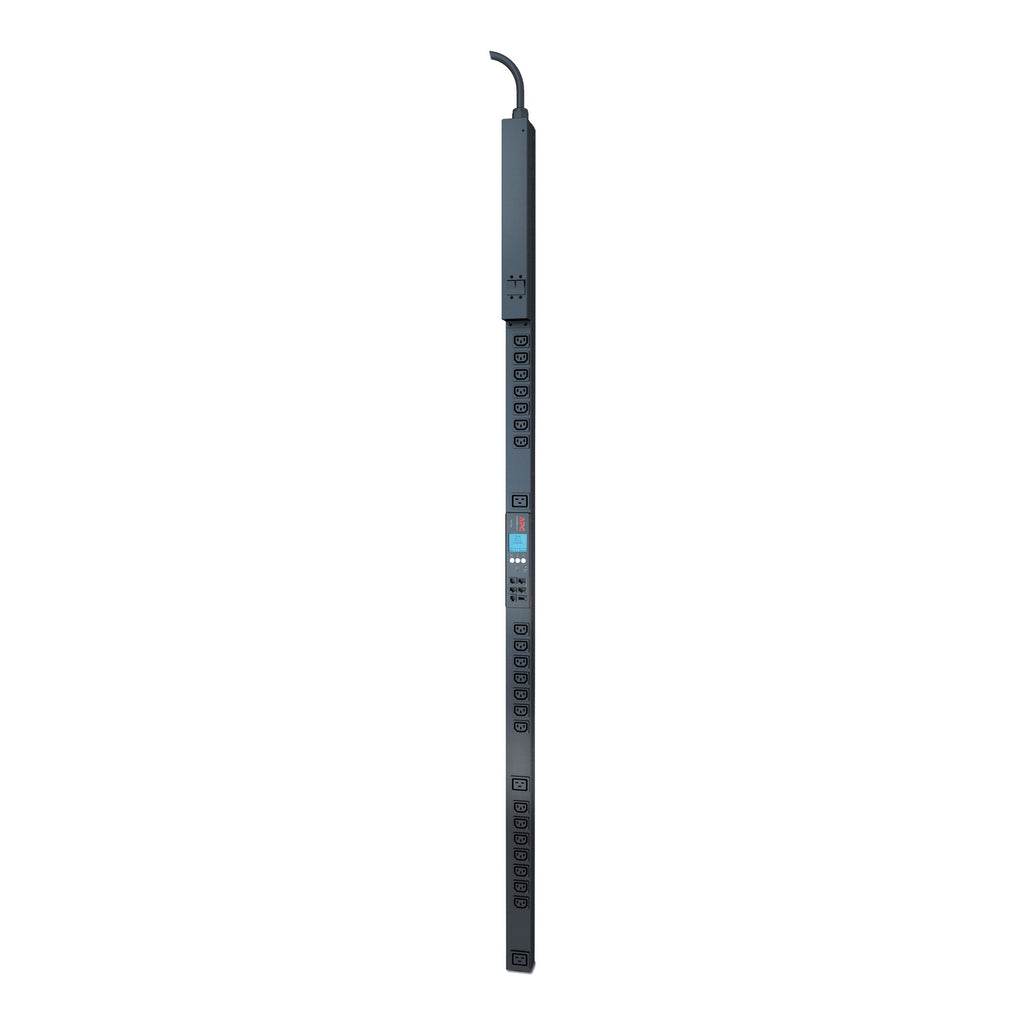

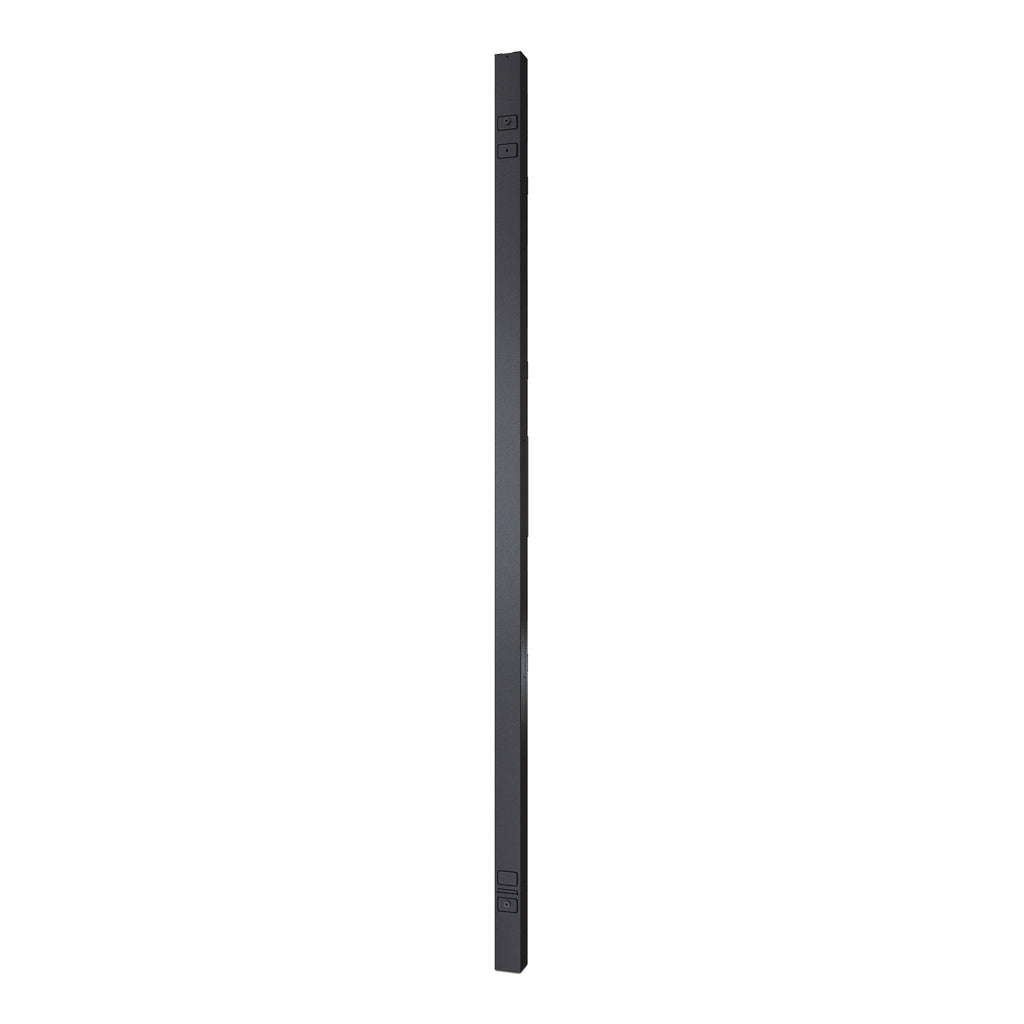

The APC NetShelter ` Metered-by-Outlet Rack PDU is a high-capacity, intelligent power distribution unit designed for critical IT environments. Delivering 7.4kW of single-phase power at 230V, this vertical 0U PDU features 21 C13 and 3 C19 outlets, ideal for dense equipment configurations.
With per-outlet metering, it enables detailed energy usage monitoring for capacity planning and cost allocation. Access real-time load data through secure Web, SNMP, Telnet, SSH, or StruxureWare interfaces. Additional features include locking IEC receptacles, ultra-low profile breakers, and support for Network Port Sharing (NPS) to reduce IP address usage.
Ideal for rack-level power monitoring and control, this PDU ensures efficiency, security, and optimal load management for your data center or network closet.
| Attribute | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP8453 |
| Form Factor | 0U Vertical |
| Mounting | Rack-mounted (side or no preference) |
| Input Plug Type | IEC 60309 32A 2P + E |
| Input Voltage | 200V / 208V / 230V |
| Output Voltage | 230V |
| Max Input Current | 32A |
| Load Capacity | 7.4kW / 7400 VA |
| Output Connections | 21x IEC C13, 3x IEC C19 |
| Cord Length | 3.0 meters |
| Metering | Per-outlet current metering |
| Network Management | Web, SNMP, Telnet, SSH, StruxureWare |
| Network Port Sharing | Supports up to 4 PDUs per IP address |
| Compliance | VDE, EN 55022 Class A, EN 61000 standards |
| Operating Temp | -5 to 60°C |
| Operating Humidity | 5% to 95% RH |
| Dimensions (HxWxD) | 182.9 x 5.6 x 5.1 cm |
| Weight | 8.21 kg |
| Warranty | 2 Years - Repair or Replace |
