Description

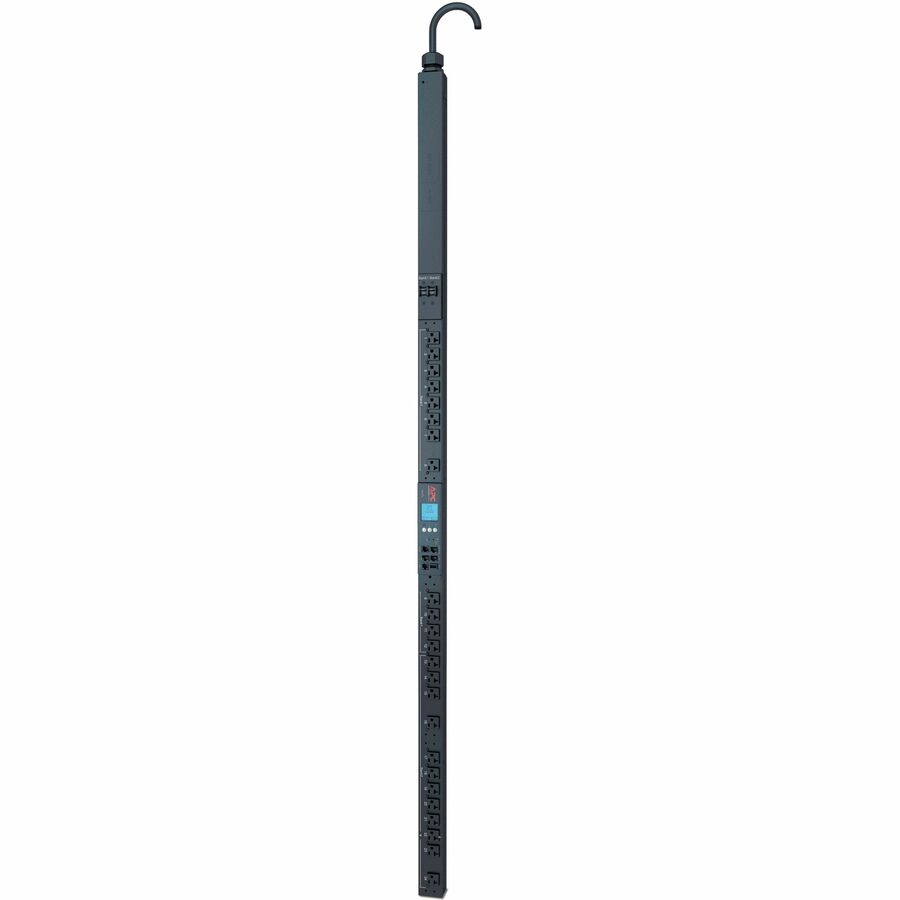

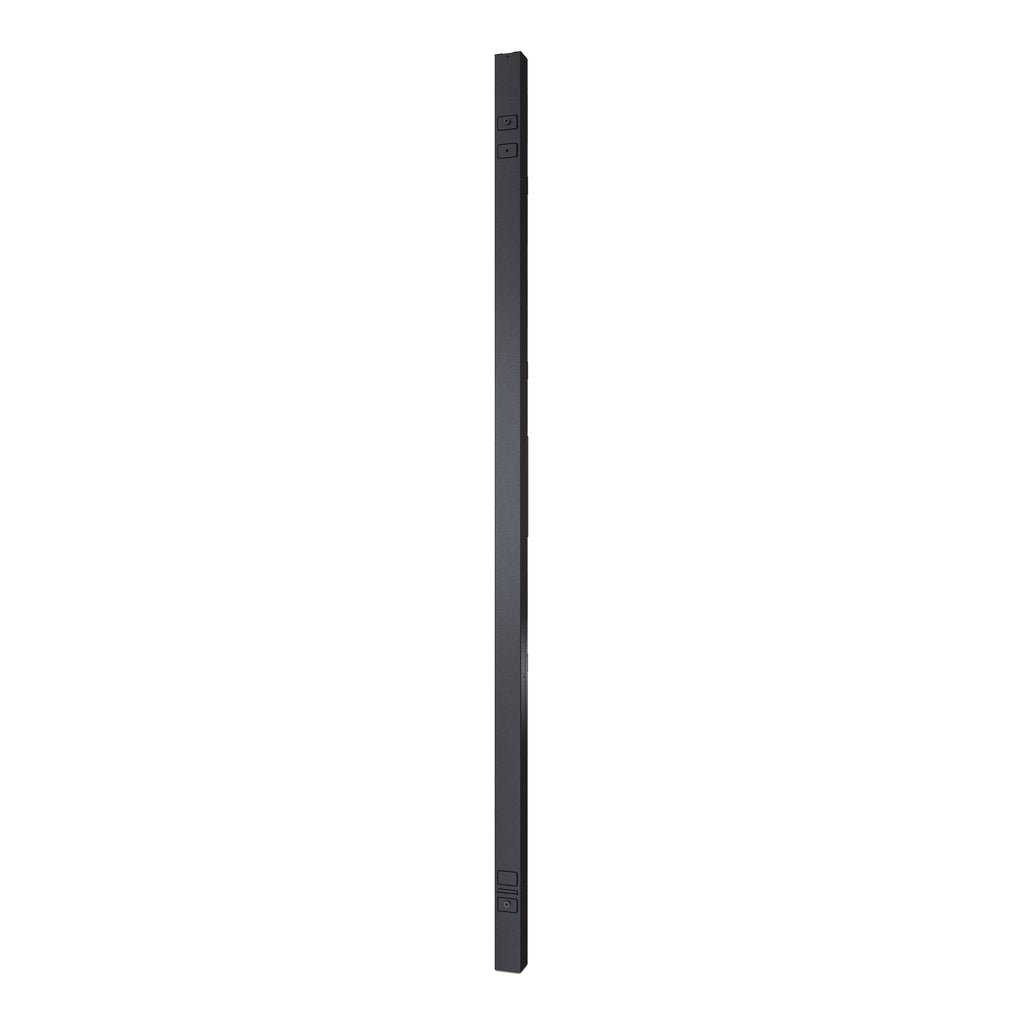

The APC AP8632 Rack PDU 2G offers metered-by-outlet functionality with switching capabilities, providing advanced power control and real-time monitoring at the outlet level. Designed for zero-U vertical mounting, this PDU delivers 30A of input power and distributes it via 24 NEMA 5-20R outlets. It’s ideal for colocations, large data centers, and distributed IT environments.
With secure remote access through Web, SNMP, or Telnet, users can monitor load, define alarm thresholds, and remotely reboot locked-up equipment. Compatible with EcoStruxure™ and Data Center Expert, the AP8632 improves operational efficiency and ensures critical uptime.
Key Features
-
Ideal for colocation, large data centers, or distributed IT sites
-
+/- 3% metering accuracy on amps, volts, kW, and kWh
-
Remote outlet-level switching for load control and reboot
-
Alarm thresholds to prevent overloaded circuits
-
Real-time monitoring via EcoStruxure IT platforms
-
Zero U tool-less vertical rack installation
| Specification | Details |
|---|---|
| Brand / Model | APC / AP8632 |
| Form Factor | Zero U, Vertical |
| Rack Units | 0U |
| Mounting | Toolless vertical, side-mount capable |
| Input Plug Type | NEMA L5-30P |
| Input Voltage | 100V – 120V |
| Input Frequency | 50/60 Hz |
| Max Input Current | 30A |
| Output Connections | 24 × NEMA 5-20R |
| Load Capacity | 2880 VA |
| Cord Length | 9.84 ft (3.00 m) |
| Power Monitoring | Metered-by-outlet with +/- 3% accuracy |
| Switching | Yes (per outlet) |
| Network Management | Web, SNMP, Telnet |
| Remote Reboot | Supported |
| Alarm Thresholds | User-definable |
| Environment Monitoring | Temp/Humidity Sensor Port |
| Dimensions (HxWxD) | 72.01 x 2.17 x 2.01 in (182.9 x 5.5 x 5.1 cm) |
| Weight | 17.75 lbs (8.05 kg) |
| Certifications | UL, cUL, PSE, FCC Part 15 Class A |
| Operating Temp | -5 to 60°C (23 to 140°F) |
| Warranty | 2 Years Repair or Replace |
