Description

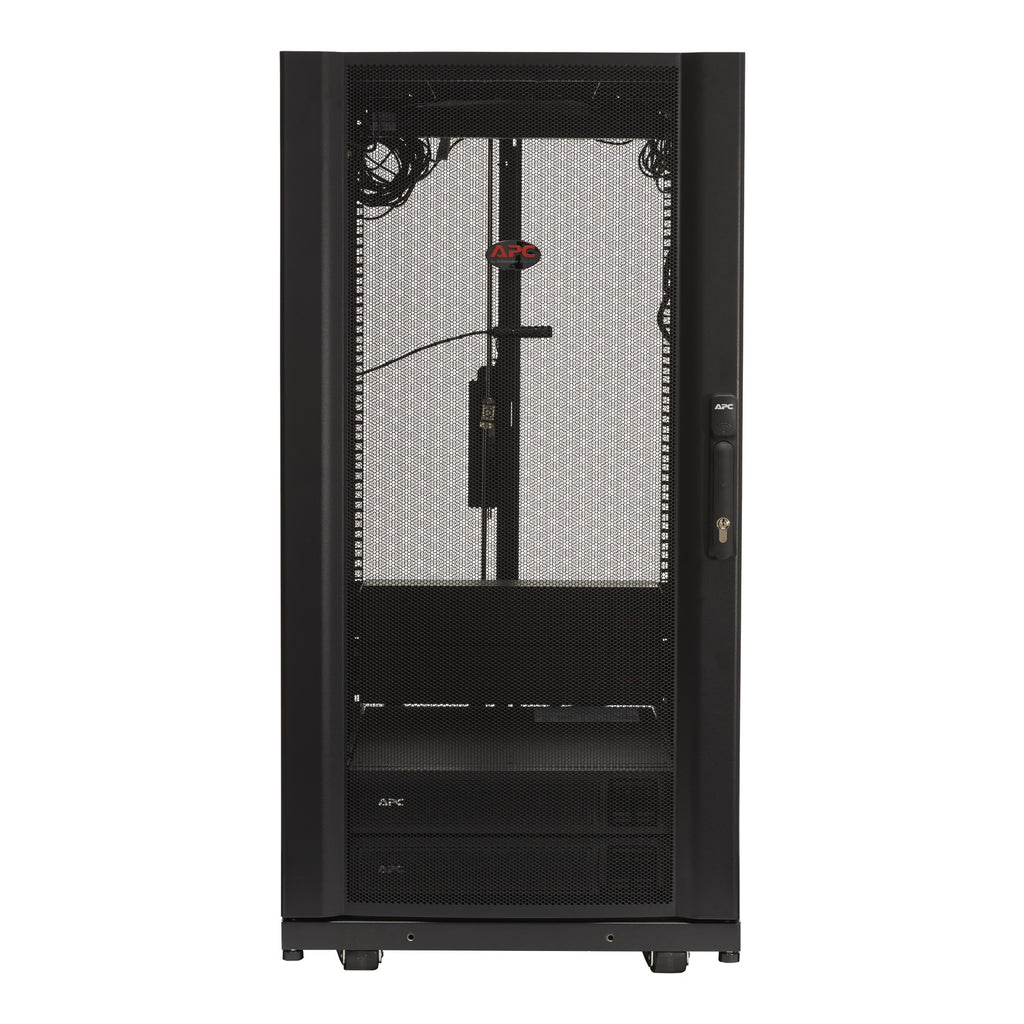

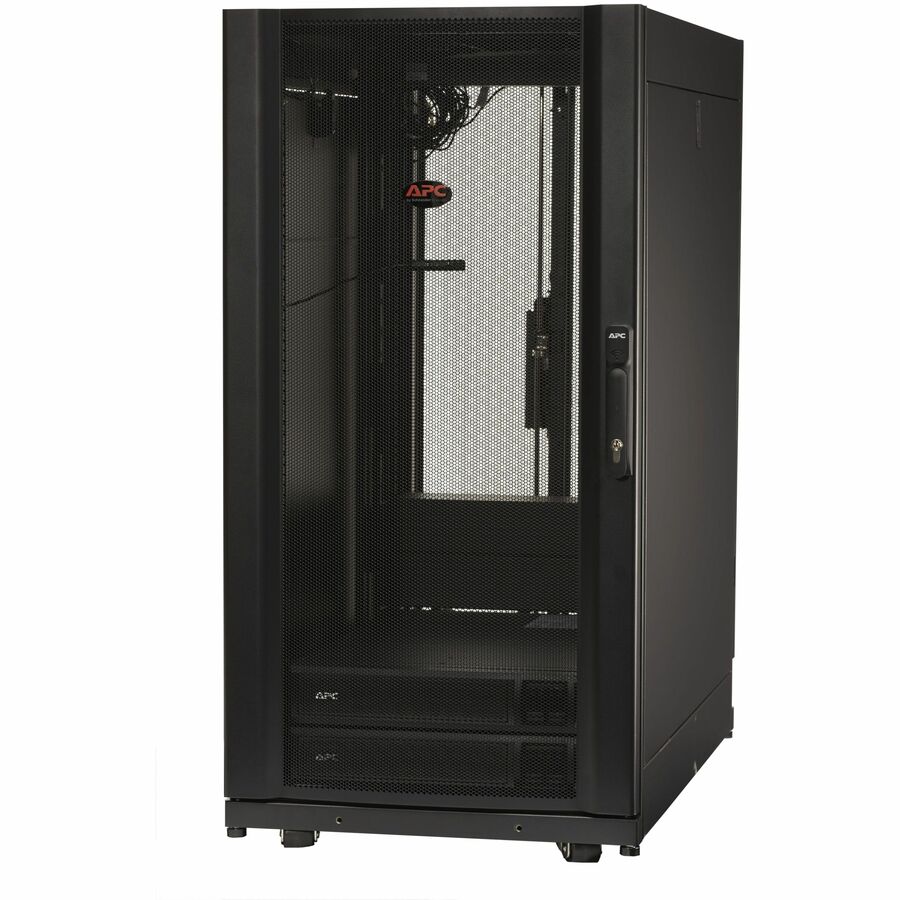

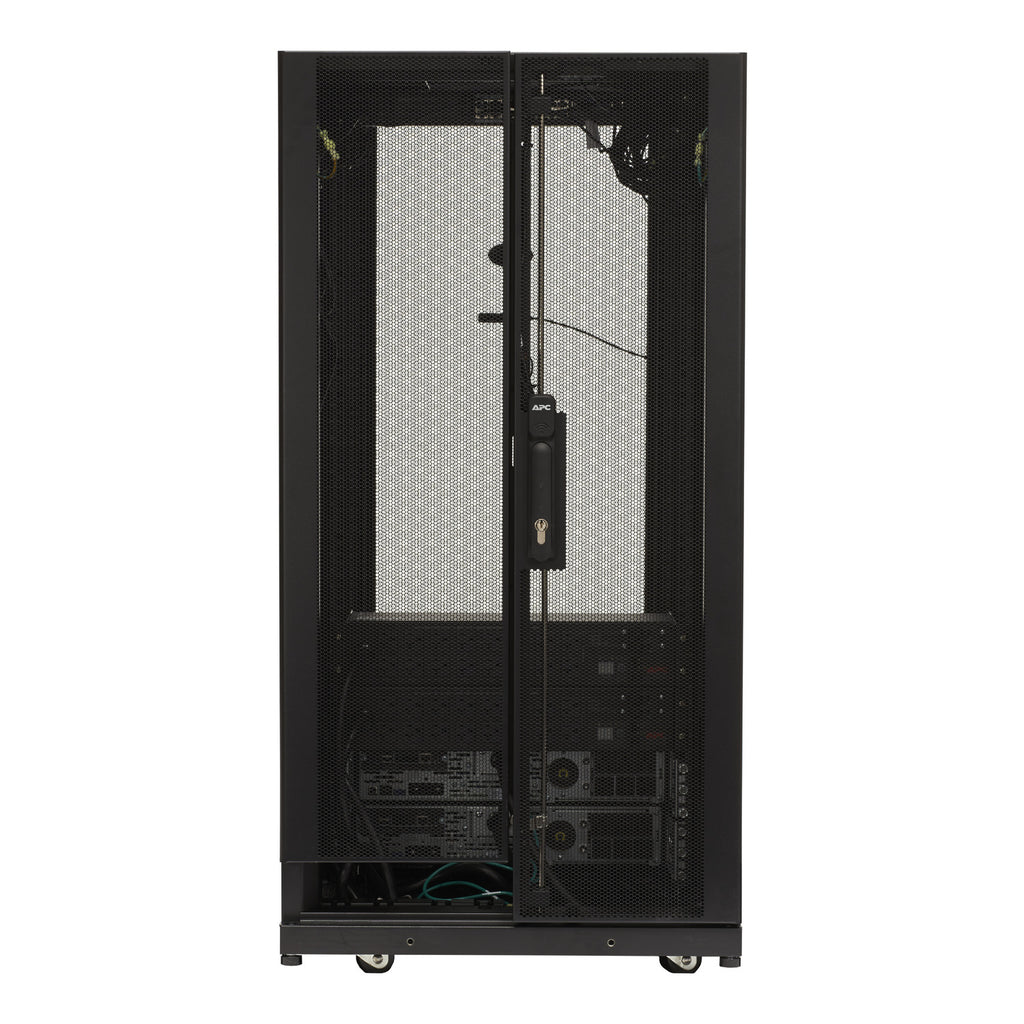

The APC by Schneider Electric Micro Data Center MDC24SX3KVAT is a secure, pre-integrated IT enclosure with power, cooling, and monitoring capabilities. This 24U solution is ideal for deploying server, networking, storage, and AV equipment in edge or branch locations. It features a 3kVA Smart-UPS, power distribution, environmental monitoring, and airflow management—all within a 36.02" deep NetShelter SX rack.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | MDC24SX3KVAT |
| Product Type | Micro Data Center / Rack Cabinet |
| Rack Height | 24U |
| Rack Width | 19" |
| Rack Depth | 36.02" (1070 mm) |
| Dimensions (H x W x D) | 47.2" x 23.6" x 42.1" (1199 x 600 x 1070 mm) |
| Color | Black |
| Weight (Approximate) | 420 lb |
| Shipping Weight | 570 lb |
| Dynamic/Rolling Capacity | 2250 lb |
| Static/Stationary Capacity | 3000 lb |
| Input Voltage / Frequency | 120V / 60 Hz |
| Included UPS | APC Smart-UPS X 3000VA (SMX3000RMLV2UNC) |
| Included PDUs | 2x Switched Rack PDU, 30A, 120V (AP7902B) |
| Monitoring | NetBotz 250 Appliance & Rack Access (NBACS125) |
| Cable Management | 1U Horizontal Cable Organizer (AR8429) |
| Blanking Panels | 10x 1U Toolless Modular Panels (AR8136BLK) |
| Assembly Required | No (Pre-Assembled) |
| Warranty | 1 Year Limited Warranty |
