Description
The APC NetShelter Rack PDU Advanced (APDU10450SW) is a high-density, switched 3-phase power distribution unit delivering up to 43.5kW (400V 63A) or 34.6kW (415V 60A) for critical IT environments. Featuring 42 4-in-1 combination outlets (C13/C15/C19/C21) with advanced switching, real-time metering (volts, amps, kW, kWh), and full network management capabilities. The unit supports Live Swap NMC, environmental monitoring, power sharing across cascaded PDUs, and a dual Ethernet interface with 1% metering accuracy for billing-grade performance. UL & CE certified for global deployment, rated for 60°C operation.
| Specification | Details |
|---|---|
| Model | APDU10450SW |
| Input Voltage | 400V/415V 3-Phase |

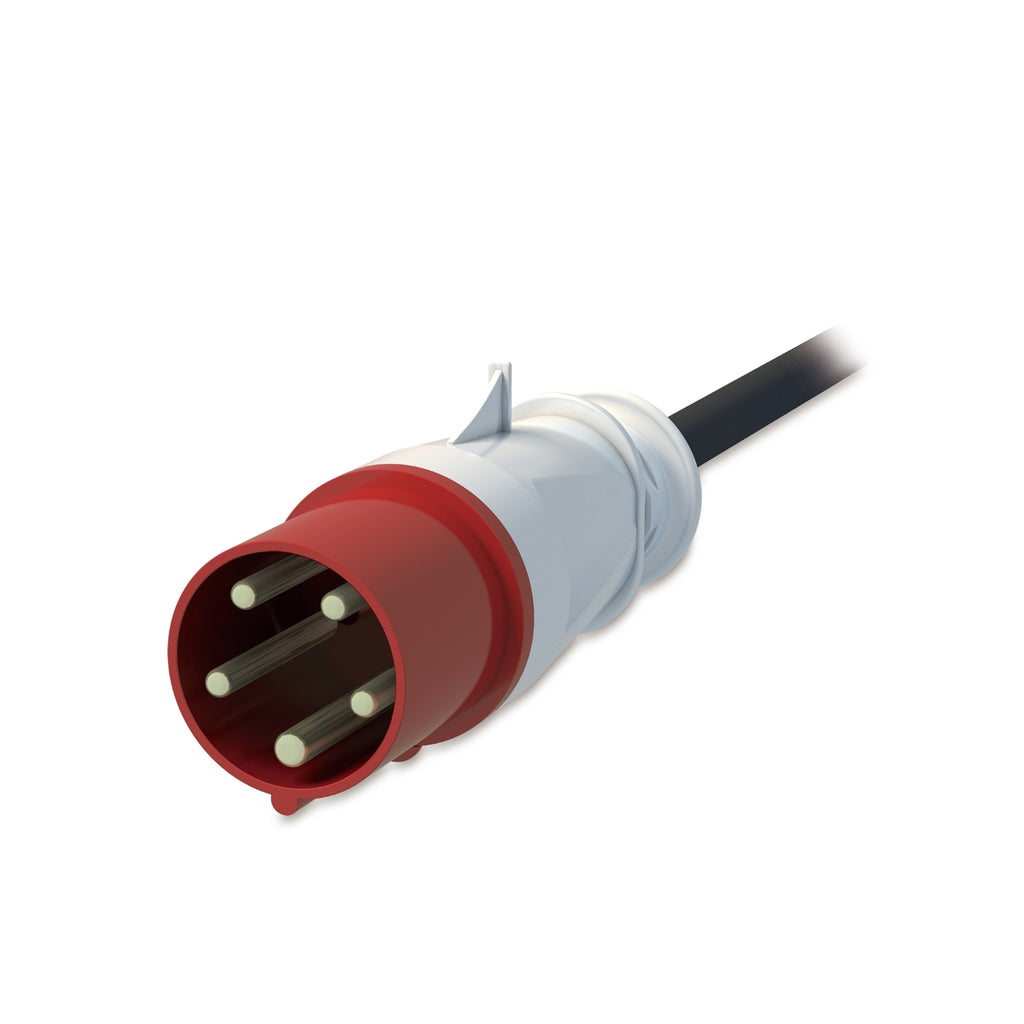

| Input Plug Type | IEC 60309 60A 3P+N+PE |
| Line Rated Current | 48 A |
| Input Current Limit | 60 A |
| Power Capacity | 43.5kW @400V / 34.6kW @415V |
| Output Voltage | 240V |
| Outlets | (21) C13/C15/C19/C21, (21) C13/C15 |
| PDU Type | Switched |
| Mounting | 0U Vertical, Rack-mounted |
| Cord Length | 5.9 ft (1.8 m) |
| Display | Interactive LCD |
| Network Connectivity | Gigabit Ethernet (1000BASE-T), 10/100BASE-T |
| Power Metering | Volts, Amps, kW, kWh |
| Environmental Monitoring | 2 sensor ports (sensors sold separately) |
| Operating Temperature | -5°C to 60°C (23°F to 140°F) |
| Approvals | UL 62368-1, CSA, FCC Part 15, TAA, BAA |
| IP Rating | IP44 |
| Dimensions (HxWxD) | 71.89 x 2.20 x 2.95 in (182.6 x 5.6 x 7.5 cm) |
| Weight | 27.3 lb (12.4 kg) |
| Warranty | 3 Years Repair or Replace |
| Country of Origin | China (CN) |
| GTIN | 731304439110 |
