Description

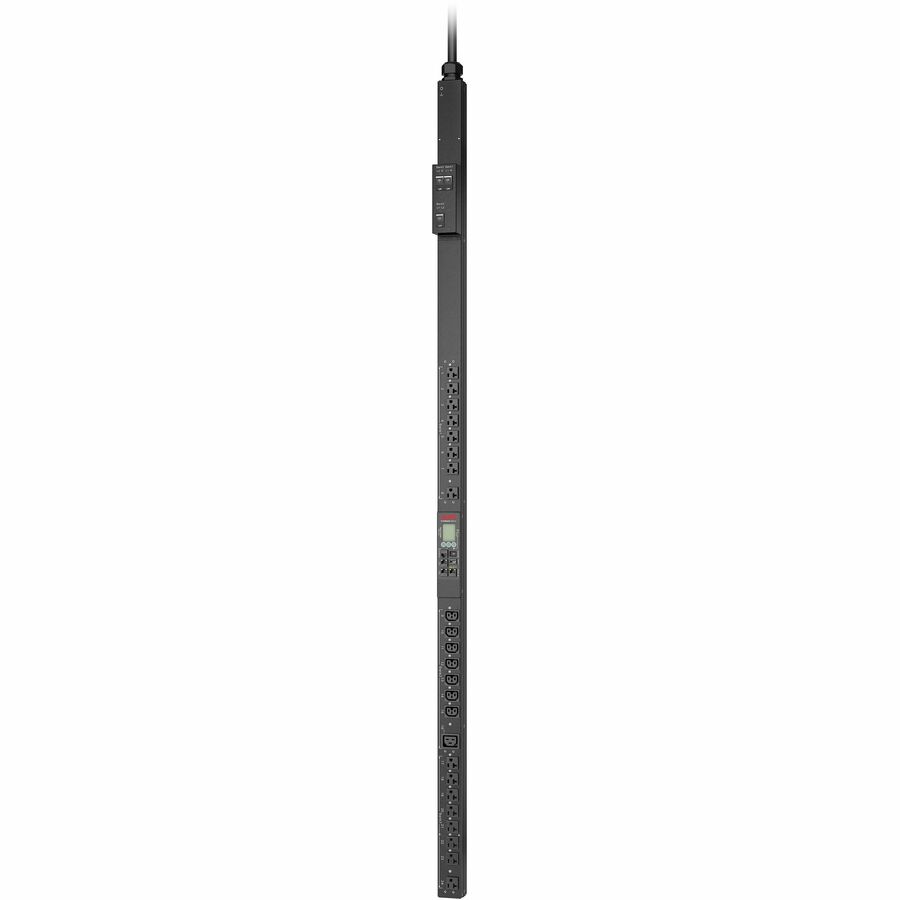

The APC APDU9970 Rack PDU 9000 is a switched power distribution unit designed for high-performance environments. It supports a maximum load capacity of 6.2kW at 120/208V and offers extensive outlet versatility with 16 NEMA 5-20R, 7 IEC C13/C15, and 1 IEC C19/C21 receptacles. The unit is ZeroU mountable, optimizing valuable rack space while simplifying cable management. It supports remote monitoring and outlet-level switching via SNMP or Redfish, allowing for efficient and intelligent power control.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU9970 |
| Product Type | Switched Rack PDU |
| Mounting Type | Vertical (ZeroU) |
| Mounting Location | Side |
| Rated Input Voltage | 120V / 208V |
| Input Plug Type | NEMA L14-30P |
| Cord Length | 10 ft (3.05 m) |
| Output Outlets | 16 × NEMA 5-20R, 7 × IEC C13/C15, 1 × IEC C19/C21 |
| Maximum Power Capacity | 6.2 kW (4992 VA) |
| Line Rated Current | 24 A |
| Input Current Limit | 30 A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 120/208V |
| Communication Protocols | SNMP, Redfish |
| Network Type | 10/100/1000BASE-T Ethernet |
| Compliance | UL 62368-1, cUL Listed, FCC Part 15 Class A |
| Operating Temperature | -5 to 60°C (23 to 140°F) |
| Operating Altitude | 0–10,000 ft |
| Storage Temp & Humidity | -25 to 65°C, 5–95% RH |
| Dimensions (H x W x D) | 72.01 x 2.20 x 1.81 in (182.9 x 5.6 x 4.6 cm) |
| Weight | 20.79 lb (9.43 kg) |
| Warranty | 3-Year Repair or Replace |
| GTIN | 731304356356 |
