Description

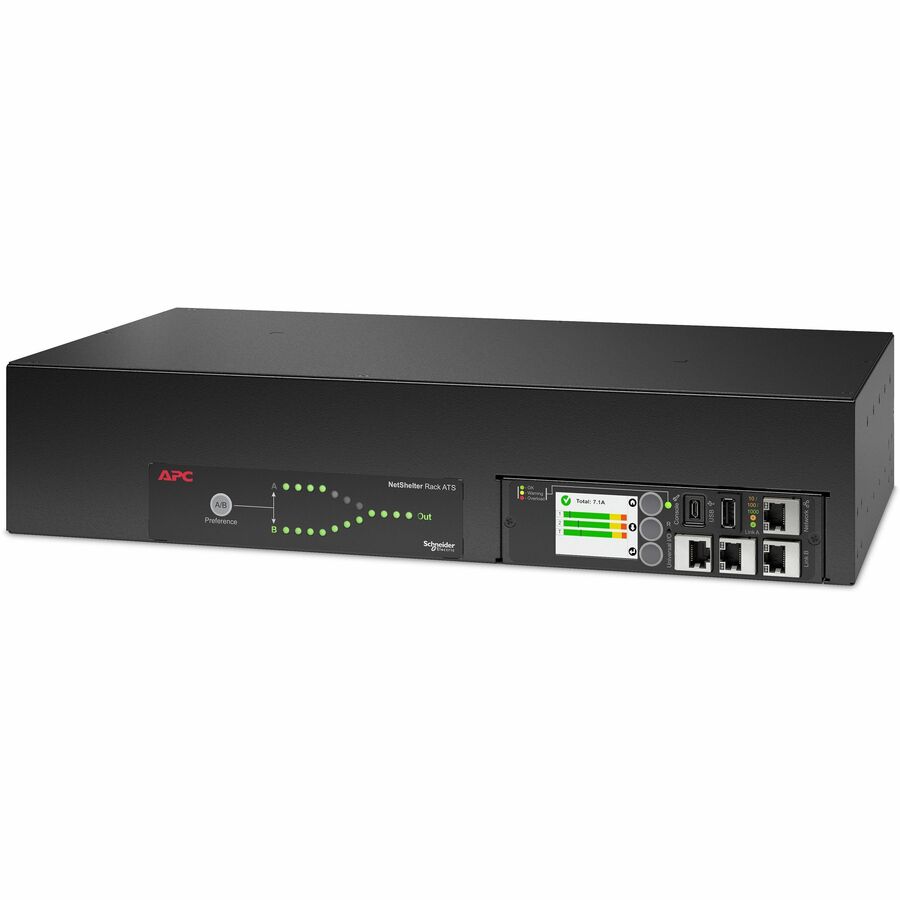

The APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is a high-availability 5th Generation 2U rack-mounted ATS designed for critical IT environments. Supporting dual IEC 309 inlets, it delivers seamless failover and redundant power to single-corded equipment. Rated at 32A and 230V with a 7400VA load capacity, it includes 16 C13 and 2 C19 outlets with circuit breaker protection.
Upgraded with APC’s NMC3, this ATS offers advanced features like environmental monitoring, secure remote access (Web UI, SNMP, CLI), and centralized management of up to 32 ATS units under a single IP. Designed for Edge to Cloud deployments, it enables fast switching (10ms), field-replaceable NMC, and real-time temperature and humidity monitoring. Compatible with EcoStruxure IT and backed by a 2-year standard warranty (5-year extended optional).
| Category | Details |
|---|---|
| Product Type | Rack Automatic Transfer Switch (ATS) |
| Model | AP4424A |
| Form Factor | 2U Rackmount |
| Input Voltage | 230V AC, 1 Phase |
| Input Connection | 2 × IEC 60309 32A 2P+E |
| Output Voltage | 230V AC, 1 Phase |
| Output Connections | 16 × IEC C13, 2 × IEC C19 |
| Rated Current | 32A |
| Load Capacity | 7400VA |
| Switching Time | 10ms (typical) seamless switching |
| Monitoring | Temperature & humidity, network access, port sharing |
| Remote Access | Web UI, SNMP, CLI, EcoStruxure IT compatible |
| Cable Length | 2.4 m (8 ft), 2 cables |
| Mounting | Rack-mounted (front/rear), horizontal |
| Dimensions (H×W×D) | 8.8 cm × 43.2 cm × 23.6 cm (3.46" × 17.01" × 9.29") |
| Net Weight | 6.94 kg (15.30 lb) |
| Environmental Range | Operating: -5–45°C; Storage: -25–65°C; Humidity: 5–95%; Altitude: ≤ 10,000 ft |
| Certifications | EN 55022 Class A, FCC Part 15 Class A |
| Warranty | 2-year repair/replace; 5-year extended available |
