Description

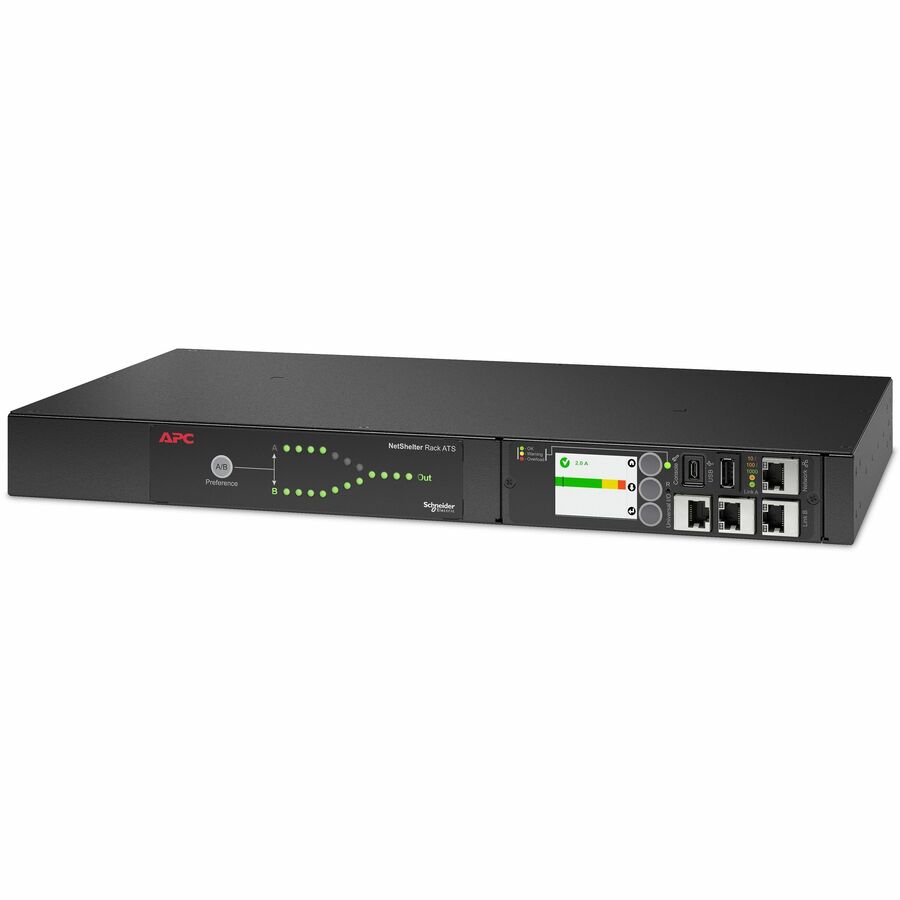

Ensure reliable power redundancy for single-corded IT devices with the APC NetShelter Rack Automatic Transfer Switch (AP4423A). Designed for high availability applications, this 5th-Generation 1U rack ATS features dual 16A IEC C20 inlets and nine output receptacles (8x C13, 1x C19). With seamless 10ms transfer time, integrated NMC3 for advanced monitoring, and environmental sensor support, it delivers intelligent, manageable power failover in edge or data center environments. Fully compatible with EcoStruxure IT, it simplifies network management for up to 32 Rack ATS units through a single IP. Includes 2-year warranty and extended coverage options.
| Category | Details |
|---|---|
| Model | AP4423A |
| Product Type | Automatic Transfer Switch (Rack ATS) |
| Input Voltage | 230V AC, 1-phase |
| Input Connections | 2 × IEC 60320 C20 |
| Output Connections | 8 × IEC C13, 1 × IEC C19 |
| Load Capacity | 3700 VA |
| Rated Current | 16 A |
| Transfer Time | 10 ms (typical seamless switching) |
| Form Factor | 1U Rackmount |
| Management | Web UI, SNMP, CLI; Supports EcoStruxure IT |
| Network | NMC3 with IP sharing for up to 32 Rack ATS units |
| Environmental | Temp: -5 to 45 °C; Humidity: 5–95% RH |
| Certifications | UL, cUL, CE, FCC Part 15 Class A, EN55022 Class A |
| Dimensions (HWD) | 1.73 x 17.01 x 9.29 in (4.4 x 43.2 x 23.6 cm) |
| Weight | 8.25 lbs (3.74 kg) |
| Warranty | 2-Year Standard, 5-Year Extended Available |
| GTIN | 731304432449 |
