Description

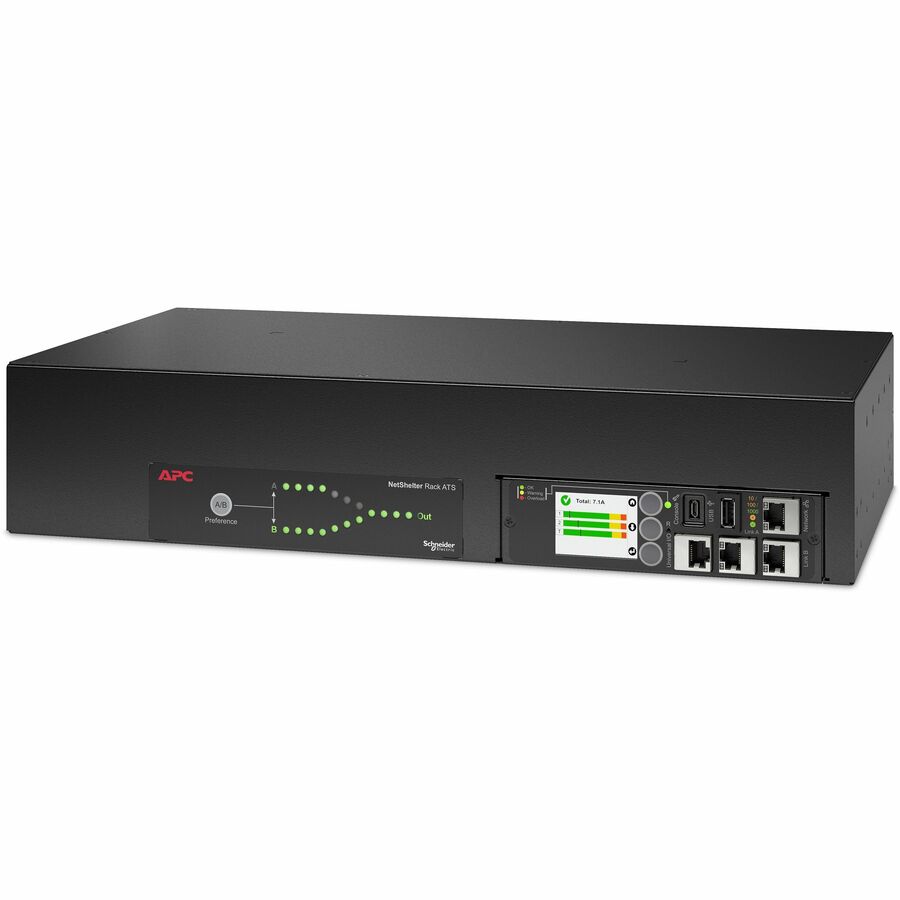

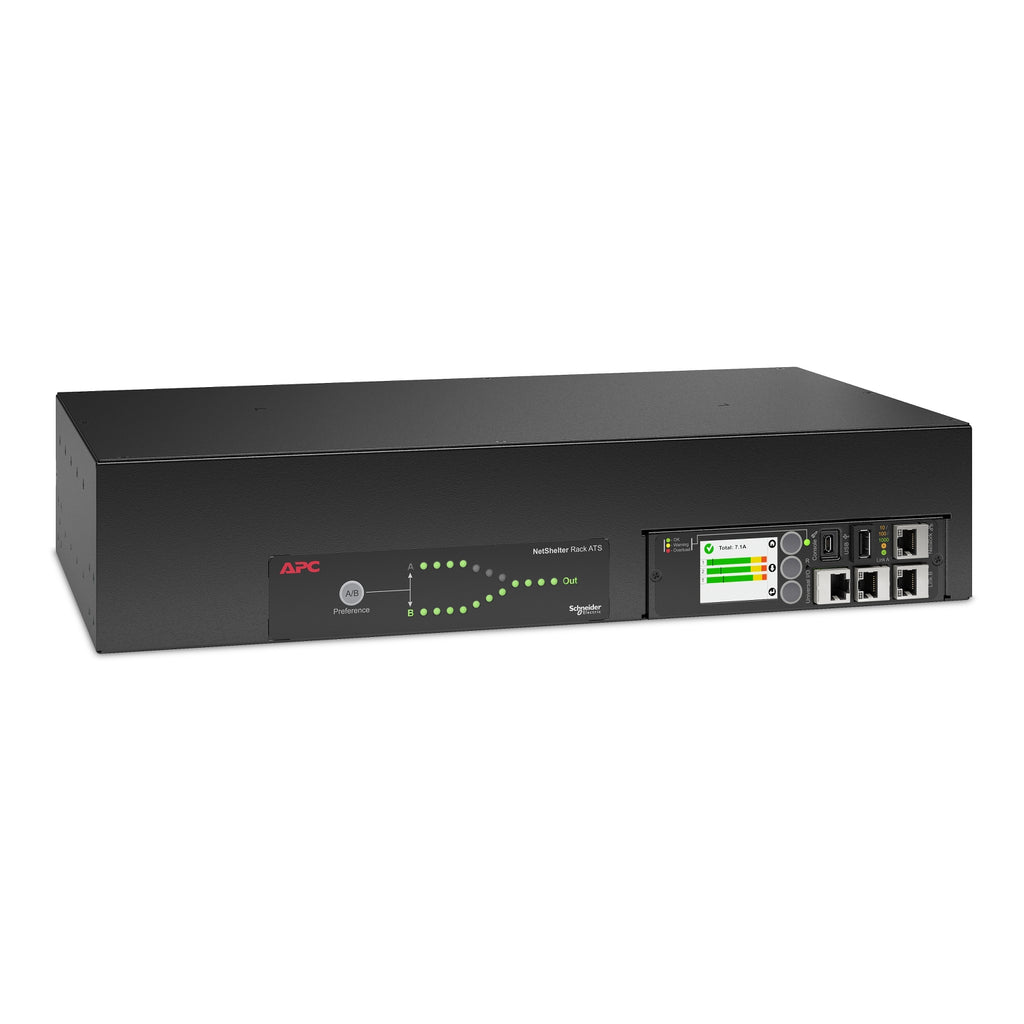

The APC by Schneider Electric NetShelter Rack Automatic Transfer Switch (AP4432A) is a high-availability 2U, single-phase rack ATS delivering 30A, 200/208V power to critical IT equipment with seamless power source switching. Designed to provide redundant power to single-corded loads, the AP4432A features 2 NEMA L6-30P inputs, 16 IEC C13, and 2 IEC C19 outlets with built-in circuit breaker protection. It’s built with advanced APC NMC3 technology for secure, remote access and real-time monitoring through Web UI, SNMP, CLI, or EcoStruxure IT.
This fifth-generation ATS supports advanced features like field-replaceable NMC, Gigabit Ethernet, APC Wi-Fi USB device compatibility, and environmental sensors for temperature/humidity. With rapid 10ms transfer time and support for managing up to 32 ATS units on one IP, it ensures maximum uptime and operational resilience.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP4432A |
| Product Type | Automatic Transfer Switch (ATS) |
| Rack Height | 2U |
| Phase | Single Phase |
| Voltage | 200V / 208V |
| Current Rating | 30A (Regulatory Derated: 24A in NA) |
| Load Capacity | 4992 VA |
| Input Connections | 2 × NEMA L6-30P |
| Output Connections | 16 × IEC C13, 2 × IEC C19 |
| Protection | Circuit Breaker |
| Transfer Time | ≤10ms |
| Network Management | Integrated NMC3, Secure Web UI, CLI, SNMP, EcoStruxure IT |
| Environmental Monitoring | Temperature & Humidity Sensors |
| Mounting | Rackmount (2U) |
| Communication | Gigabit Ethernet, Wi-Fi via USB |
| Warranty | 2-Year Standard, 5-Year Extended |
| Additional Features | Field-replaceable NMC, Cascaded Management (32 devices/IP) |
