Description

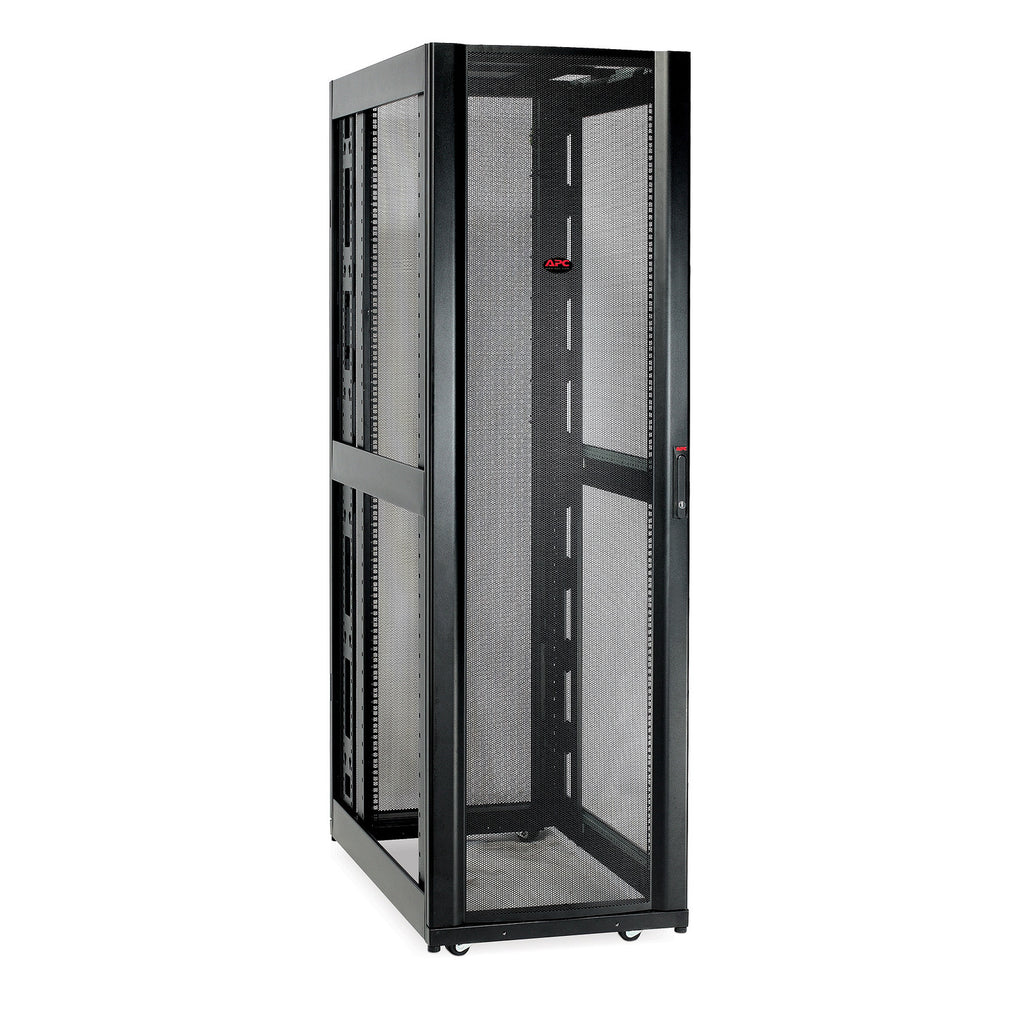

Engineered for today’s low- to medium-density server and networking deployments, the APC NetShelter SX AR3100X609 maximizes every square inch of your data-center footprint:
-
Space-saving 600 mm width keeps aisles clear and optimizes floor space.
-
Full-height 42U frame (1991 mm) rolls through standard doorways fully loaded—perfect for live-move or staging.
-

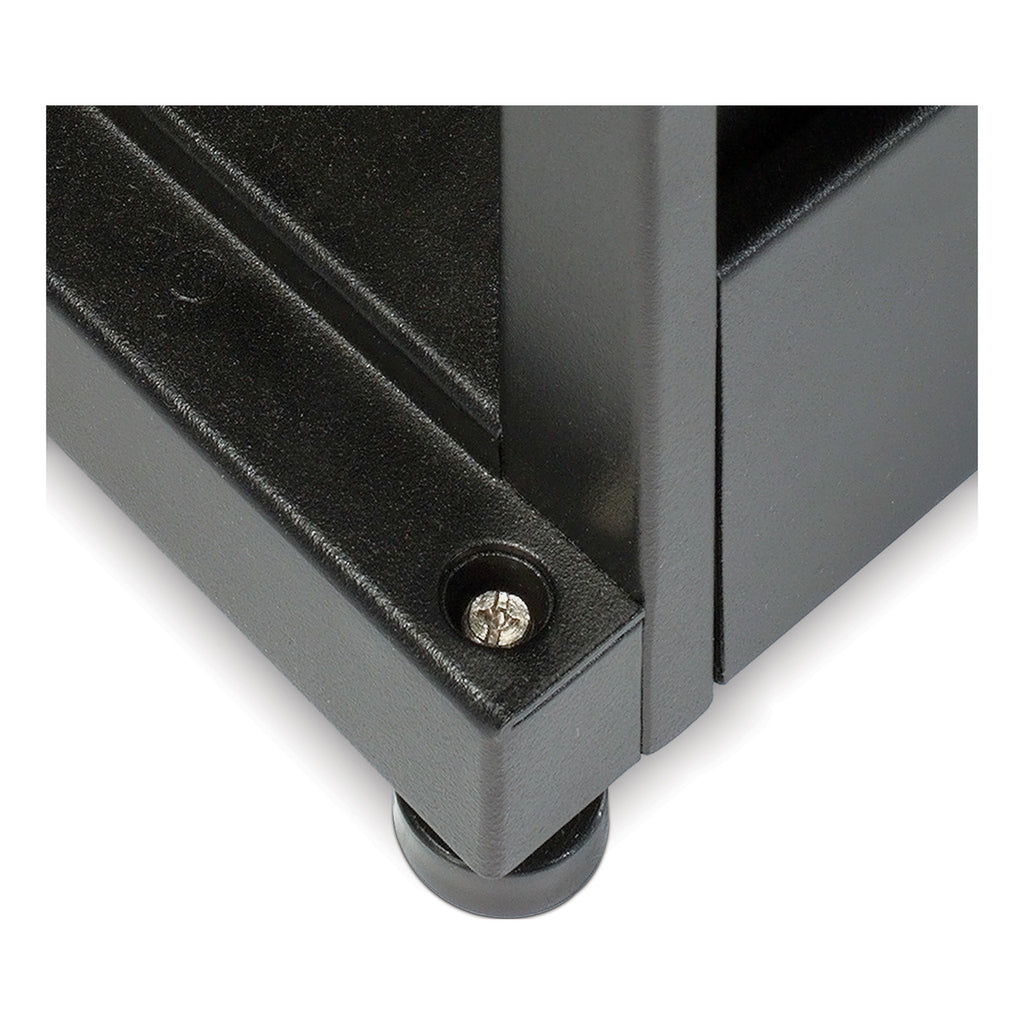

Heavy-duty steel construction supports up to 2,250 lb dynamic / 3,750 lb static loads; pre-installed casters and leveling feet included.
-
Tool-less cable & airflow accessories mount in seconds; doors and roof are perforated for superior ventilation.
-
Compliance built-in: UL 2416, UL 60950-1, EIA-310-E, TAA & BAA via COTS—ready for government or enterprise sites.
-
5-year repair-or-replace warranty backed by APC and Schneider Electric global support.
Deliver rock-solid protection for mission-critical hardware while keeping installation fast, tidy, and standards-compliant.
| Category | Specification |
|---|---|
| Brand / Series | APC by Schneider Electric • NetShelter SX |
| Model | AR3100X609 |
| Rack Units | 42U |
| Form Factor | Freestanding server rack enclosure (no side panels) |
| External Dimensions (H × W × D) | 1991 × 600 × 1070 mm (78.39 × 23.62 × 42.13 in) |
| Adjustable Mounting Depth | 191 – 915 mm (7.52 – 36.02 in) |
| Rack Width | 19 in EIA-310-E |
| Frame Gauge | 14-gauge rails, 16-gauge front door/posts, 18-gauge rear door/roof |
| Load Capacity | 3,750 lb static (1,701 kg) • 2,250 lb dynamic (1,021 kg) |

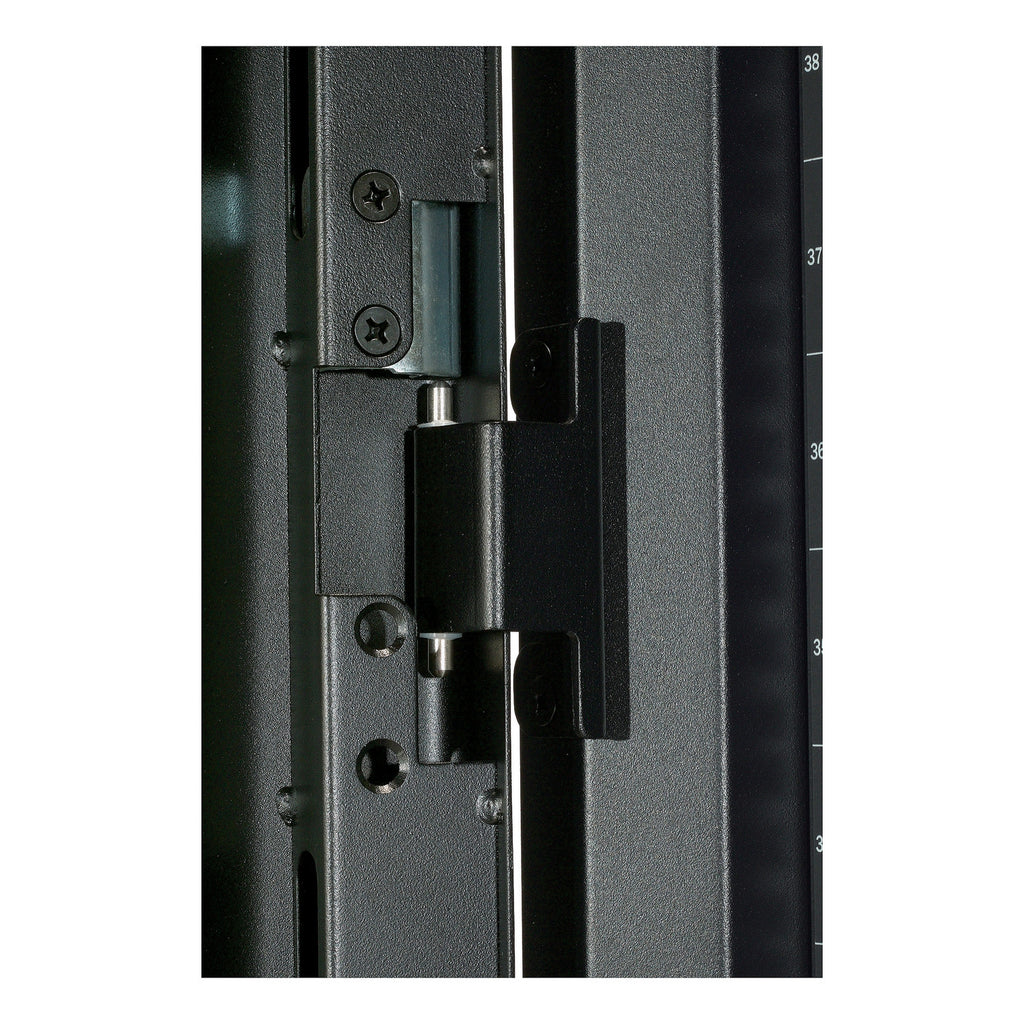

| Doors / Panels | Perforated front & rear doors (reversible, lockable) • No side panels |
| Included Equipment | Baying hardware, mounting hardware, keys, installation guide, pre-installed casters & leveling feet |
| Compliance & Certifications | UL 2416 • UL 60950-1 • EIA-310-E • TAA • BAA via COTS |
| GTIN | 731304294269 |
| Country of Origin | China |
| Warranty | 5-year repair or replace |
