Description

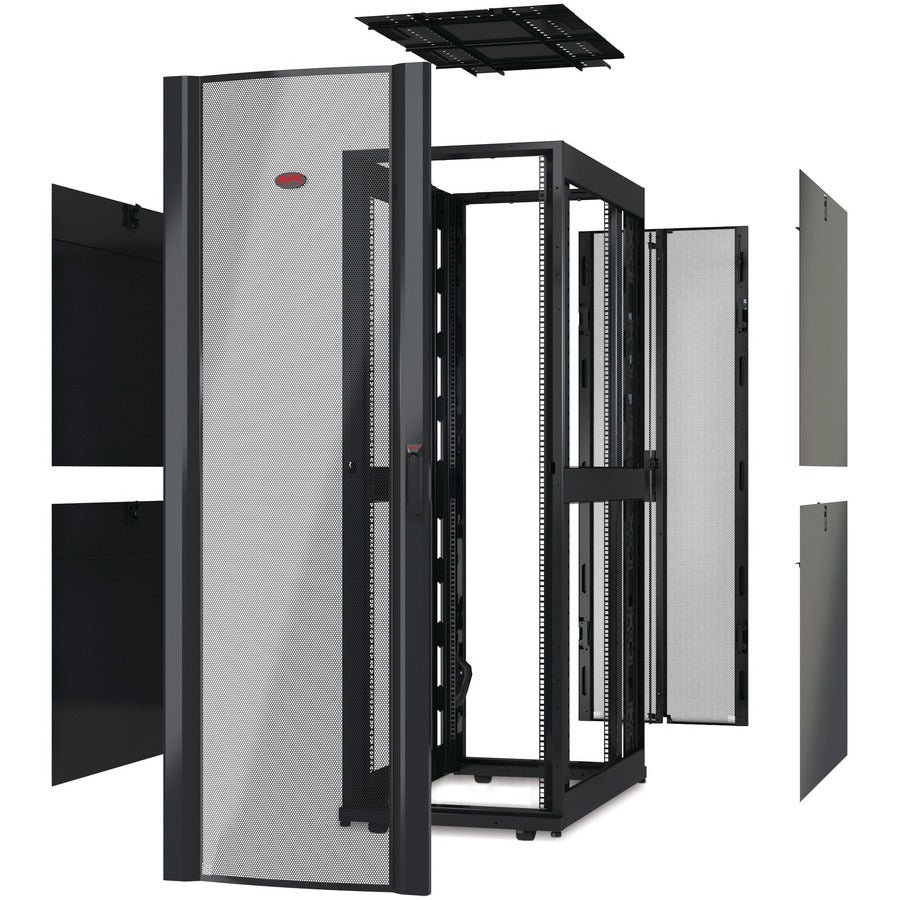

The APC NetShelter SX AR3307X610 is a 48U tall and deep universal IT enclosure designed for low to medium density server and networking environments. With an optimized 600mm width and 1200mm depth, it offers generous rear access and additional equipment clearance. This enclosure enhances equipment organization and airflow while supporting heavy-duty loads up to 3000 lbs static. Pre-installed casters and baying hardware allow for fast deployment, while a sleek black finish provides a professional aesthetic fit for any data center.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AR3307X610 |
| Rack Units | 48U |
| Dimensions (HxWxD) | 2258 x 600 x 1200 mm (88.9 x 23.6 x 47.2 in) |
| Rack Width | 19 inches |
| Color | Black |
| Mounting Depth | Min: 7.52 in (191 mm), Max: 41.73 in (1060 mm) |
| Load Capacity | Dynamic: 2250 lbs (1020.6 kg), Static: 3000 lbs (1360.8 kg) |
| Material Thickness | Rails: 14 gauge, Posts: 16 gauge, Roof/Side Panels: 18 gauge |

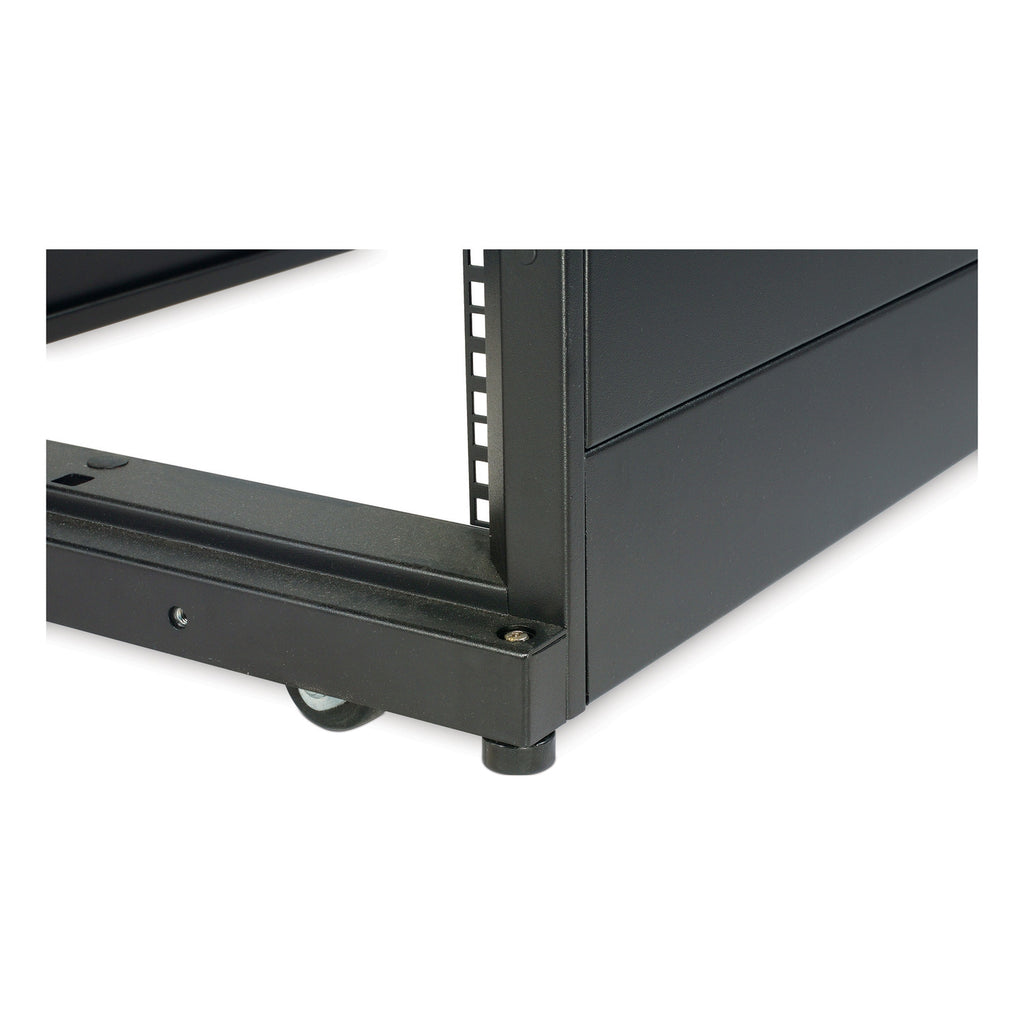

| Included Accessories | Casters, Leveling Feet, Baying Hardware, Mounting Hardware, Keys, Side Panels |
| Compliance | UL 2416, UL 60950-1, EIA-310E |
| Warranty | 5-Year Repair or Replace |
| Country of Origin | China (TAA Compliant) |
| GTIN | 731304293798 |
