Description

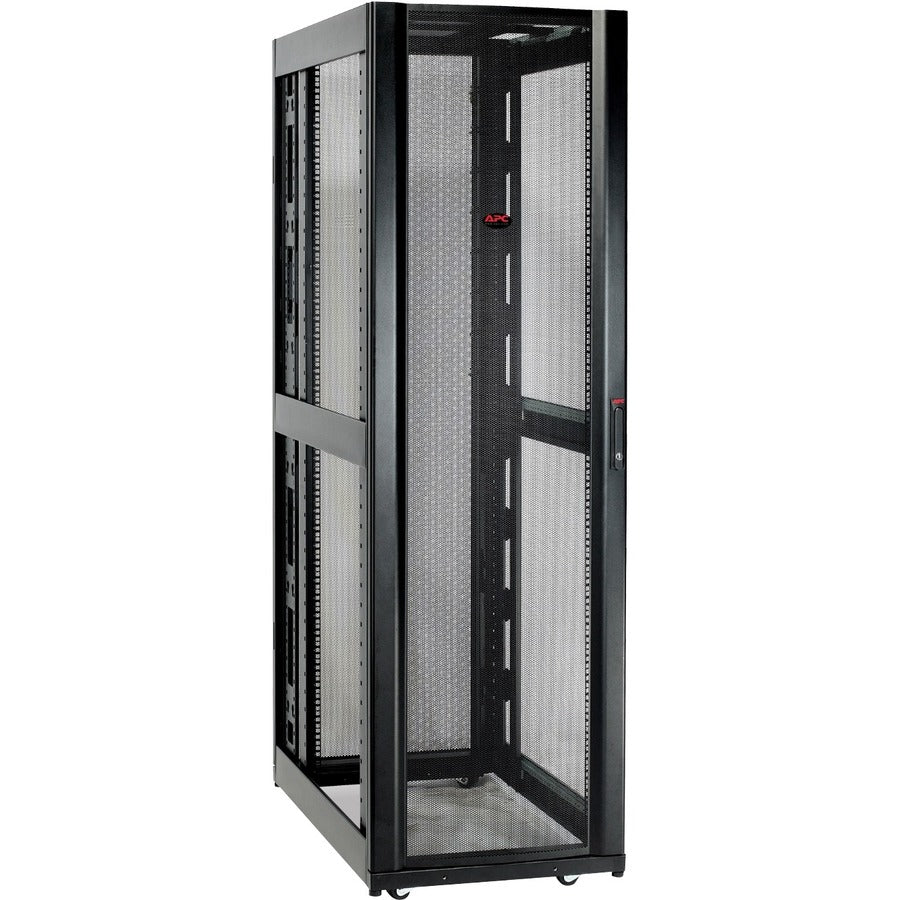

The APC NetShelter SX AR3307X609 is a deep and tall 48U universal IT enclosure designed for low to medium density server and networking applications. With a compact 600mm width and extended 1200mm depth, it offers optimized airflow, superior cable management, and enhanced rear access for deeper equipment installations. Its perforated front and rear doors improve ventilation, while leveling feet and pre-installed casters provide flexible deployment. Ideal for environments that require additional mounting space with reliable strength and compliance.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AR3307X609 |
| Rack Units | 48U |
| Form Factor | Floor-standing |
| Enclosure Type | Server rack without sides |
| Color | Black |
| Dimensions (H x W x D) | 2258mm x 600mm x 1200mm |
| Product Weight | 149.55 kg (329.70 lb) |
| Mounting Depth (min/max) | 191mm / 1059.9mm |
| Rack Width | 19 inches (EIA Standard) |
| Load Capacity (Dynamic/Static) | 1020.6 kg / 1360.8 kg |
| Door Type | Perforated front and rear |
| Included Hardware | Casters, leveling feet, baying hardware, keys, mounting hardware |
| Compliance | UL 2416, UL 60950-1, EIA-310E |
| Country of Origin | China |
| Warranty | 5-Year Repair or Replace |
| GTIN | 731304293781 |
