Description

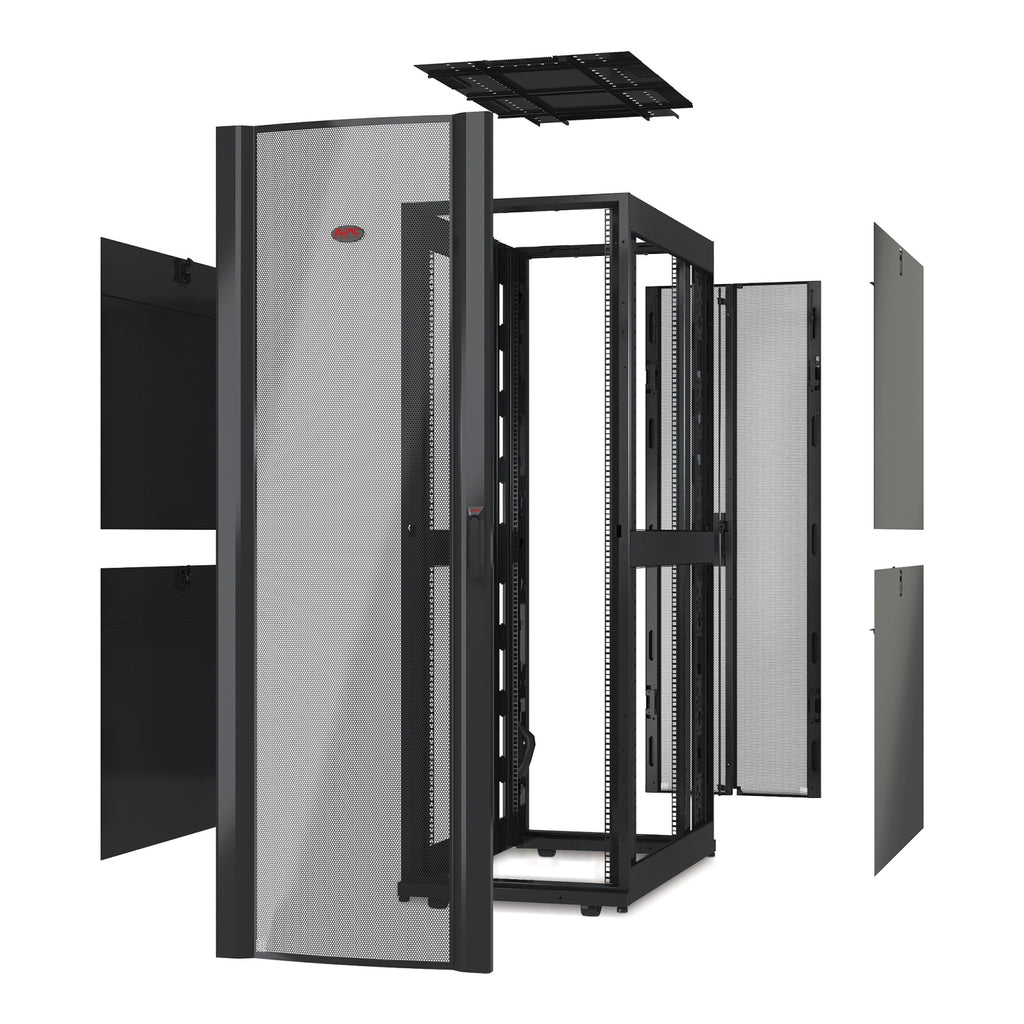

The APC NetShelter SX AR3350X617 is a deep, wide 42U server rack enclosure designed for high-density IT environments. Measuring 1991mm high, 750mm wide, and 1200mm deep, this cabinet offers optimal internal clearance for blade servers and cable management, even without sides or doors. Ideal for applications requiring increased airflow or quick service access, the rack comes fully assembled with baying hardware, casters, leveling feet, and EIA-standard rails. Built to handle heavy IT loads, it supports up to 3000 lb static and 2250 lb dynamic weight. TAA-compliant and backed by a 5-year warranty.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AR3350X617 |
| Type | Rack Enclosure |
| Rack Units | 42U |
| Form Factor | Freestanding (Not rack-mountable) |
| Color | Black |
| Height | 1991 mm (78.39 in) |
| Width | 750 mm (29.53 in) |
| Depth | 1200 mm (47.24 in) |
| Rack Width | 19" |
| Mounting Depth (Max) | 1048 mm (41.26 in) |
| Mounting Depth (Min) | 261.9 mm (10.31 in) |
| Material Thickness | 14-gauge rails, 16-gauge posts, 18-gauge roof |
| Load Capacity (Static) | 3000 lb (1360.8 kg) |
| Load Capacity (Dynamic) | 2250 lb (1020.6 kg) |
| Included Accessories | Baying hardware, keys, leveling feet, mounting hardware, casters |
| Compliance | TAA, BAA via COTS, UL 2416, UL 60950-1, EIA-310E |
| Country of Origin | China |
| GTIN | 731304293828 |
| Warranty | 5-Year Repair or Replace |
| Lead Time | Usually in Stock |
| Packaging Dimensions | 2118 x 1334 x 851 mm (83.39 x 52.52 x 33.50 in) |
| Shipping Weight | 183.18 kg (403.84 lb) |
