Description
Engineered for today’s dense server and networking deployments, the APC NetShelter SX AR3100X617 delivers robust, standards-compliant racking in a compact 600 mm footprint:
-
Space-efficient 42U frame rolls through standard doorways yet supports full-depth servers up to 914 mm (36 in).
-
Open-frame design (no sides or doors) accelerates equipment access, cable routing, and airflow in contained aisles or secure rooms.
-
Heavy-duty steel construction sustains 3,000 lb static / 2,250 lb dynamic loads—ideal for converged infrastructure stacks.
-

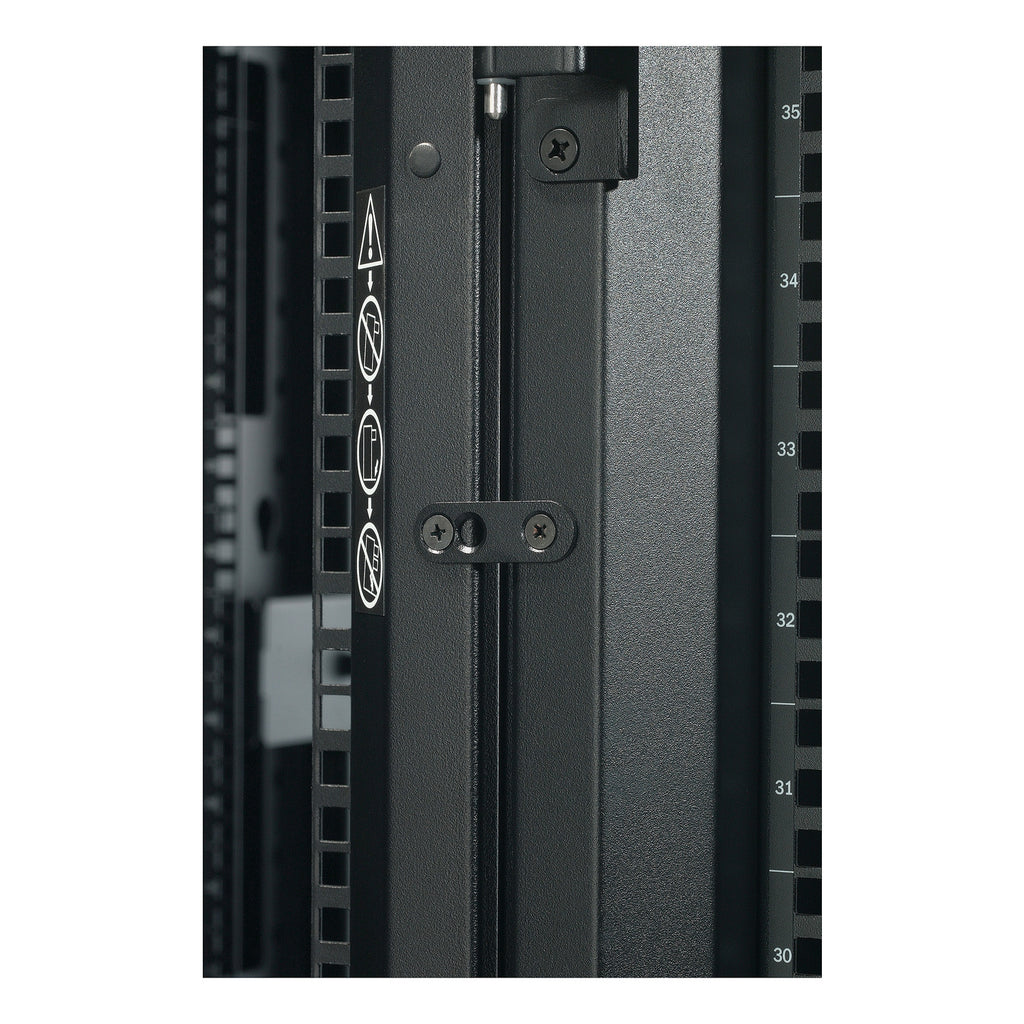

Tool-less mounting rails & U-numbered posts speed installation while maintaining precise EIA-310-E alignment.
-

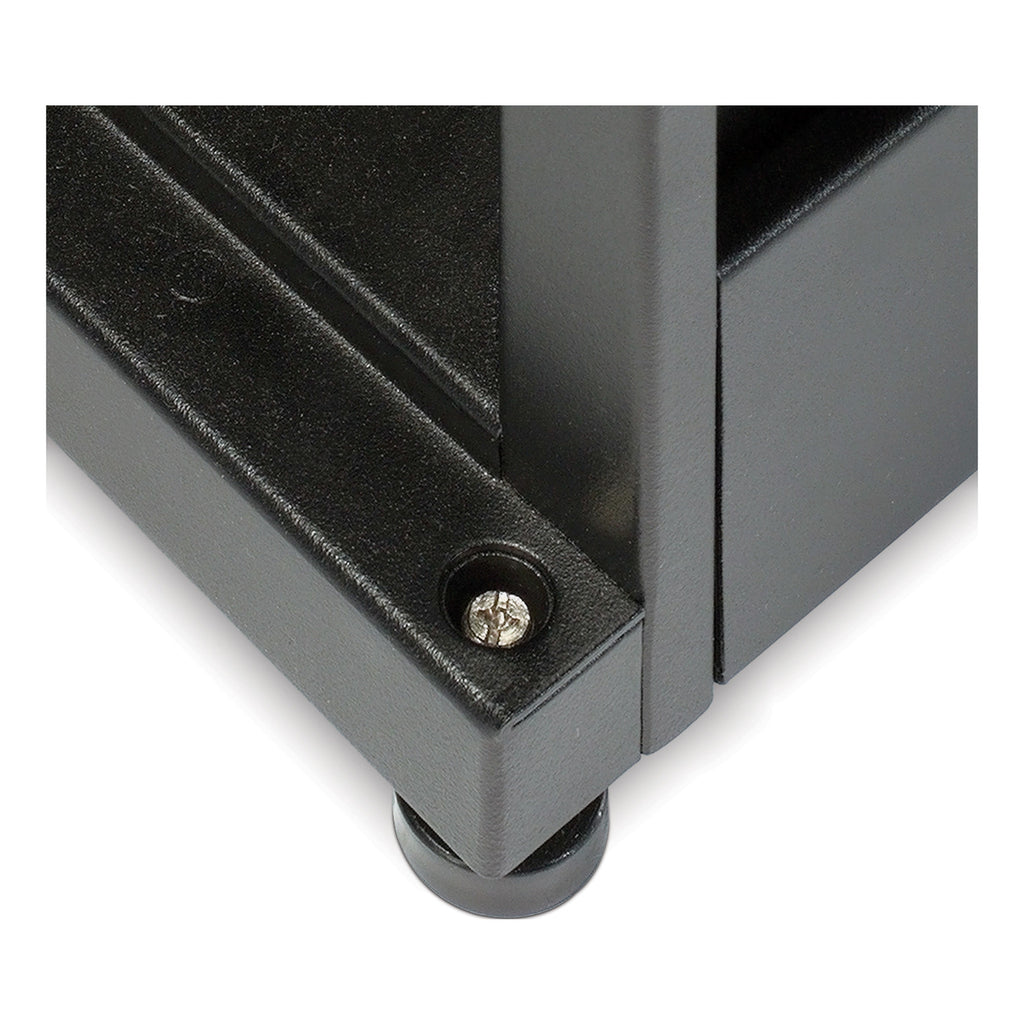

Ships fully assembled with casters, leveling feet, and baying hardware for fast deployment and easy row alignment.
-
TAA/BAA via COTS compliant, UL-listed, and covered by a 5-year repair-or-replace warranty from APC by Schneider Electric.
Perfect for data-center, telecom, and edge environments that demand reliability, compliance, and rapid equipment turnaround.
| Feature | Details |
|---|---|
| Brand / Series | APC by Schneider Electric — NetShelter SX |
| Model / SKU | AR3100X617 |
| Rack Units | 42U |
| Form Factor | Floor-standing rack enclosure (open frame; no sides/doors) |
| External Dimensions (H × W × D) | 1991 × 600 × 1070 mm (78.39 × 23.62 × 42.13 in) |
| Color / Finish | Black (RAL 9005) |
| Rail Material / Gauge | 14-ga EIA mounting rail, 16-ga posts, 18-ga roof |
| Rack Width / Mounting | 19 in, EIA-310-E compliant; min depth = 191 mm (7.52 in), max depth = 914 mm (36.02 in) |
| Load Capacity | 3,000 lb (1361 kg) static • 2,250 lb (1021 kg) dynamic |
| Included Hardware | Baying kit, casters (pre-installed), leveling feet, mounting hardware |
| Standards & Compliance | UL 2416, UL 60950-1, EIA-310-E, TAA, BAA via COTS |
| GTIN | 731304294184 |
| Country of Origin | China |
| Warranty | 5-year repair or replace |
| Shipping (H × W × D / Wt.) | 2118 × 1219 × 899 mm; 95.91 kg (83.39 × 47.99 × 35.39 in; 211.45 lb) |
