Description

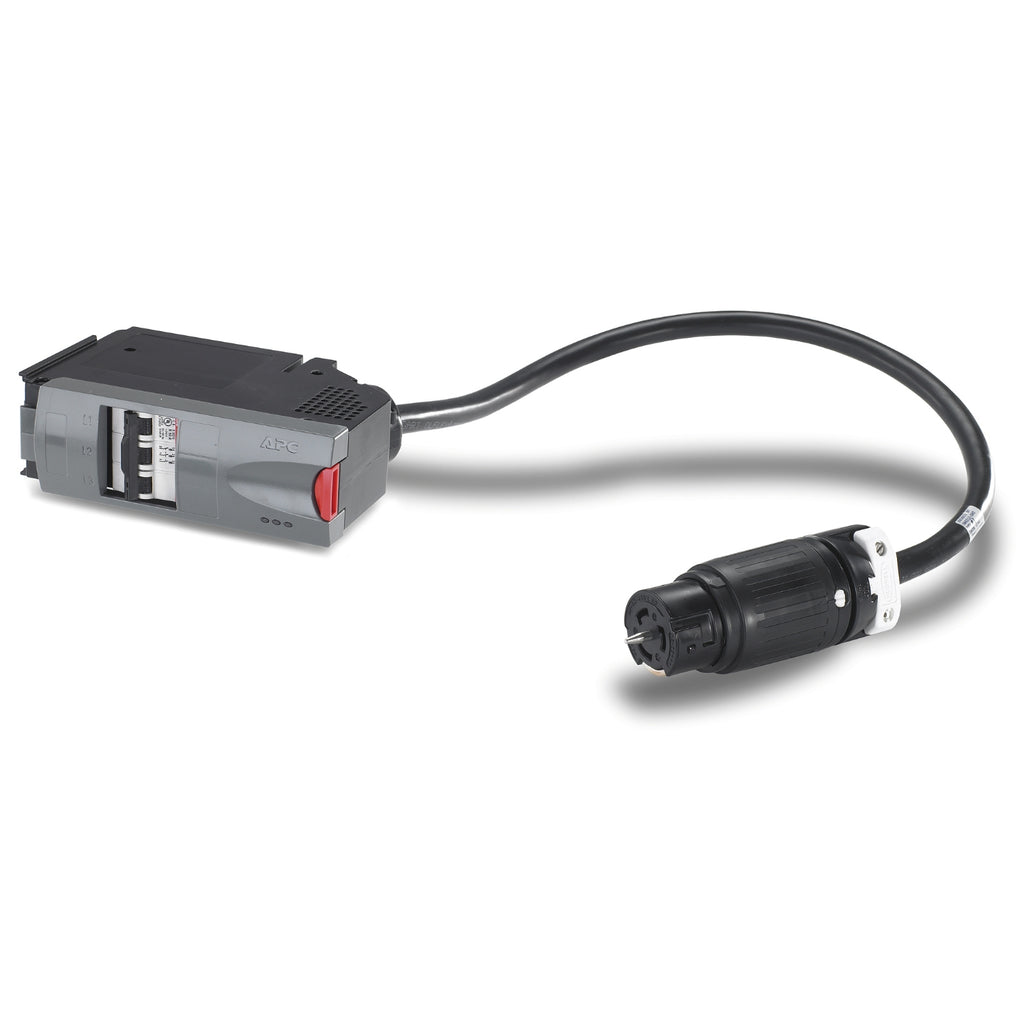

The APC by Schneider Electric PDM3450CS50-1680 Power Distribution Module is a factory-assembled, plug-and-play module designed for simplified deployment and expansion of APC Modular Power Distribution Units (PDUs). It includes a 3-pole, 4-wire 50A circuit breaker, CS50 output connector, power cord, and integrated circuit monitoring. With built-in auto-detection and a positive-lock connector system, installation is safe, quick, and reliable—ideal for rapidly scaling data center environments.
| Specification | Details |
|---|---|
| Model | PDM3450CS50-1680 |
| Product Type | Power Distribution Module |
| Input Voltage | 208V 3-Phase |
| Output Voltage | 208V 3-Phase |
| Input Frequency | 60 Hz |
| Max Input Current | 50A |
| Output Connector Type | 1 × CS50 |
| Total Current per Phase | 50A |
| Color | Black |
| Dimensions (H x W x D) | 5.00 × 17.48 × 15.98 in |
| Product Weight | 13.82 lb (6.27 kg) |
| Certifications | UL Listed |
| Included Accessories | Installation guide |
| Warranty | 1 Year (Repair or Replace) |
| Lead Time | Usually Ships Within 3 Weeks |
| Environmental Compliance | Recycled cardboard packaging, take-back program supported |
