Description

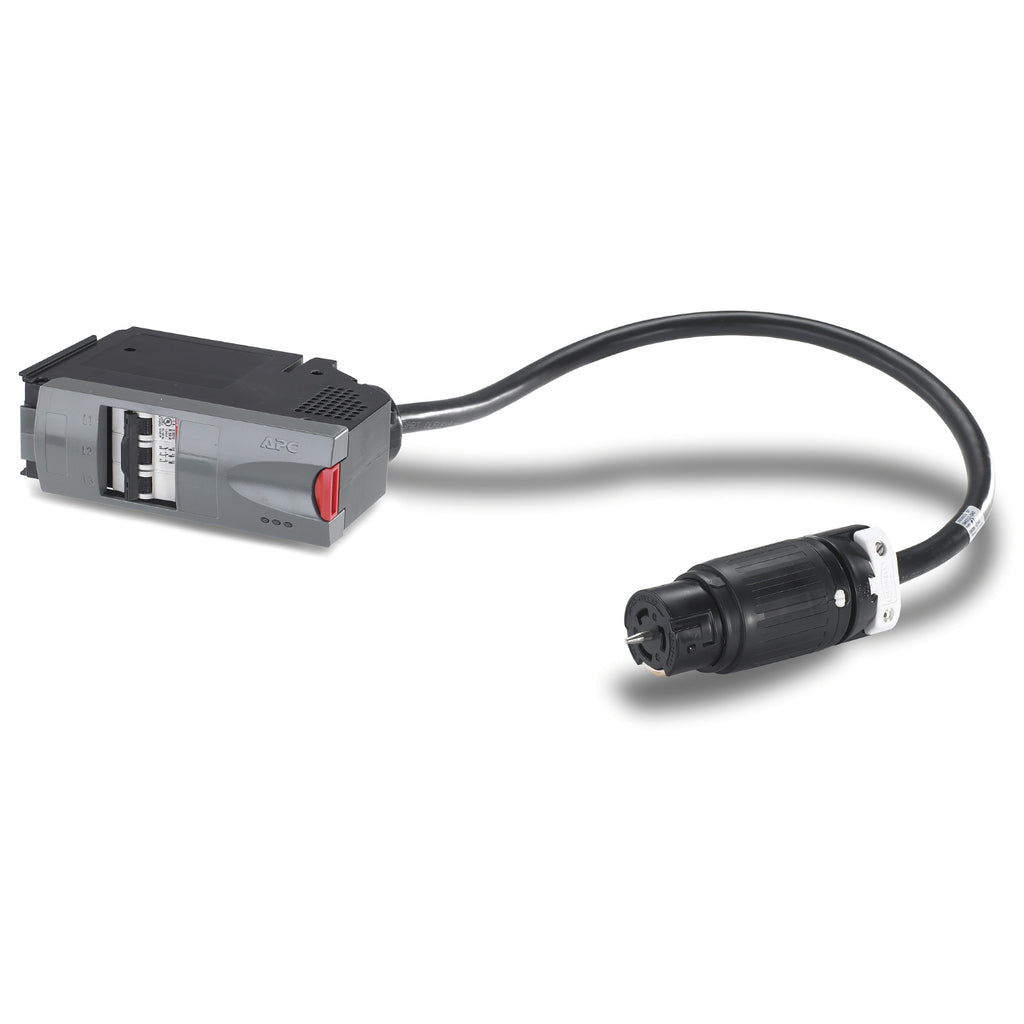

The APC by Schneider Electric PDM3450CS50-620 is a factory-assembled, fully tested Power Distribution Module designed for quick deployment in modular power systems. Featuring a 50A 3-pole, 4-wire configuration with CS50 output connector, it simplifies installation through auto-detection by the Modular PDU. With robust safety, compliance with UL standards, and durable construction, this black module delivers dependable power for high-demand IT environments.
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric SA |
| Brand Name | APC by Schneider Electric |
| Product Model | PDM3450CS50-620 |
| Product Type | Power Distribution Module |
| Input Voltage | 208V AC, 3-phase |
| Permissible Voltage Range | 200–240V AC |
| Network Frequency | 60 Hz |
| Max Input Current | 50A |
| Output Voltage | 208V AC, 3-phase |
| Output Connector Type | CS50 (1 outlet) |
| Max Current Draw | 50A |
| Number of Outlets | 1 |
| Auto-detection | Yes (by Modular PDU) |
| Certifications | UL Listed |
| Color | Black |
| Dimensions (H x W x D) | 5.00 x 17.52 x 15.98 in (12.7 x 44.5 x 40.6 cm) |
| Net Weight | 11.02 lb (5 kg) |
| Shipping Weight | 12.24 lb (5.55 kg) |
| Lead Time | Usually ships within 3 weeks |
| Included Accessories | Installation guide |
| Warranty | 1 Year Repair or Replace |
