Description

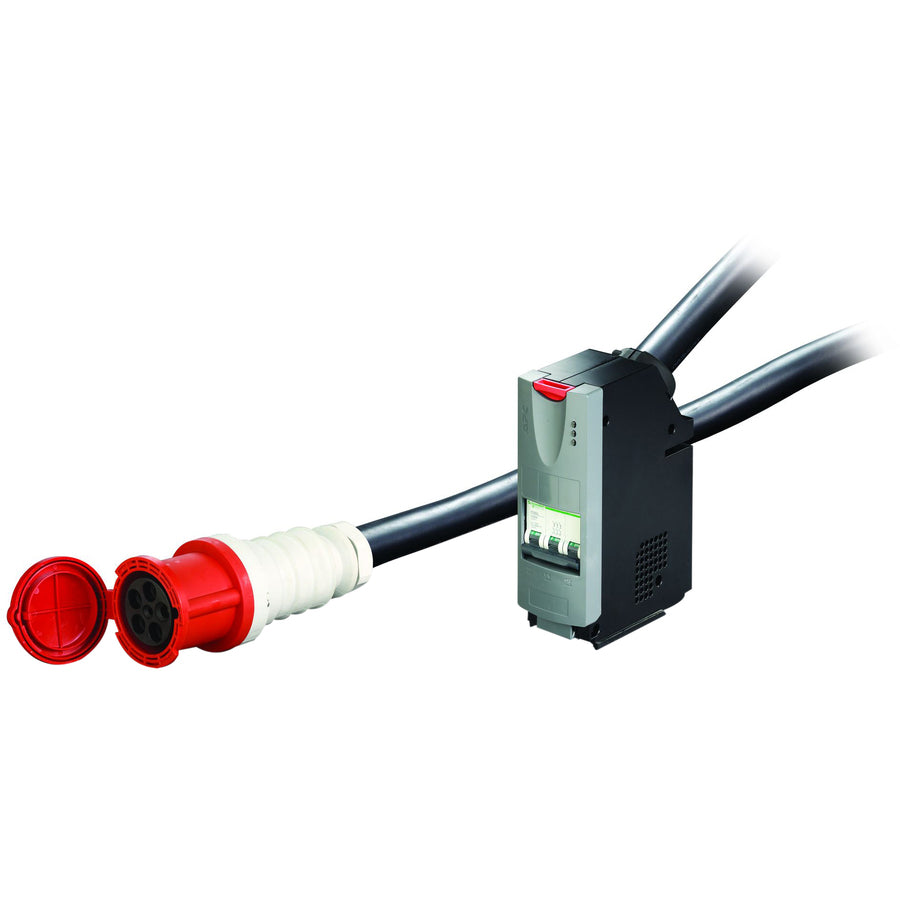

The APC PDM3540IEC309-620 Power Distribution Module delivers safe, scalable power for demanding IT environments. Pre-assembled with a circuit breaker, power cord, power connection, and circuit monitoring, it simplifies installation and eliminates the need for hot work or system shutdowns. This 40A, 3-pole, 5-wire IEC 309 module features auto-detection by compatible Modular PDUs and supports efficient power distribution with enhanced safety and monitoring features.
| Attribute | Details |
|---|---|
| SKU / Part Number | PDM3540IEC309-620 |
| Input Voltage | 415 V 3-phase |
| Output Voltage | 240 V |
| Max Input Line Current | 40 A |
| Output Socket Type | 1 × IEC 309 |
| Input Frequency | 60 Hz |
| Cable Length | 620 cm |
| Circuit Breaker | Included |
| Circuit Monitoring | Included |
| Auto Module Detection | Yes (via Modular PDU) |
| Color | Gray |
| Certifications | UL Listed |
| Physical Dimensions (H×W×D) | 12.7 × 44.4 × 40.6 cm (5.00 × 17.48 × 15.98 in) |
| Product Weight | 6.27 kg (13.82 lb) |
| Packaging Weight | 6.82 kg (15.04 lb) |
| Warranty | 1-Year Repair or Replace |
| Lead Time | Usually ships within 3 weeks |
