Description

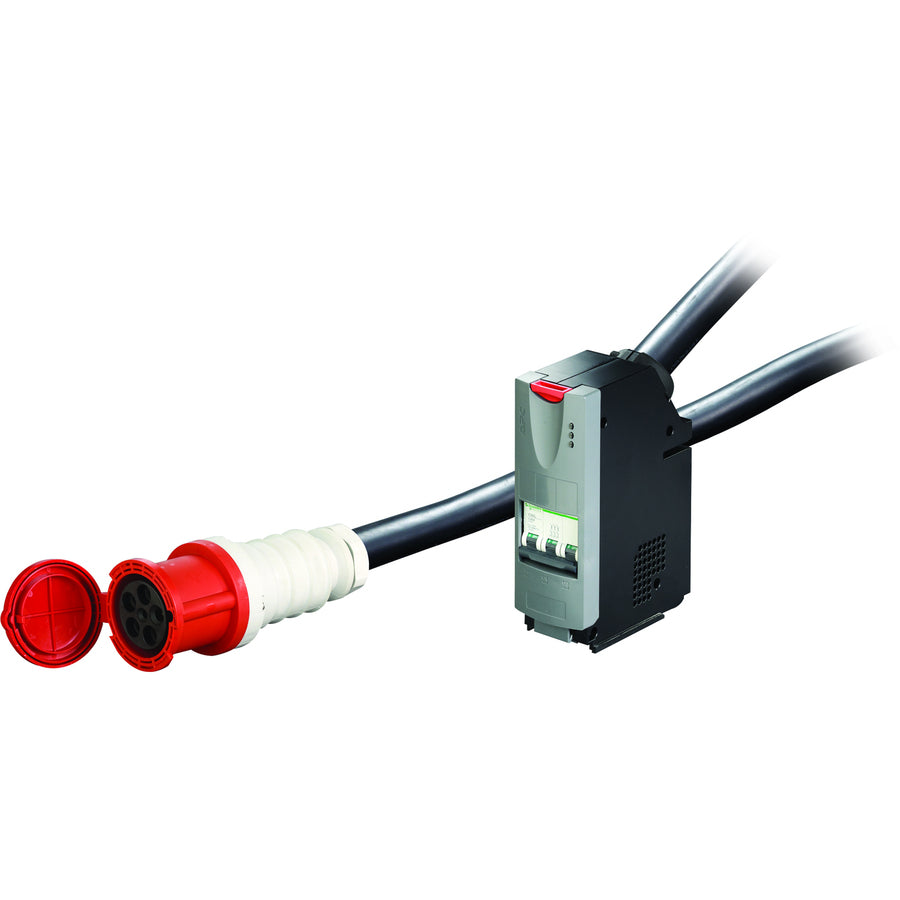

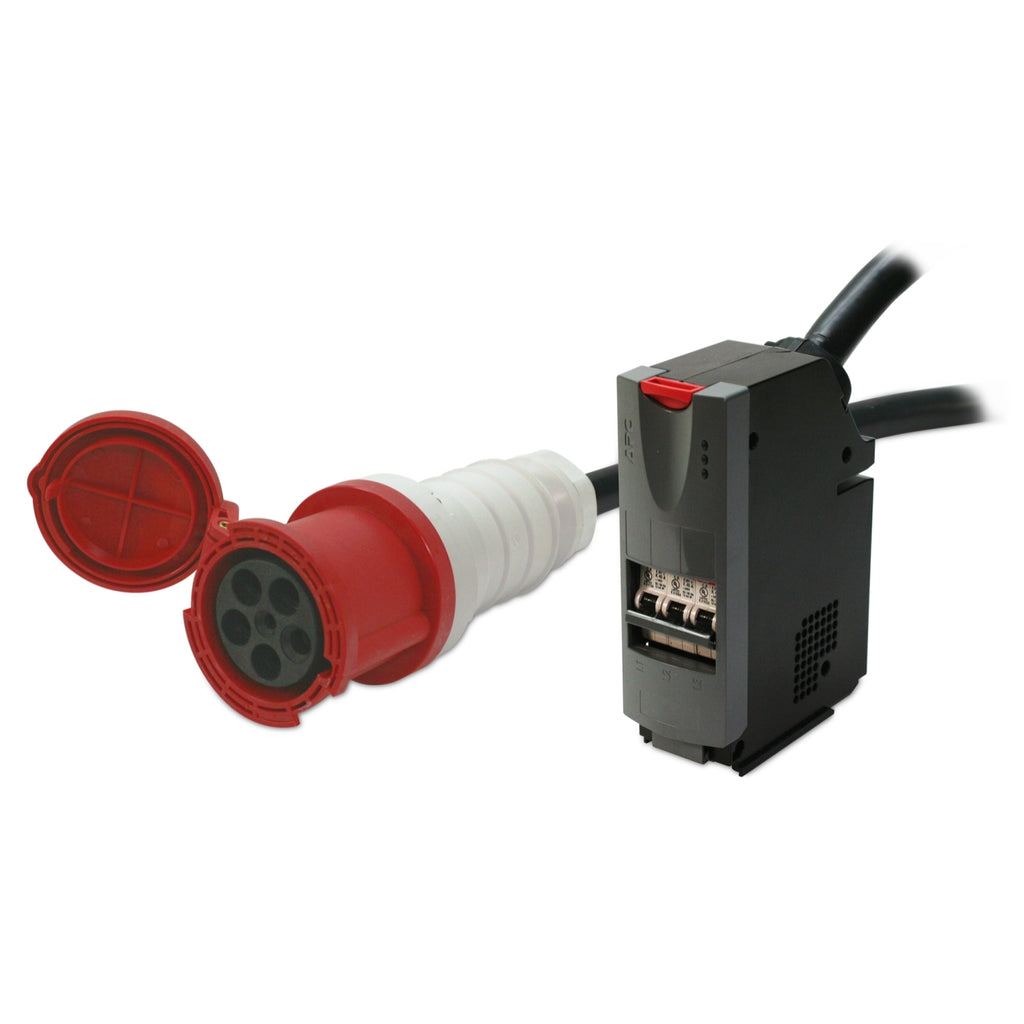

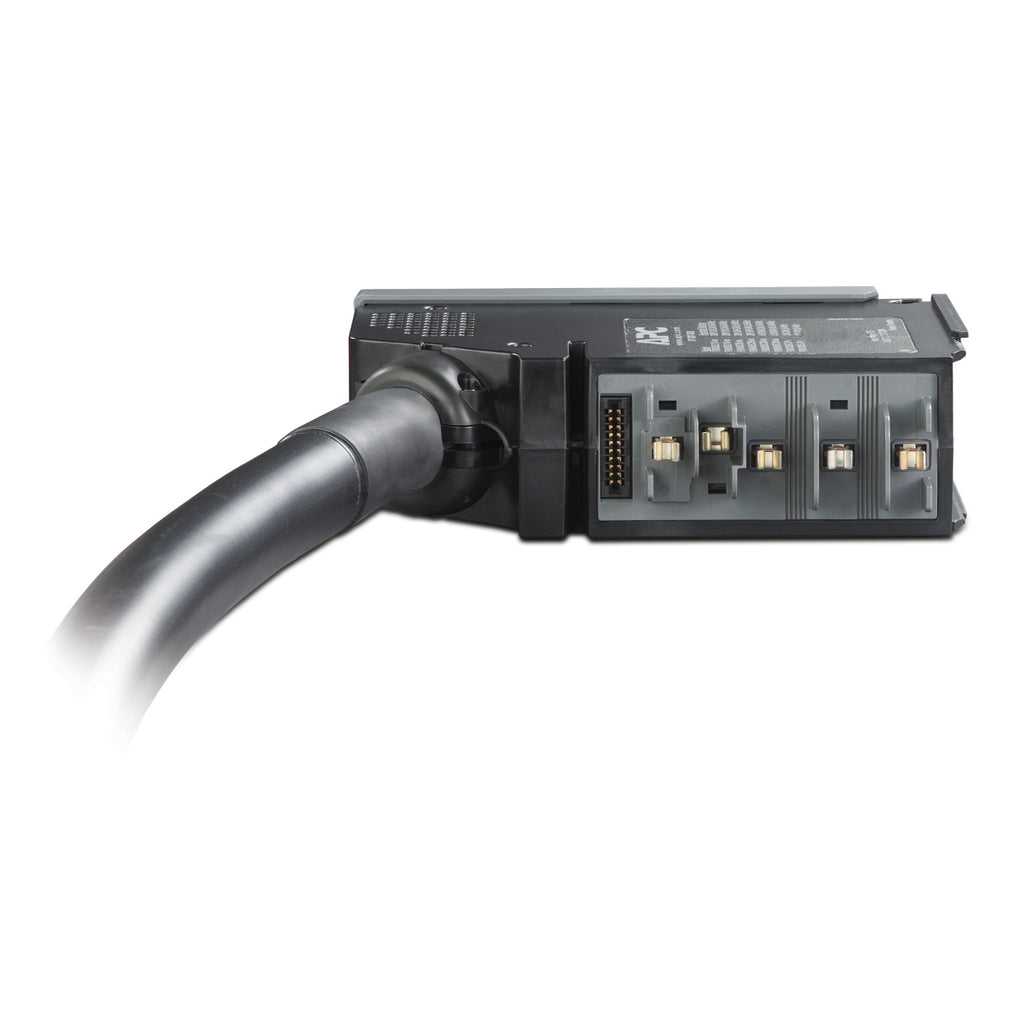

The APC PDM3540IEC309-980 is a factory-assembled Power Distribution Module (PDM) designed for modular power distribution units. It features a 40A IEC 309 plug, a 3-pole 5-wire configuration, and a 980cm power cord. Engineered for quick integration, the module supports auto-detection by the Modular PDU, reducing installation time and ensuring optimal system performance. UL Listed and tested for reliability, it’s ideal for scalable IT environments.
| Category | Details |
|---|---|
| Model | PDM3540IEC309-980 |
| Input Voltage | 415V 3-phase |
| Output Voltage | 240V |
| Input Frequency | 60 Hz |
| Max Line Current | 40 A |
| Output Current / Phase | 40 A |
| Plug Type | IEC 309 (3P+N+E) |
| Number of Outlets | 1 IEC 309 |
| Cord Length | 980 cm |
| Color | Gray |
| Certifications | UL Listed |
| Included Accessories | Installation guide |
| Dimensions (H x W x D) | 5.00 in x 17.48 in x 15.98 in |
| Weight | 13.82 lb (6.27 kg) |
| Shipping Weight | 15.04 lb (6.82 kg) |
| Warranty | 1 year repair or replace |
| Lead Time | Usually ships within 3 weeks |
| GTIN | 731304281115 |
