Description

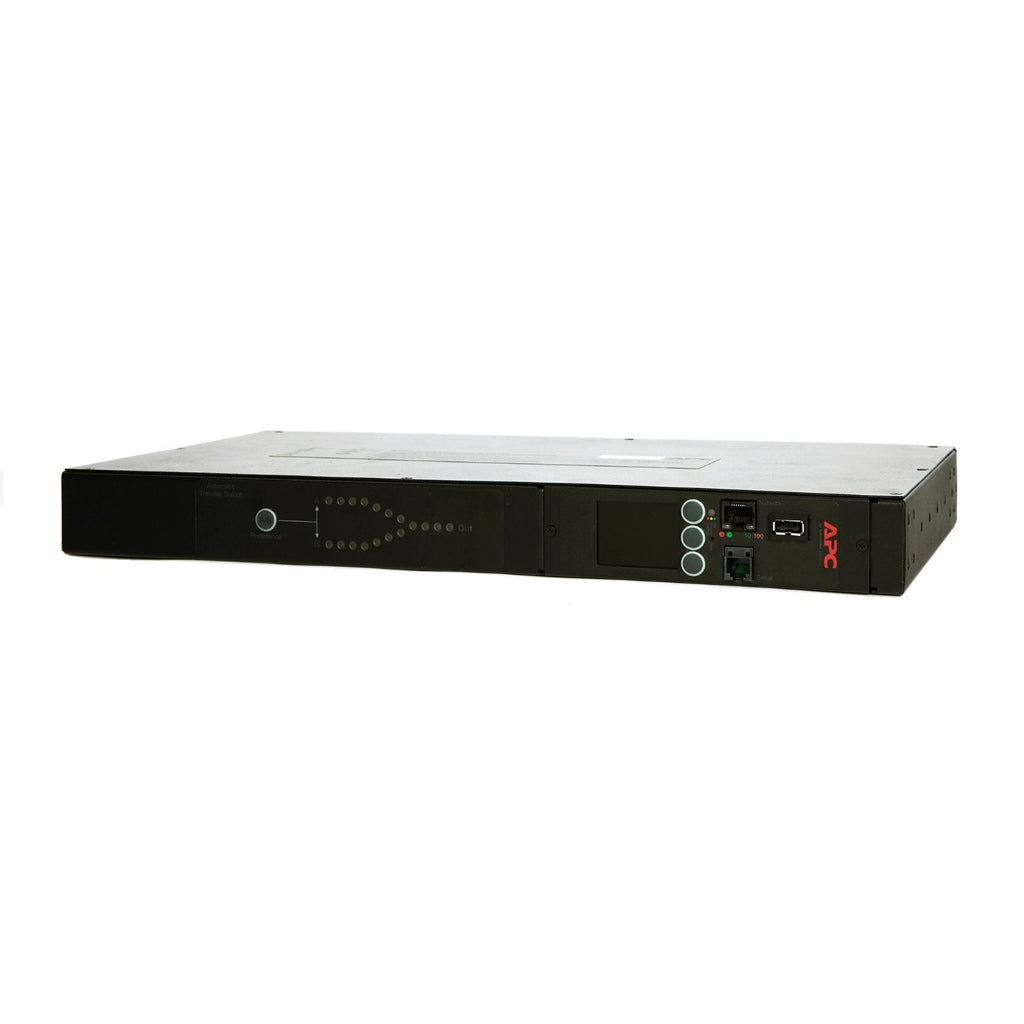

The APC AP4423 Rack Automatic Transfer Switch provides reliable, redundant power to single-corded IT equipment. Equipped with dual input IEC C20 power connectors and (8) IEC C13 + (1) IEC C19 outlets, this 1U rack-mountable ATS ensures seamless power source switching to maintain uptime. It features local current monitoring, remote network management (via Web, SNMP, or CLI), and is fully compatible with StruxureWare Data Center Expert. The unit meets RoHS compliance and includes mounting brackets and configuration cables.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | AP4423 |
| Product Type | Rack Automatic Transfer Switch (ATS) |
| Input Connector | 1 x IEC 60320 C20 |

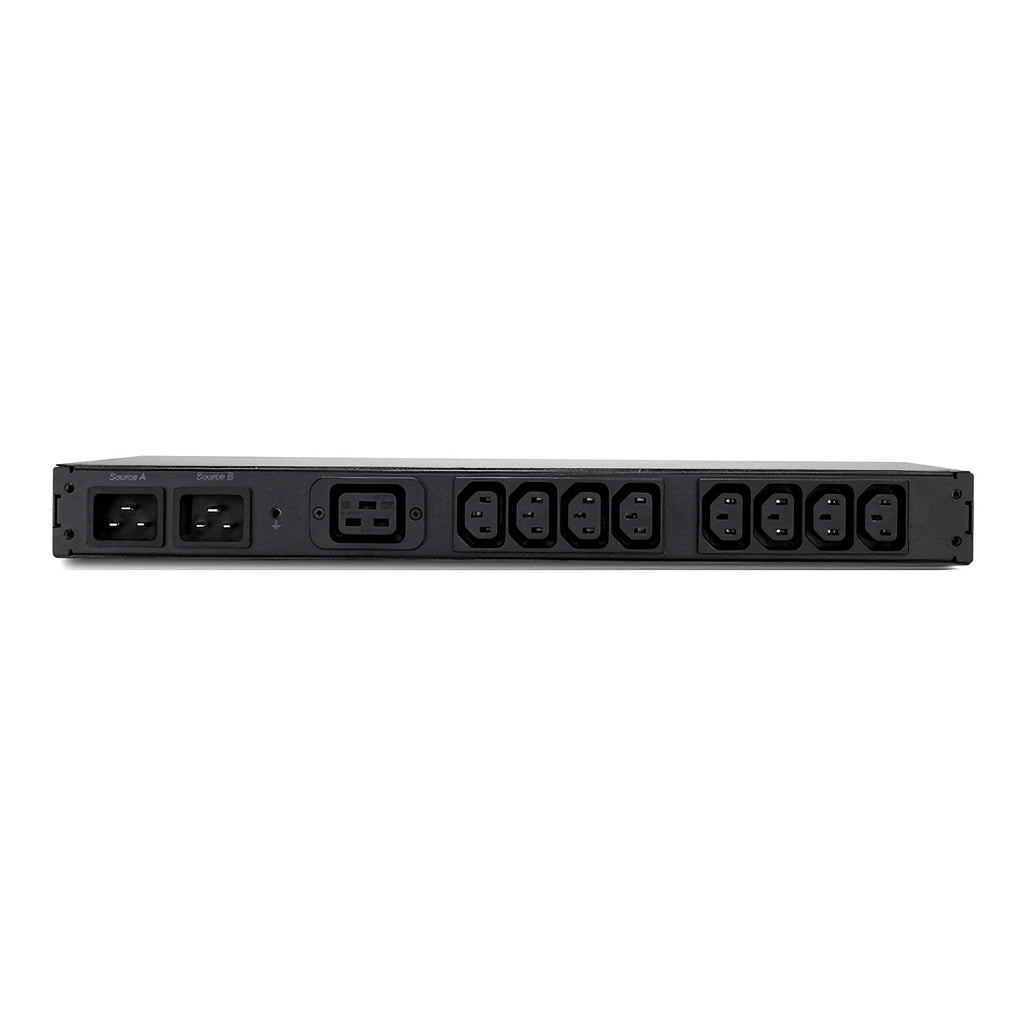

| Output Receptacles | 8 x IEC 60320 C13, 1 x IEC 60320 C19 |
| Input Voltage | 230V AC |
| Output Voltage | 230V AC |
| Maximum Current | 20 A |
| Form Factor | Rack-mountable (1U) |
| Dimensions (H x W x D) | 1.7" x 17" x 9.3" |
| Weight | 8.25 lbs (Shipping Weight: 13 lbs) |
| Color | Black |
| Protection Type | Over Current |
| Environmentally Friendly | Yes |
| Compatible Software | StruxureWare Data Center Expert |
| Remote Management | Web, SNMP, CLI |
| Included Accessories | Mounting hardware, rack brackets, serial cable |
| Warranty | Limited 2-Year |
| Origin | Philippines |
| Condition | New and Factory Fresh |
