Description

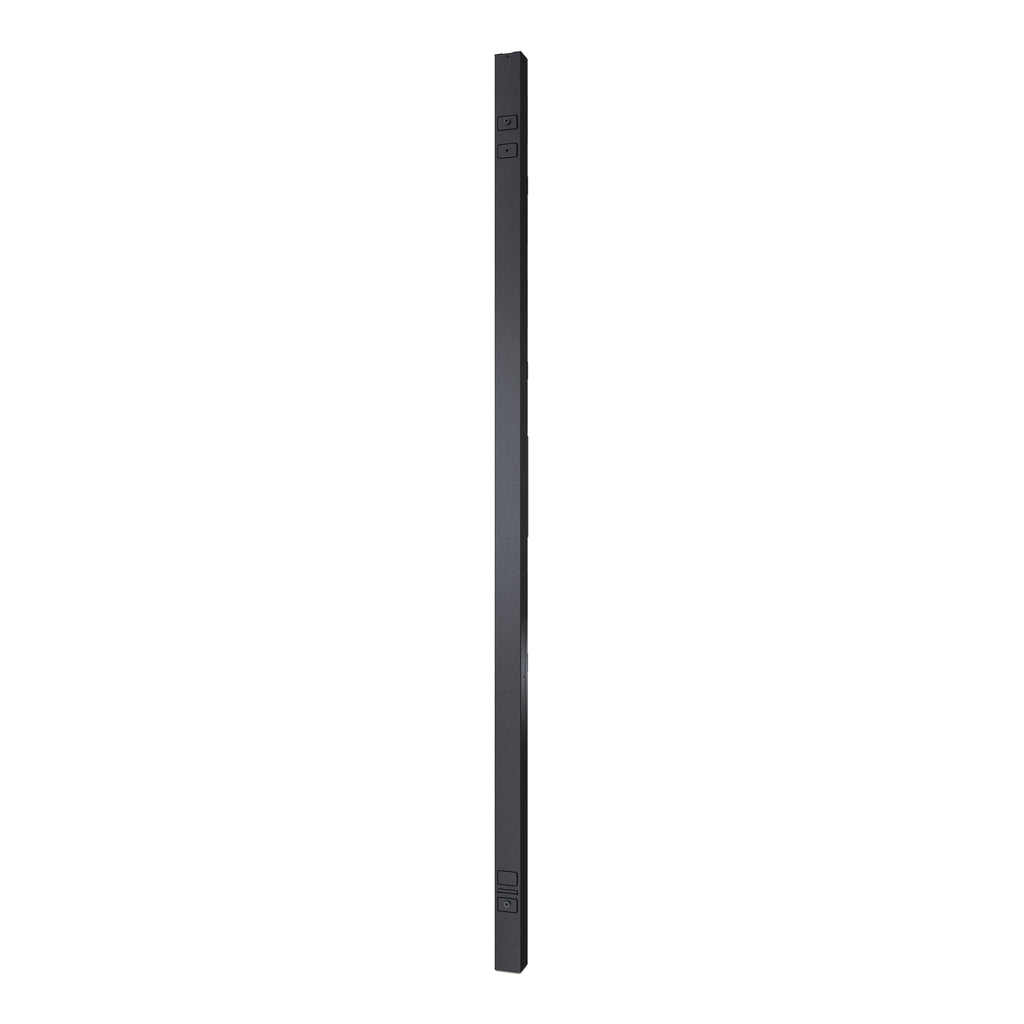

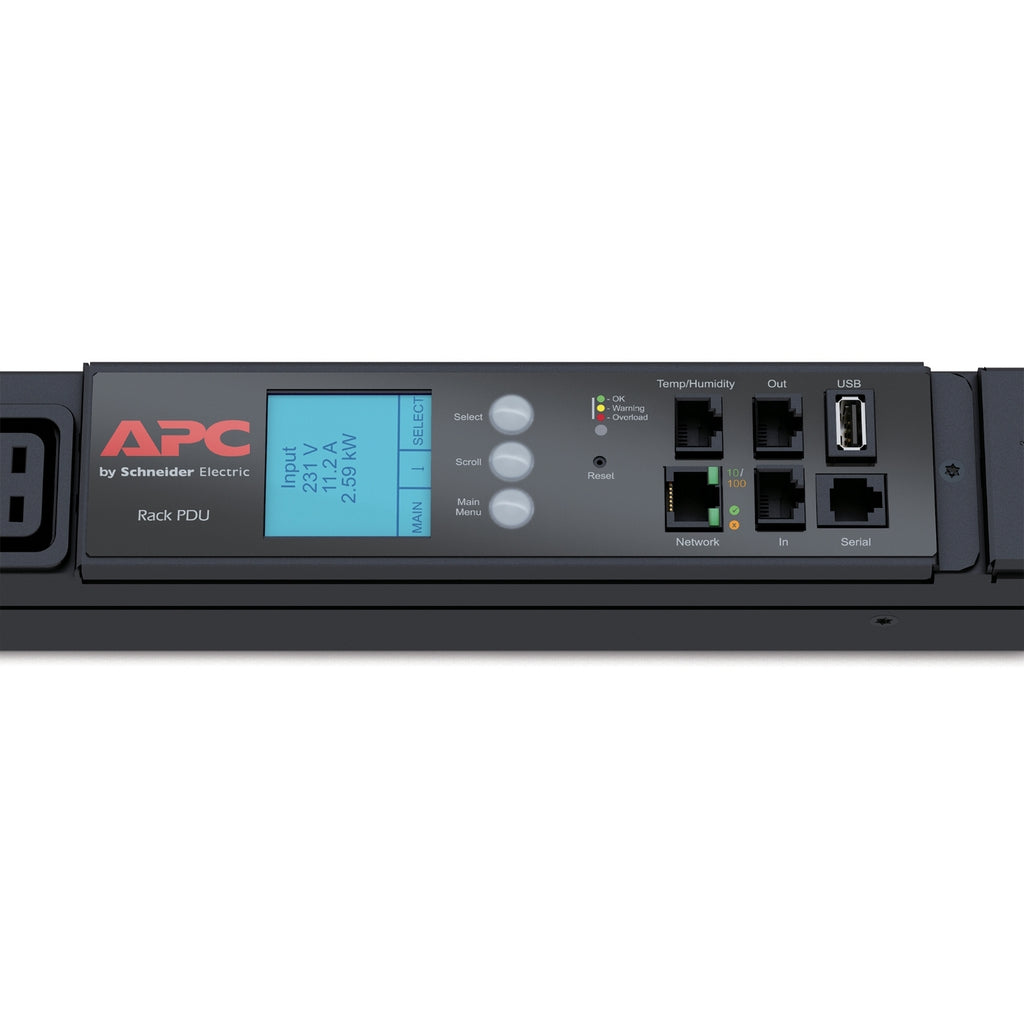

The APC AP8887 Metered Rack PDU 2G is a high-density, Zero-U power distribution solution engineered for colocation facilities, large enterprise racks, and remote data-center pods. With ±3 % metering accuracy for amps, volts, kW and kWh, it puts actionable energy intelligence at your fingertips so you can plan capacity, balance loads, and reduce operating costs. User-defined alarms warn you instantly—locally or through EcoStruxure IT and Secure NMC3—when circuits approach overload, protecting uptime and equipment.
<details><summary><strong>Key Benefits</strong></summary>
-
Perfect for colocation, large or remote data-center operators
-
±3 % accurate metering for real-time capacity planning
-
User-defined overload alarms keep circuits safely within limits
-
EcoStruxure IT & Secure NMC3 enable secure remote monitoring/management
-
Zero-U toolless installation preserves valuable rack space
| Category | Detail |
|---|---|
| SKU / Model | AP8887 |
| Brand | APC by Schneider Electric |
| PDU Type | 2nd-Gen Metered |
| Form Factor | Vertical Zero-U (0U) |
| Input Plug | IEC 60309 30 A 3P+N+E |
| Input Voltage | 400 V 3-phase (outputs 240 V) |
| Line Rated / Max Current | 24 A / 30 A |
| Load Capacity | 17.3 kW (17 300 VA) |
| Outlets | 30 × IEC C13 • 12 × IEC C19 |
| Metering Accuracy | ± 3 % (amps, volts, kW, kWh) |
| Monitoring Interface | Secure Web, SNMP, Telnet; EcoStruxure IT ready |
| Sensor Ports | 1 × Temp/Humidity |
| Dimensions (H × W × D) | 1829 × 56 × 51 mm (72.01 × 2.20 × 2.01 in) |
| Weight | 9.6 kg / 21.2 lb |
| Cord Length | 1.8 m / 6 ft |
| Certifications | UL, cUL, FCC Class A, EN 55022/24, VCCI A |
| Operating Temp | -5 °C – 60 °C (23 °F – 140 °F) |
| Warranty | 2-year repair or replace |
