Description

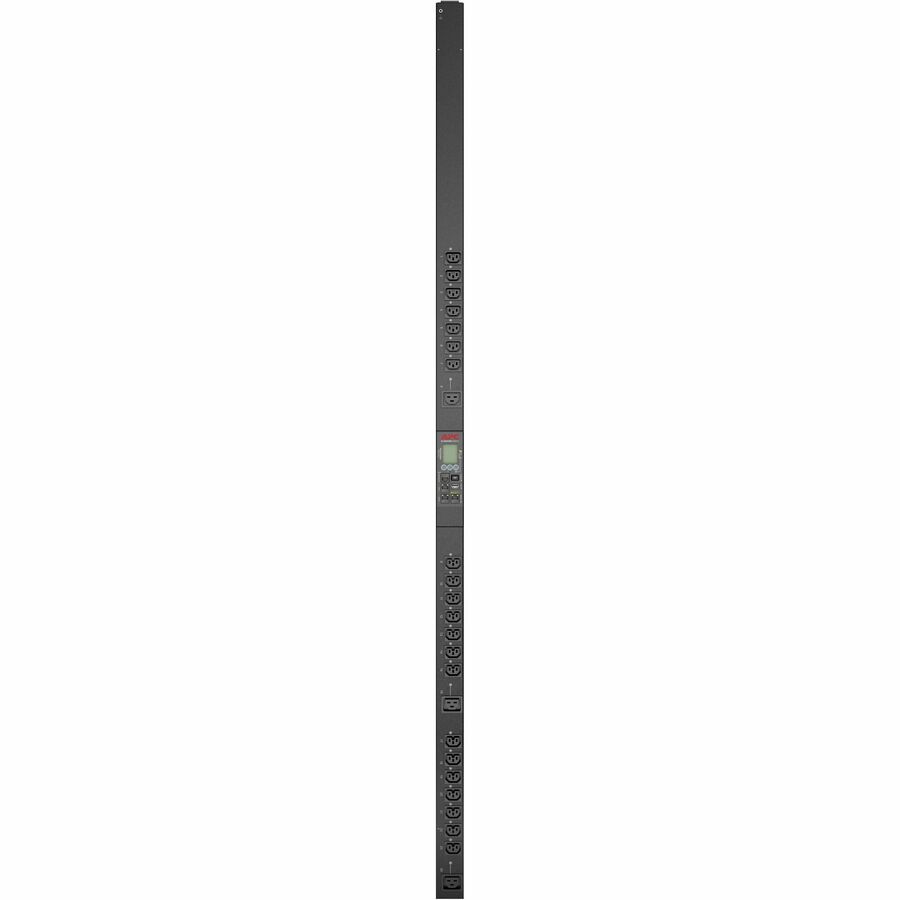

The APC Rack PDU 9000 Switched (APDU9959NA3) delivers intelligent and flexible power distribution with real-time remote monitoring and outlet-level control. Designed with a ZeroU form factor, this 20A, 208V PDU includes (21) C13/C15 and (3) C19/C21 outlets, making it ideal for high-density IT environments. It features a L6-20P plug and supports advanced functions like outlet sequencing, remote switching, and environmental monitoring through SNMP and Redfish protocols. Ideal for data centers aiming to improve uptime, efficiency, and capacity planning.
Key Features
-
Supports power loads up to 11.5kW for high-performance environments
-
Offers 21 C13/C15 and 3 C19/C21 hybrid outlets for versatile equipment support
-
Space-saving ZeroU vertical mounting improves airflow and cable management
-
L6-20P plug supports 20A input, ideal for North American data centers
-
Remote management with SNMP and Redfish ensures proactive control and monitoring
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | APDU9959NA3 |
| PDU Type | Switched |
| Form Factor | ZeroU, Vertical Mount |
| Mounting Location | Side |
| Input Plug Type | IEC 60320 L6-20P |
| Input Voltage | 200 – 208V AC |
| Input Current Limit | 20A |
| Output Voltage | 200 – 208V AC |
| Outlet Configuration | (21) IEC C13/C15, (3) IEC C19/C21 |
| Max Load Capacity | 3300 VA |
| Line Rated Current | 16A |
| Power Capacity | Up to 11.5kW |
| Network Interface | 10/100/1000BASE-T, SNMP, Redfish |
| USB Compatible | No |
| Operating Temp Range | -5 to 60°C (23 to 140°F) |
| Storage Temp Range | -25 to 65°C (-13 to 149°F) |
| Humidity (Operating/Storage) | 5–95% |
| Certifications | cUL Listed, FCC Part 15 Class A, PSE |
| Standards | IEC 62368-1 |
| Dimensions (HxWxD) | 70.75 x 2.17 x 1.81 in (179.7 x 5.5 x 4.6 cm) |
| Weight (Net/Gross) | 12.37 lb (5.61 kg) / 17.33 lb (7.86 kg) |
| Warranty | 3-Year Repair or Replace |
| GTIN | 731304356301 |
