Description

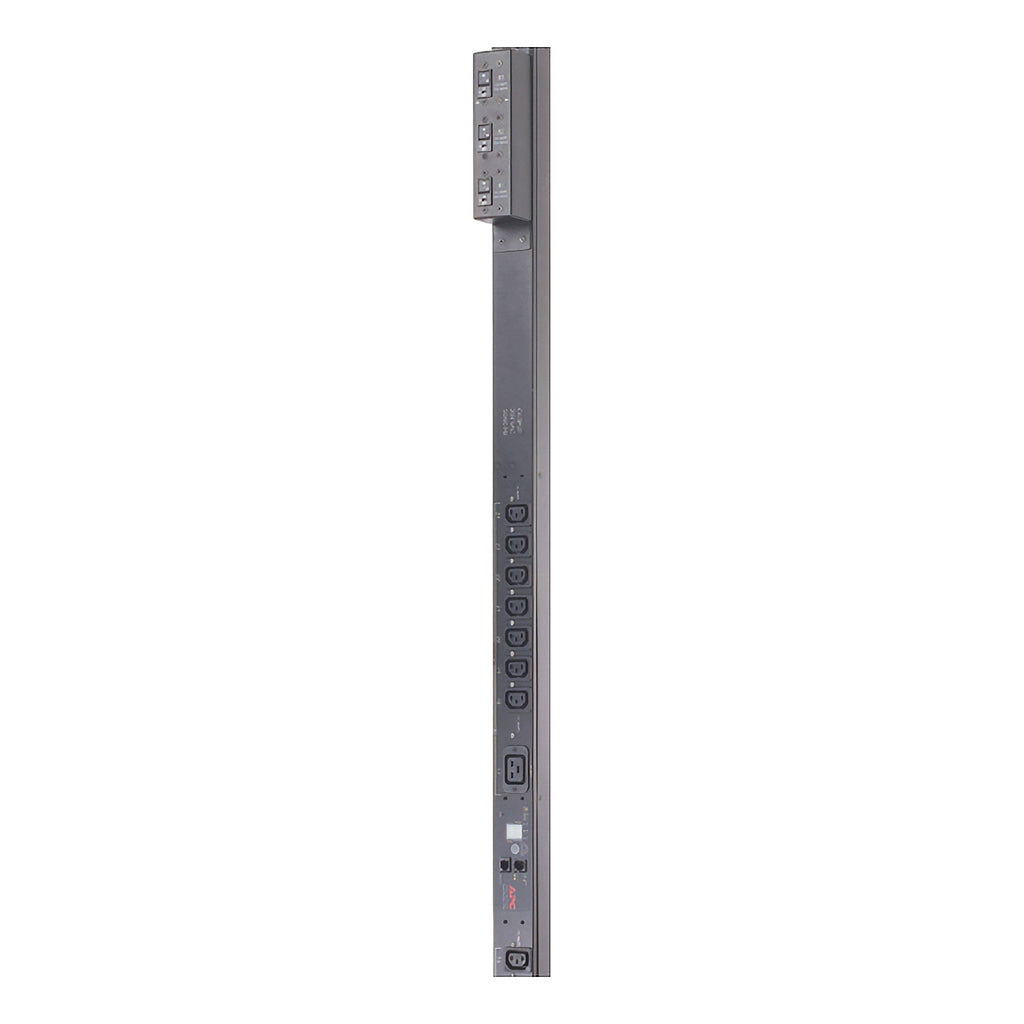

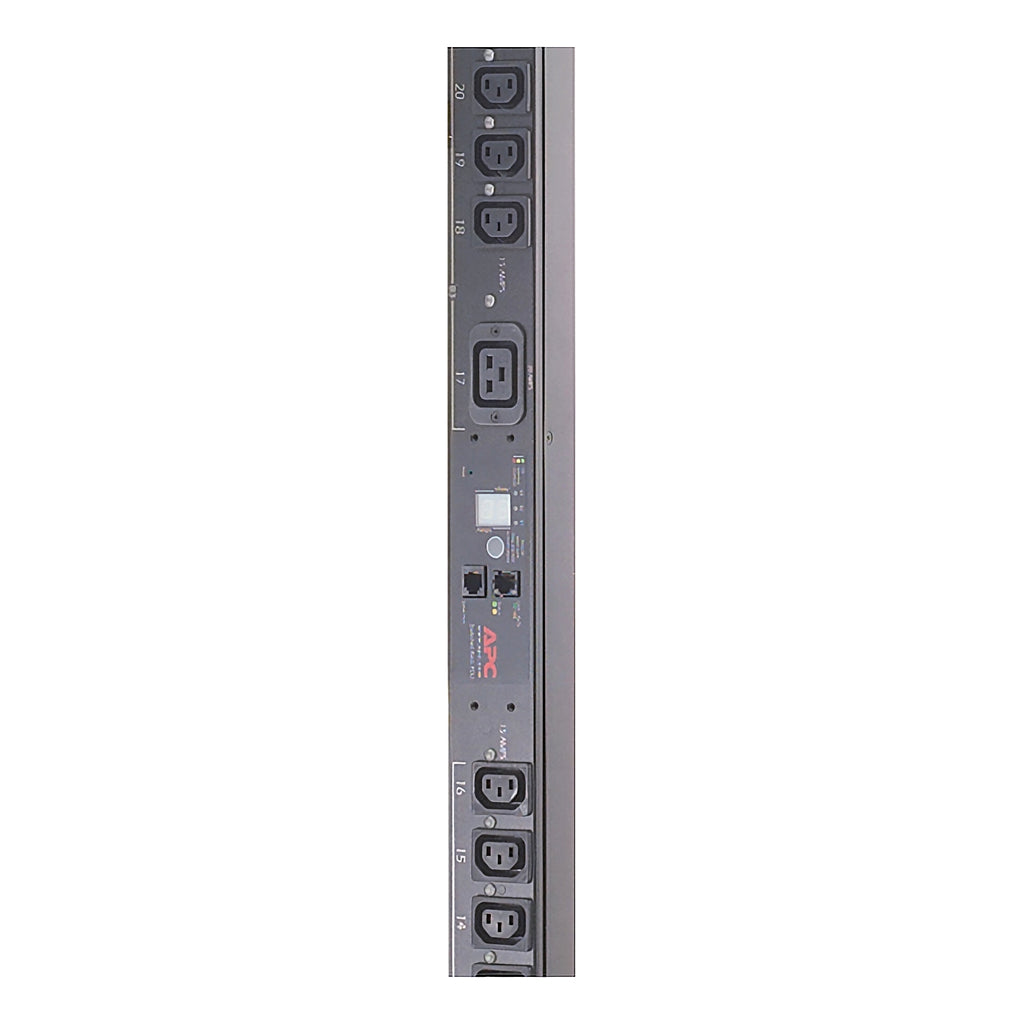

The APC AP7998B is a high-capacity Switched Rack Power Distribution Unit (PDU) designed for modern IT environments requiring reliable power distribution, control, and monitoring. With a maximum load capacity of 12.5kW and a 35A input at 208V, it supports 21 IEC C13 and 3 IEC C19 outlets. The ZeroU vertical mounting design helps maximize valuable rack space, while outlet-level switching enables remote power control and rebooting of connected equipment. This PDU is UL listed, ensuring high performance and safety, and supports advanced remote monitoring for proactive management of critical power loads.
| Category | Details |
|---|---|
| Manufacturer | APC by Schneider Electric |
| Model | AP7998B |
| PDU Type | Switched |
| Mounting Type | Vertical (ZeroU) |
| Mounting Mode | Rack-mounted |
| Rack Units | 0U |
| Input Voltage | 208V 3-phase |
| Output Voltage | 208V |
| Maximum Load | 12.5kW / 35A |
| Cord Length | 10 ft (3.05 m) |
| Input Connector | 1 x CS8365 |
| Outlet Type & Quantity | 21 x IEC C13, 3 x IEC C19 |
| Monitoring & Control | Remote monitoring, outlet-level switching |
| Certifications | UL Listed, cUL, CSA, Industry Canada |
| Safety Standards | UL 60950, FCC Part 15 Class A, ICES-003 |
| Operating Temp | -5 to 45°C (23 to 113°F) |
| Storage Temp | -25 to 65°C (-13 to 149°F) |
| Humidity Range | 5%–95% (operating and storage) |
| Operating Altitude | 0 to 10,000 ft |
| Storage Altitude | 0 to 50,000 ft |
| Dimensions (H x W x D) | 70 in x 2.2 in x 3.5 in (177.8 x 5.6 x 8.9 cm) |
| Product Weight | 21.32 lbs (9.67 kg) |
| Package Weight | 28.4 lbs (12.9 kg) |
| Included Accessories | Mounting brackets, RS-232 config cable, CD, guide |
| Warranty | 2 Years (Repair or Replace) |
