Description

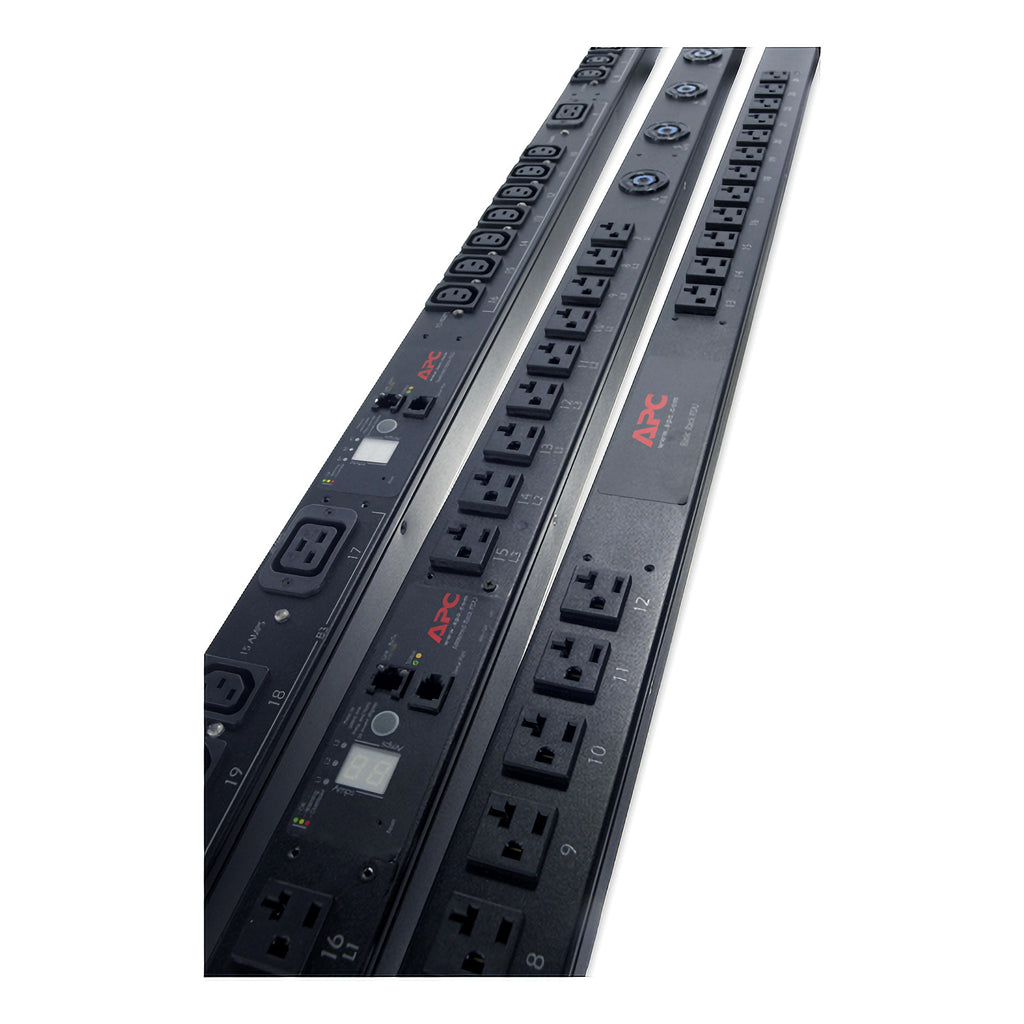

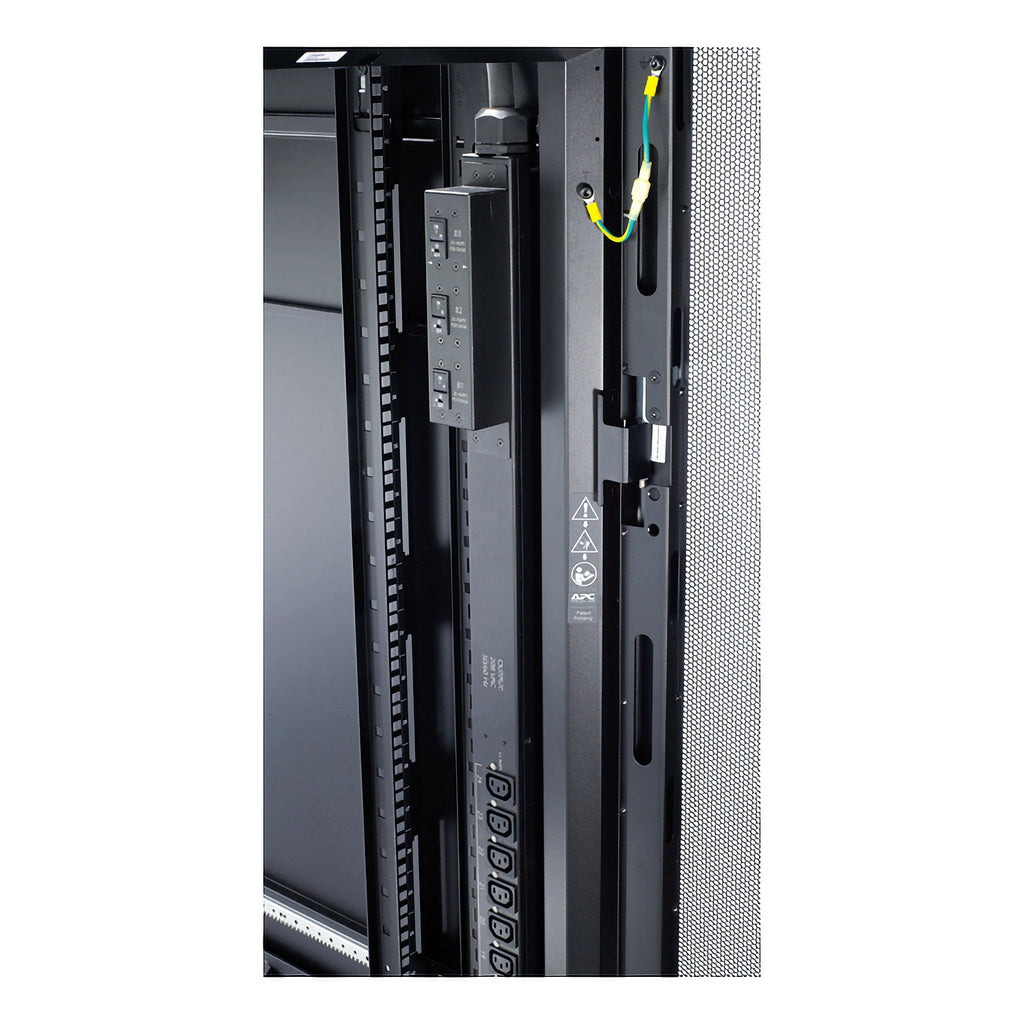

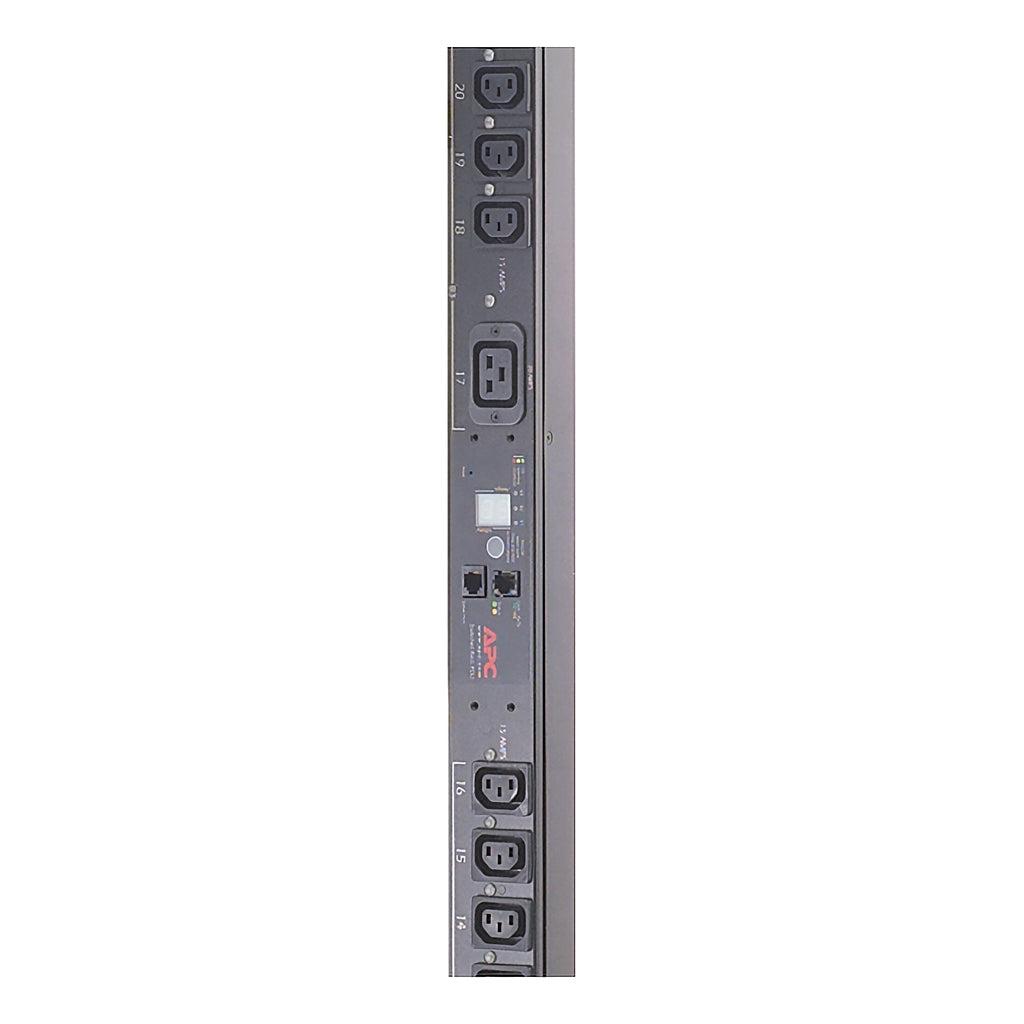

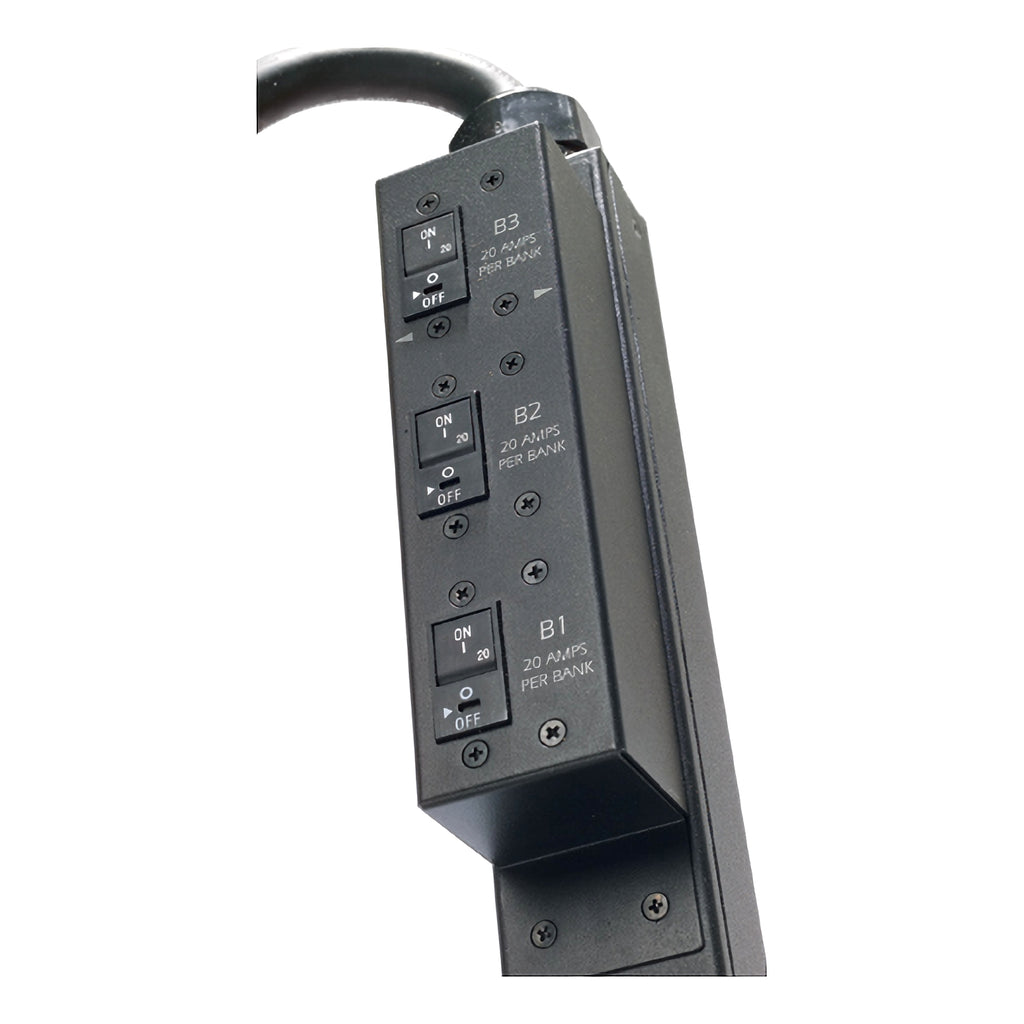

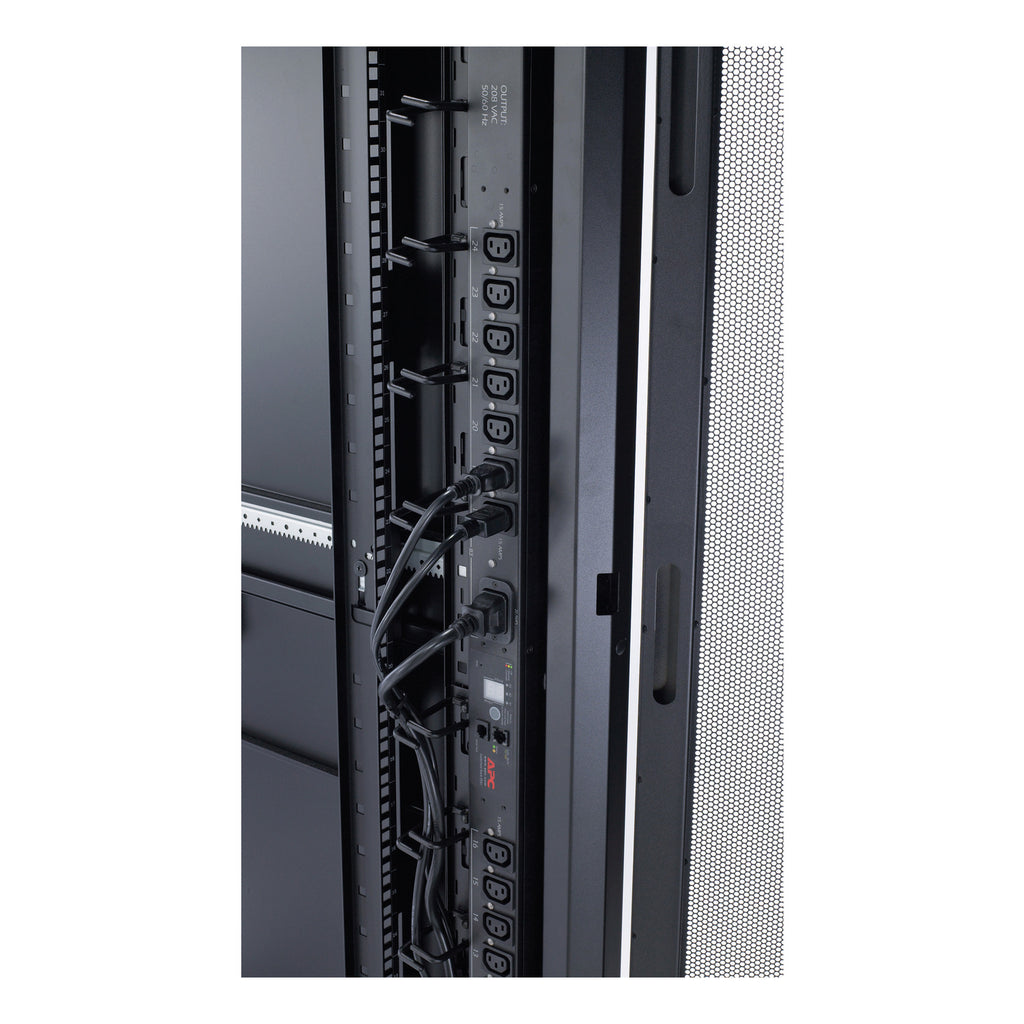

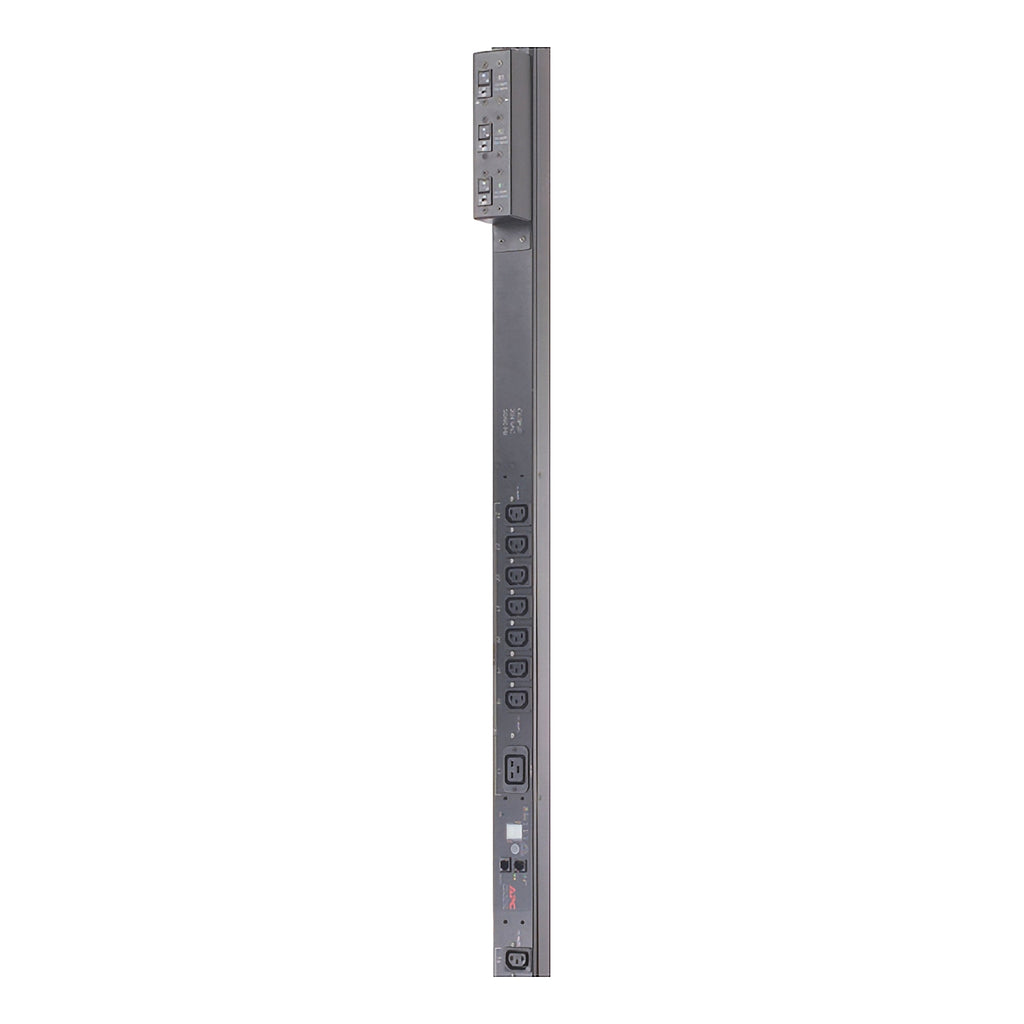

The APC AP7968B Switched Rack PDU delivers reliable, high-density power distribution with remote switching capabilities. Designed for ZeroU vertical mounting, it features 21 IEC C13 and 3 IEC C19 outlets, handling up to 12.5kW at 208V with a max line current of 35A. Ideal for enterprise IT environments, it enables outlet-level control, real-time load monitoring, and efficient cable management. UL and CSA certified, this PDU ensures operational safety and compliance.
| Specification | Details |
|---|---|
| Manufacturer | APC by Schneider Electric |
| Model Number | AP7968B |
| Form Factor | ZeroU / Vertical Rack Mount |
| Input Voltage | 208V 3-phase |
| Max Power Capacity | 12.5kW (12,500 VA) |
| Max Line Current | 35A |
| Input Connector | 1 x CS8365 |
| Cord Length | 3 ft (0.9 m) |

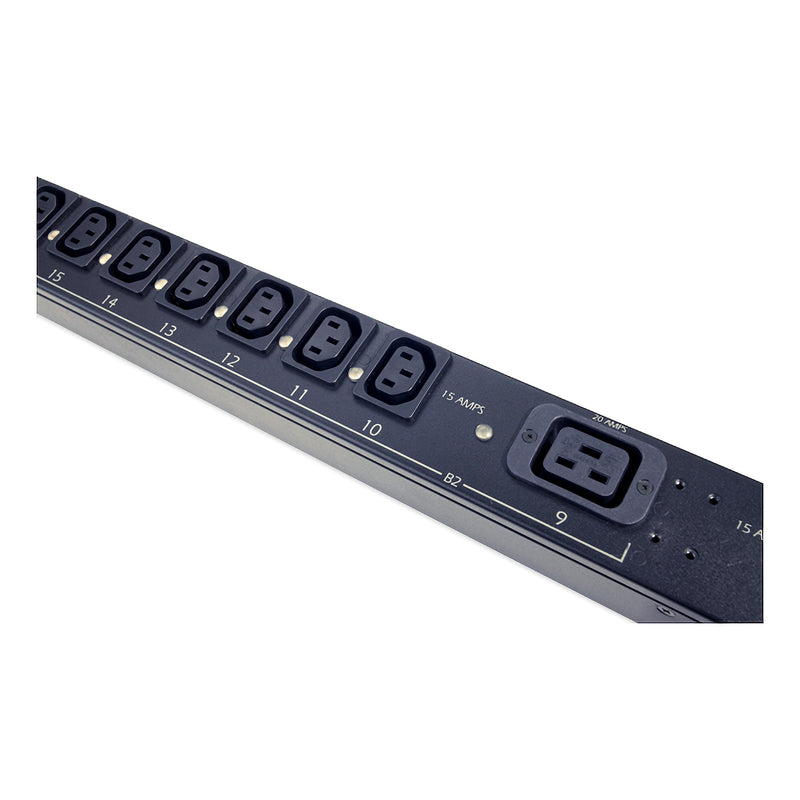

| Outlet Configuration | 21 x IEC C13, 3 x IEC C19 |
| Output Voltage | 208V |
| Switching Capability | Individual outlet-level switching |
| Remote Management | Supported via network and RS-232 |
| Mounting Hardware Included | Yes – Toolless mounting kit |
| Dimensions (H x W x D) | 70.00 x 2.20 x 3.50 in (177.8 x 5.6 x 8.9 cm) |
| Weight | 17.81 lb (8.08 kg) |
| Operating Temp | -5 to 45°C (23 to 113°F) |
| Certifications | UL Listed, CSA, cUL, FCC Part 15 Class A |
| Warranty | 2-Year Repair or Replace |
| Country of Origin | India (IN) |
