Description

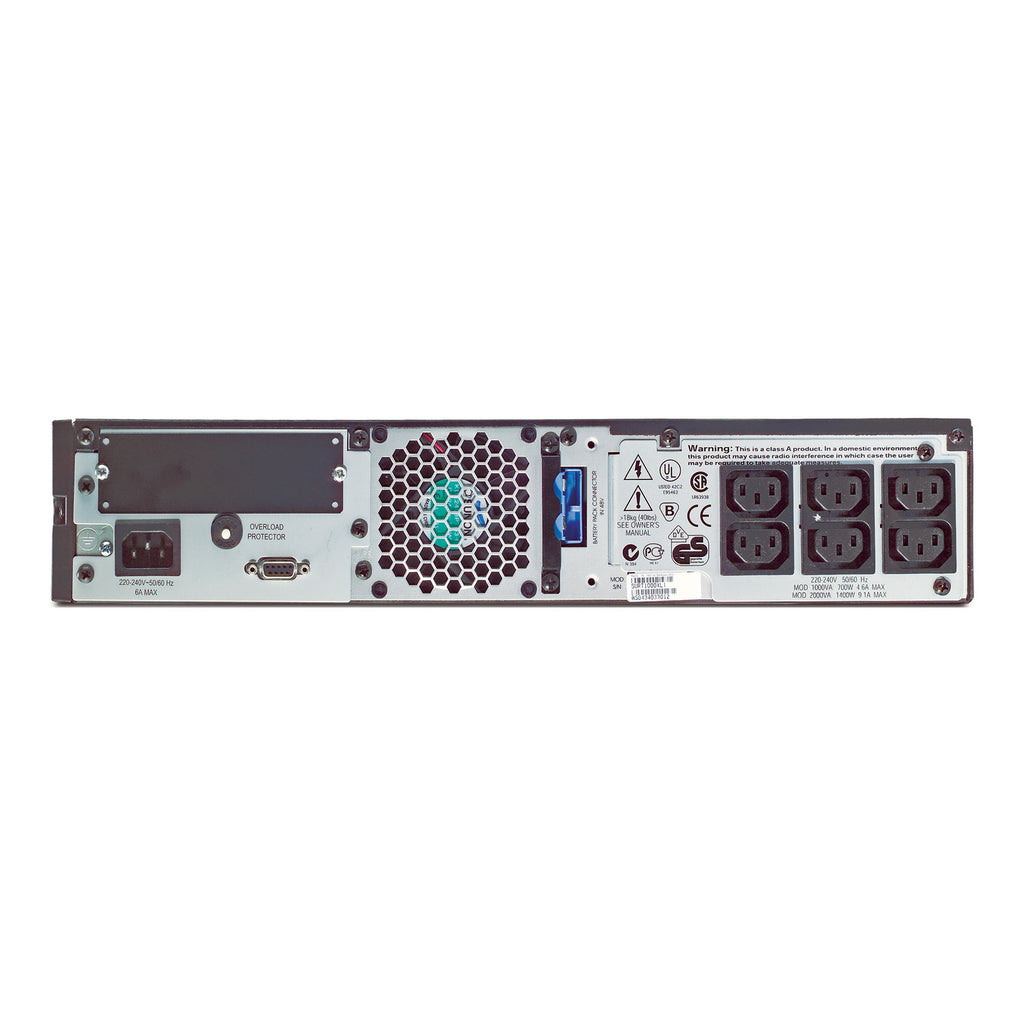

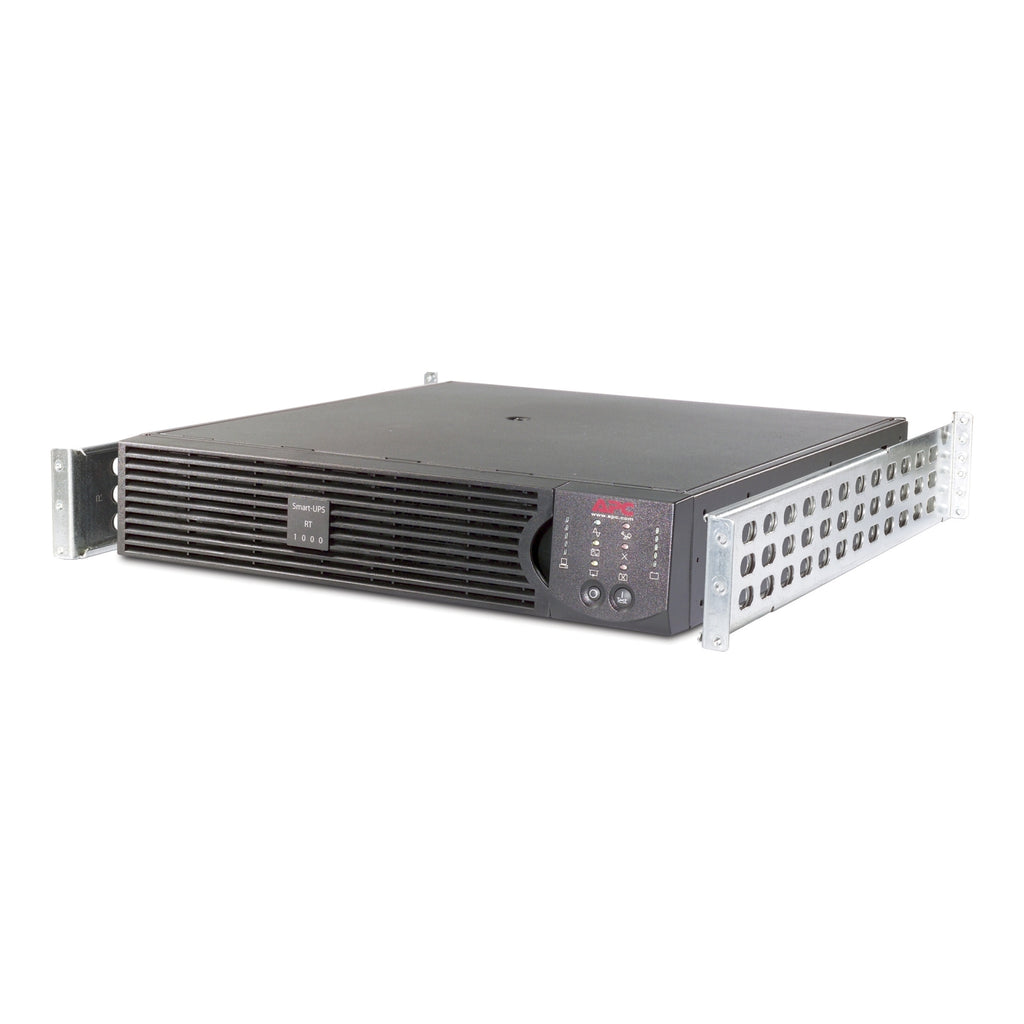

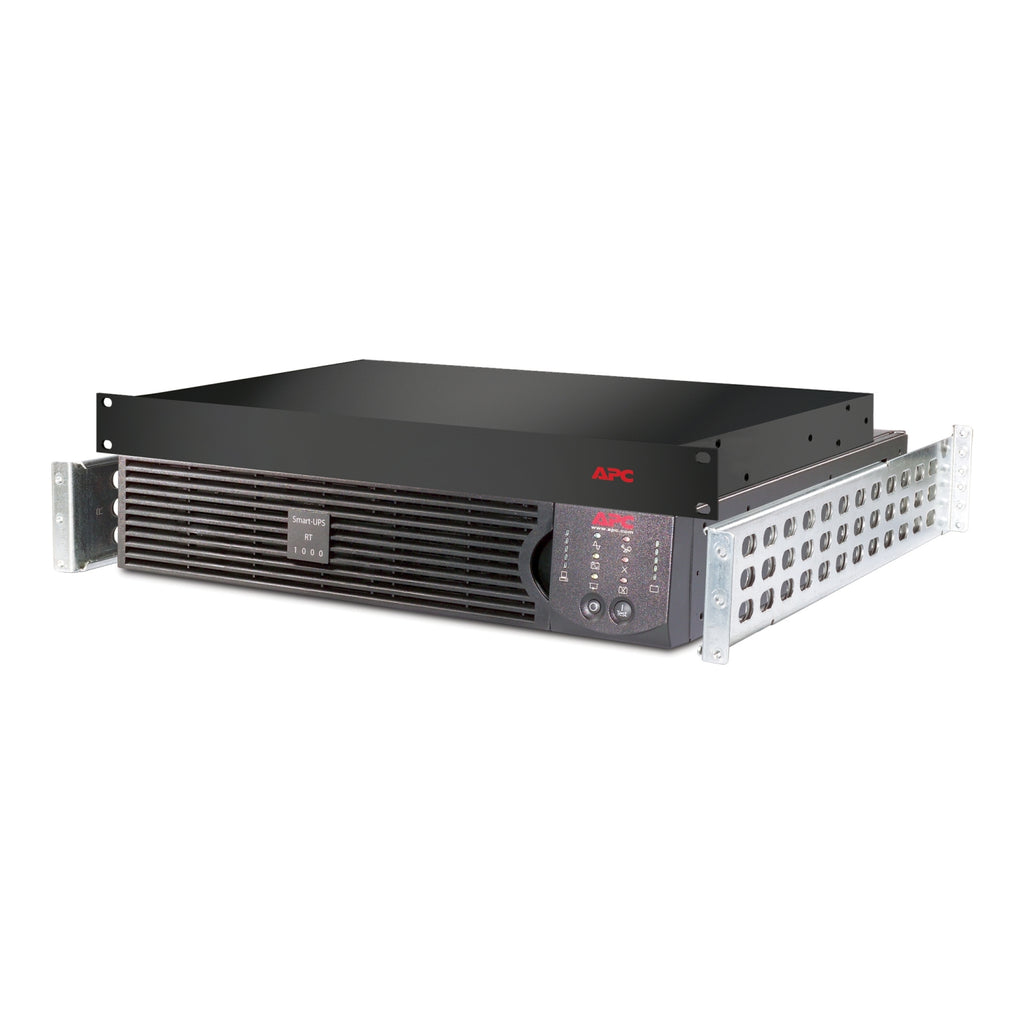

Engineered for critical marine applications, the APC Smart-UPS RT 1000VA 230V provides reliable, double-conversion online power protection in a ruggedized, compact 2U rackmount form. It delivers 700W output, supports up to 55°C operation, and includes front-accessible, hot-swappable batteries (RBC31). DNV type approved, this UPS is ideal for harsh shipboard environments requiring high availability and precision frequency conversion.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SURT1000XLIM |
| UPS Type | Online Double Conversion |
| Power Capacity | 1000VA / 700W |
| Input Voltage | 220V / 230V / 240V |
| Input Connector | IEC 60320 C14 |
| Output Voltage | 220V / 230V / 240V (Configurable) |
| Output Connectors | 6 × IEC 60320, 2 × IEC Jumpers |
| Form Factor | 2U Rackmount |
| Battery Type | VRLA Lead-Acid (Hot-swappable, Front-accessible) |
| Included Battery Cartridge | RBC31 |
| Runtime (Full Load) | Approx. 13 minutes at 700W |
| Recharge Time | 3 hours |
| Frequency Conversion | 50Hz to 60Hz |
| Waveform | Sine wave |
| Efficiency (Full Load) | Up to 88% |
| Certifications | CE, DNV, KCC |
| Operating Temp. | 0–55°C |
| Surge Protection | 420 Joules |
| Dimensions (HxWxD) | 3.35 x 17.01 x 19.02 in (8.5 x 43.2 x 48.3 cm) |
| Weight | 50.7 lbs (23 kg) |
| Warranty | 2 Years Repair or Replace |
| Replacement Battery | Compatible with APC RBC31 – 9Ah, 48VDC |
