Description
High-efficiency APC Smart-UPS Modular Ultra, 10kW scalable to 15kW, with Lithium-ion batteries, 9U rackmount, 208/240V input, and built-in network management.

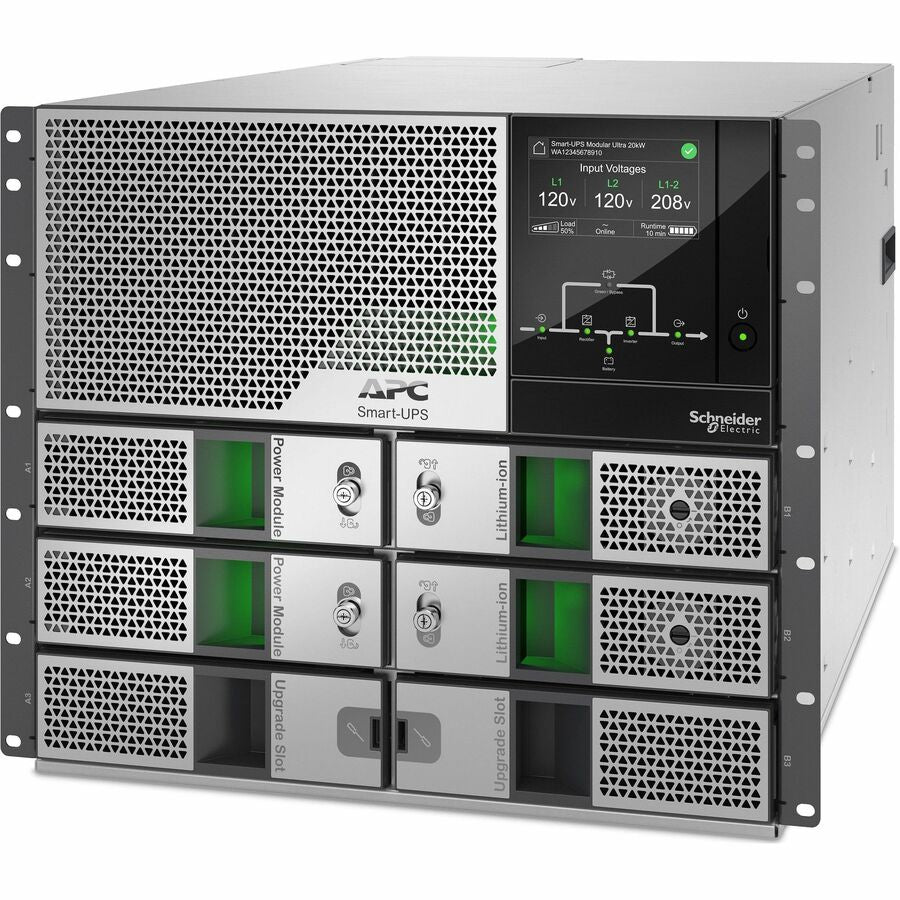

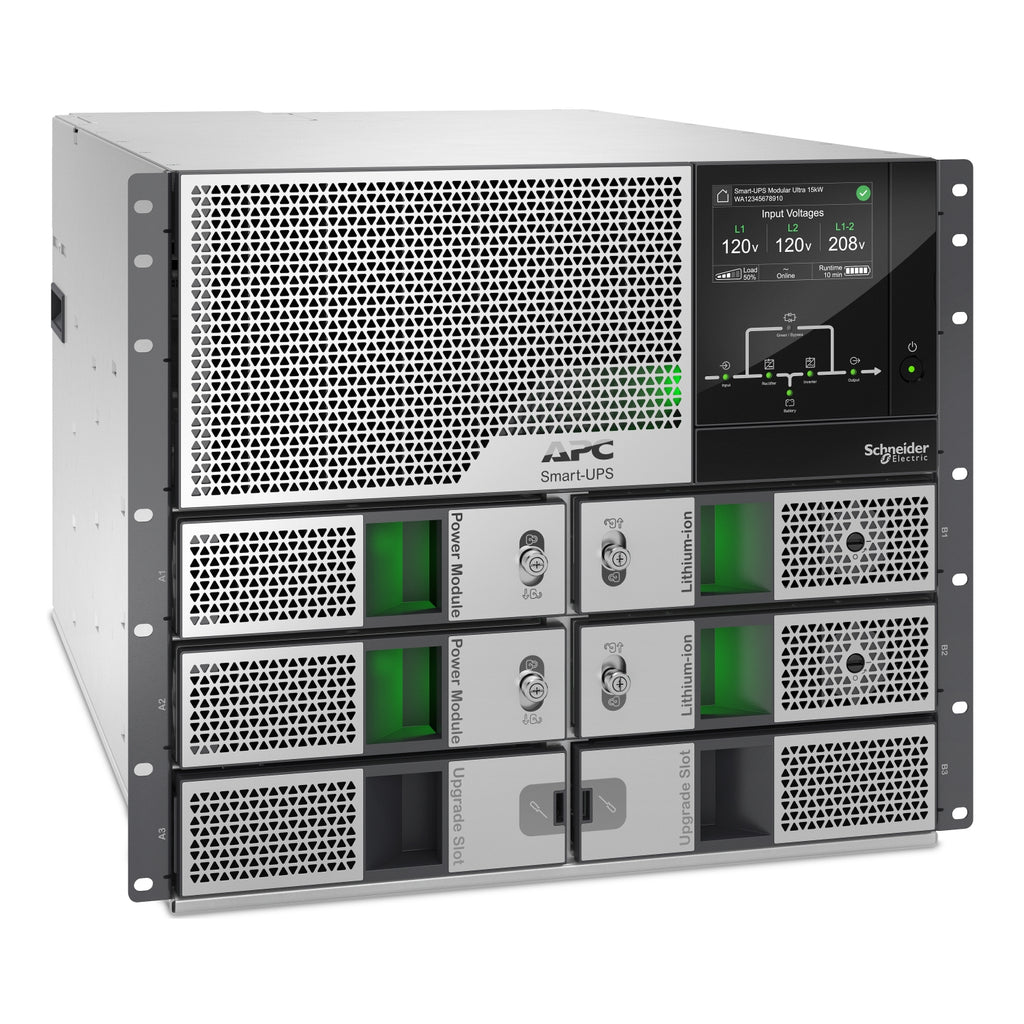

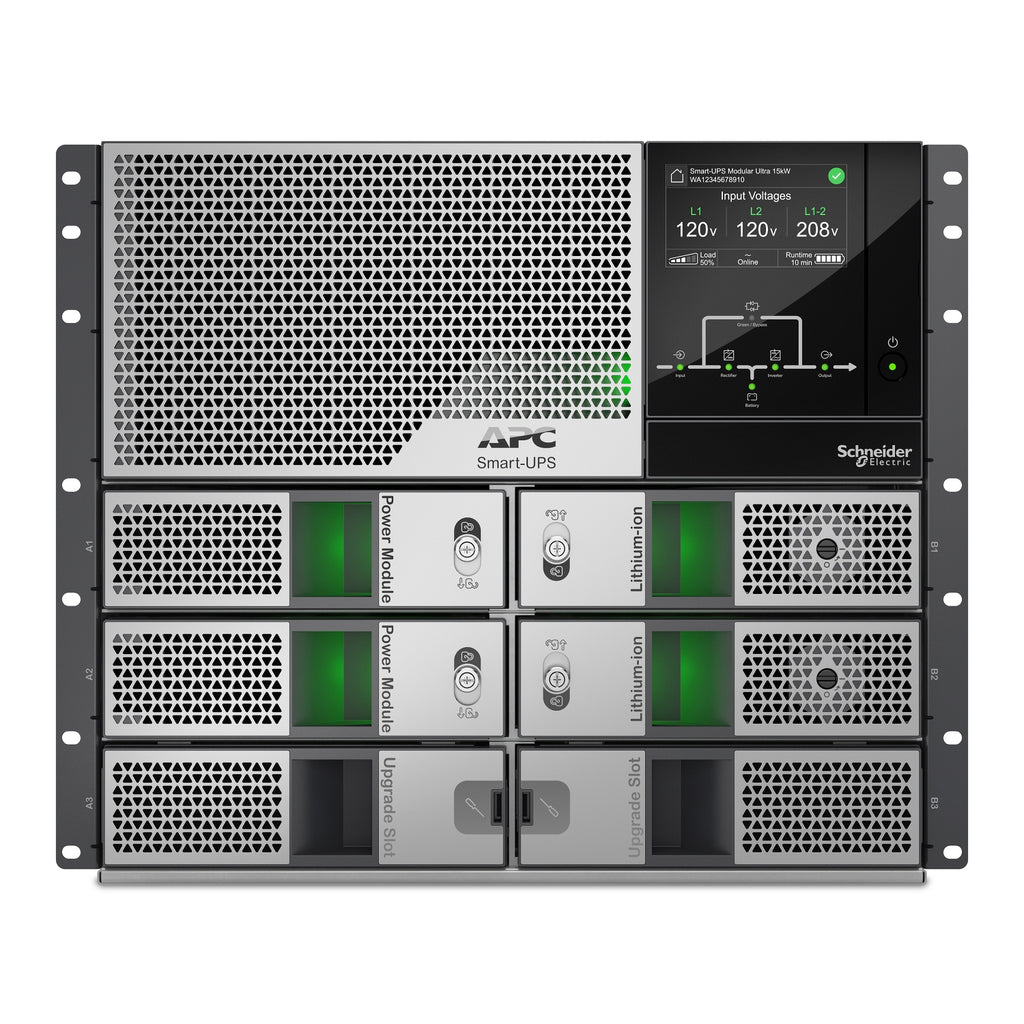

APC Smart-UPS™ Modular Ultra SRYL10K15RMXLT delivers next-gen performance and scalability in a compact 9U rackmount chassis. Engineered with 2x 5kW power modules and 2 Lithium-ion battery modules, it provides up to 10kW output and is scalable to 15kW using optional modules (sold separately).
Compatible with existing Symmetra LX wiring, the 100A chassis simplifies upgrades and supports legacy infrastructure. With 50% smaller footprint and 60% lighter build, it enables faster, easier installations with fewer personnel.
The system includes a 1-Year Secure Network Management Card and boasts ENERGY STAR® V2.0 certification, offering industry-leading sustainability and a lower total cost of ownership.
| Specification | Details |
|---|---|
| Model | SRYL10K15RMXLT |
| Power Capacity (kW/VA) | 10kW / 10kVA (Scalable to 15kW/15kVA) |
| Form Factor | 9U Rackmount |
| Battery Type | Lithium-ion (Li-Ion) |
| Included Battery Modules | 2 Installed (2 slots free) |
| Included Power Modules | 2 Installed (2 slots free) |
| Redundancy | Yes |
| Input Voltage | 208/240V, 4-wire (2PH+N+G) |
| Output Voltage | 120V / 208V / 240V |
| Topology | Online Double Conversion |
| Efficiency | ENERGY STAR V2.0 Certified |
| Mounting Options | Rack, Front, Rear, Side Mountable |
| Dimensions (HxWxD) | 15.4 x 17.3 x 27.6 in (390 x 440 x 700 mm) |
| Net Weight | 201.7 lb (91.5 kg) |
| Run Time at Full Load | 5 minutes 35 seconds |
| Control Interface | Touchscreen LCD + Network Mgmt Card |
| EPO (Emergency Power Off) | Yes |
| Operating Temp. | 32–104°F (0–40°C) |
| Certifications | ENERGY STAR, CULus, FCC |
| Warranty | 5 Years |
| GTIN | 731304420125 |
