Description

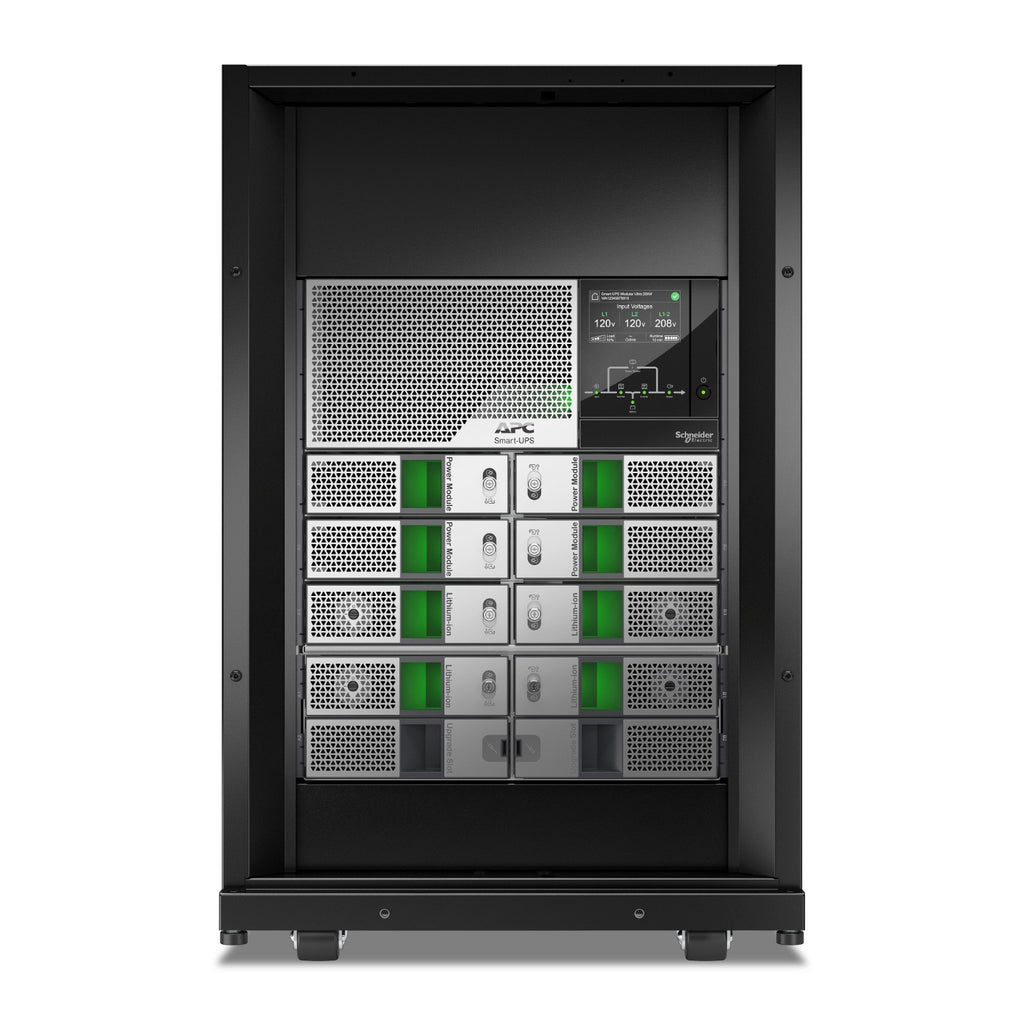

The APC Smart-UPS Modular Ultra Tower (SRYL20K20XLT18) delivers scalable, high-density power protection for edge and enterprise environments. Designed to be 50% smaller and lighter, this 18U modular UPS features four 5kW power modules and four lithium-ion battery modules, offering up to 20kW of power in a compact footprint. It supports live-swapping of modules for reduced downtime and includes a 1-year secure network management card subscription for remote monitoring. This is the most sustainable modular UPS in its class, providing best-in-class carbon footprint reduction and unmatched installation flexibility.
| Category | Details |
|---|---|
| Model | SRYL20K20XLT18 |
| UPS Type | Modular Ultra, Online Double Conversion |
| Power Capacity | 20,000W / 20,000VA |
| Power Modules | 4 (5kW each, included) |
| Battery Modules | 4 (Lithium-ion, included) |
| Input Voltage | 208V / 240V AC |
| Output Voltage | 120V / 240V AC |
| Input Connection | Hard Wire 4-wire (2PH+N+G) |
| Form Factor | Tower, 18U |
| Mounting Location | Front |
| Scalability | Scalable to 20kW N+1 |
| Run Time (Full Load) | ~5 mins at 20kW |
| Bypass | Built-in Bypass |
| Battery Design Life | 8–10 years |
| Operating Temp | 0 to 40°C (32 to 104°F) |
| Noise Level | 68 dB |
| Certifications | ENERGY STAR V2.0 (USA) |
| Pre-installed Network Card | Yes (SmartSlotâ„¢) |
| User Interface | Touch Screen LCD |
| Emergency Power Off (EPO) | Yes |
| Dimensions (HxWxD) | 37.09 x 23.6 x 35.4 in (942 x 600 x 900 mm) |
| Net Weigh |
