Description

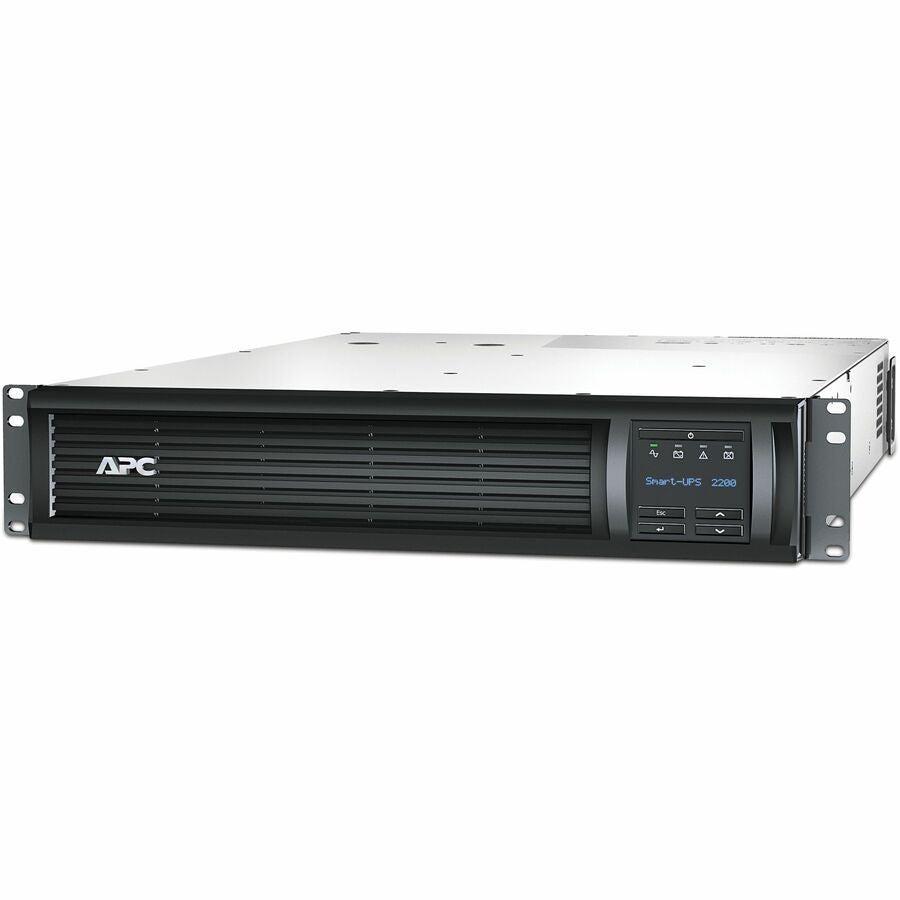

The APC Smart-UPS SMT2200RM2UNC is a high-performance 2U rackmount uninterruptible power supply designed to protect critical IT infrastructure. With a capacity of 2200VA/1920W, it delivers pure sine wave power via line interactive topology and features automatic voltage regulation (AVR) to correct fluctuations without battery usage. This UPS includes 6 NEMA 5-15R and 2 NEMA 5-20R outlets and comes with a preinstalled Network Management Card for real-time monitoring and remote management.
Designed for servers, storage systems, VoIP setups, and retail POS environments, it offers enhanced network protection and includes PowerChute Network Shutdown for seamless VM and server protection. The SMT2200RM2UNC also supports APC's RBC43 replacement battery for restoring performance and includes a 3-year UPS and 2-year battery warranty.
| Category | Details |
|---|---|
| Model | SMT2200RM2UNC |
| Topology | Line Interactive |
| Form Factor | Rackmount 2U |
| Input Voltage | 120V |
| Input Connection | NEMA 5-20P |
| Output Voltage | 120V |

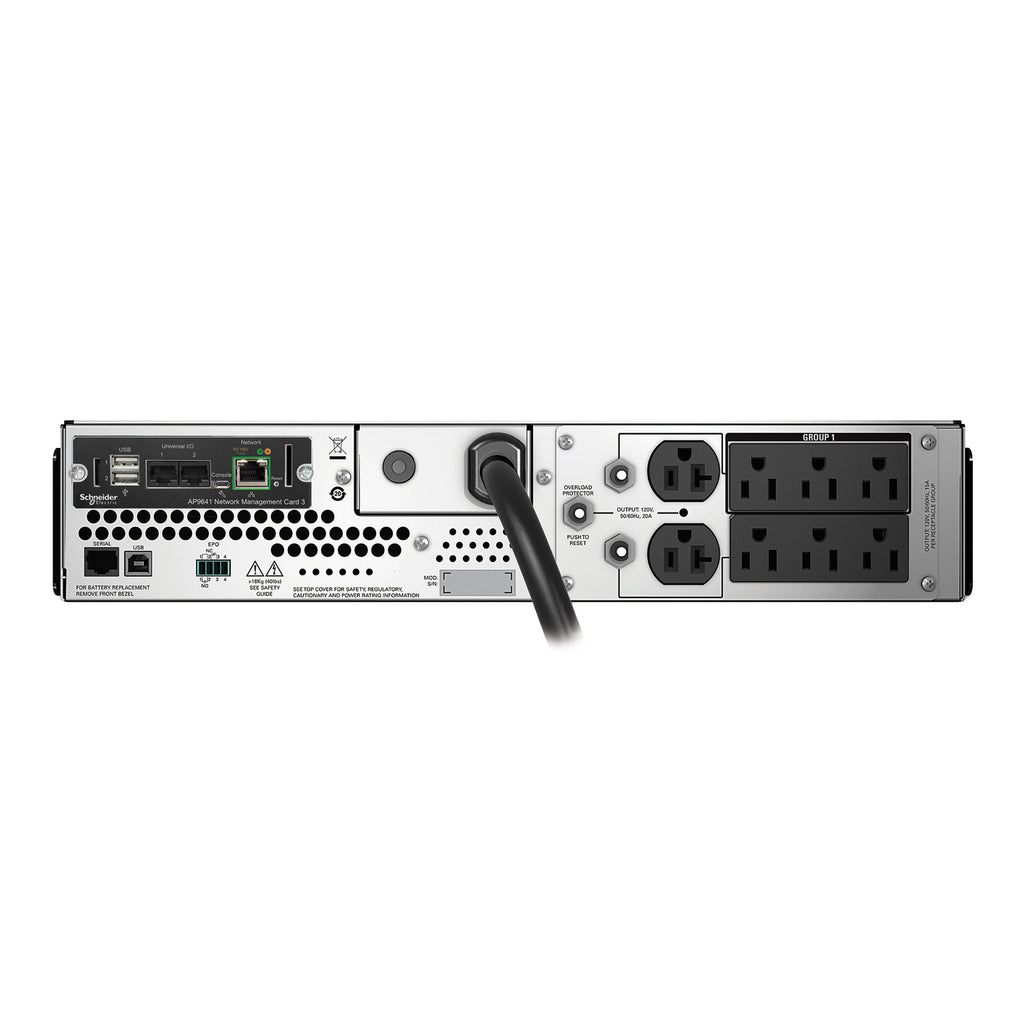

| Output Connections | 6x NEMA 5-15R, 2x NEMA 5-20R |
| Power Capacity | 2200VA / 1920W |
| Waveform Type | Sine Wave |
| AVR | Yes |
| Battery Type | Lead-Acid |
| Replaceable Battery | Yes (RBC43) |
| Recharge Time | Approx. 3 hours |
| Runtime (Full Load) | 5 min 23 sec @ 1920W |
| Communication Ports | USB, Serial, SmartSlot |
| Pre-installed Card | Network Management Card 3 (with Env. Monitoring) |
| Display | Multifunction LCD |
| Mounting Kit | Included |
| Color | Black |

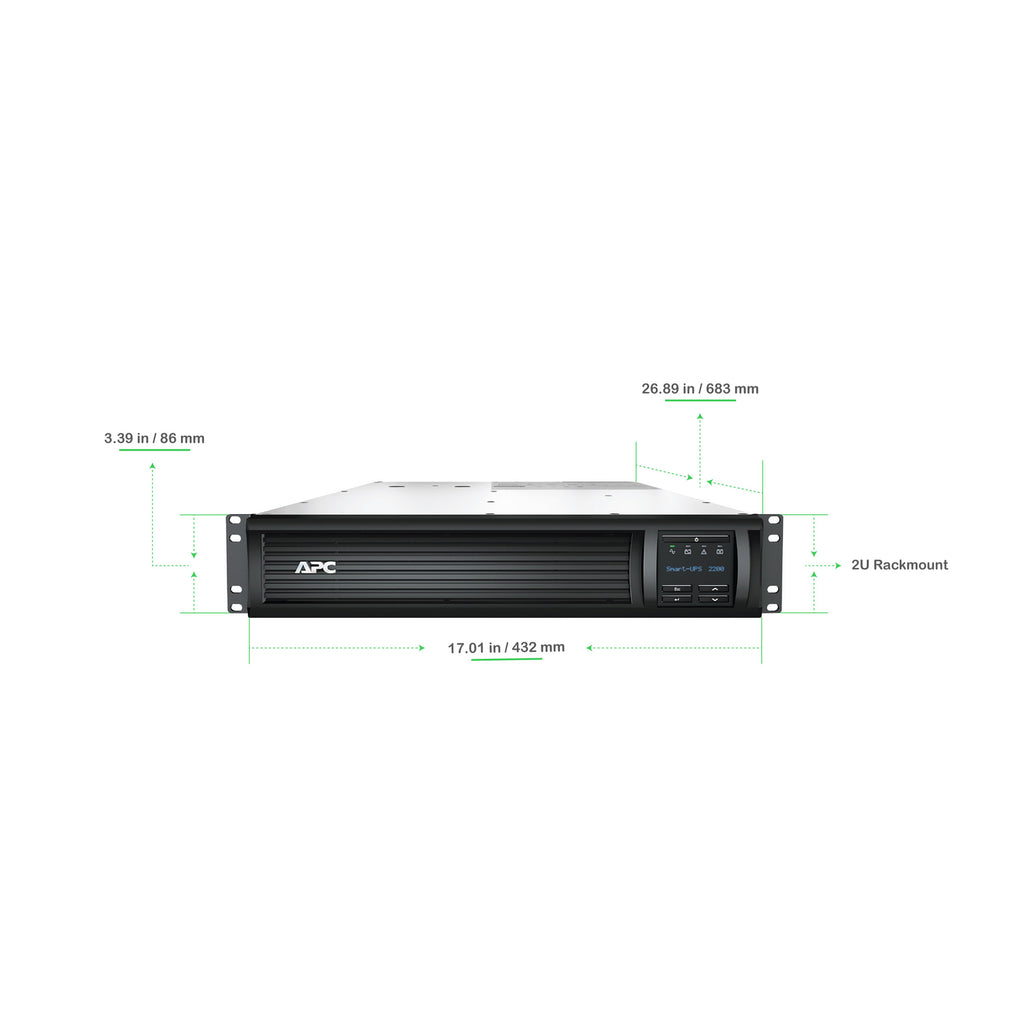

| Dimensions (H x W x D) | 3.39 x 17.01 x 26.89 in |
| Weight | 93.28 lbs (42.31 kg) |
| Operating Temp | 32 to 104°F (0 to 40°C) |
| Certifications | CSA |
| Warranty | 3 years (UPS), 2 years (Battery) |
| Replacement Battery Price | $549 (RBC43) |
| Equipment Protection | Lifetime up to $150,000 |
