Description
The APC Smart-UPS RT SURTD2200XLIM delivers reliable, double-conversion online power protection for marine and transport environments. With a 2200VA/1540W power capacity, it features 8x IEC C13, 2x IEC C19 outlets, and includes a hot-swappable lead-acid battery cartridge (APCRBC140). DNV-type approved and designed for high-temperature operation up to 55°C, this rugged 3U rackmount UPS supports mission-critical equipment in harsh conditions. It includes a manual bypass switch, surge protection, and user-replaceable battery modules for uninterrupted uptime and easy maintenance.
| Category | Details |
|---|---|
| Model | SURTD2200XLIM |
| Topology | Double Conversion Online |
| Form Factor | 3U Rackmount |
| Input Voltage | 230V (220V / 240V configurable) |
| Input Frequency | 50/60 Hz auto-sensing |
| Output Voltage | 230V (Configurable 220V/240V) |
| Power Capacity | 2200VA / 1540W |
| Battery Type | Lead-Acid, Hot-swappable, User-replaceable (APCRBC140) |
| Included Battery Modules | 2 |
| Extendable Runtime | Yes (1 battery pack) |
| Typical Recharge Time | 2.5 hours |

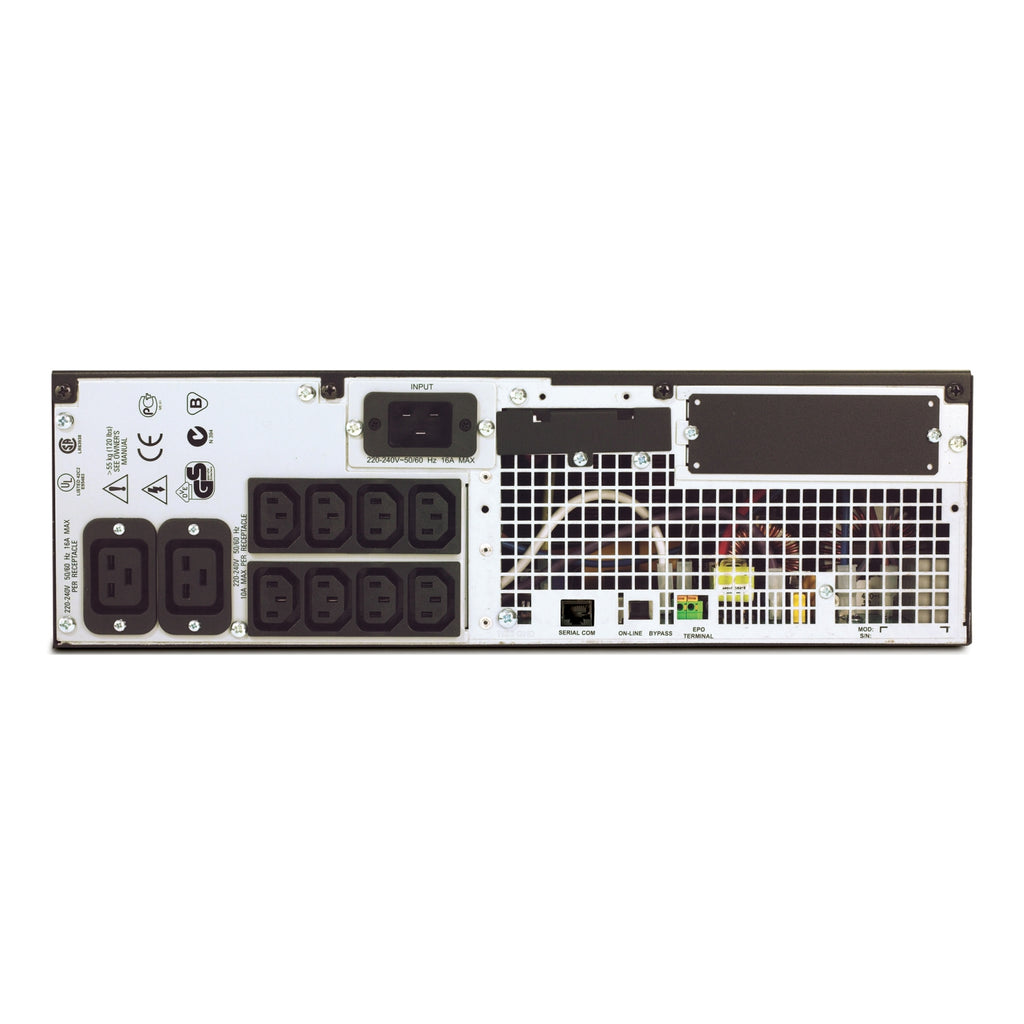

| Output Connections | 8 × IEC C13, 2 × IEC C19, 2 × IEC Jumpers |
| Input Connections | BS1363A, IEC C20, Schuko CEE 7 / EU1-16P |
| Surge Protection | 555 Joules |
| Manual Bypass Switch | Yes |
| Certifications | CE, DNV, KCC |
| Operating Temperature | 0°C to 55°C |
| Audible Noise | 55 dBA |
| Height | 17.01 in (43.2 cm) |
| Width | 5.12 in (13 cm) |
| Depth | 25.98 in (66 cm) |
| Weight | 120.26 lb (54.55 kg) |
| Included Accessories | Rack kit, software CD, mounting hardware, user manual, RS-232 cable |
| Warranty | 2-year repair or replace (extendable) |
