Description

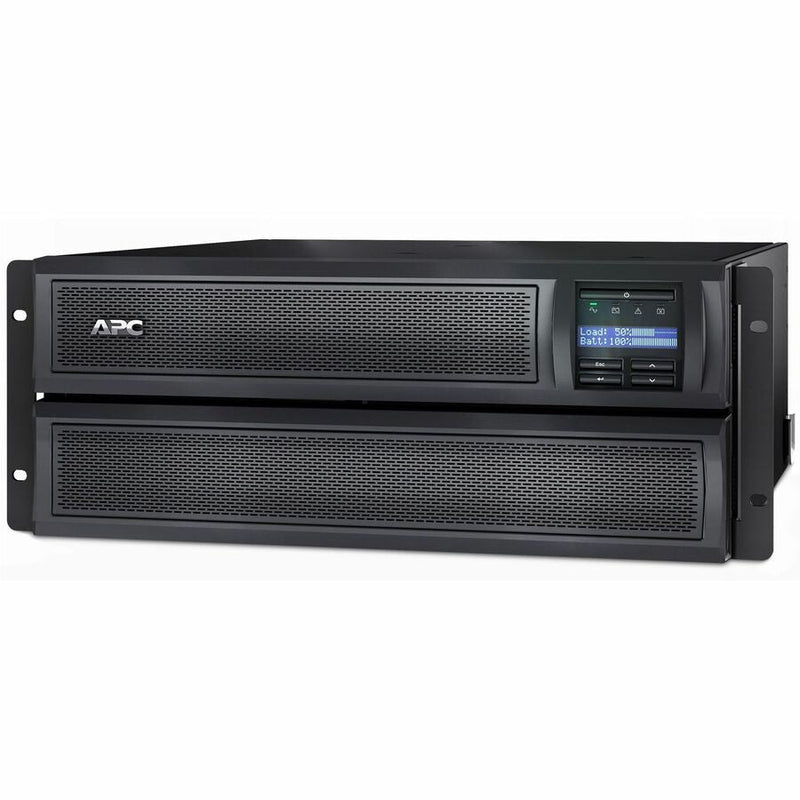

The APC Smart-UPS SMX3000RMX93 is a line interactive 3kVA/2700W UPS designed to deliver reliable power and runtime for critical IT systems. Ideal for shipboard and industrial applications, it offers flexible mounting in 4U rack or tower configurations. Featuring pure sine wave output, user-selectable voltage, and the ability to add up to 10 external battery packs (SMX120BP), this UPS ensures continuous uptime. The unit includes 10 total outlets with a mix of NEMA 5-15R, 5-20R, and L5-30R sockets, and supports remote management with optional network cards. It features EPO, switchable outlet groups, and is compatible with PowerChute Serial Shutdown. Includes rack and tower mounting hardware.
| Category | Details |
|---|---|
| Model | APC Smart-UPS SMX3000RMX93 |
| Form Factor | Rack/Tower Convertible (4U) |
| Topology | Line Interactive, Pure Sine Wave |
| Rated Power | 2880 VA / 2700 W |
| Input Voltage | 120V (Selectable 100–127V) |
| Input Connection | NEMA L5-30P |

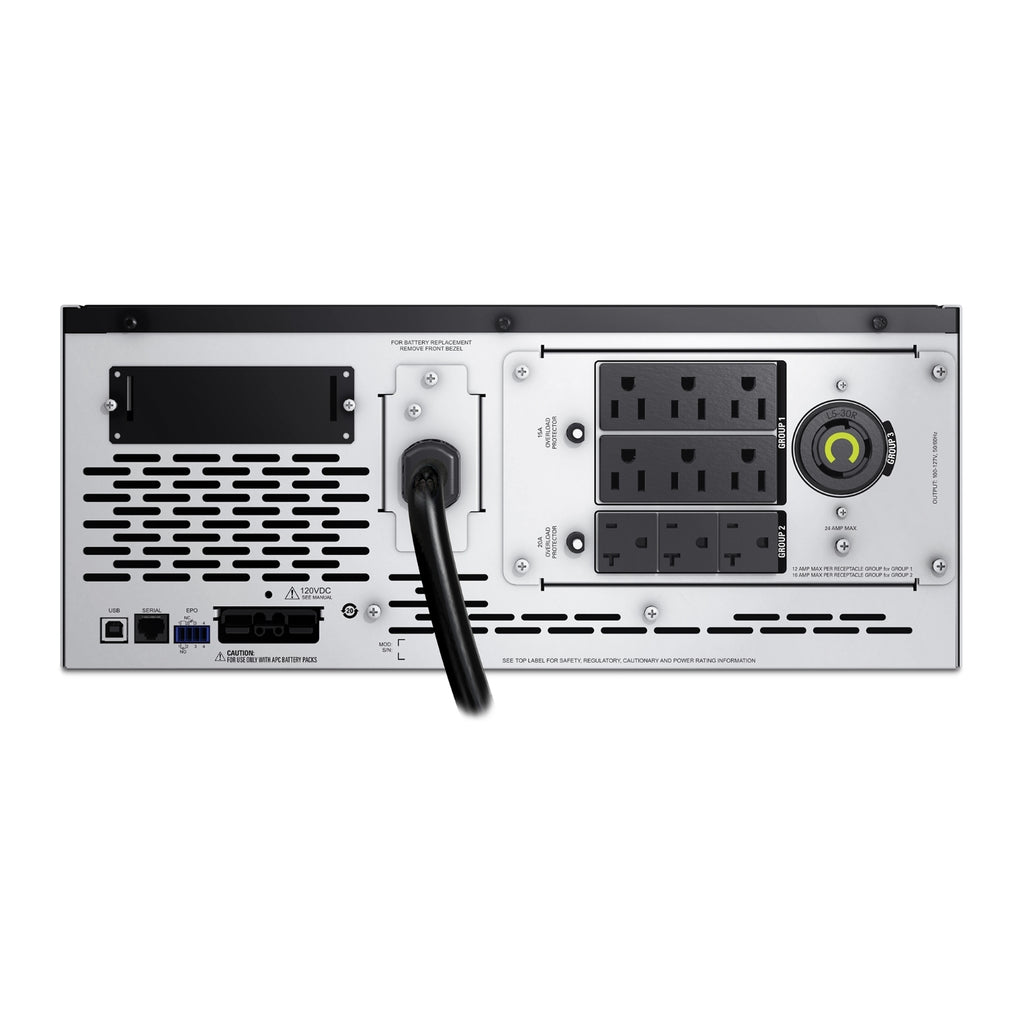

| Output Connections | 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| Battery Type | Lead-Acid (Hot-swappable, user-replaceable) |
| Replacement Battery | APCRBC117 |
| Extendable Runtime | Yes (Supports up to 10 SMX120BP battery packs) |
| Runtime (Full Load) | ~6 minutes at 2700W |
| Recharge Time | ~3 hours |
| Management Options | SmartSlot for optional NMC, USB/Serial ports |
| Emergency Power Off (EPO) | Yes |
| Mounting Accessories | Included: Tower feet and Rack brackets |
| Dimensions (HxWxD) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Net Weight | 85.19 lbs (38.64 kg) |
| Operating Temp. | 0 to 40°C (32 to 104°F) |
| Certifications | TAA Compliant, BSMI |
| Warranty | 3-Year UPS / 2-Year Battery |
