Description

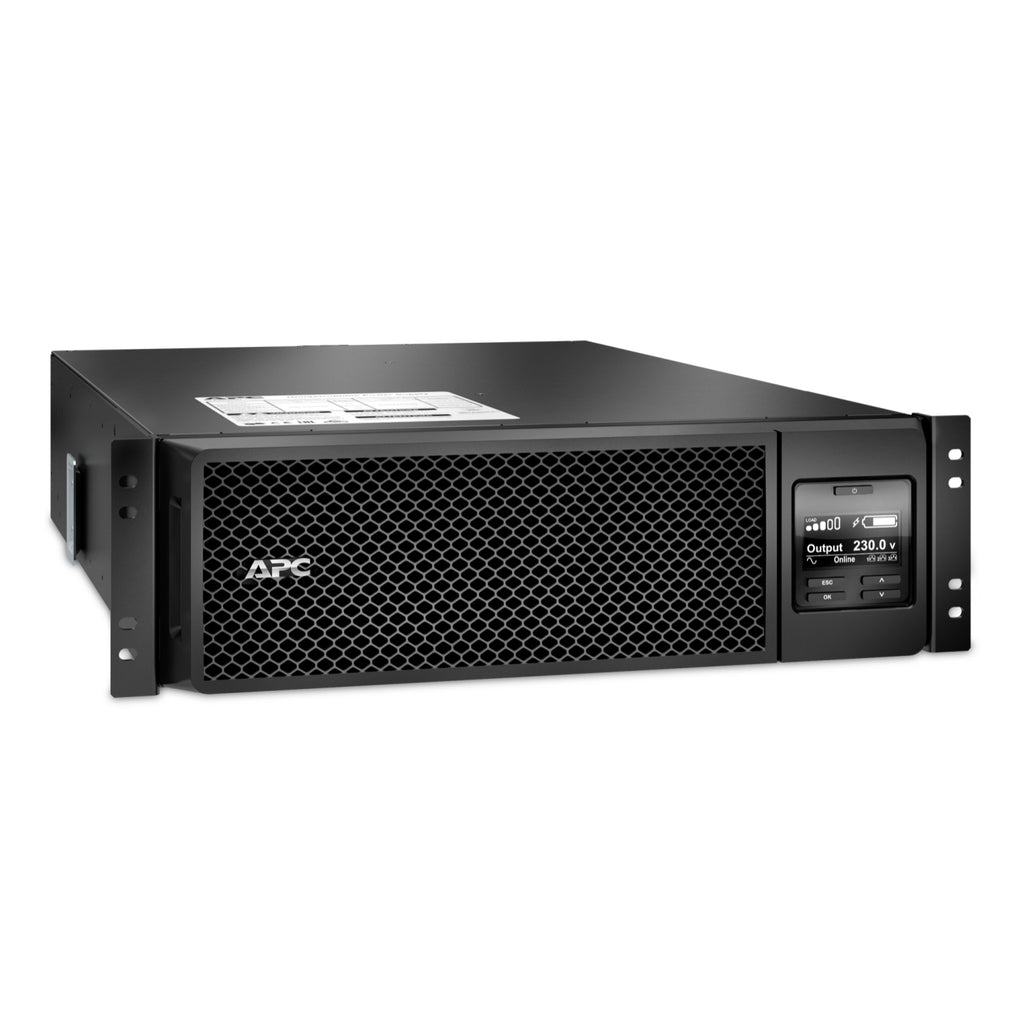

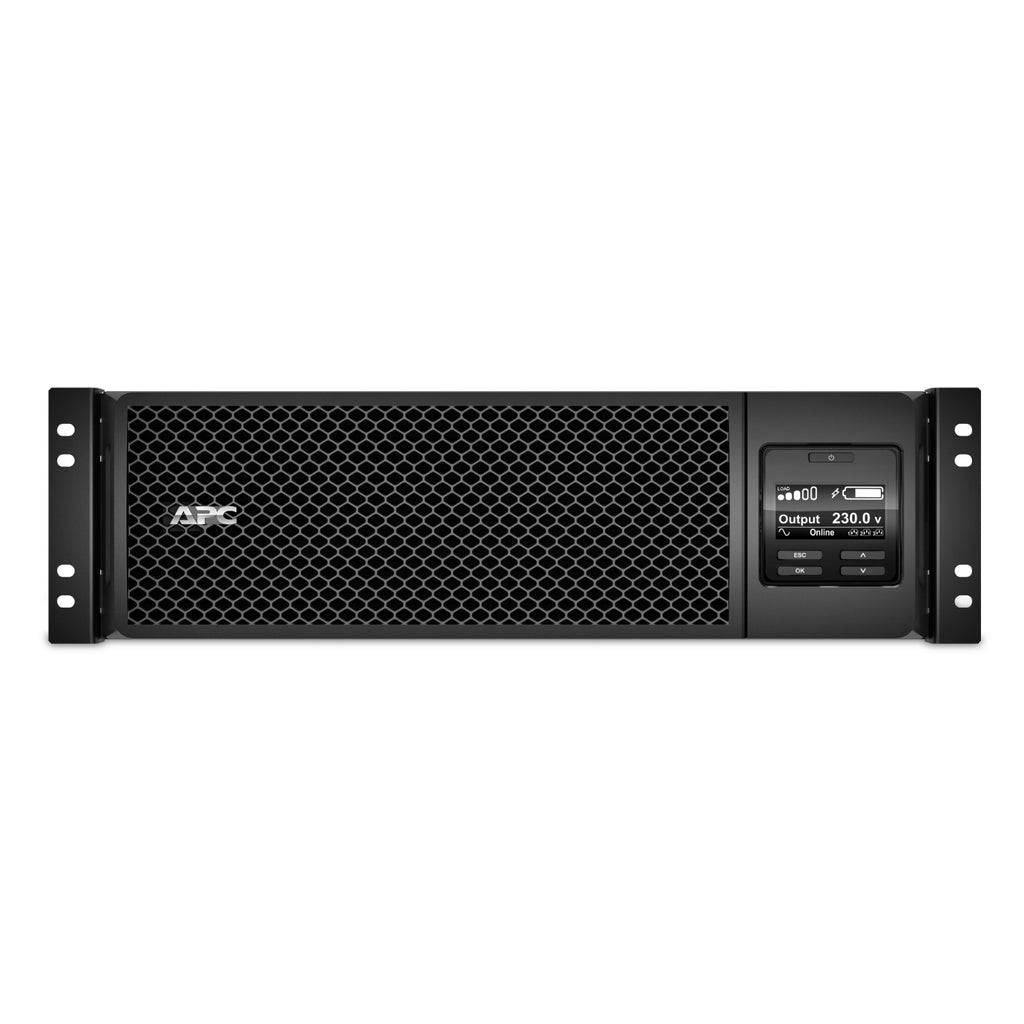

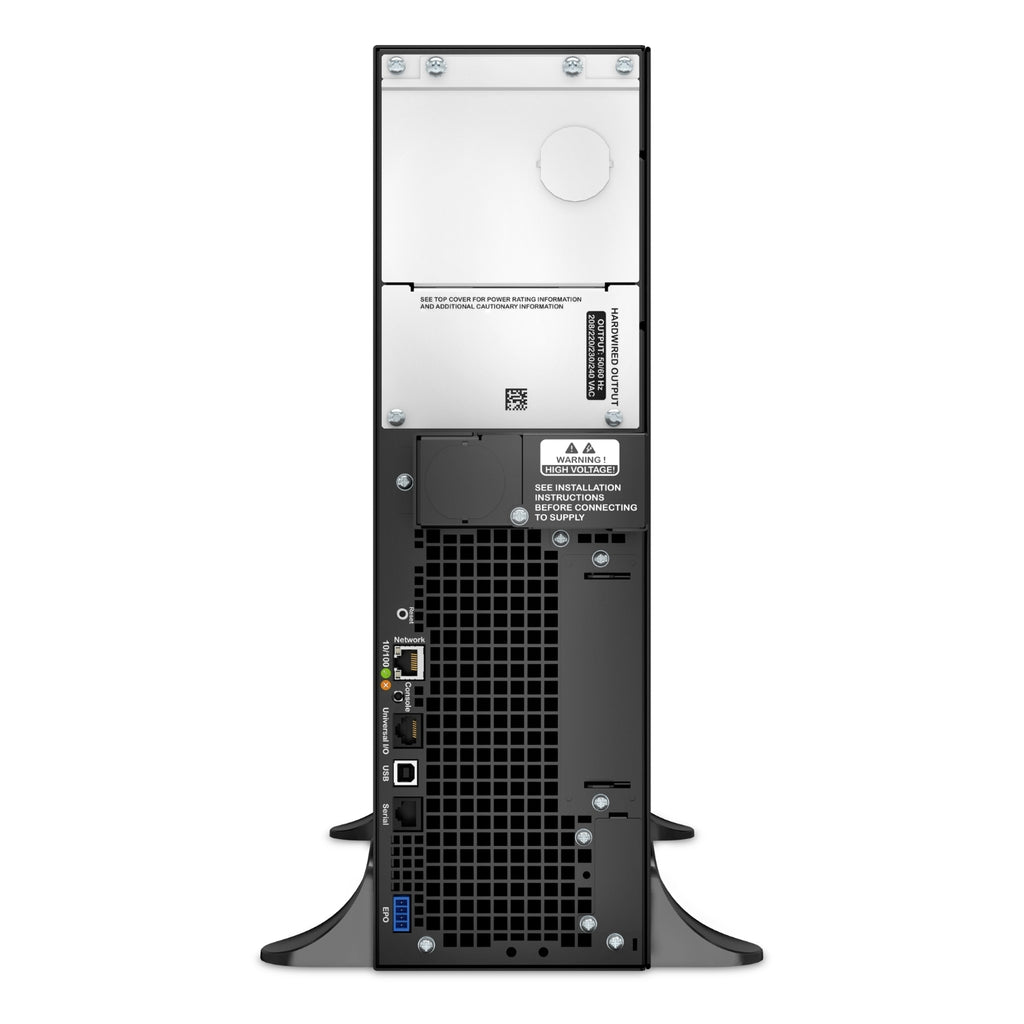

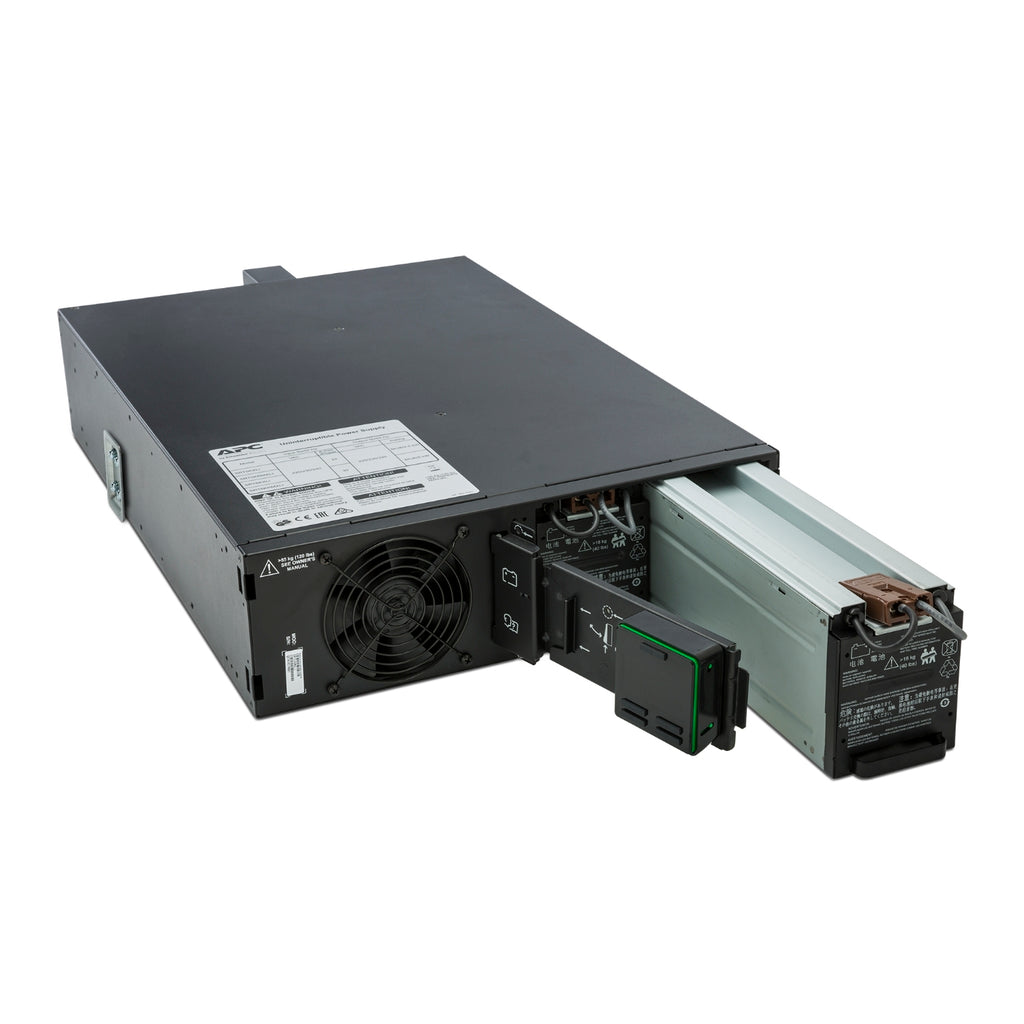

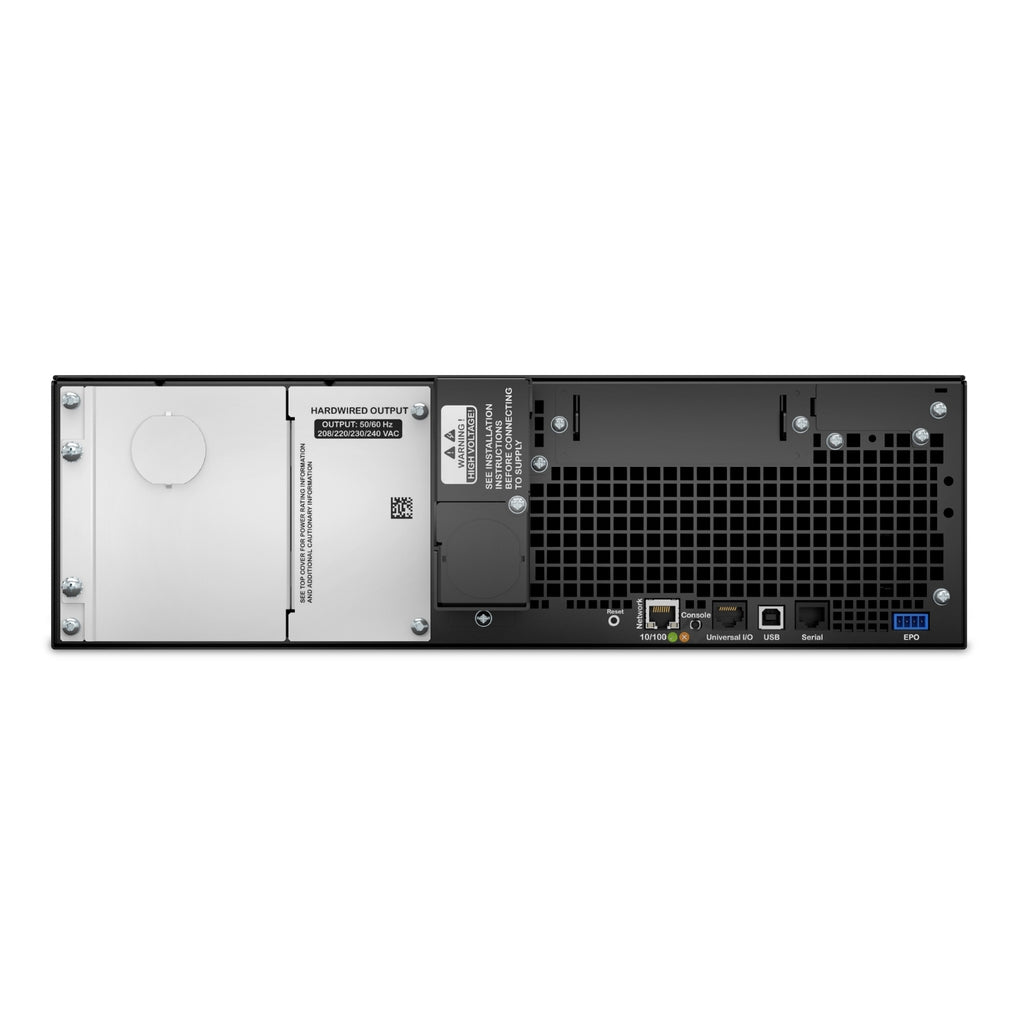

The APC Smart-UPS On-Line SRT5KRMXLW-HW delivers reliable, scalable power protection for mission-critical equipment. This 5kVA/4.5kW double-conversion online UPS provides pure sine wave output in a compact 3U rackmount form. Ideal for IT, data centers, labs, and industrial environments, it includes a pre-installed Network Management Card for remote monitoring and control. Featuring hard-wired input/output, a SmartSlot for expansion, and support for up to 10 external battery packs (SRT192RMBP), it ensures uninterrupted power and extended runtime. Comes with rail kit and 3-year warranty (2-year battery).
| Category | Details |
|---|---|
| Model | SRT5KRMXLW-HW |
| Form Factor | 3U Rackmount (Rail kit included) |
| Power Capacity | 5kVA / 4.5kW |
| Input Voltage | 208V, 230V (Hardwire 3-wire: 2PH+G / 1PH+N+G) |
| Output Voltage | 208V, 230V (Hardwire 3-wire: H+N+E / H+N+G / 2PH+G) |
| Topology | Double Conversion Online |
| Waveform | Pure Sine Wave |
| Battery Type | Lead-Acid, 192V |
| Runtime Extension | Supports up to 10x SRT192RMBP battery packs |
| Replacement Battery | APCRBC140 |
| Battery Recharge Time | 1.5 hours |
| Communications | Pre-installed NMC3, 1 SmartSlot |
| Certifications | CE, UL 1778, ENERGY STAR V2.0, RCM, NOM, etc. |
| Environment | 0–40°C operation, 0–95% RH |
| Dimensions (HxWxD) | 13cm x 43.2cm x 71.9cm |
| Weight | 55.79 kg (UPS), 68.04 kg (packaged) |
| Warranty | 3 Years UPS, 2 Years Battery |
