Description

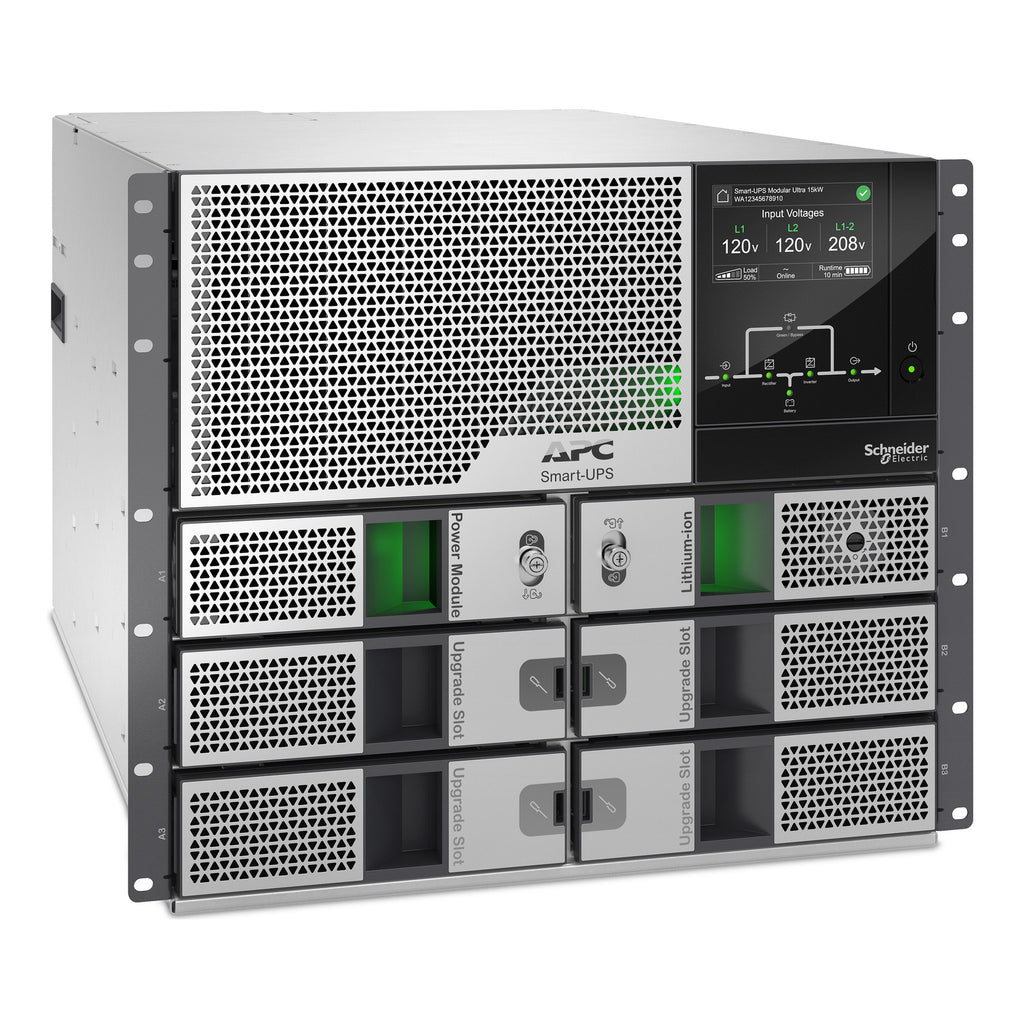

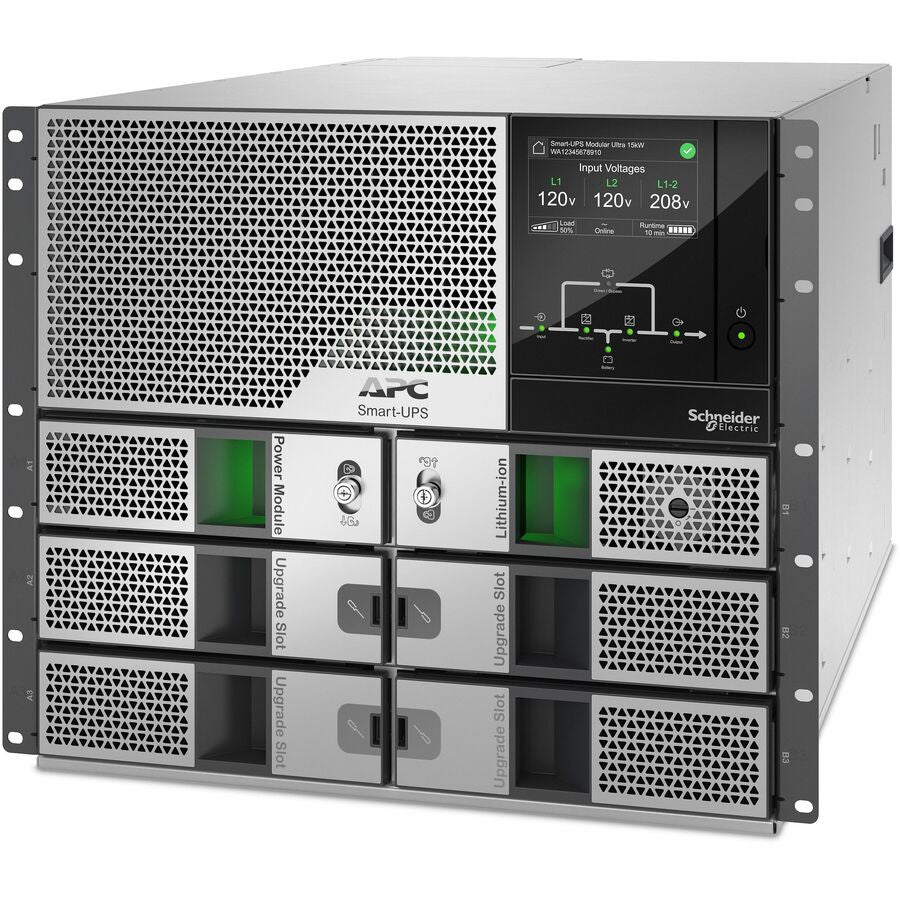

The APC Smart-UPS™ Modular Ultra SRYL5K15RMXLT delivers scalable, high-efficiency power protection in a compact 9U rackmount form factor. With a modular 5kW base unit scalable up to 15kW using additional power and battery modules (sold separately), it offers superior power density—up to 2.5x more than traditional UPS systems. The lithium-ion battery technology reduces weight by 60% and size by 50%, making installation faster and easier. Designed for backward compatibility with Symmetra LX wiring, it features EcoStruxure™ connectivity, a 1-year secure network management card subscription, and a 5-year warranty.
| Category | Details |
|---|---|
| Model | SRYL5K15RMXLT |
| Power Rating | 5kW base, scalable to 15kW |
| Form Factor | 9U Rackmount |
| Battery Type | Lithium-Ion (Li-Ion) |
| Input Voltage | 208/240V |
| Output Voltage | 120V / 208V / 240V |
| Topology | On-Line, Double Conversion |
| Waveform Type | Pure Sine Wave |
| Run Time (Full Load) | Approx. 5 min 49s at 5kW |
| Battery Life | 8–10 Years |
| Extendable Runtime | Yes, with additional battery modules |
| Included Modules | 1x 5kW Power Module, 1x Battery Module |
| Empty Module Slots | 4 |
| Management Interface | Network Management Card (1-year subscription), LCD Touchscreen |
| Redundancy | Yes |
| Compatibility | Backward compatible with Symmetra LX wiring |
| Mounting Options | Front, Rear, Side – Horizontal Mount |
| Dimensions (H x W x D) | 15.4 x 17.3 x 27.6 in (390 x 440 x 700 mm) |
| Weight | 159.8 lbs (72.5 kg) |
| Certifications | ENERGY STAR V2.0, cULus, FCC |
| Noise Level | 68 dB |
| Operating Temp. | 0–40 °C (32–104 °F) |
| Warranty | 5 Years |
| GTIN | 731304420118 |
