Description

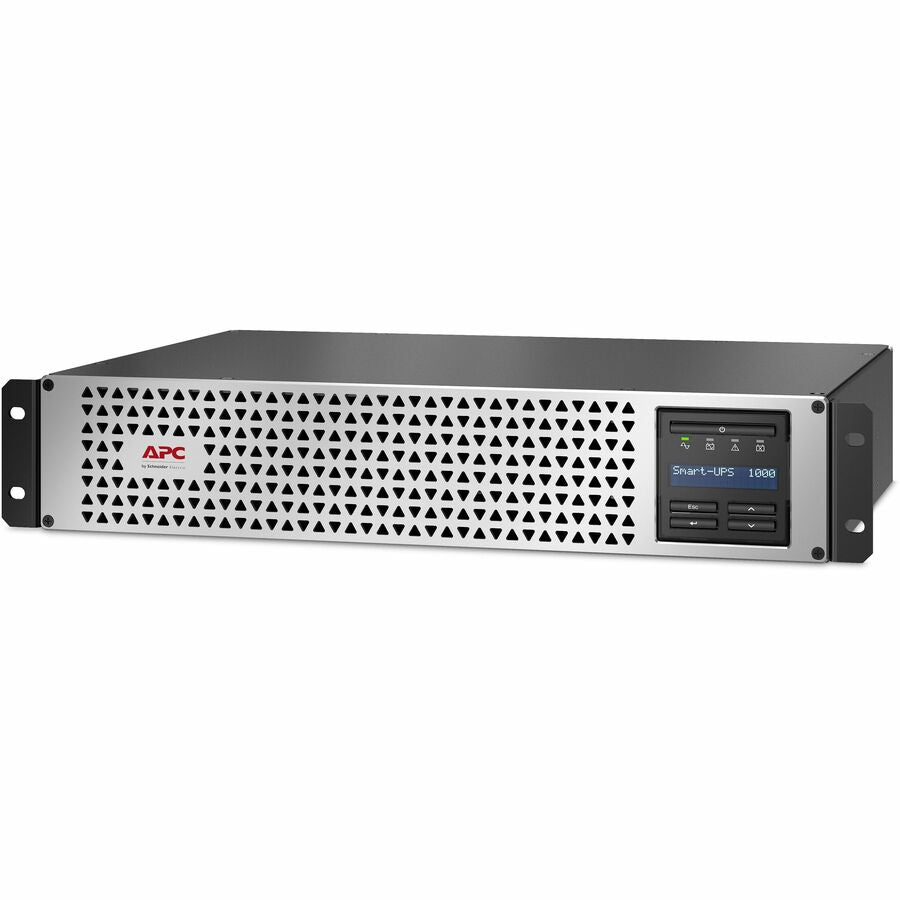

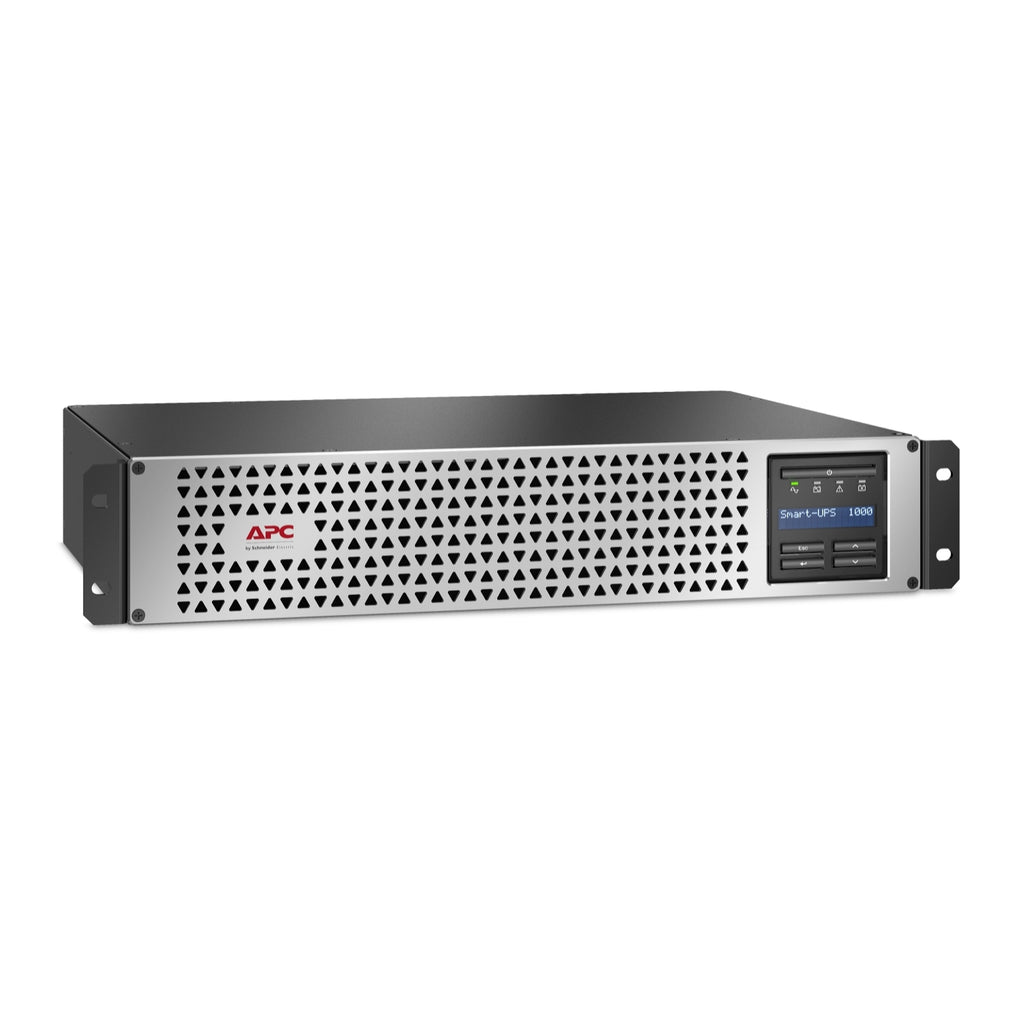

The APC by Schneider Electric SMTL1000RM2UC Smart-UPS is a compact, short-depth 1000VA/800W line interactive UPS ideal for edge computing, IDF/MDF closets, back offices, and network environments. Featuring lithium-ion battery technology, it delivers reliable power, longer battery life, and reduced maintenance over traditional VRLA solutions.
This 2U rackmount/tower convertible UPS includes 6x NEMA 5-15R outlets, SmartConnect cloud monitoring, AVR, sine wave output, and a SmartSlot for advanced network management. It provides excellent surge protection and power conditioning for sensitive IT equipment while occupying minimal rack space. Optional stabilizing feet allow standalone vertical installation (sold separately).
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SMTL1000RM2UC |
| Topology | Line Interactive |
| Form Factor | 2U Rackmount / Tower Convertible |
| Power Capacity | 1000VA / 800W |
| Input Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Output Voltage | 120V |

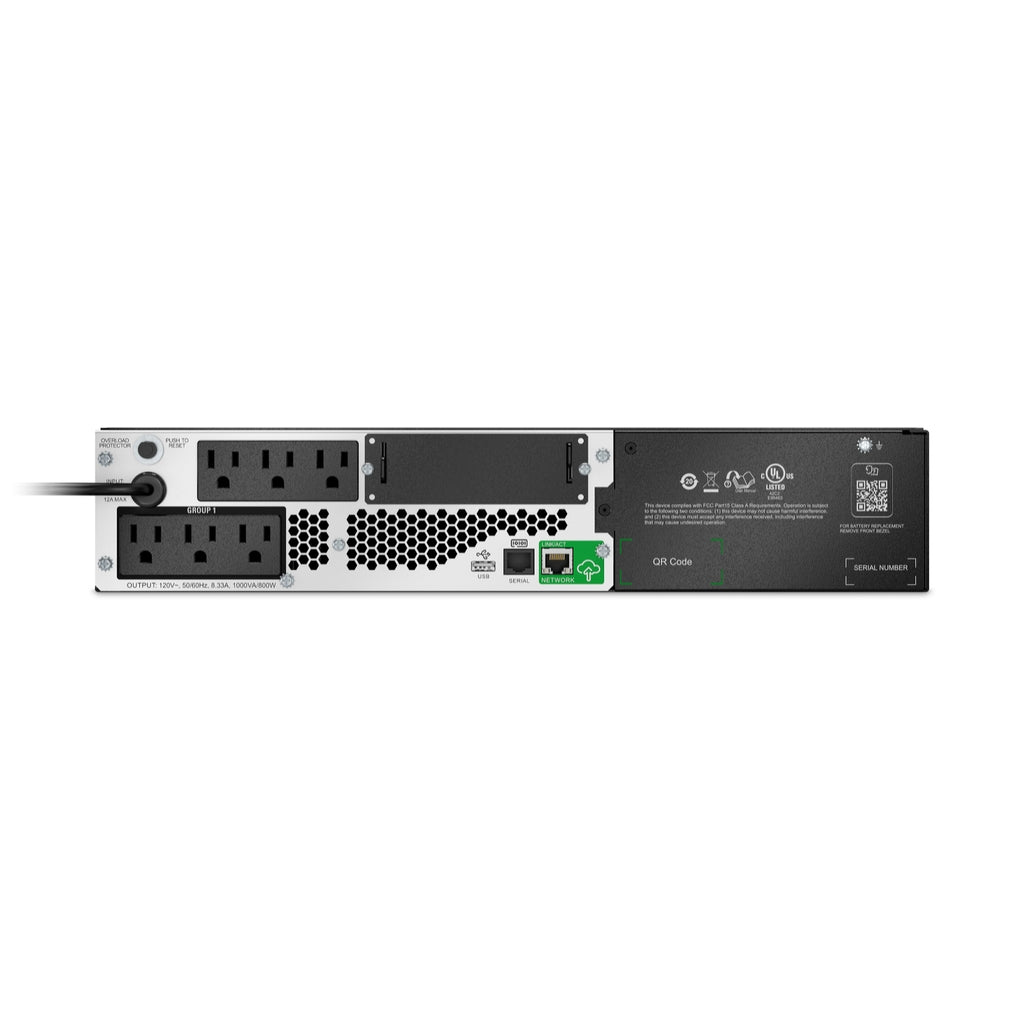

| Output Connections | 6 x NEMA 5-15R |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lithium-ion |
| Battery Life | 8–10 years |
| Recharge Time | 3 hours |
| Runtime (at full load) | ~7 minutes 47 seconds at 800W |
| Communication Ports | SmartConnect Ethernet, SmartSlot, USB |
| Remote Monitoring | EcoStruxure IT Ready, Cloud Monitoring via SmartConnect |

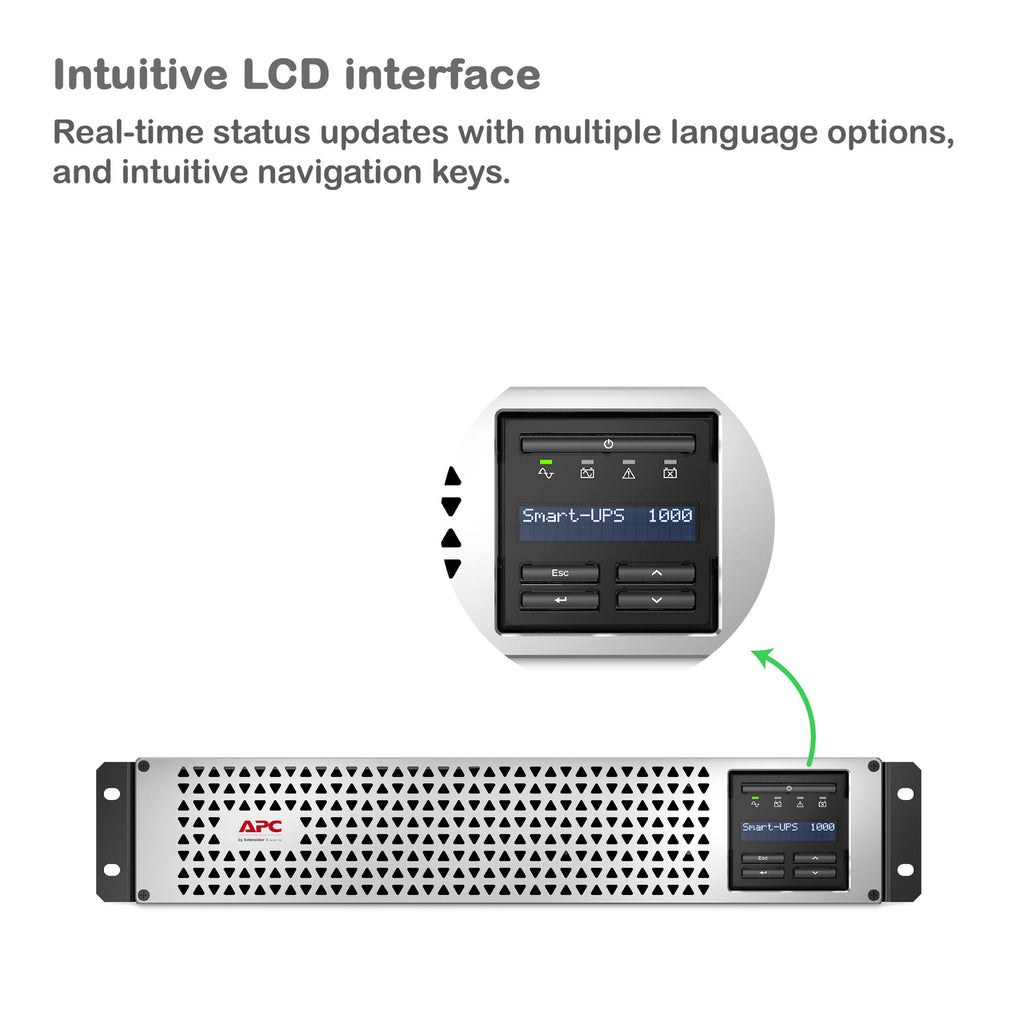

| LCD Display | Multi-function control console |
| Surge Protection | 680 Joules |
| Mounting Accessories | Rack rails included, stabilizing feet optional (SMTL2USF) |
| Color | Black with silver front bezel |

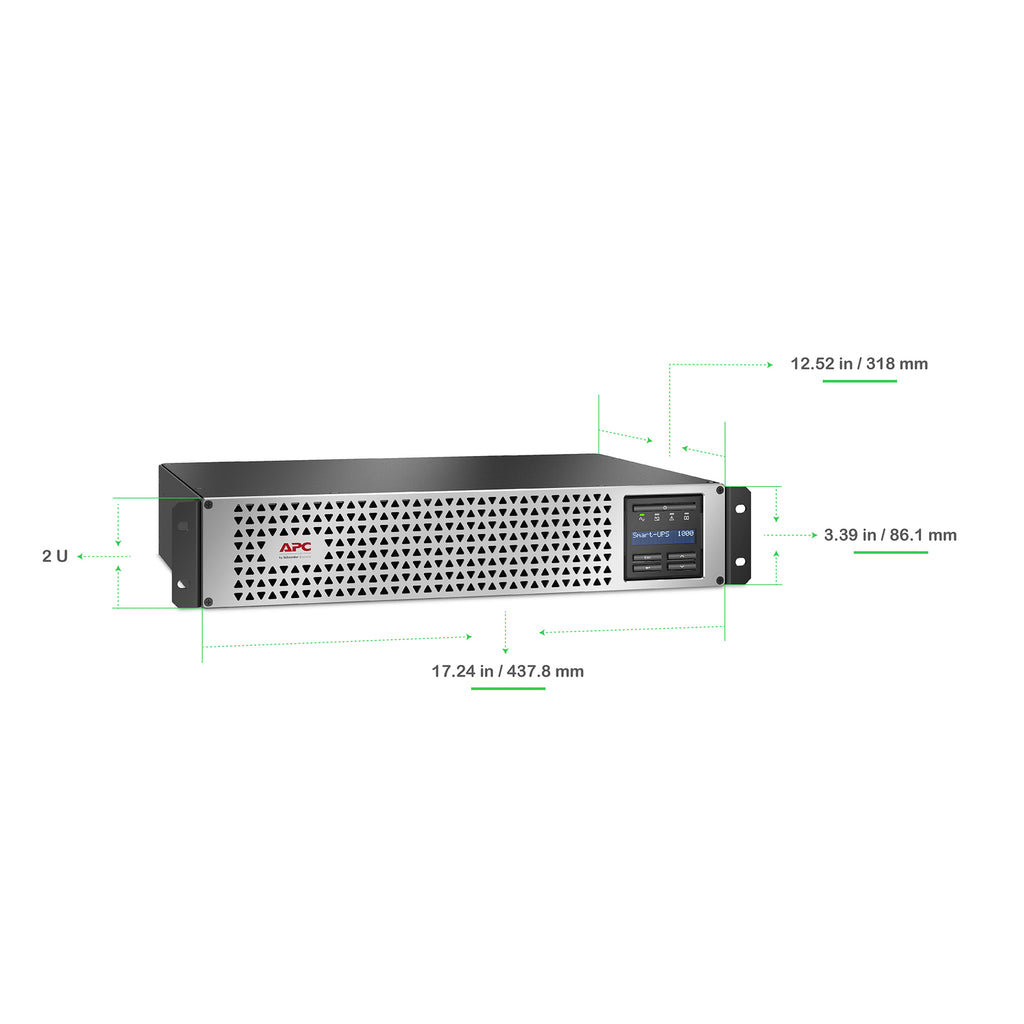

| Dimensions (HxWxD) | 3.39 x 17.24 x 12.52 in (8.6 x 43.8 x 31.8 cm) |
| Net Weight | 36 lbs (16.33 kg) |
| Warranty | 5 Years (UPS and Battery) |
| Certifications | NOM |
| Environmental Compliance | 0–40°C operation, 0–95% RH non-condensing |
| GTIN | 731304341987 |
| Country of Origin | Philippines |
